Panasonic PTL6500U - LCD PROJECTOR User manual

VED0103310C5

D10

LCD Projector

PT-L6500U / PT-L6500E/ PT-L6600U / PT-L6600E/ PT-

L6500UL / PT-L6500EL / PT-L6600UL / PT-L6600EL

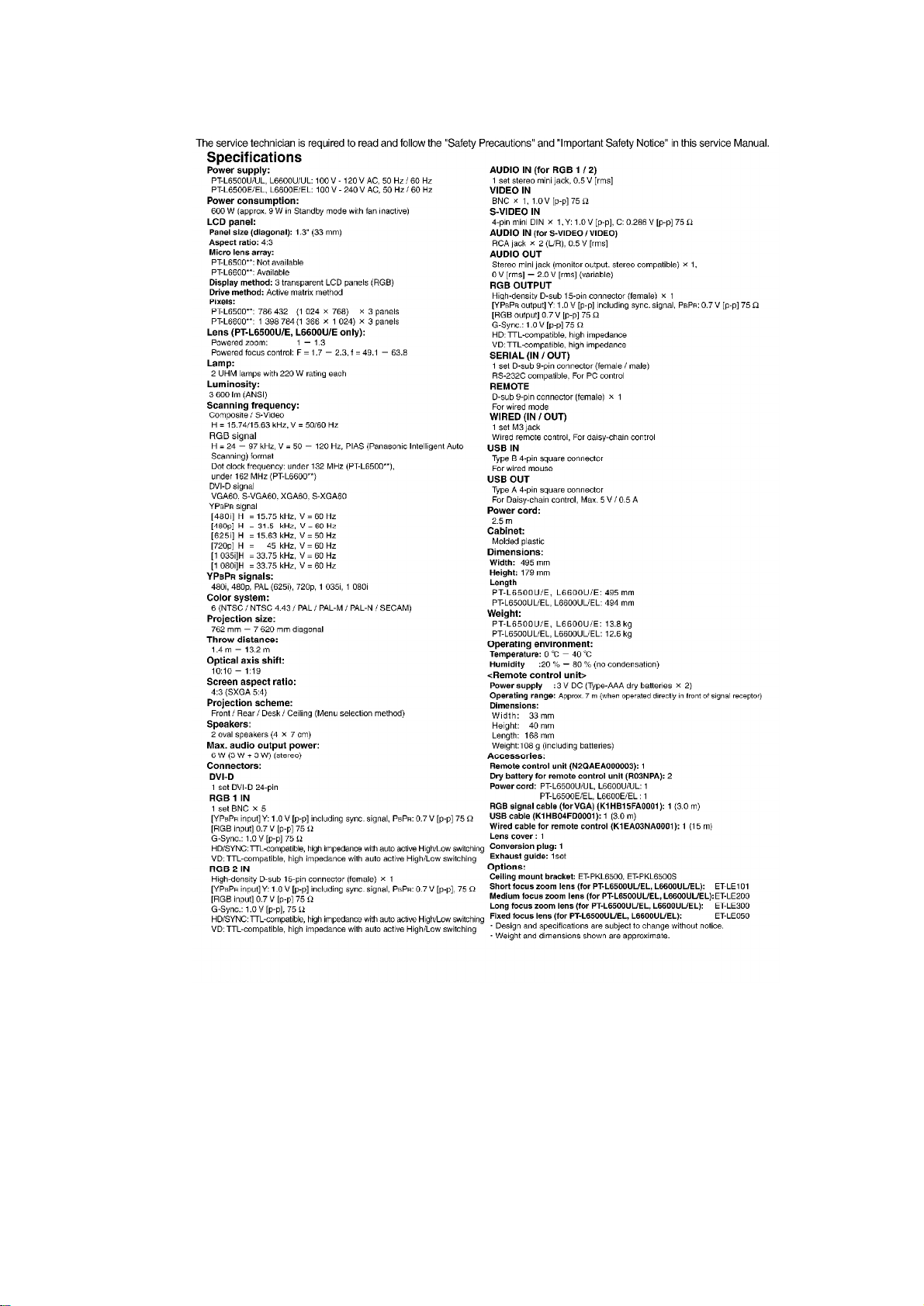

SPECIFICATIONS

1. SafetyPrecautions

1.1. General Guidelines

-Forcontinuedsafety, no modification ofanycircuitmust be

attempted.

-Unplug thepowercordfromthepoweroutlet beforedisassembling

thisprojector.

-Itisadvisabletouse anisolation transformerintheACpowerline

beforetheservice.

-Observetheoriginal leaddress during theservice. Ifashortcircuit

isfound, replace all theparts overheatedordamagedbytheshort

circuit.

-Aftertheservice, all theprotectivedevices suchas insulation

barriers, insulation papers, shields, and isolation R-C

combinationsmust beproperlyinstalled.

-Aftertheservice, check theleakagecurrenttopreventthe

customerfromgetting anelectricshock.

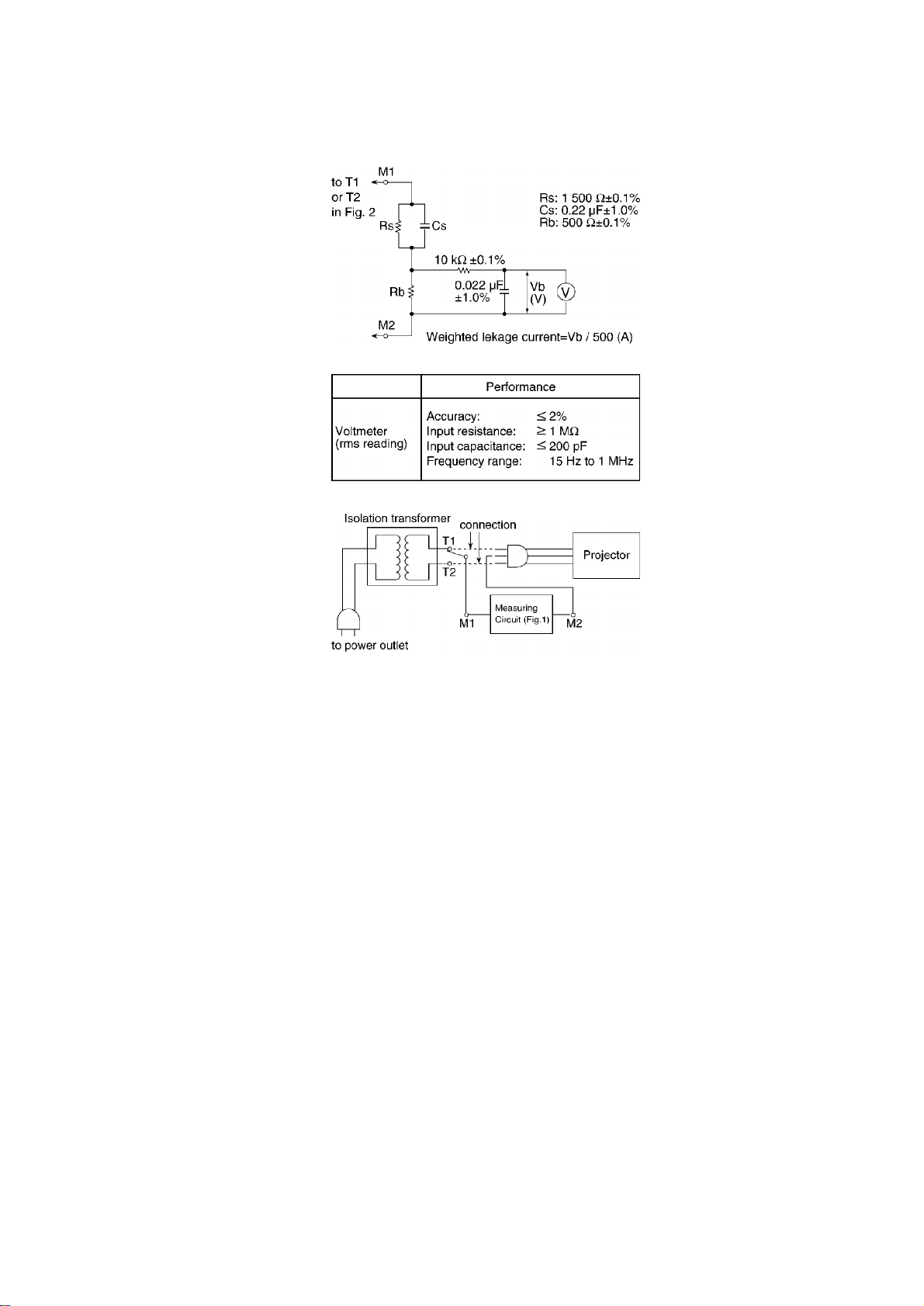

1.2. LeakageCurrentCheck

1. Preparethemeasuring circuitas showninFig.1.

Besuretouse avoltmeterhaving theperformance describedin

Table1.

Fig. 1

Table1

Fig. 2

2. Assemblethecircuitas showninFig. 2. Plug thepowercordina

poweroutlet.

3. Connect M1toT1according toFig. 2and measurethevoltage.

4. Changetheconnection ofM1fromT1toT2and measurethe

voltageagain.

5. Thevoltmetermust read0.375 Vorlowerinbothofsteps3and 4.

Thismeansthat thecurrentmust be0.75 mAorless.

6. Ifthereading isoutoftheabovestandard, theprojectormust be

repairedand recheckedbeforereturning tothecustomerbecause

ofapossibilityofanelectricshock.

1.3. UVPrecaution and UHMLampPrecautions

-Besuretounplug thepowercordfromthepoweroutlet when

replacing thelamp.

-Because thelampreaches averyhigh temperatureduring its

operation, waituntil itcoolscompletelywhenreplacing theLamp

Unit.

-Thelampemits small amounts ofUV-radiation, avoiddirect-eye

contact withthelight.

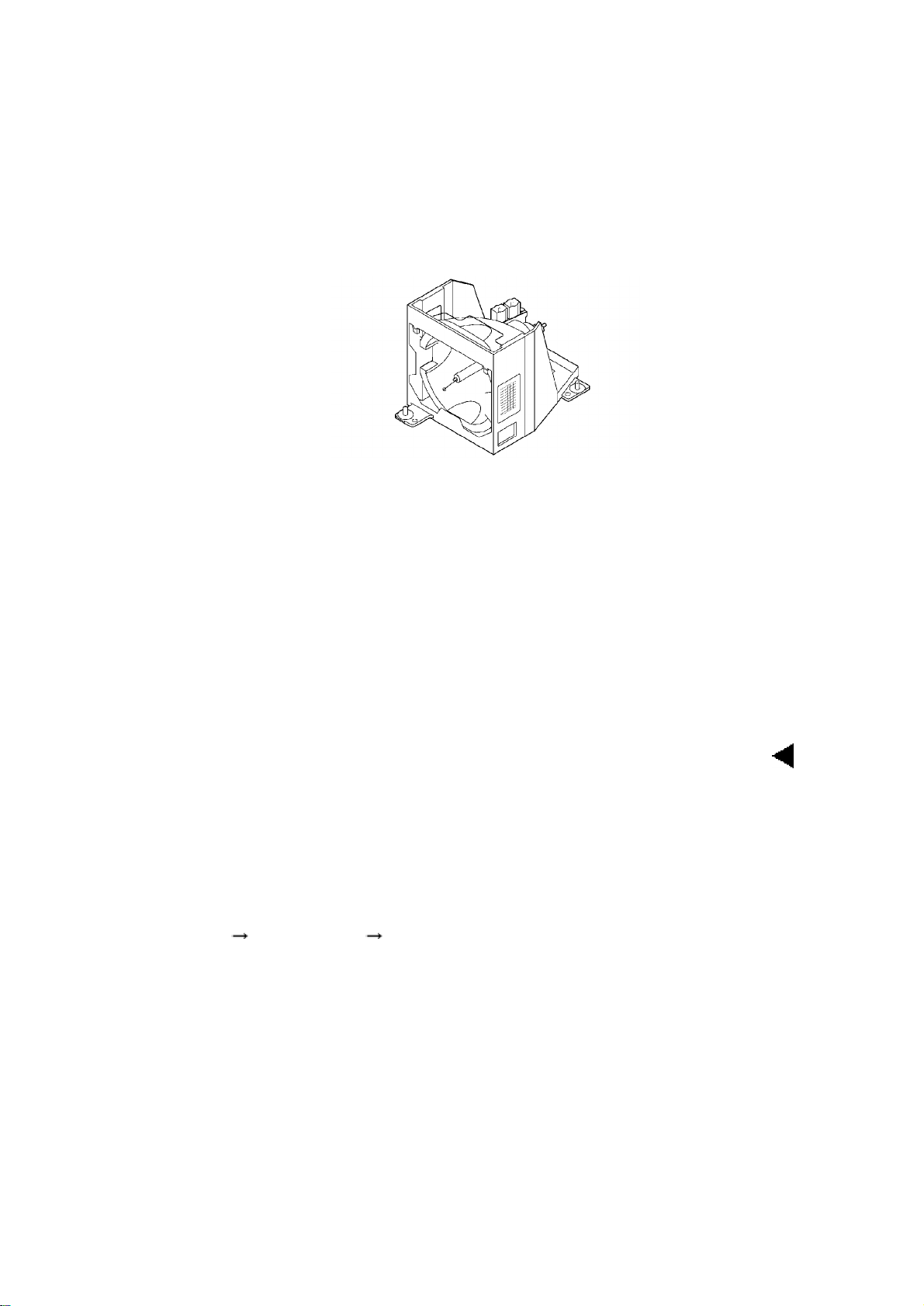

-Because thehigh pressurelampinvolves arisk ofexplosion, never

touchthelampwireleadduring theservice. (See Fig. 3)

Fig. 3

2. Operating Instructions

2.1. Operating Instructions

2.2. GuidetoLensInstallation

3. Self-Check Mode

Thismodeisusedtonarrowdownthelocation ofthefailure.

3.1. Proceduretoentertheself-check mode

Whilepressing theVOLUME "-" button on theremotecontrol unit, press theleft-arrow" "

button on themainunit3secondsor longer.

AnotherMethod

(canbeusedfor hard topress thebutton on themainunit, e. g. installedon theceiling)

1. Select "OSD"on theOPTION1menu.

2. MENU OPTION1OSD

3. Press the"ENTER"button on theremote control unit3secondsor

longerand displaystheservice supportmodemenu.

4. Select "SELFCHECK"and press on the"ENTER"button on the

remote control unit.

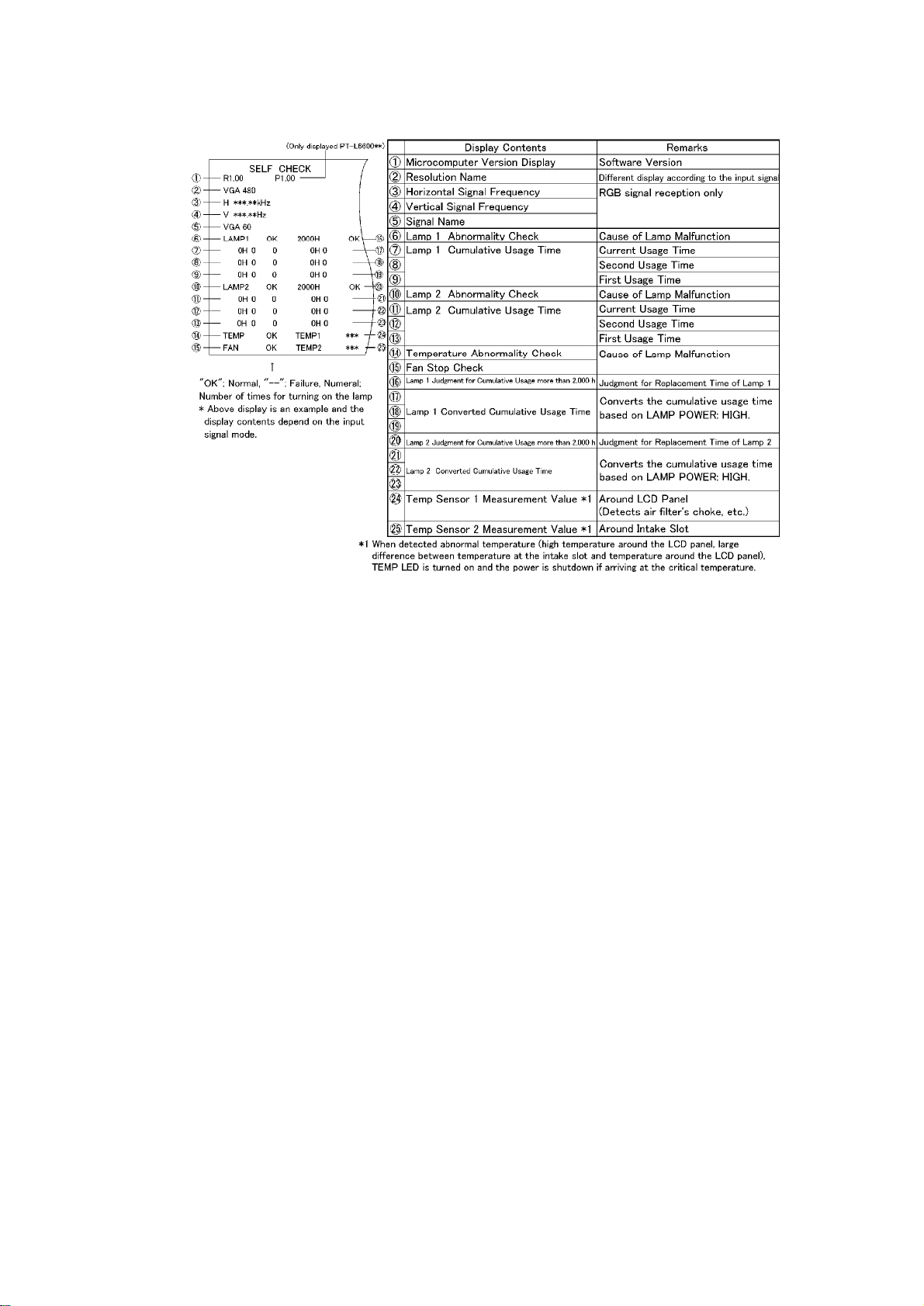

3.2. SelfCheck Displayand Contents

3.3. Canceling theself-check mode

Press theMENU button on themainunitor theremotecontrol unit.

4. Service Mode

Thismodeisusedtodisplay eightkindsoftestpatterns(see below)inthefour colors(White,

Red, Greenand Blue).

PT-L6500**

Cross, Horizontal 1line, Vertical lines on alternatedots, 1-dotpattern, Horizontal 16 lines, Vertical

16 lines, 16 lines crosshatch, Nopattern

PT-L6600**

Horizontal 1line, Vertical lines on every2dots, Nopattern, Checker, Crosshatch, Cross, 5:4&4:3

display frames

Note:

Ontheservice mode, displaysabovepatternsbyeachcolorwithout

test equipmentsuchas PCorSG. Use theservice modefor

convergence adjustmentand soon.

4.1. Proceduretoentertheservice mode

-Select "FRONT/REAR"on theOPTION1menu.

MENU OPTION1FRONT/REAR

-Whilepressing the"VOLUME+"button on theremote control unit,

press theleft-arrow " "button on themainunit3secondsor

longertoentertheservice mode.

AnotherMethod

(canbeusedfor hard topress thebutton on themainunit, e. g. installedon theceiling)

-Select "OSD"on theOPTION1menu.

-MENU OPTION1 OSD

-Press the"ENTER"button on theremote control unit3secondsor

longerand displaystheservice supportmodemenu.

-Select "SERVICEMODE"and press on the"ENTER"button on the

remote control unit.

Note:

Intheservice mode, pressing theup-arrow " "ordown-arrow " "

button on theremote control unitallowsthetest patternselection

and theleft-arrow " "orright-arrow " "button thecolorselection

(White / Red/ Green/ Blue).

4.2. Canceling theservice mode

Press theMENU button on themainunitor theremotecontrol unit.

5. Service Support Mode

Thisprojector has Service SupportModeMenu inaddition tostandard on-screenmenus.

5.1. Proceduretoentertheservice supportmode

-Select "OSD"on theOPTION1menu.

MENU OPTION1OSD

-Press the"ENTER"button on theremote control unit3secondsor

longerand displaystheservice supportmodemenu.

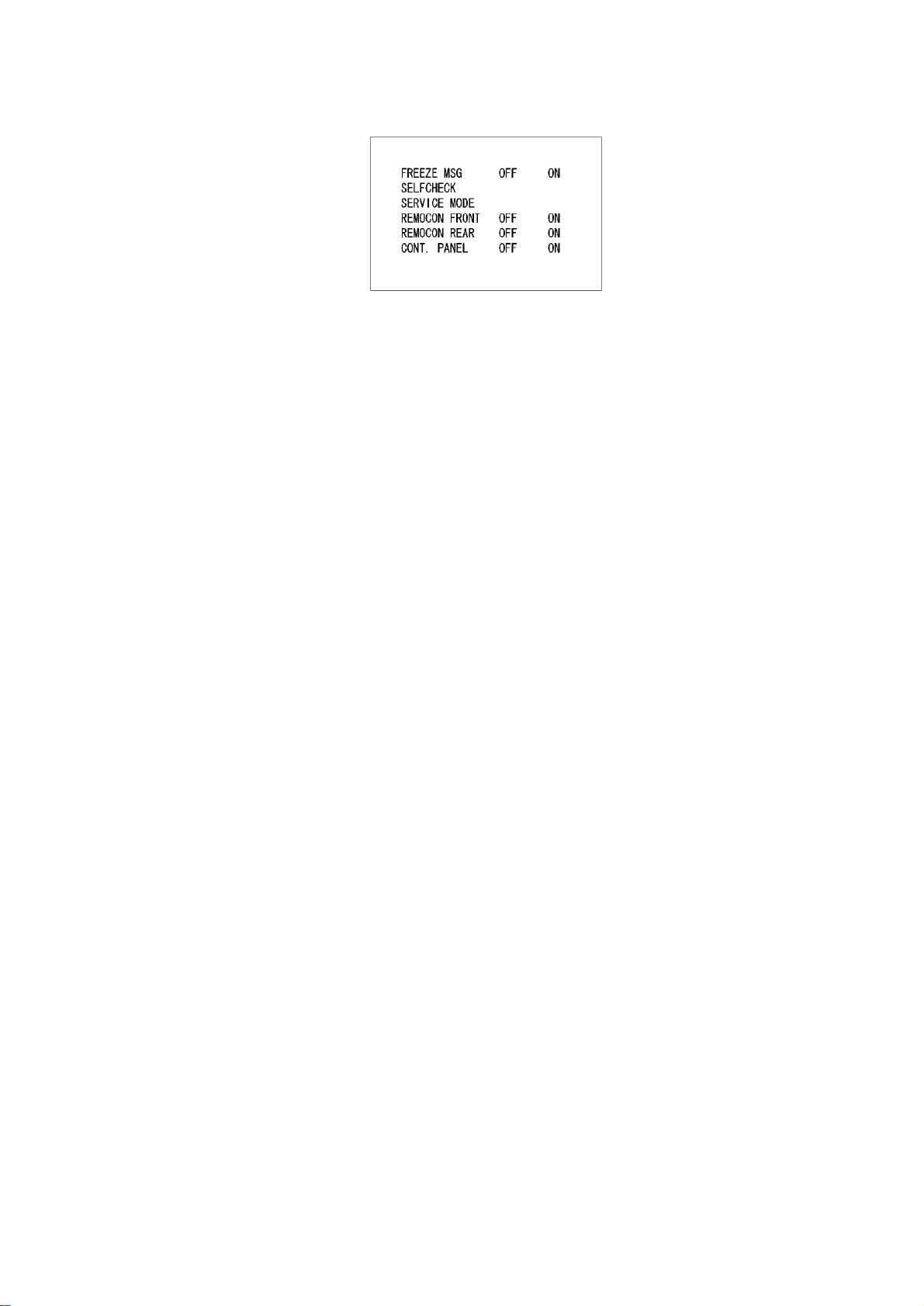

5.2. Service SupportModeMenu and Functions

-FREEZEMSG

Switching on/off "FREEZE", "MUTE"and "PICTUREMUTE"on-

screendisplays

-SELFCHECK

To entertheself-check mode

-SERVICEMODE

To entertheself-check mode

-REMOCONFRONT

Specifies theremote control receiver(front) availableornot

available.

-REMOCONREAR

Specifies theremote control receiver(rear)availableornot

available.

-CONT. PANEL

Specifies therearcontrol panel availableornotavailable.

5.3. Canceling theservice supportmode

Press theMENU button on themainunitor theremotecontrol unit.

6. Using the SERIALConnector

SERIALconnector whichison thesideinterface panel oftheprojector conformstoRS-232C

standard. Thisprojector canbecontrolledbyaPCwhichisconnectedas shownin"6.1.

Connection".

For controlling thisprojector byaPC, requires communication softwareon themarket, and

inputscontrol commandsaccording tocommunication settingsand basicformatbelow.

6.1. Connection

Note:

Use apropercommunication cablewhichissuitableforthePCto

connect SERIALconnectorand thePC.

6.2. PinLayoutand Signal Names forSERIALConnector

6.2.1. SERIALINTerminal

6.2.2. SERIALOUTTerminal

6.3. Communication Settings

Signal Level Contents Description

Sync. method Asynchronous Synchronizes every1

character

bits)

Baud rate Conforms

to 9600 bps Datatransferspeed

Parity RS-232C None Error detection method

Characterlength standard 8bits Numberofbitcomposing 1

character

Stop bit 1bit Uses stop bitwhen

asynchronous

method

X parameter Notused

S parameter Notused

6.4. BasicFormat

Thedatasentfrom thePCtotheprojector istransmittedintheformatshownbelow.

Cautions:

-Whenitisunnecessarytodesignate anIDcode, send theformat

withouttheparttoIDdesignate it. Inthiscase, theprojectorsends

acall back tothePCirrespectiveoftheprojectorIDsetting.

-Add aparameterwhenthecommand function isrequiredofit.

-Ifsending multiplecommands, check that acall back has been

receivedfromtheprojectorforonecommand beforesending the

next command.

Notes:

-Whenacommand whichdoes notrequireparametersissent, the

colon (:)isnotrequired.

-Ifacommand issentwithaprojectorIDspecified, theprojectorwill

returncall back onlyiftheIDcontainedinthecommand matches

theprojectorIDortheprojectorIDisset toALL.

-ProjectorIDsupportedon theRS-232Cinterface is00 (ALL)to99.

-Whenusing control fromREMOTEterminal, commandscannotbe

receivedat SERIALterminal.

6.5. Control / QueryCommands

Control Commands
