Panasonic TH-P42UT50D User manual

Unauthorized copying and distribution is a violation

of law.

ORDER NO.PAVCTH1203005CE

Plasma Television

Model No. TH-P42UT50D

TH-P42UT50M

TH-P42UT50P

TH-P42UT50S

TH-P42UT50Z

GPF15D-A Chassis

TABLE OF CONTENTS

PAGE

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals------------------------------------------7

4 Specifications ------------------------------------------------------8

5 Technical Descriptions---------------------------------------- 10

5.1. Specification of KEY for DTCP-IP, One-to-

One, Widevine and Netflix ----------------------------- 10

5.2. USB HDD Recording (Z only)------------------------- 10

5.3. Panel-Type setting --------------------------------------- 10

6 Service Mode ----------------------------------------------------- 11

6.1. How to enter into Service Mode ---------------------- 11

6.2. Option - Mirror--------------------------------------------- 13

6.3. Service tool mode---------------------------------------- 13

6.4. DRV Check - USB HDD Check----------------------- 14

6.5. Hotel mode------------------------------------------------- 14

6.6. Data Copy by SD Card --------------------------------- 15

7 Troubleshooting Guide---------------------------------------- 18

7.1. Check of the IIC bus lines------------------------------ 18

7.2. Power LED Blinking timing chart --------------------- 19

7.3. No Power--------------------------------------------------- 20

7.4. No Picture -------------------------------------------------- 21

7.5. Local screen failure-------------------------------------- 22

8 Disassembly and Assembly Instructions --------------- 23

8.1. Disassembly Flow Chart for the Unit ---------------- 23

8.2. Disassembly Procedure for the Unit----------------- 24

9 Measurements and Adjustments -------------------------- 29

9.1. Adjustment ------------------------------------------------- 29

10 Block Diagram --------------------------------------------------- 31

10.1. Main Block Diagram ------------------------------------- 31

10.2. Block (1/4) Diagram ------------------------------------- 32

10.3. Block (2/4) Diagram ------------------------------------- 33

10.4. Block (3/4) Diagram ------------------------------------- 34

10.5. Block (4/4) Diagram ------------------------------------- 35

11 Wiring Connection Diagram --------------------------------- 37

11.1. Caution statement.--------------------------------------- 37

11.2. Wiring (1) --------------------------------------------------- 37

11.3. Wiring (2) --------------------------------------------------- 38

11.4. Wiring (3) --------------------------------------------------- 39

12 Schematic Diagram

13 Printed Circuit Board

14 Exploded View

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the

wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight

out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground

such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1and U2, does not exceed the following values:

For a. c.: U1= 35 V (peak) and U2= 0.35 V (peak);

For d. c.: U1= 1.0 V,

Note:

The limit value of U2= 0.35 V (peak) for a. c. and U1= 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

mA d. c.

The limit value U1= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the customer.

Figure 1

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically

Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage

caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or

comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)

sufficient to damage an ES device).

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please

use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the

opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

3 Service Navigation

3.1. PCB Layout

Board Name Function

P Power Supply

Non serviceable.

P-Board should be exchanged for service.

A Main AV input, processing

K Remote receiver, Power LED, C.A.T.S sensor

C1 Data Driver (Lower Right)

C2 Data Driver (Lower Left)

SN Scan Drive

SS Sustain Drive

3.2. Applicable signals

QCOMPONENT (Y, PB, PR) (from AV2 terminal), HDMI

* Mark: Applicable input signal

QPC (from D-sub 15P)

Applicable input signal for PC is basically compatible to VESA standard timing.

QPC (from HDMI terminal)

Applicable input signal for PC is basically compatible to HDMI standard timing.

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not show fine detail with sufficient clarity.

Signal name COMPONENT HDMI

525 (480) / 60i, 60p * *

625 (576) / 50i, 50p * *

750 (720) / 60p, 50p * *

1,125 (1,080) / 60i, 50i * *

1,125 (1,080) / 60p, 50p, 24p *

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 ×480 @60 Hz 31.47 59.94

800 ×600 @60 Hz 37.88 60.32

852 ×480 @60 Hz 31.44 59.89

1,024 ×768 @60 Hz 48.36 60.00

1,280 ×1,024 @60 Hz 63.98 60.02

1,280 ×768 @60 Hz 47.70 60.00

1,366 ×768 @60 Hz 48.39 60.04

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 ×480 @60 Hz 31.47 60.00

1,280 ×720 @60 Hz 45.00 60.00

1,920 ×1,080 @60 Hz 67.50 60.00

4 Specifications

Sound

Speaker (160 mm ×40 mm) ×2, 8Ω

Audio output 20 W ( 10 W + 10 W )

Headphones M3 (3.5 mm) stereo mini Jack ×1

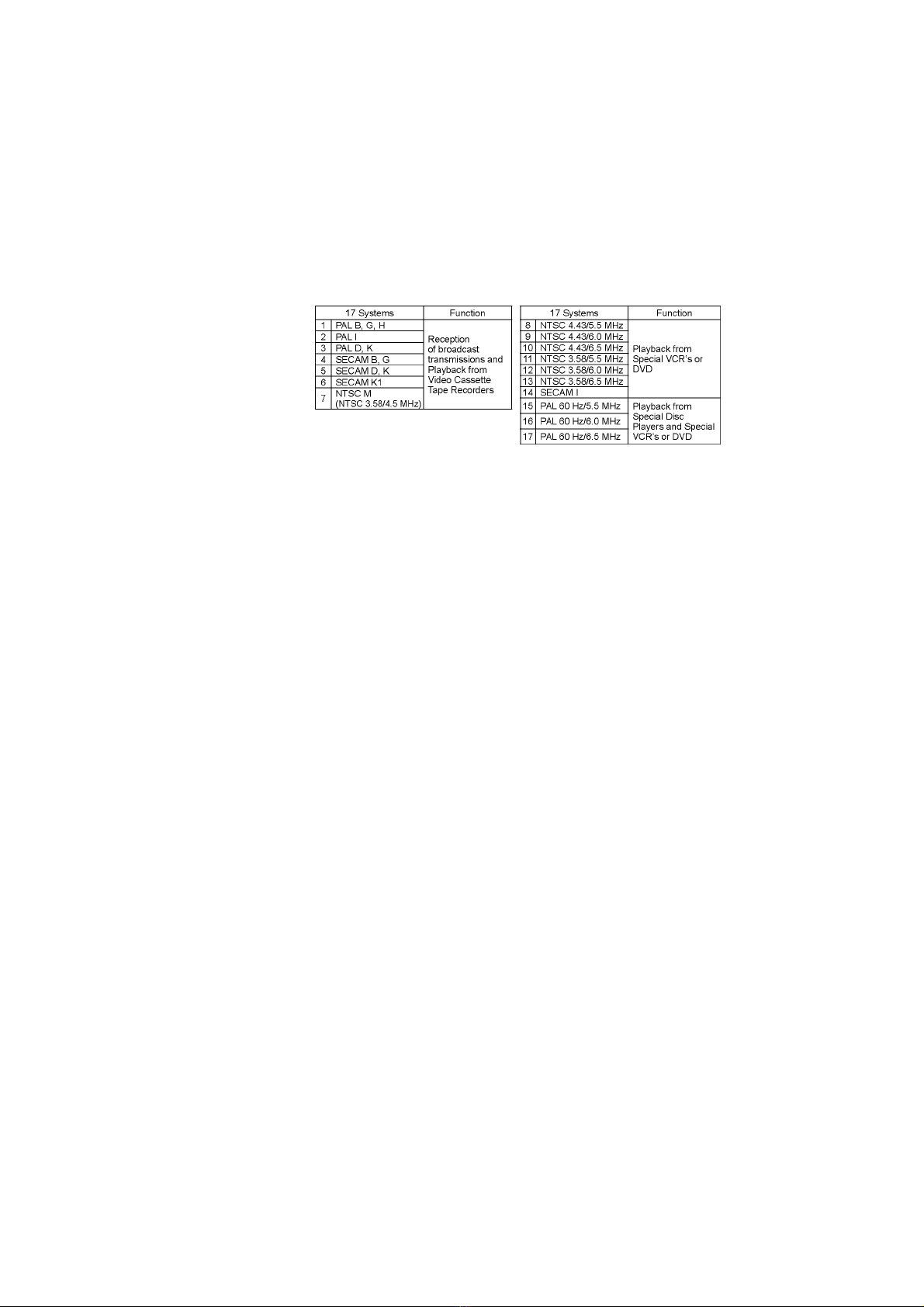

Receiving systems / Band name (Z)

PAL B/G Reception of Off air broadcasts

Digital TV 8 MHz UHF (New Zealand) free-to-air TV broadcast reception

PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC Playback from M.NTSC Video recorders (VCR)

NTSC Playback from NTSC Video recorders (VCR)

Receiving systems / Band name (Except Z)

Receiving Channels (Except Z)

VHF BAND

2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.)

1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D)

1-12 (NTSC M Japan) 2-13 (NTSC M USA)

UHF BAND

21-69 (PAL G, H, I/SECAM G, K, K1)

28-69 (PAL B AUST.) 13-57 (PAL D, K)

13-62 (NTSC M Japan) 14-69 (NTSC M USA)

CATV

S1-S20 (OSCAR) 1-125 (USA CATV)

C13-C49 (JAPAN) S21-S41 (HYPER)

Z1-Z37 (CHINA) 5A, 9A (AUST.)

Aerial - Rear VHF/UHF

Operating Conditions

Temperature: 0 °C - 40 °C (Except Z) 0 °C - 35 °C (Z)

Humidity: 20 % - 80 % RH (non-condensing)

Connection terminals

AV1 IN

AUDIO L - R RCA PIN Type ×2 0.5 V [rms]

VIDEO RCA PIN Type ×1 1.0 V [p-p] (75 Ω)

AUDIO OUT

AUDIO L-R RCA PIN Type ×2 0.5 V [rms] (high impedance)

AV2 IN

AUDIO L - R RCA PIN Type ×2 0.5 V [rms]

COMPONENT Y 1.0 V [p-p] (including synchronization)

PB/CB, PR/CR± 0.35 V [p-p]

VIDEO RCA PIN Type ×1 1.0 V [p-p] (75 Ω)

HDMI 1 / 2 input TYPE A Connectors

• This TV supports "HDAVI control 5" function.

PC HIGH-DENSITY D-SUB 15PIN

R,G, B: 0.7 V [p-p] (75 Ω)

HD, VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)

• Applicable input signals: VGA, SVGA, WVGA, XGA

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz

Vertical scanning frequency 59 - 86 Hz

Card slot SD Card slot ×1

ETHERNET 10BASE-T / 100BASE-TX

USB 1 / 2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA

DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic

Bluetooth wireless technology*1

Standard Compliance Bluetooth 3.0

Frequency Range 2.402 GHz - 2.480 GHz

*1: Not all the Bluetooth compatible devices are available with this TV.

Q3D Eyewear (Z)

Note

•Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Power Consumption (Z)

Power rating AC 220-240 V, 50 / 60 Hz 1.4 A

Normal (Home) mode 112 W

Standby condition 0.4 W

Power Source (Except Z) AC 220 - 240 V, 50 / 60 Hz (Except P)

AC 110 - 240 V, 50 / 60 Hz (P)

Power Consumption (Except Z)

Power Rating 285 W

Standby condition 0.4 W

Display panel

Panel system Plasma panel

Visible screen size (diagonal) 107 cm / 42 inches

Number of pixels 2,073,600 (1,920 (W) ×1,080 (H)), [5,760 ×1,080 dots]

Dimensions (W ×H ×D) 1,009 mm ×663 mm ×320 mm (With Pedestal)

1,009 mm ×616 mm ×84 mm (TV only)

Mass 20.5 kg Net (With Pedestal)

17.5 kg Net (TV only)

Dimensions (W ×H ×D) 167.7 mm ×42.2 mm ×170.7 mm

Mass Approx. 31 g

Lens type Liquid Crystal Shutter

Usage temperature range 0 °C - 40 °C

Battery* Coin-shaped lithium battery CR2025

Operation time: Approx. 75 hours in continuous use of the battery made by Panasonic

Viewing range* Within 3.2 m from front surface of the TV

Materials Main body: Resin

Lens section: Liquid crystal glass

Communication system 2.4 GHz band FH-SS (Frequency Hopping Spread Spectrum)

* There are differences in the viewing range of the 3D Eyewear among individuals.

• The 3D Eyewear may not operate correctly at the outside of the viewing range.

5 Technical Descriptions

5.1. Specification of KEY for DTCP-IP, One-to-One, Widevine and Netflix

5.1.1. General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC

(IC8000) and EEPROM (IC8902).

Four KEY are not generated for all models.

The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time.

When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time.

After the replacement of IC, SELF CHECK should be done to generate the final KEY data.

How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more

than 3 seconds.

TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

5.2. USB HDD Recording (Z only)

5.2.1. General information:

Digital TV programmes can be recorded in USB HDD.

A One-to-One key generated in A-board by SELF CHECK binds TV and USB-HDD for communication.

That key is only one key for them. If the key is difference, TV can not access USB-HDD.

Caution:

New key will be generated by following SELF CHECK and previous TV programmes recorded in USB HDD will not be

viewed.

SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for

more than 3 seconds.

5.3. Panel-Type setting

Panel-Type setting is required after exchange the A-board.

A-board for spare parts is common use for different inch size in same series.

Go into Service Mode and confirm/select Panel-Type in OPTION to correct inch size.

Model No. Keys

One-to-One

(For USB Rec.)

DTCP-IP Widevine Netflix

TH-P42UT50D/M/P/S None None Yes Yes

TH-P42UT50Z Yes Yes Yes Yes

This manual suits for next models

Table of contents

Other Panasonic Plasma TV manuals

Panasonic

Panasonic Viera TX-P60ZT65B User manual

Panasonic

Panasonic Viera TC-P55ST30 User manual

Panasonic

Panasonic Viera TH-42PV8EYA User manual

Panasonic

Panasonic Viera TH-L32B6M User manual

Panasonic

Panasonic Viera TC-P55VT30 User manual

Panasonic

Panasonic TH-50PX600U User manual

Panasonic

Panasonic Viera TH-42PX700B User manual

Panasonic

Panasonic VIERA TC-P50GT30 User manual

Panasonic

Panasonic TC-P46U1N User manual

Panasonic

Panasonic SP-R54Z1 User manual

Panasonic

Panasonic TH-42PA50A User manual

Panasonic

Panasonic Viera VT50A series User manual

Panasonic

Panasonic Viera TH-42PX8A User manual

Panasonic

Panasonic TH-37PA20U/P Operating User manual

Panasonic

Panasonic Viera TH-P50C10D User manual

Panasonic

Panasonic TC-P50X2 User manual

Panasonic

Panasonic TH 37PX50U User manual

Panasonic

Panasonic Viera TH-37PV70PA User manual

Panasonic

Panasonic Viera TH-42PZ85E User manual

Panasonic

Panasonic TC-P42G10 - TC - 41.6" Plasma TV User manual

Panasonic

Panasonic Viera TC-42PX34 User manual

Panasonic

Panasonic TH-P42UT30A User manual

Panasonic

Panasonic TC-P42X1X User manual

Panasonic

Panasonic TH50PX500U - 50" HD PLASMA TV User manual

Popular Plasma TV manuals by other brands

Hitachi

Hitachi 50PD9800TA user manual

Pioneer

Pioneer PDP-LX508G operating instructions

LG 60PM9700 Specifications

LG 50PX4D owner's manual

LG 60PA5500 Specifications

Sony

Sony WEGA KE-P42M1 Service manual

VESTEL

VESTEL PL2000 Service manual

VisionQuest

VisionQuest PVQ-32VGB owner's manual

Maxent

Maxent MX-5020HPM specification

XOCECO

XOCECO PH-42T8 Service manual

Maxent

Maxent MX-42VM7 specification

Sampo

Sampo PME-42S6 Service manual

Hitachi

Hitachi 32PD7800 Service manual

LG 50PK550 Specifications

Haier

Haier P42A1-AK Service manual

Insignia

Insignia NS-42P650A11 manual

Hitachi

Hitachi 42PD3200A user guide

LG 50PS70FD-AA owner's manual
