Panasonic TH-65PX600U User manual

Panasonic Services Company

National Training

9TH Gen. Plasma Display Television

Models Comparison

Comparison Table

MODEL Resolution SD Card TV-

Guide

EPG

CableCARD

slot in the

Tuner

Input

TH-65PX600U 1920x1080p Yes Yes Yes Yes

TH-58PX600U 1366x768p Yes Yes Yes Yes

TH-50PX600U 1366x768p Yes Yes Yes Yes

TH-42PX600U 1024x768p Yes Yes Yes Yes

TH-58PX60U 1366x768p Yes No No No

TH-50PX60U 1366x768p Yes No No No

TH-42PX60U 1024x768p Yes No No No

TH-37PX60U 1024x720p Yes No No No

TH-42PD60U 852x480p No No No No

TH-50PX6U 1366x768p No No No No

TH-42PX6U 1024x768p No No No No

This table is a comparison between the different models of this line of plasma televisions.

Beside having all the features found on the PX60U models, the PX600U models have some

unique features like TV Guide EPG, CableCARD Slot, and PC Input.

Only the 65PX600 has 1080p resolution. All other 2006 models will take a 1080p input but

display it in their native resolution.

Input/Output (Jacks)

TH-42/50/58/65

PX600U TH-

37/42/50/58PX60U TH-42PD60U

INPUT/OUTPUT:

Tuners

NTSC (Standard analog

broadcasts)

ATSC/QAM (SDTV and

HDTV broadcasts)

NTSC (Standard analog

broadcasts)

ATSC/QAM (SDTV and HDTV

broadcasts)

NTSC (Standard analog

broadcasts)

ATSC/QAM (SDTV and

HDTV broadcasts)

Photo Viewer Yes (SD Slot) Yes (SD Slot) No

SD Card Slot Yes (JPEG Photo Viewer) Yes (JPEG Photo Viewer) Yes (JPEG Photo Viewer

CableCARD Ready 5Yes No No

HDMI-HDCP

Interface 2 rear 2 rear 1rear

Analog Audio Input

(for HDMI) 1 rear 1 rear 1 rear

Composite Video

Input 3 (2 rear, 1 front) 3 (2 rear, 1 front) 2 rear

S-Video Input 3 (2 rear, 1 front) 3 (2 rear, 1 front) 2 rear

Audio Input (for

Video) 3 (2 rear, 1 front) 3 (2 rear, 1 front) 2 rear

PC Input (RGB-VGA) Yes No No

Audio Input (for PC) Yes No No

Component Video

Input [Y, PB(CB),

PR(CR)] 2 rear 2 rear 2 rear

Audio Input (for

Component Video) 2 rear 2 rear 2 rear

Composite Video

Output 1 rear 1 rear 1 rear

Audio Output 1 rear 1 rear 1 rear

This table shows the input signals available for each line of plasma TV.

42PX60 Board Layout

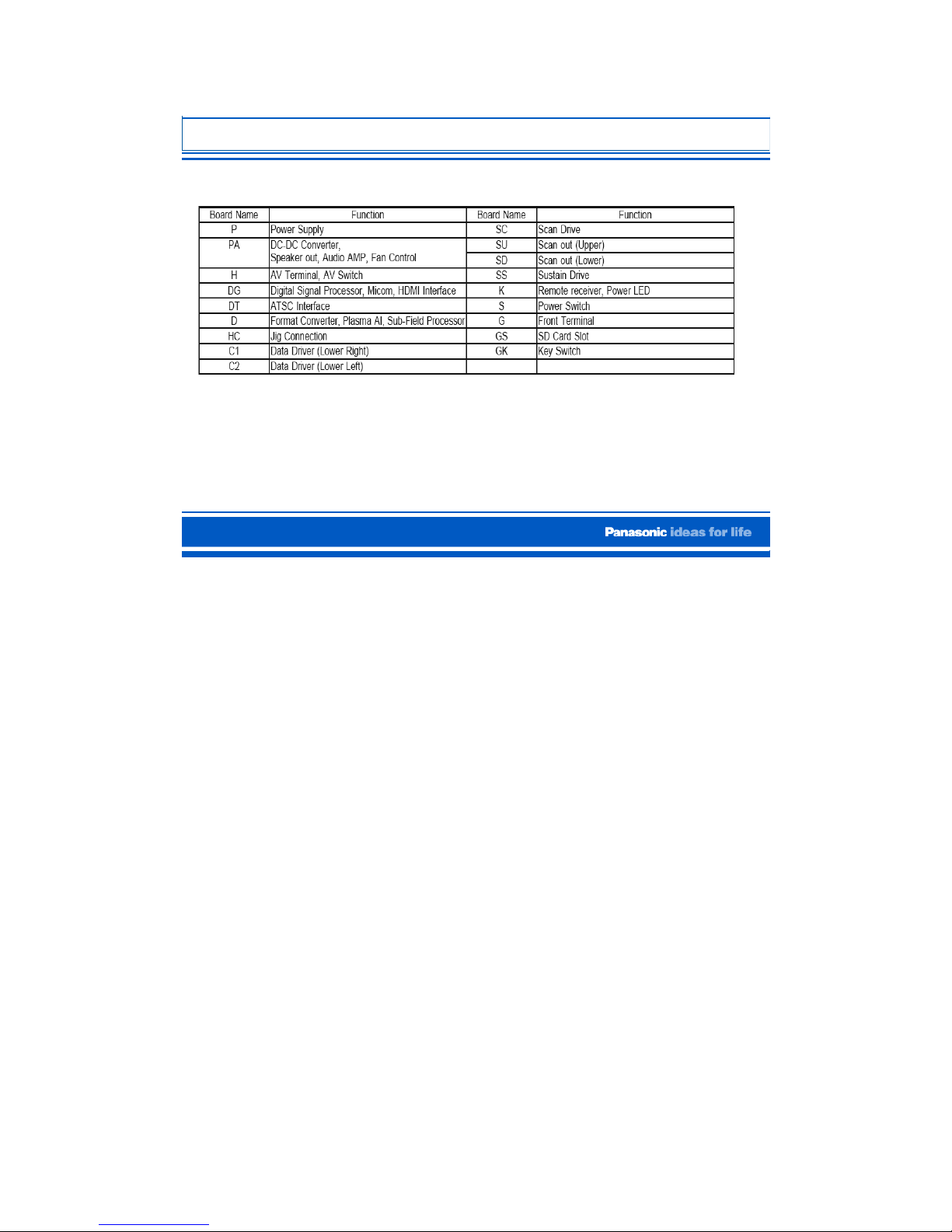

42PX60 Board Description

Getting Familiar With The New Plasma TV

Before this generation of plasma TV, Panasonic has always used the double scan system in

their HD plasma TV. In this generation, the 37” and the 42” HD models utilized the single

scan system.

The earlier production of HD 42” models have 3 fans and the HD 50” models contain 4

fans. Normally there will only be 2 fans in the HD 42” models and 3 fans in the HD 50”

models.

Differences Between 8th and 9th Generations

1. No Data Drive Circuit Boards (C Boards) for 37” and

42” models (PD60U, PX6U, PX60U, & PX600U) at

the top of the TV.

2. The PA board is back where it originally was in the 6th

Generation models.

3. No PB board (Fan Drive and Audio +B)

4. No Z board (Audio Amp.)

5. The D board is now hidden under the DG board.

6. No DV board

7. Different Digital Tuner (Optical Jack is on the right)

8. The SD and SU boards are flipped, showing the

component side.

The differences between the 8th and the 9th generation are explained here.

D board Location

The purpose of this picture is to show the new location of the D board, which seats below

the DG and the DT boards. Unlike the previous generation, there’s not any access to this

board.

Digital Tuner/HDMI Connector

When an ATSC channel is selected, the output of the DIGITAL AUDIO OUT jack

is Dolby Digital. When a NTSC channel is selected, the output is PCM.

Since the TV does not have a DV board, this picture shows the new location of the HDMI

connectors (2). These connectors are located on the DG board. The previous models only

had 1 HDMI connector.

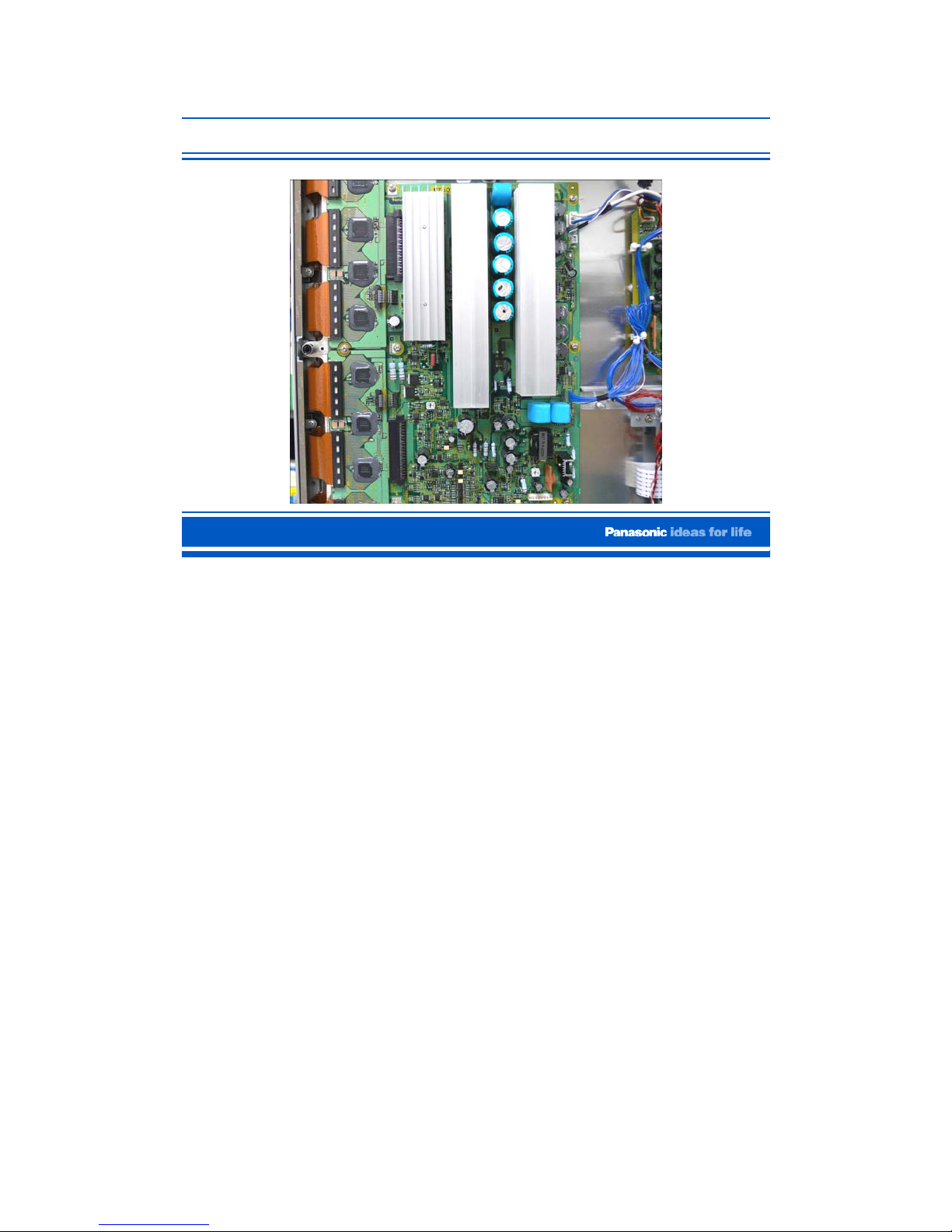

SC, SU, and SD Boards

The component side of the SU and SD boards is now visible without removal.
