Panasonic KX-TDE User manual

6/19/2012 1

Version1

Clearfly SIP Trunks Configuration Guide

PBX Platform: KX-TDE/NCP

6/19/2012 2

Version1

Overview

This document describes the configuration procedures required for the KX-TDE100/200/600 and

NCP500/1000 to make full use of the capabilities of Clearfly Type SIP Trunks Services.

The SIP trunks services of the TDE/NCP PBX are provided through virtual CO line cards (V-

SIPGW16) which are designed to be easily integrated into an Internet Telephony Service

provided by an ITSP (Internet Telephony Service Provider).

This guide describes the specific configuration items for the virtual SIP Gateway card in addition

to the PBX basic configuration related to SIP trunks functionality. It also describes basic Network

configuration to familiarize dealers with the network setup. It does not describe the purpose and

use of all configuration options on the virtual SIP Gateway card. For those details, see the KX-

NCP500/1000 and KX-TDE100/200/600 Programming Manual for Virtual SIP CO Line Card and

the KX-TDE100/200/600 and KX-NCP500/1000 Manuals available from Panasonic

Communication Solutions.

DSP card and Activation keys

The PBX has to be equipped with a DSP card in order to provide

communication between the TDM side of the PBX and the SIP trunks.

Activation keys for SIP-Trunks has to be installed in the PBX to provide the

SIP-trunks functionality

To check the number of activation keys installed into the PBX and add new licenses

please refer to Page 12 in this guide

6/19/2012 3

Version1

Architecture Overview

The following diagram illustrates simple VOIP networks connecting the TDE/NCP PBX:

The Case of Clearfly Setup: Clearfly will provide its services over the Public Internet

MPR IP Address 192.168.0.101

VOIP IP Address 192.168.0.102

Default GW192.168.0.1

sc.cfly.co

rt Forwarding rules on the end router

Forward Port 35060 to MPR IP address

Forward Port Range12000~12127 to VOIP-DSP IP address

6/19/2012 4

Version1

Basic V-SIPGW16 Settings for Clearfly Trunks

1-Install the PBX Maintenance console into your PC

The maintenance console should be available to certified dealers; Dealers can get the

latest version of the UPCMC from www.btsdealer.com (UPCMC version 7.2.1.0 or

higher)

2- Connect to the PBX

oStart the UPCMC

oClick Connect and choose the method of connection using either LAN , RS-

232, Modem, or USB to Connect to your PBX for interactive configuration

** We will be using the LAN method throughout this guide**

Provide the IP address of the MPR card and the password of the INSTALLER Level

6/19/2012 5

Version1

oGo to 1-Configuration, 1-Slot, move your mouse over the MPR card and

select the card property

Make sure that the default gateway should be the end router LAN IP address

Make sure that you have a valid DSP-VOIP LAN address

6/19/2012 6

Version1

3- Installing V-SIP W16 card

oGo to 1-Configuration, 1-Slot, move your mouse towards the IPCMPR virtual

shelf and click on select shelf

Highlight the V-SIPGW16 card from the cards list in the left side

oDrag the VSIPGW16 card into the trunk portion of the virtual shelf by using

the PC mouse lift button

oRelease the Mouse lift button and click Yes on the dialogue box

6/19/2012 7

Version1

oTake the V-SIPGW16 card OUS in order to be able to enter the following

settings

4-Configuring the VSIP-GW16 card

a- Shelf Property settings: Move the computer mouse over the VSIPGW16 card and

choose Shelf property

The following settings are required for Clearfly SIP trunk services on the shelf

property:

6/19/2012 8

Version1

Click Apply and then OK to exit the shelf property settings screen.

b- Card Property settings:

oMove the computer mouse over the VSIPGW16 card and choose Card property

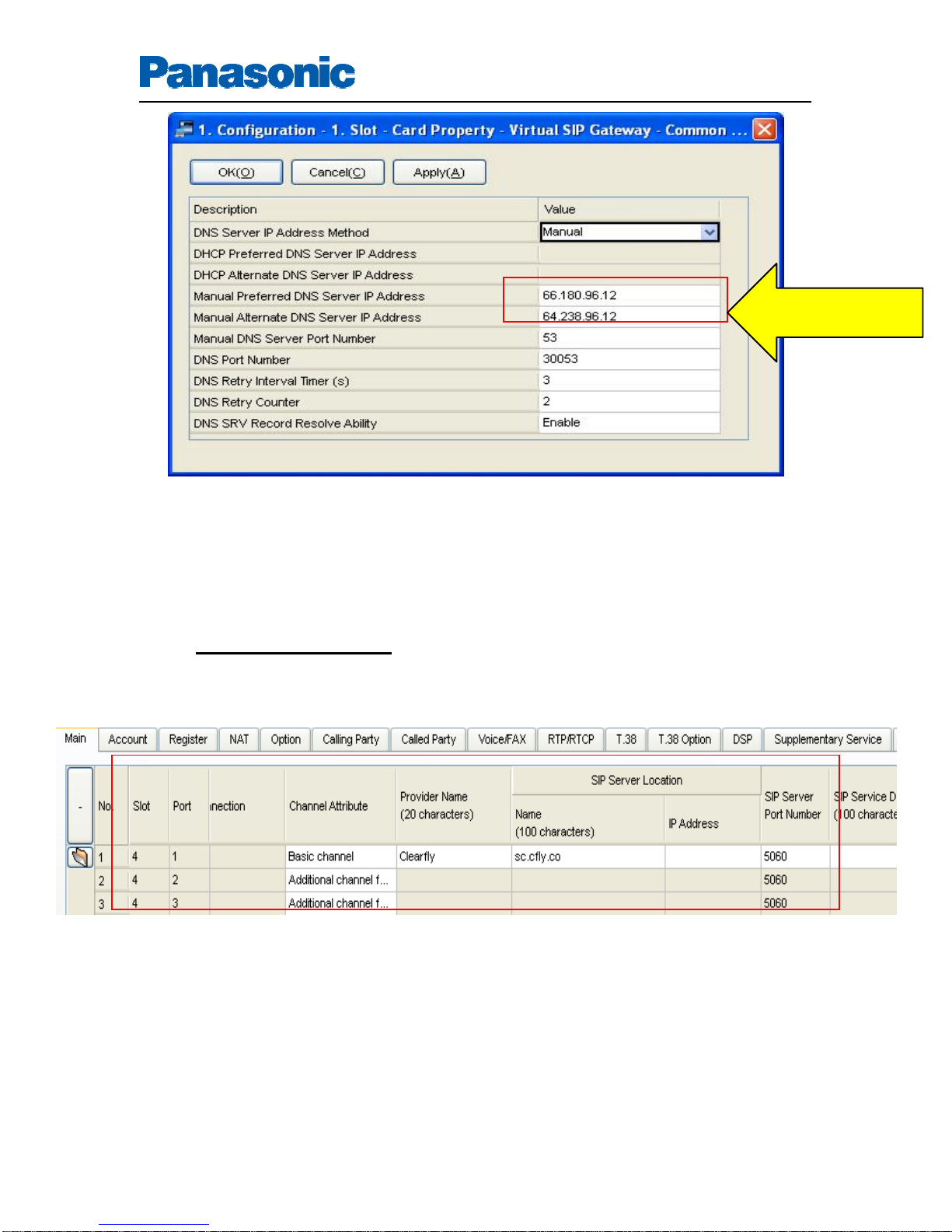

oClick on Common settings

oDNS Server IP address method is Manual

oProvide your ISP DNS serevers IP addresses. (Contact your ISP to obtain DNS IP addresses

if needed)

6/19/2012 9

Version1

oClick Apply and then OK

oClick Cancel on the card property- Virtual SIP gatewayscreen to exit this screen

c- Port Property settings:

Move the computer mouse over the VSIPGW16 card and choose port property

Basic Channel setup:

Please locate the Clearfly SIP Trunks account details from your Clearfly

account Welcome letter/email.. Sample is shown below..

These addresses are just

sample. Please use your ISP

providedinformation

6/19/2012 10

Version1

oMain tab:

According to the account info above, we need to configure the Basic Channel Port as follows:

“Please Note: the information above is just a sample, please locate your

account details in your Clearfly welcome letter/email”

1- Port 1 channel attribute = Basic channel

2- Provider name= Clearfly

3- SIP Server Name= “sc.cfly.co ”

4- SIP server port number =5060

5- SIP service Domain = “Blank”

6- Subscriber number = 1234567890 (Optional)

oAccount tab:

1- user name == 1234567890

2- Authentication ID== same as BTN & Username 1234567890

3- Password == Provided by Clearfly

To:

New Customer

cc:

support <support@clearfly.net>

Subject:

Clearfly SIP Trunk Information:

Hello,

Your Clearfly SIP trunk is now active and has been provisioned as follows:

PBX IP: 1.2.3.4 NAT Fixed-Global IP address

Clearfly SIP Server: sc.cfly.co SIP Server Location

Transport: UDP/5060

Codec: G.711u & G.729a

RTP Payload Type: 101

DTMF Relay: RFC2833

Digits Transferred: Default is 10. Please respond if you'd like something different.

123.456.7890 has been routed to this trunk <-- DID/BTN /account username..

If you haveany questions about or problems with this trunk, our techs are available for test/turn-up from 8AM-5PM MST,

Monday-Friday at +1.866.652.7520.

Regards,
