Panasonic CQC8400U - AUTO/RADIO CD DECK User manual

ORDERNO. ACED031219C7

AUTOMOTIVE AFTERMARKET

CQ-C8400U / CQ-C8300U / CQ-C8200U / CQ-C8100U

RemovableFull FrontMP3WMACD Player/ReceiverwithFull Dot

MatrixDisplayand CD ChangerControl

SPECIFICATIONS

Specifications*

General

PowerSupply DC12V,

TestVoltage14.4V

NegativeGround

CurrentConsumption Less than 2.2A/ (CDmode;0.5W ×4

-speaker)

MaximumPowerOutput

<CQ-C8400U> 60W ×4(at1kHz)/ Volume Control

Maximum

<CQ-C8300U,CQ-C8200U/

CQ-C8100U> 50W ×4(at1kHz)/ Volume Control

Maximum

ToneAdjustmentRange Bass:±12dBat62Hz/ Treble:±

12dBat16kHz

EqualizerCenterFrequency 60Hz, 160Hz, 400Hz, 1kHz, / 3kHz,

6kHz, 16kHz

VariableRangeofEqualizer -12dBto 12dB(2dBstep)

SpeakerImpedance 4-8

Pre-amp OutputVoltage

<CQ-C8400U,CQ-C8300U/

CQ-C8200U> 5V/ (CDmode;1kHz, 0dB)

<CQ-C8100U> 2.5V/ (CDmode;1kHz, 0dB)

SubwooferOutputVoltage

<CQ-C8400U,CQ-C8300U/

CQ-C8200U> 5V

<CQ-C8100U> 2.5V

Pre-amp OutputImpedance

<CQ-C8400U,CQ-C8300U/

CQ-C8200U> 60

<CQ-C8100U> 200

SubwooferOutput

Impedance

<CQ-C8400U,CQ-C8300U/

CQ-C8200U> 60

<CQ-C8100U> 200

FMStereo Radio

FrequencyRange 87.9MHz-107.9MHz

UsableSensitivity 10.2dBf(0.9 V, 75 )

50dBQuieting Sensitivity 15.2dBf. (1.6 V, 75 )

FrequencyResponse 30Hz-15kHz(±3dB)

AlternateChannel

Selectivity 75dB

Stereo Separation 35dB(1kHz)

ImageResponse Ratio 75dB

IF Response Ratio 100dB

Signal to Noise Ratio 62dB

AMRadio

FrequencyRange 530kHz-1,710kHz

UsableSensitivity 27dB/ V(11V, S/N20dB)

CDPlayer

Sampling Frequency 8 Times Oversampling

DA Converter 4 DACSystem

Pick-up Type Astigma 3-Beam

LightSource SemiconductorLaser

WaveLength 780 nm

FrequencyResponse 20 Hz-20kHz(±1dB)

Signal to Noise Ratio 96dB

Total HarmonicDistortion 0.01%(1kHz)

Wowand Flutter BelowMeasurableLimits

Channel Separation 75dB

Dimensions(W×H×D)** 7”×1-15/16”×6-1/8”/ (178×50×

155mm)

Weight** 3lbs. 8oz(1.6kg)

*Specificationsand thedesign aresubjectto possible

modification withoutnotice dueto improvements.

** Dimensionsand Weightshown areapproximate.

** Abovespecificationscomplywith EIAstandards.

1. ABOUTLEADFREE SOLDER (PbF)

Distinction ofPbF PCB:

PCBs(manufactured)using leadfree solderwill have aPbF stampon thePCB.

Caution :

-Pbfree solderhas ahighermelting pointthanstandardsolder;

Typicallythemelting pointis50 -70°F(30 -40°C)higher. Please

use asoldering iron withtemperaturecontrol and adjust itto700 ±

20°F(370 ±10°C). Incase ofusing high temperaturesoldering iron,

please becareful nottoheat too long.

-Pbfree solderwill tend tosplashwhenheatedtoo high (about

1100°F/600°C)

-Thisleadfree solderwill beusedfortheproducts afterserial No.

1,000,001.

2. FEATURES

-MP3/WMAPlayback fromCD-R/RW(CQ-C8400U/CQ-C8300Uonly)

-SQ7(7 BandsSound Quality)

-HPF(High Pass Filter)/LPF(Low Pass Filter)

-SystemUpgrade

-ElectronicSwitchFrontPanel

-CD ChangerControl

-Large-sizedVolumeControl

-CustomizeFunction (CQ-C8400U/CQ-C8300Uonly)

3. REPLACEING THE FUSE

Use fuses ofthesamespecifiedrating 15 amps. Using differentsubstitutes or fuses withhigher

ratings, or connecting theunitdirectlywithoutafuse, couldcause fireor damagetothestereo

unit.

4. MAINTENANCE

Your productsisdesignedand manufacturedtoensureaminimum ofmaintenance. Use asoft

clothfor routineexterior cleaning. Neveruse benzine, thinneror othersolvent.

5. NOTES

[RADIOBLOCK]

Donotalign theAM/FMpackageblock. Whenthepackageblock isnecessary, itwill besupplied

alreadyalignedatthefactory.

[CD DECK BLOCK]

Thismodel has no servoalignmentpointsbecause microcomputercontrolstheservocircuit

6. DIMENSIONS

7. LASER PRODUCTS

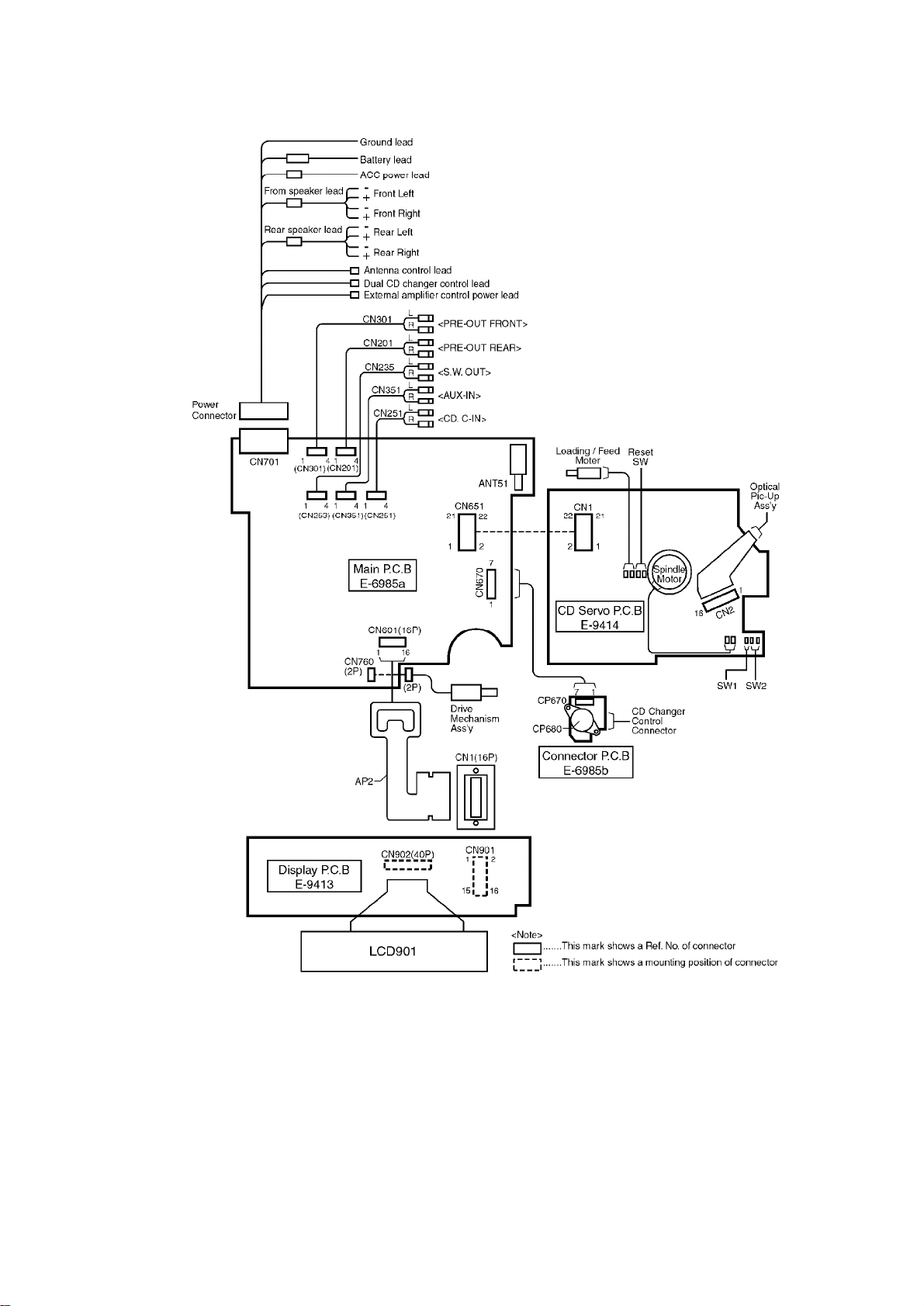

8. WIRING CONNECTION

8.1. CQ-C8400U/C8300U

8.2. CQ-C8200U/C8100U

9. BLOCK DIAGRAM

9.1. Main-1 Block [CQ-C8400U/C8300U]

9.2. Main-1 Block [CQ-C8200U/C8100U]

9.3. Main-2/DisplayBlock

9.4. CD ServoBlock [CQ-C8400U/C8300U]
