The GP-RV700 rearview monitor is designed exclusively for

use in large tracks, buses and other commercial vehicles.

When combined with Panasonic’s Rearview Camera, dan-

gerous blind spots can be reduced significantly.

PREFACE

• Refer all work related to the installation of this

product to qualified service personnel or system

installers.

• Do not block the ventilation opening or slots in the

cover.

To prevent the appliance from overheating, place it

paying attention to the ventilation space.

• Do not drop metallic parts through slots.

This could permanently damage the appliance. Turn

the power off immediately and contact qualified service

personnel for service.

• Do not attempt to disassemble the appliance.

To prevent electric shock, do not remove screws or

covers.

There are no user-serviceable parts inside. Contact

qualified service personnel for maintenance.

• Handle the appliance with care.

Do not strike or shake, as this may damage the appli-

ance.

• Do not expose the appliance to water or moisture,

nor try to operate it in wet areas.

Do take immediate action if the appliance becomes

wet. Set the ignition to the LOCK position or pull the

ignition key out and refer servicing to qualified service

personnel. Moisture may damage the appliance and

also cause electric shock.

• Do not use strong or abrasive detergents when

cleaning the appliance body.

Use a dry cloth to clean the appliance when it is dirty.

When the dirt is hard to remove, use a mild detergent

and wipe gently.

• Do not operate the appliance beyond its specified

temperature, humidity or power source ratings.

Use the appliance at temperatures within –10˚C - +55˚C

(14˚F - 131˚F) and at a humidity below 90 %.

The input power source for this appliance is 12 V DC.

Note: The images on the monitor are displayed reversibly

on right and left, just like that of the rearview mirror.

PRECAUTIONS

FEATURES

• Easy to see screen: 176 mm (7-inch) flat square and

non-glare screen

• Automatic Brightness Control (ABC) to compensate for

ambient light.

• Remote STANDBY/ON control by reverse gear position

signal.

• Manual STANDBY/ON mode selection.

• Compact designed black and white monitor enables to

fit almost anywhere.

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

CONTRAST

STD BY/ON

BRIGHT

AUDIO

ABC

MIN MAX

THIS DEVICE

SER.

NO.

CAUTION

. . .

THIS CLASS

. . .

FOCUS

REMOTE

CAMERA

t!1

qMode Selector (STD BY/ON)

Toggles the operation mode standby and on.

STD BY: No image is on the monitor but the picture

tube is preheated on standby.

The indicator is lit green while this mode is select-

ed.

ON: Displays camera images on the monitor.

The indicator is lit amber while this mode is select-

ed.

wContrast Control (CONTRAST)

Adjusts the picture contrast. Turn this control clockwise

to increase the picture contrast, and turning the control

counterclockwise has the reverse effect.

eBrightness Control (BRIGHT)

Adjusts the picture brightness. Turn this control clock-

wise to increase the picture brightness, and turning the

control counterclockwise has the reverse effect.

rAudio Control (AUDIO)

Adjusts the volume. Turn this control clockwise to

increase the volume, and turning the control counter-

clockwise has the reverse effect.

tAuto Brightness Control Sensor (ABC)

This sensor detects illumination intensity.

yMonitor Fixing Screws

These four screws are used to secure the monitor. The

monitor can be tilted approximate 30 degrees by loos-

ing these screws.

uMounting Bracket

Installs the monitor to a vehicle.

!1 Focus Control (FOCUS)

This control is preset at the factory.

!2 Remote/Camera Connector (REMOTE/CAMERA)

This 9-pin connector is used to connect the remote

cable assembly supplied as an accessory for supplying

the power and connecting the camera.

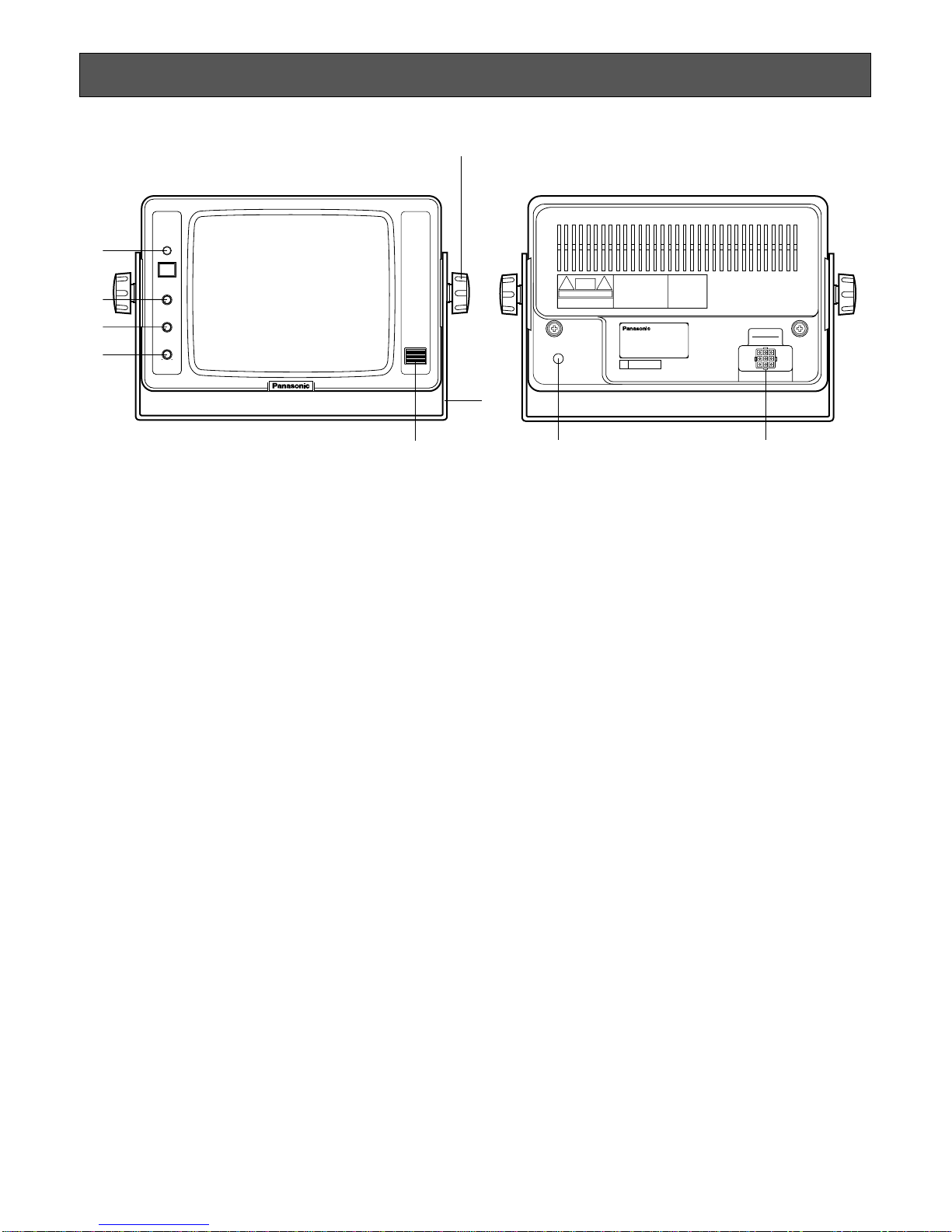

●Front View ●Rear View

2. Place the mounting bracket on the position to be

installed in the vehicle, and secure it with the four bolts

(procured locally ø6 mm).

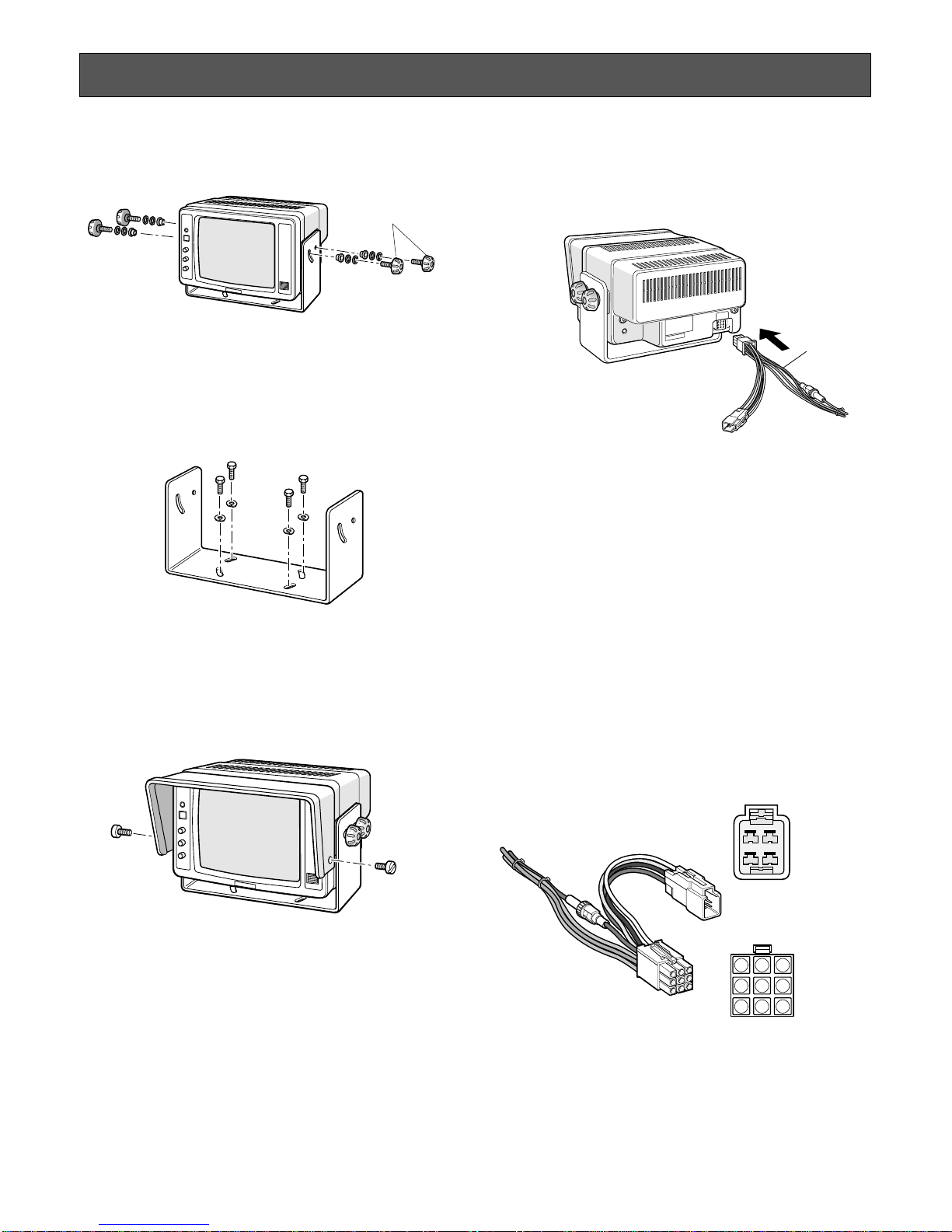

1. Remove the Mounting Bracket from the monitor by

removing the four monitor fixing screws.

INSTALLATIONS

Remove screws

3. Place the monitor onto the bracket and tighten with the

four monitor fixing screws.

4. Install the GP-Q48 monitor hood (option) by tightening

the two screws supplied, if required.

Connect

Remote

Cable

To Rearview Monitor

q+12 V DC (red)

wRemote In (blue)

eNot Used

rGround (green)

tAudio In (white)

yVideo In (yellow)

uGround (green)

iCamera Ground (black)

o+9 V DC (red)

To Rearview Camera

qAudio In (white)

wVideo In (yellow)

eCamera Ground (black)

r+9 V DC (red)

1 2 3

4 5 6

7 8 9

5. Connect the remote cable to the REMOTE/CAMERA

connector on the rear of the monitor.

The remote cable is designated as shown in the figure

below.

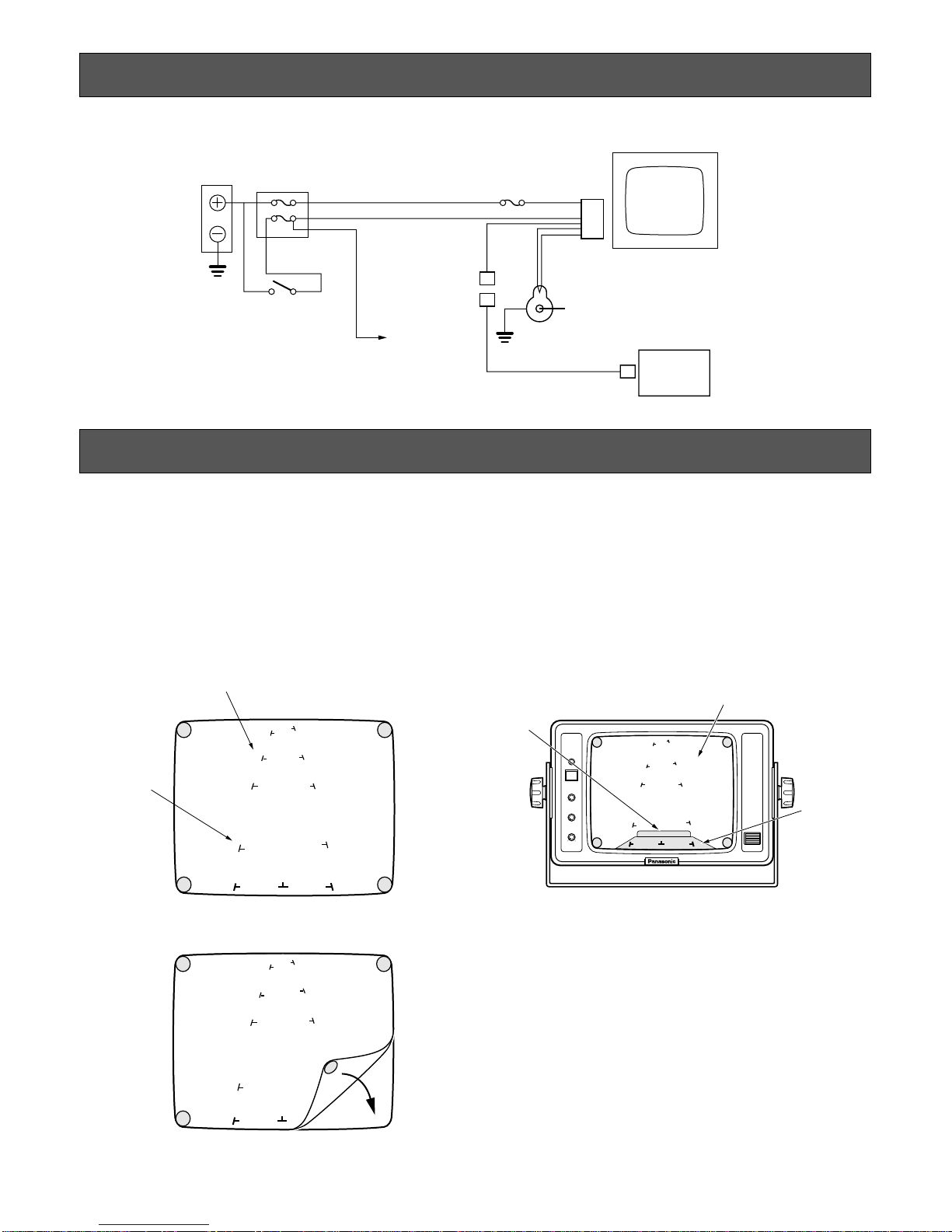

BATTERY Fuse box

Reverse

Switch

(Shift Gear)

+12 V (Red) 3 A

To Reverse Light

Chassis (GROUND) (Green)

CAMERA

Camera Cable

9-pin

CONNECTOR

MONITOR

Remote (Blue)

ADJUSTMENT

The following adjustment should be made by qualified

service personnel or system installers.

The monitor comes with two templates for use with the

height between 2 meters (6.6 feet) and 2.8 meters (9.2 feet)

or higher camera position.

Choose the required template, peel off the tape, and fix the

template onto the monitor screen.

(ft) (m)

Approx.16 ft (5 m) Line

Approx. 3.3 ft

(1 m) Line

(ft) (m)

1. Select the ON mode by pressing the STD BY/ON button

on the monitor.

The rearview image is displayed on the monitor screen.

2. Adjust the camera tilt to become the image that the rear

bumper is displayed on the reference line on the moni-

tor screen.

Reference

Line

CONTRAST

STD BY/ON

BRIGHT

AUDIO

ABC

MIN MAX

(ft) (m)

Monitor Screen

Rear

Bumper

SYSTEM CONNECTION

OPERATING PROCEDURES

1. Turn the ignition switch to the ON position and confirm

that the STD BY/ON indicator on the monitor lights

green (standby mode).

CONTRAST

STD BY/ON

BRIGHT

AUDIO

ABC

MIN MAX

Lights to

Green

2. Whenever shifting the gear lever to the reverse position,

the indicator becomes to light amber (on mode) and the

rearview image will appear on the monitor screen in a

few seconds.

CONTRAST

STD BY/ON

BRIGHT

AUDIO

ABC

MIN MAX

Lights to

Amber

3. Whenever shifting the gear lever to other than reverse

position, the indicator becomes to light green and the

image will on the monitor disappear.

4. The rearview image can be displayed on the monitor by

pressing the STD BY/ON button even the gear lever is

not positioned in reverse.

Press the button to toggle rearview display on and off

on the monitor.

5. Turn the BRIGHT, CONTRAST and AUDIO controls to

adjust the volume and for clear images.

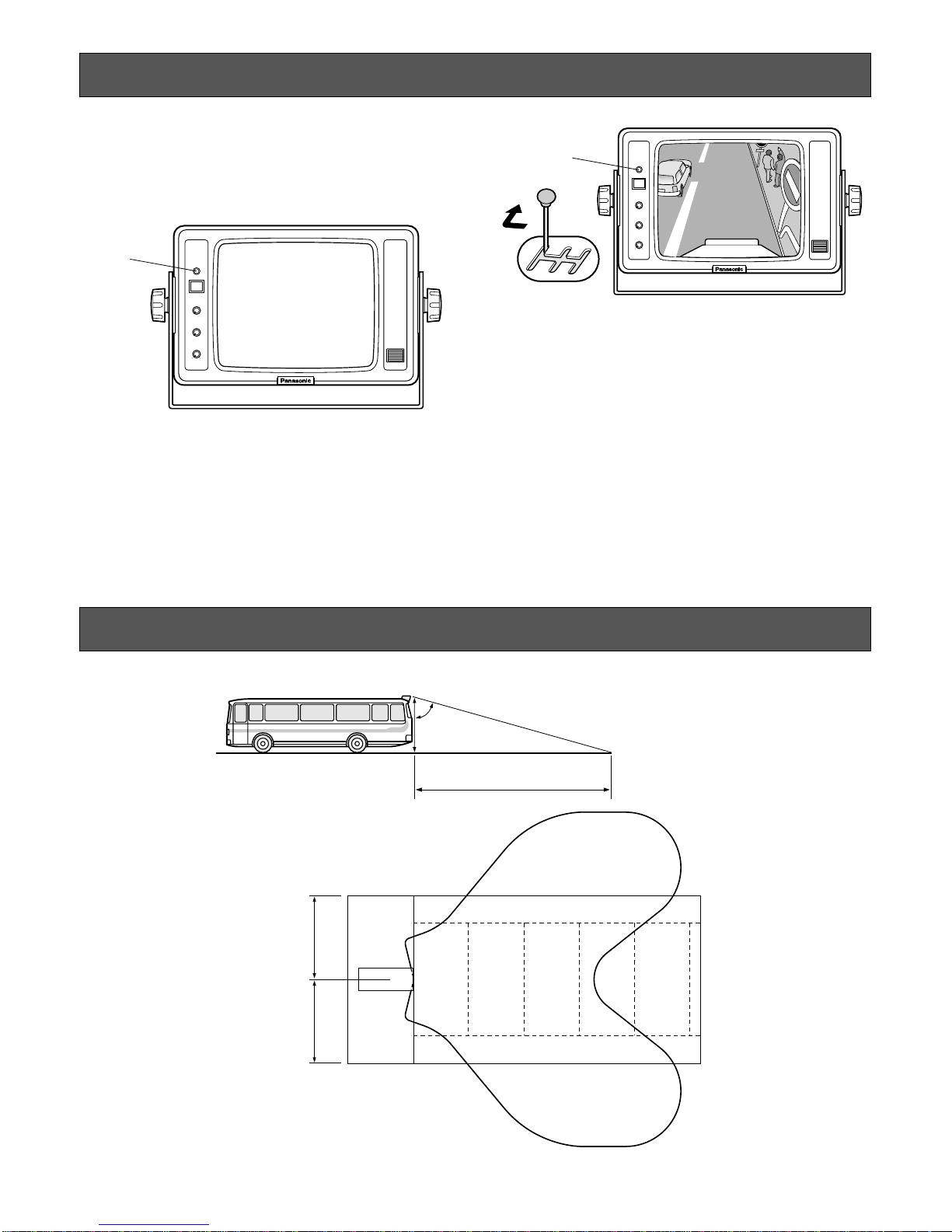

VIEWED RANGE

5 m (16.5 ft)5 m (16.5 ft)

5 m (16.5 ft)

10 m (33 ft)

15 m (50 ft)

20 m (66 ft)

78°

14.1 m (46 ft)

3 m (10 ft)

APPEARANCE

PRODUCT . . .

Model No. . . .

CONTRAST

STD BY/ON

BRIGHT

AUDIO

ABC

MIN MAX

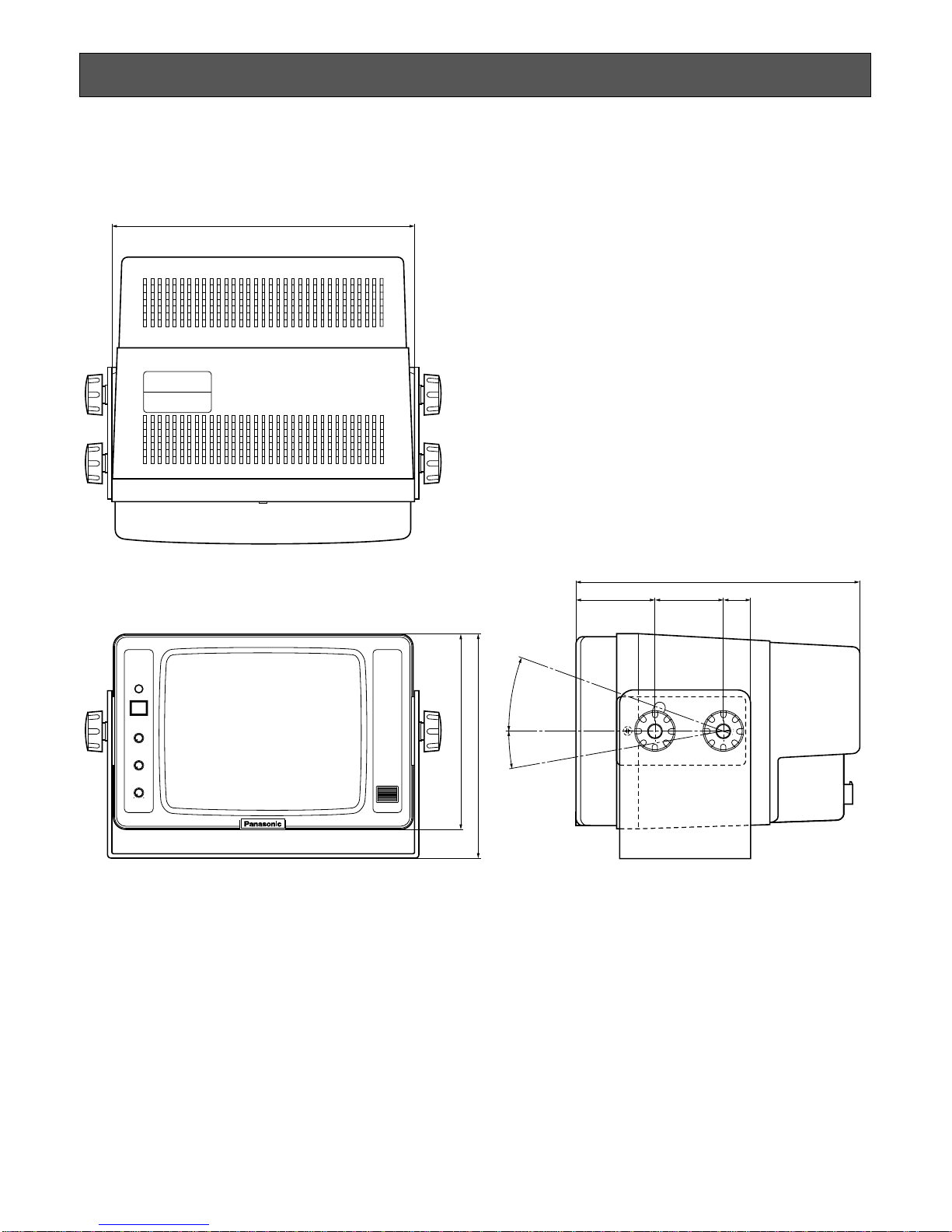

20 (13/16)50 (2)

208 (8-3/16)

164 (6-7/16)

142 (5-9/16)

221 (8-11/16)

(2-5/16)

20°

10°

Unit: mm (inches)

Power Required: 12 V DC (10 V - 16 V DC) 1.8 A

Power Consumption: 22 W (ON mode), 2 W (STD BY mode)

Screen Size: 191.6 mm (7-9/16”) diagonal tube size, 90˚ deflection.

176.3 mm (6-15/16’’) diagonal actual visual size.

Horizontal Resolution: 500 TV lines at center

Speaker Output: 0.5 W max.

Automatic Brightness Control: Yes

Vibration Resistance: 4.4 G (10 Hz - 100 Hz)

Ambient Operating Temperature: –10˚C - +55˚C (14°F - 131°F)

Ambient Operating Humidity: Less than 90 %

Dimensions: 221 (W) x 142 (H) x 208 (D) mm

(Excluding Hood and Mounting Bracket) 8-11/16” (W) x 5-9/16” (H) x 8-3/16” (D)

Weight: 4.3 kg(9.5 lbs.)

Weight and Dimensions indicated are approximate.

Specifications are subject to change without notice.

SPECIFICATIONS

Remote Cable Assembly ...................................................... 1 pc

Template ............................................................................... 2 pcs.

STANDARD ACCESSORY

Monitor Hood ........................................................................ GP-Q48

OPTIONAL ACCESSORY

Other manuals for GPRV700 - REAR VIEW CAMERA

Table of contents

Other Panasonic Monitor manuals

Panasonic

Panasonic Palmcorder DisplayMate PV-LCD35 User manual

Panasonic

Panasonic TR-930 User manual

Panasonic

Panasonic CY-VMR5800N User manual

Panasonic

Panasonic TH47LF20U - 47" HD LCD TV User manual

Panasonic

Panasonic TH-42PG10M User manual

Panasonic

Panasonic BT-S1315DA User manual

Panasonic

Panasonic TH-98SQ1W User manual

Panasonic

Panasonic TH-42PF30U User manual

Panasonic

Panasonic TH-42PW5 User manual

Panasonic

Panasonic CF-VDL03U User manual

Panasonic

Panasonic BTLH1760P - LCD VIDEO MONITOR User manual

Panasonic

Panasonic TH-65PF11WK Instruction Manual

Panasonic

Panasonic TH-103PF9WK User manual

Panasonic

Panasonic TH-42LF25U User manual

Panasonic

Panasonic Viera TH-50PF10UK User manual

Panasonic

Panasonic TH-42PW6BX User manual

Panasonic

Panasonic WVBM990 - VIDEO MONITOR User manual

Panasonic

Panasonic TYSP50P8WK - Speakers For 50IN Plasma... Installation instructions

Panasonic

Panasonic WVBM1910 - VIDEO MONITOR User manual

Panasonic

Panasonic th-32ef1e User manual

Panasonic

Panasonic CT-36DV61 User manual

Panasonic

Panasonic PT-60LCX64-K User manual

Panasonic

Panasonic AG-LC35 User manual

Panasonic

Panasonic CY-VHD9500U User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual

LG M1950D-PZ owner's manual
