Panasonic BT-LH2600WP User manual

Panasonic Broadcast

Mechanical Parts List

MODEL: BT-LH2600WP/E/MC

CONTENTS

CASING PARTS ASSEMBLY ..........................................................................................................MPL-1

PACKING PARTS ASSEMBLY........................................................................................................MPL-3

E-1

109

106

107

103

107

104

107

104

105

106

E-2

E-3

E-4

14 17

107

108

107

20 21

107

110

110 110

107

101

E-5

102

P only

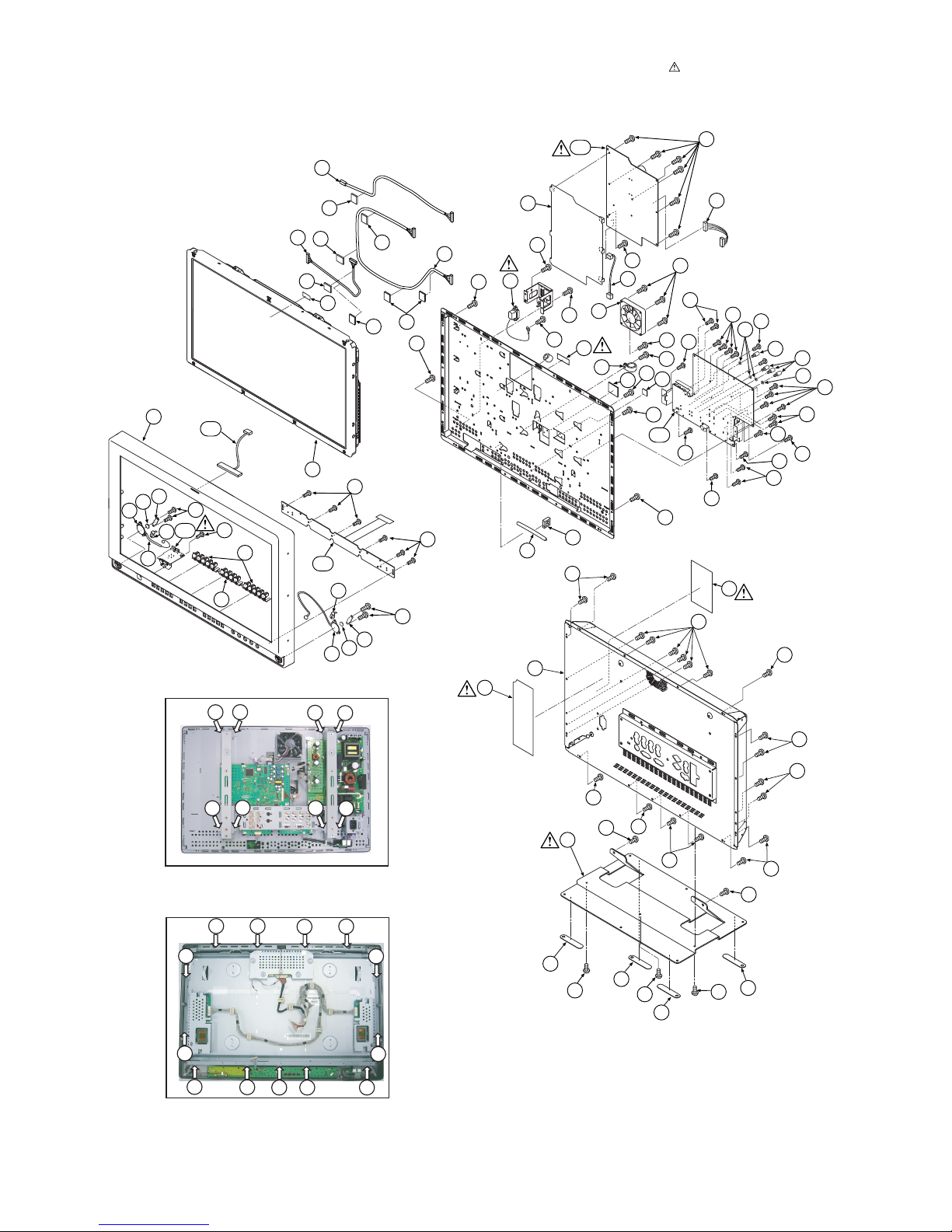

CASING PARTS ASSEMBLY

MPL-1

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

113 113 113 113

113

113113113

113

107 107

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VEK0K28 AC IN UNIT 1

2 K1YE25000007 SCREW 1

3 XWA26BFN WASHER 4

4 VMP8633 STAND 1

5 VMT1727 STAND CUSHION 4

6 VMP8517 SPEAKER FRAME 2

7 VMT1720 SPEAKER CUSHION 2

8 L0AA02A00071 SPEAKER 2

9 VGU9992 OPERATION_BUTTON(5) 2

10 VGU9993 OPERATION_BUTTON(4) 1

11 VJF1158 CLAMPER 2

12 VWZ0248 INSULATION TUBE 2

13 L5EDD6Q00012 LCD PANEL 1 WITHOUT GAMMA DATA

13 VEK0K41 LCD PANEL 1 WITH GAMMA DATA

14 VJF1554 CLAMPER 7

15 VEE1C73 POWER-INV1 WIRE CABLE 1

16 VEE1C75 MAIN-LCD WIRE CABLE 1

17 VEE1C74 POWER-INV2 WIRE CABLE 1

18 L6FAYYYH0024 FAN MOTOR 1

19 VMZ3642 POWER INSULATOR SHEET 1

20 VMT1722 HEAT SINK SHEET A 1

21 VMT1776 RADIATION SHEET A 1

23 VJF0961 CLAMPER 1

24 VJF1500 FG CLAMPER 1

25 VMZ3643 BACK CASE INSULATOR SHEET 1

27 VYQ3859 FRONT ASS'Y 1

39 VYF3108 BACK CASE U 1

43 VQL4837 SERVICE CAUTION LABEL 1

45 VEE1C67 MAIN-AC POWER WIRE CABLE 1

46 VEE1C71 POWER-AC POWER WIRE CABLE 1

47 VJF1539 CLAMPER 1 FOR BT-LH2600WP/E

48 VGN0S43 RATING LABEL 1 FOR BT-LH2600WP

48 VGN0S44 RATING LABEL 1 FOR BT-LH2600WE

48 VGN0S45 RATING LABEL 1 FOR BT-LH2600WMC

101 XSB3+6FJK SCREW 2

102 XYN4+E6VW SCREW 1

103 XTB26+8GFJK SCREW 2

104 XTB3+8GFJK SCREW 6

105 XSB3+4FJK SCREW 1

106 XYN3+J8FJ SCREW 15

107 XTV3+8FFJ SCREW 22

108 XYN4+J25FJ SCREW 4

109 XSB4+12FJK SCREW 28

110 XYN4+F10FJK SCREW 5

113 XYN4+J8FJ SCREW 17

E1 VEP18117A LCD MAIN P.C.BOARD 1

E2 VEP10127A TALLY P.C.BOARD 1

E3 VEP11119A POWER SW P.C.BAORD 1

E4 VEP10126A FRONT P.C.BOARD 1

E5 VEP11118A POWER P.C.BOARD 1

CASING ASSEMBLY

MPL-2

12 10

PACKING PARTS

MPL-3

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VJF1553 AC CLAMPER 1

2 XYN4+F10FJK SCREW 1

3 VPF1016 POLYETHYLENE BAG 1

4 VQT0X79 OPERATING INSTRUCTIONS 1 FOR BT-LH2600WP

4 VQT0X80 OPERATING INSTRUCTIONS 1 FOR BT-LH2600WE

4 VQT0X81 OPERATING INSTRUCTIONS 1 FOR BT-LH2600WMC

5 VJA1170 POWER CORD 1 FOR BT-LH2600WP

5 K2CL2CH00001 POWER CORD (TYPE C) 1 FOR BT-LH2600WE

5 K2CK3CH00001 POWER CORD 1 FOR BT-LH2600WMC

6 VPG1J04 PACKING CASE 1 FOR BT-LH2600WP

6 VPG1J05 PACKING CASE 1 FOR BT-LH2600WE

6 VPG1J06 PACKING CASE 1 FOR BT-LH2600WMC

7 VPG1J08 PARTITION PLATE 1

8 VPN6434 CUSHION (RU) 1

9 VPN6435 CUSHION (LU) 1

10 VPN6436 CUSHION (RB) 1

11 VPN6437 CUSHION (LB) 1

12 VPF1259 PROTECT BAG 1

13 VPF0149 HANDLE COVER 2

14 VQL1K74 ARROW LABEL 1

15 K2CT3CH00002 POWER CORD (TYPE BF(UK)) 1 FOR BT-LH2600WE

16 VPN1791 PAD 8 FOR BT-LH2600WMC

17 VPG1J07 PACKING CASE (OUT) 1 FOR BT-LH2600WMC

18 VQL1K09 PACKING LABEL 2 FOR BT-LH2600WMC

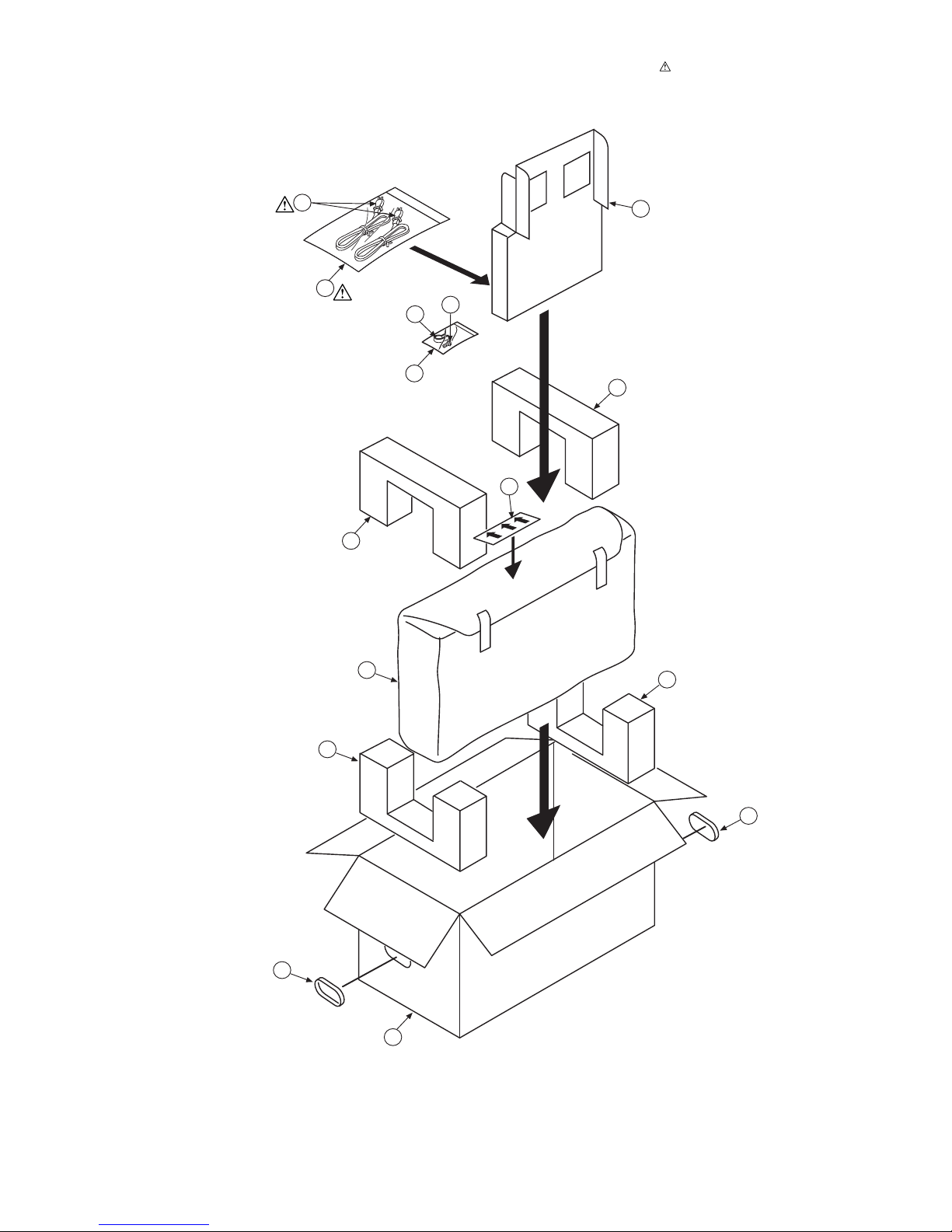

PACKING PARTS ASSEMBLY

MPL-4
