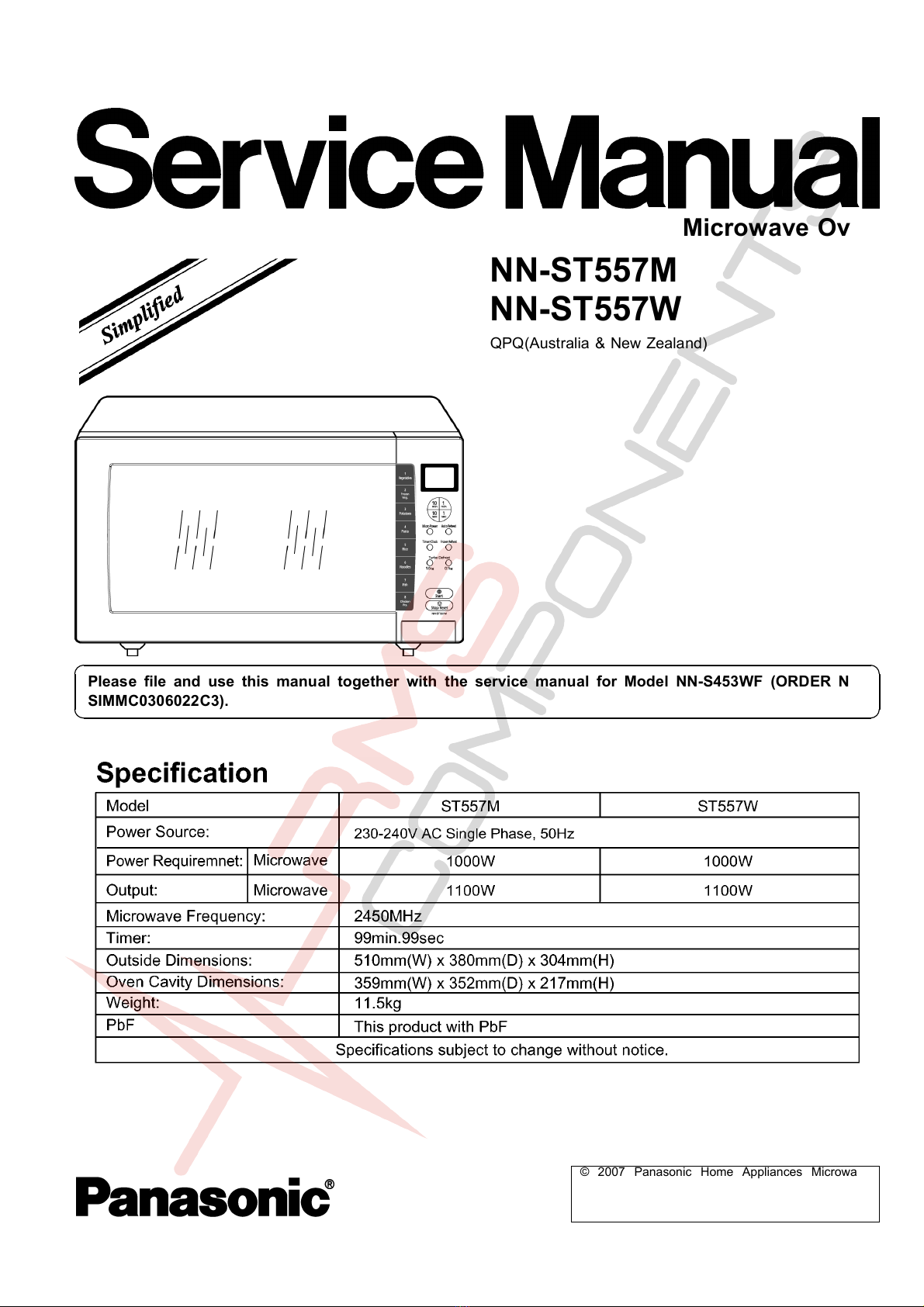

Panasonic NN-ST557M User manual

Unauthorized copying and distribution is a violation

of law.

NN-ST557M

NN-ST557W

QPQ(Australia & New Zealand)

Microwave Oven

Please file and use this manual together with the service manual for Model NN-S453WF (ORDER NO.

SIMMC0306022C3).

ORDER NO.PHAMOS0706035A3

5 EXPLODED VIEW AND PARTS LIST

5.1. EXPLODED VIEW

NN-ST557M / NN-ST557W /

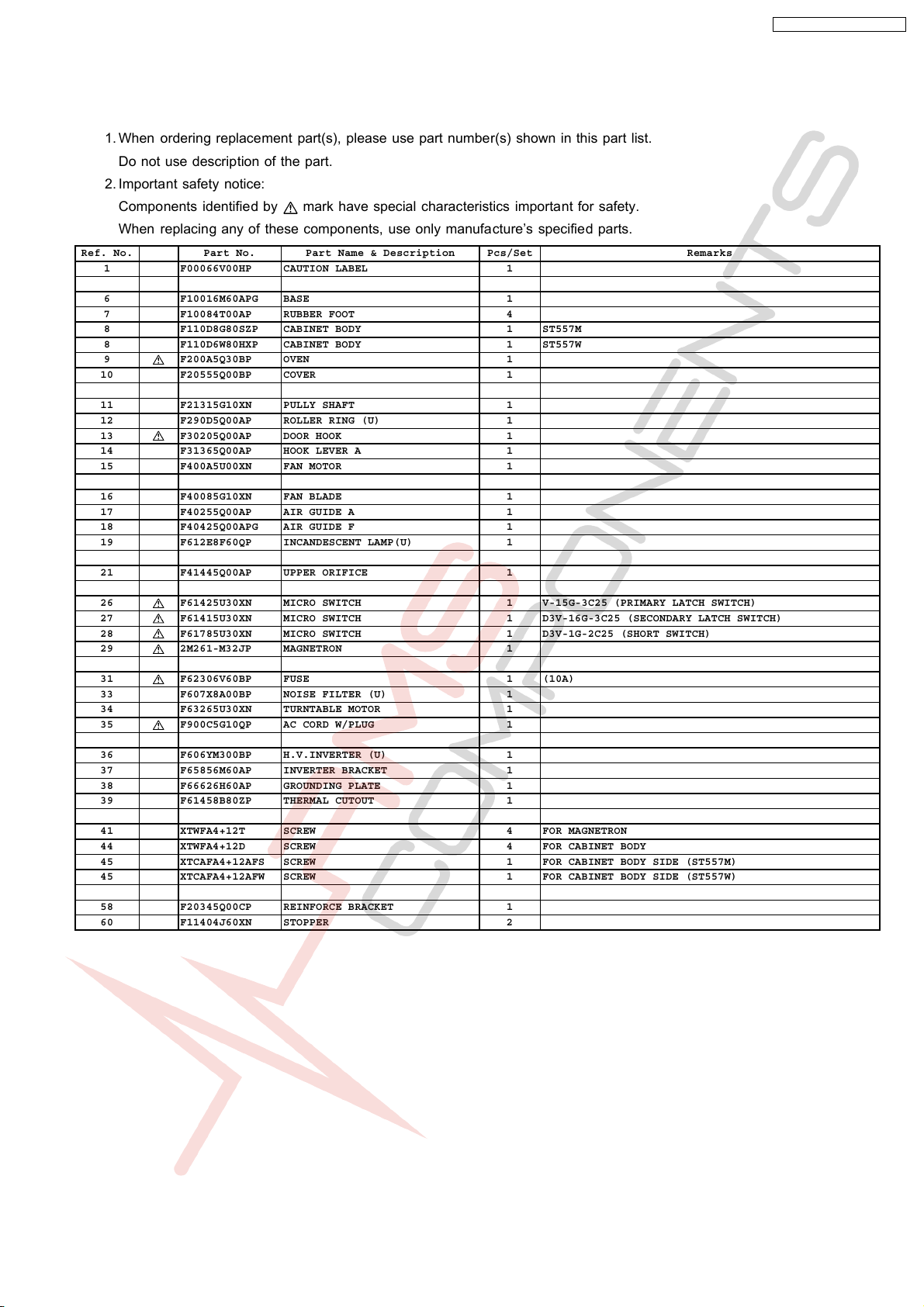

5.2. PARTS LIST

NOTE:

1. When ordering replacement part(s), please use part number(s) shown in this part list.

Do not use description of the part.

2. Important safety notice:

Components identified by mark have special characteristics important for safety.

When replacing any of these components, use only manufacture’s specified parts.

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

1F00066V00HP CAUTION LABEL 1

6F10016M60APG BASE 1

7F10084T00AP RUBBER FOOT 4

8F110D8G80SZP CABINET BODY 1ST557M

8F110D6W80HXP CABINET BODY 1ST557W

9F200A5Q30BP OVEN 1

10 F20555Q00BP COVER 1

11 F21315G10XN PULLY SHAFT 1

12 F290D5Q00AP ROLLER RING (U) 1

13 F30205Q00AP DOOR HOOK 1

14 F31365Q00AP HOOK LEVER A 1

15 F400A5U00XN FAN MOTOR 1

16 F40085G10XN FAN BLADE 1

17 F40255Q00AP AIR GUIDE A 1

18 F40425Q00APG AIR GUIDE F 1

19 F612E8F60QP INCANDESCENT LAMP(U) 1

21 F41445Q00AP UPPER ORIFICE 1

26 F61425U30XN MICRO SWITCH 1V-15G-3C25 (PRIMARY LATCH SWITCH)

27 F61415U30XN MICRO SWITCH 1D3V-16G-3C25 (SECONDARY LATCH SWITCH)

28 F61785U30XN MICRO SWITCH 1D3V-1G-2C25 (SHORT SWITCH)

29 2M261-M32JP MAGNETRON 1

31 F62306V60BP FUSE 1(10A)

33 F607X8A00BP NOISE FILTER (U) 1

34 F63265U30XN TURNTABLE MOTOR 1

35 F900C5G10QP AC CORD W/PLUG 1

36 F606YM300BP H.V.INVERTER (U) 1

37 F65856M60AP INVERTER BRACKET 1

38 F66626H60AP GROUNDING PLATE 1

39 F61458B80ZP THERMAL CUTOUT 1

41 XTWFA4+12T SCREW 4FOR MAGNETRON

44 XTWFA4+12D SCREW 4FOR CABINET BODY

45 XTCAFA4+12AFS SCREW 1FOR CABINET BODY SIDE (ST557M)

45 XTCAFA4+12AFW SCREW 1FOR CABINET BODY SIDE (ST557W)

58 F20345Q00CP REINFORCE BRACKET 1

60 F11404J60XN STOPPER 2

NN-ST557M / NN-ST557W /

5.3. DOOR ASSEMBLY

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

D1 F30185Q00AP DOOR KEY A 1

D3 F302K5Q00AP DOOR E(U) 1

D4 F30215G10XN DOOR KEY SPRING 1

D5 F30855Q00AP DOOR C 1

D6 F31456V60XP DOOR SCREEN A 1

D8 F302A8U20SXP DOOR A (U) 1ST557M

D8 F302A8U20HXP DOOR A (U) 1ST557W

D9 F01726V00JP CAUTION LABEL B 1

5.4. WIRING MATERIALS

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

W1 F030A8B60QP LEAD WIRE HARNESS 1

W2 F030E5Q00AP H.V.LEAD WIRE 1

W3 F03538B80ZP LEAD WIRE HARNESS U 1(INCLUDING THERMISTOR)

NN-ST557M / NN-ST557W /

5.5. ESCUTCHEON BASE ASSEMBLY

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

E1 F603L8B60QP D.P. CIRCUIT (AU) 1

E2 F603Y8B60QP D.P. CIRCUIT (DU) 1

E4 F630Y8B60SQP MEMBRANE SWITCH(U) 1ST557M

E4 F630Y8B60HQP MEMBRANE SWITCH(U) 1ST557W

E5 F800L8B60SQP ESCUTCHEON BASE (U) 1ST557M

E5 F800L8B60HQP ESCUTCHEON BASE (U) 1ST557W

E6 F80728U10SXP DOOR OPENING BUTTON 1ST557M

E6 F80728U10HXP DOOR OPENING BUTTON 1ST557W

E7 F80375K00AP COOK BUTTON SPRING 1

E8 F82565Q00AP DOOR OPENING LEVEL 1

E10 F66168J00XP FLAT CABLE 1

E12 F00078B60SQP NAME PLATE 1ST557M

E12 F00078B60HQP NAME PLATE 1ST557W

E13 F630N8B60BQP MEMBRANE SWITCH(U) 1

NN-ST557M / NN-ST557W /

5.6. PACKING AND ACCESSORIES

Ref. No. Part No. Part Name & Description Pcs/Set Remarks

P1 F00038B60QP INSTRUCTION MANUAL 1

P2 F01028B60SQP PACKING CASE,PAPER 1ST557M

P2 F01028B60HQP PACKING CASE,PAPER 1ST557W

P3 F01045Q00AP UPPER FILLER 1

P4 F01055Q00AP LOWER FILLER 1

P5 F01067F50XN P.E.BAG 1

P6 F01078J00XN DOOR SHEET 1

P7 F06015Q00AP COOKING TRAY 1

P8 F01924T00AP SHEET 1

P10 F00065G40AP CAUTION LABEL 1

NN-ST557M / NN-ST557W /
