Panasonic NE-2153-2EUG User manual

© Panasonic Corporation 2014 Unauthorized copy-

ing and distribution is a violation of law.

Order Number MOD1407415CE

Microwave Oven

Model No. NE-2153-2EUG

Model No. NE-2143-2EUG

Destination : Continental Europe Countries

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Location of Controls and Components ------------------- 3

4 Operating Instructions------------------------------------------ 5

5 Test Mode ----------------------------------------------------------18

6 Troubleshooting Guide ----------------------------------------20

7 Disassembly and Assembly Instructions ---------------22

8 Measurements and Adjustments---------------------------26

9 Wiring Connection Diagram ---------------------------------27

10 Schematic Diagram ---------------------------------------------28

11 Exploded View and Replacement Parts List -----------29

2

1 Safety Precautions

2 Specifications

*IEC Test Procedure

Specifications subject to change without notice.

Models: NE-2143-2 NE-2153-2

Power Source: 50 Hz, single phase 230V 50 Hz, single phase 230V

Power Requirement: 14.3A 3160W 14.3A 3160W

*Output: HIGH 2100 W* P10: 2100 W*

MEDIUM

HIGH ---------------

P9: 90%

P8: 80%

P7: 70%

P6: 60%

MEDIUM 1050 W P5: 50%

P4: 40%

LOW --------------- P3: 30%

P2: 25%

DEFROST 340 W P1: 340 W

OFF --------------- P0: 0%

HEAT FROM

TOP DOWN --------------- PU1: 50%

PU2: 25%

HEAT FROM

BOTTOM --------------- PL1: 50%

PL2: 25%

Frequency: 2,450 MHz 2,450 MHz

Outside Dimensions (WDH) 422 mm 508 mm 337 mm 422 mm 508 mm 337 mm

Cavity Dimensions (WDH) 330 mm 310 mm 175 mm 330 mm 310 mm 175 mm

Net Weight 30 kg 30 kg

Timer: Maximum programmable time for heating

= 25 minutes

, =30 minutes

30 minutes (digital)/10 touch pads

Maximum programmable time for single stage heating

P1 and P0=30 minutes

P10-P2, PU1-PL2=15 minutes

3

3 Location of Controls and Components

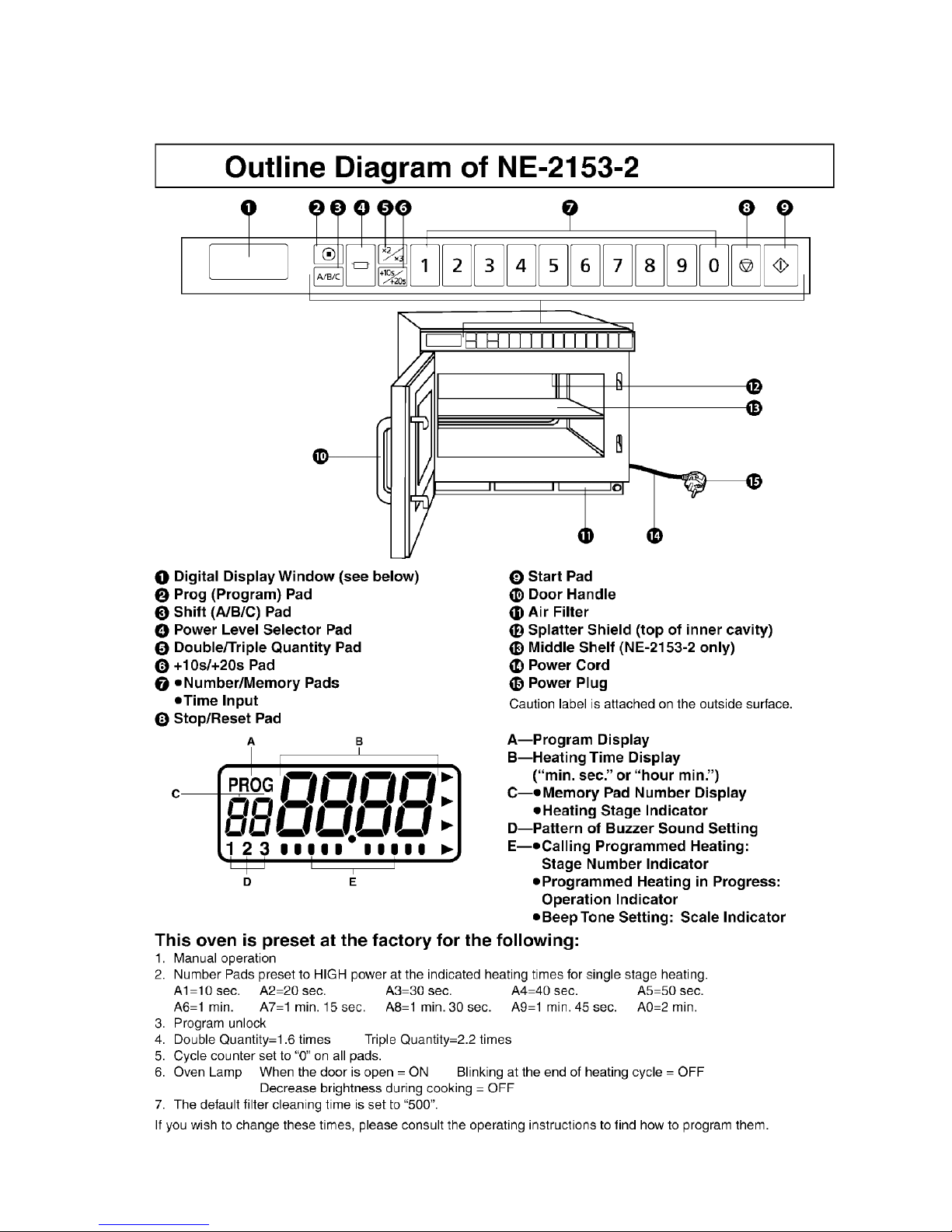

3.1. Outline diagram

4

5

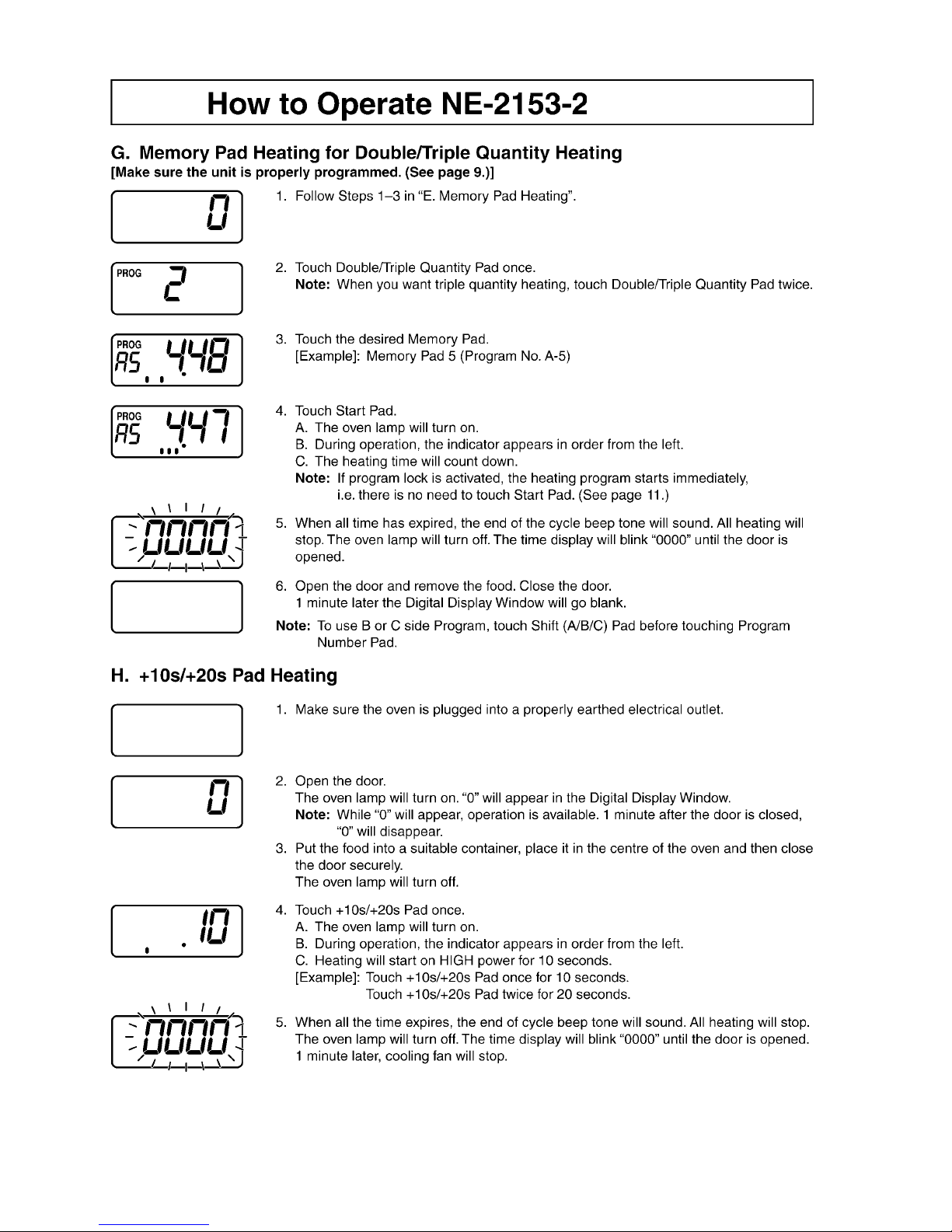

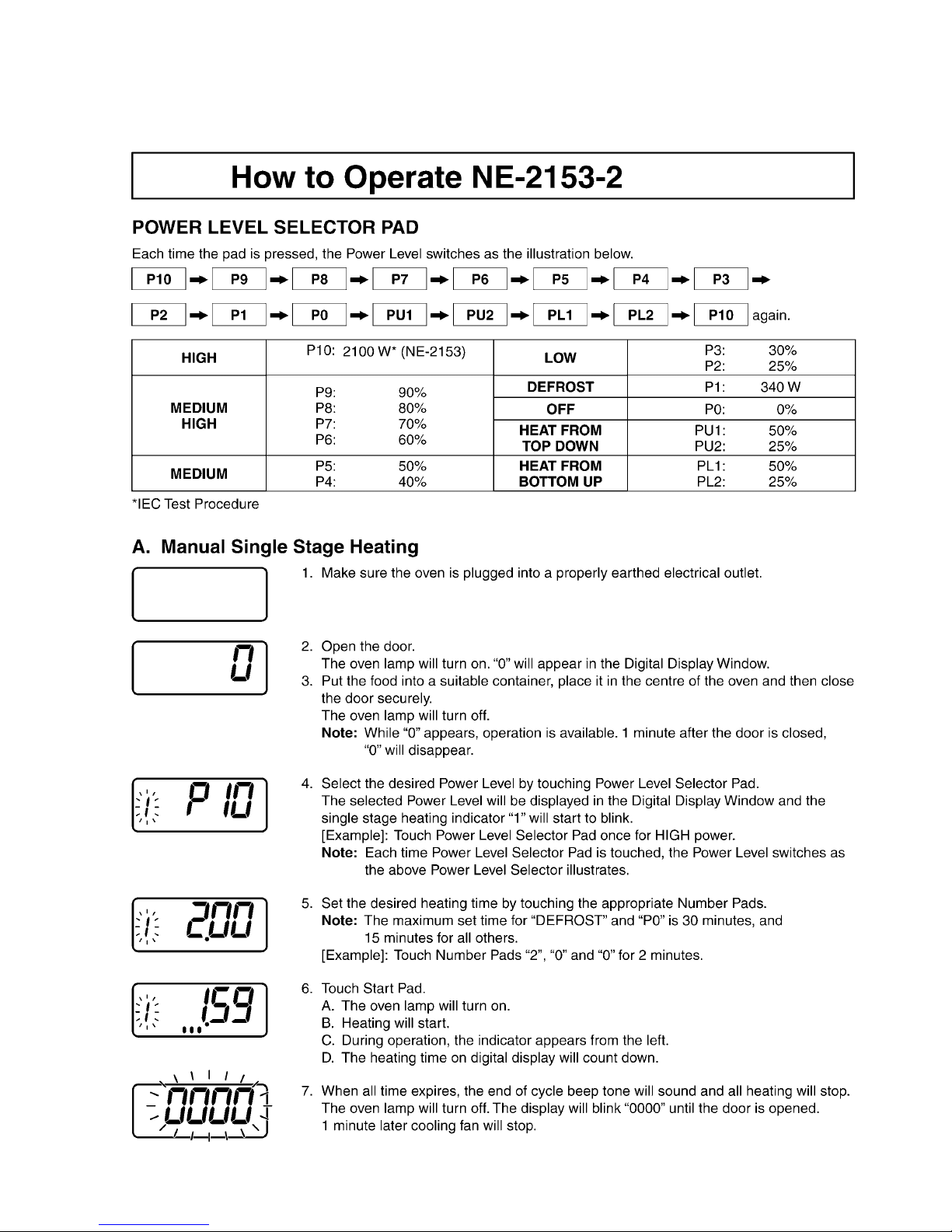

4 Operating Instructions

4.1. Operation procedure

6

7

8

9

10
