Panasonic EY7540-X8 User manual

1 SCHEMATIC DIAGRAM 2

2 WIRING CONNECTION DIAGRAM 2

3 DISASSEMBLY/ASSEMBLY INSTRUCTIONS 3

4 TROUBLESHOOTING GUIDE 7

reserved. Unauthorized copying and distribution is a

violation of law.

EY7540-X8

5 CHECK PARTS IDENTIFY PROCEDURE 9

6 EXPLODED VIEW 11

7 REPLACEMENT PARTS LIST 12

Cordless Impact Driver

SPECIFICATIONS

CONTENTS

Page Page

ORDER NO. PTD0609X43CE

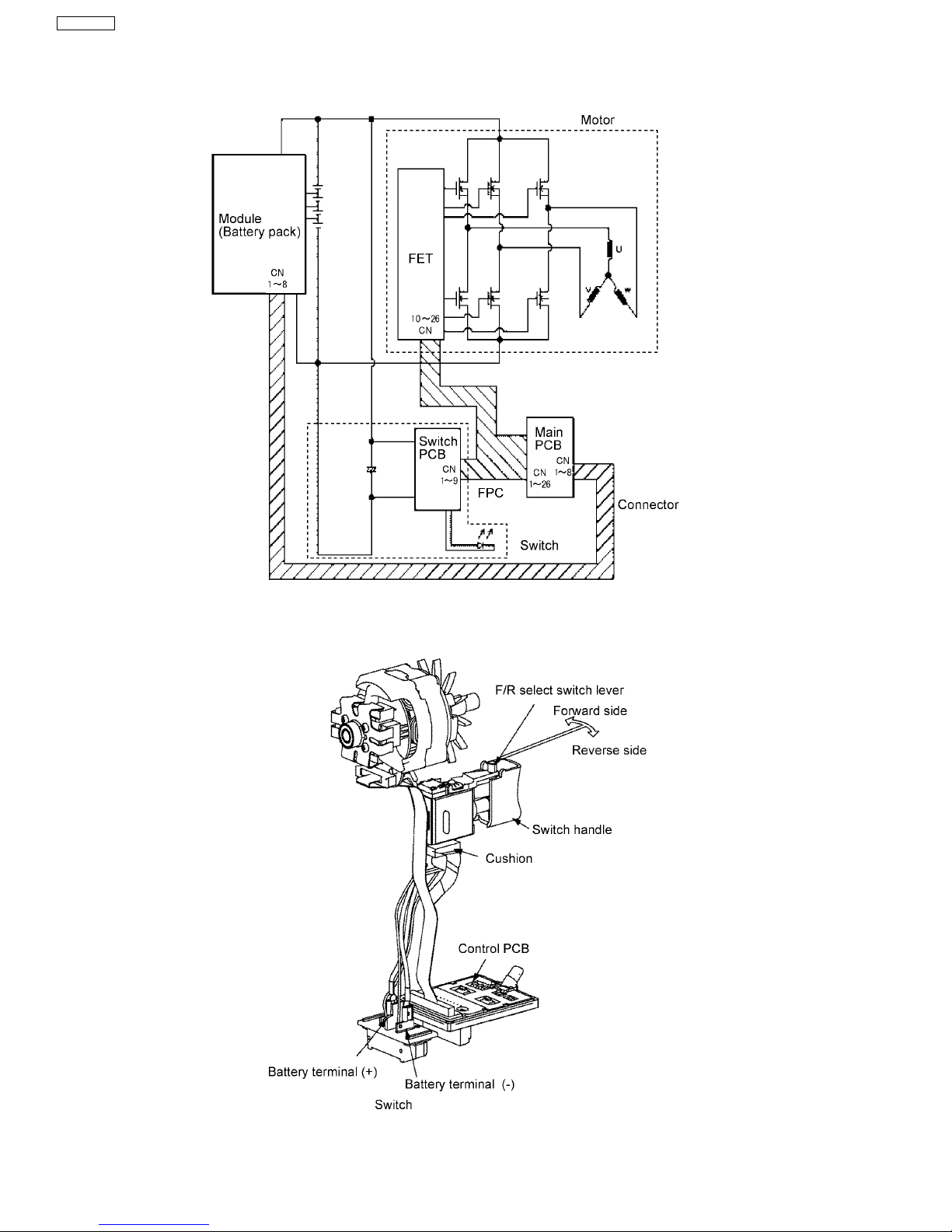

1 SCHEMATIC DIAGRAM

2 WIRING CONNECTION DIAGRAM

EY7540-X8 /

3 DISASSEMBLY/ASSEMBLY INSTRUCTIONS

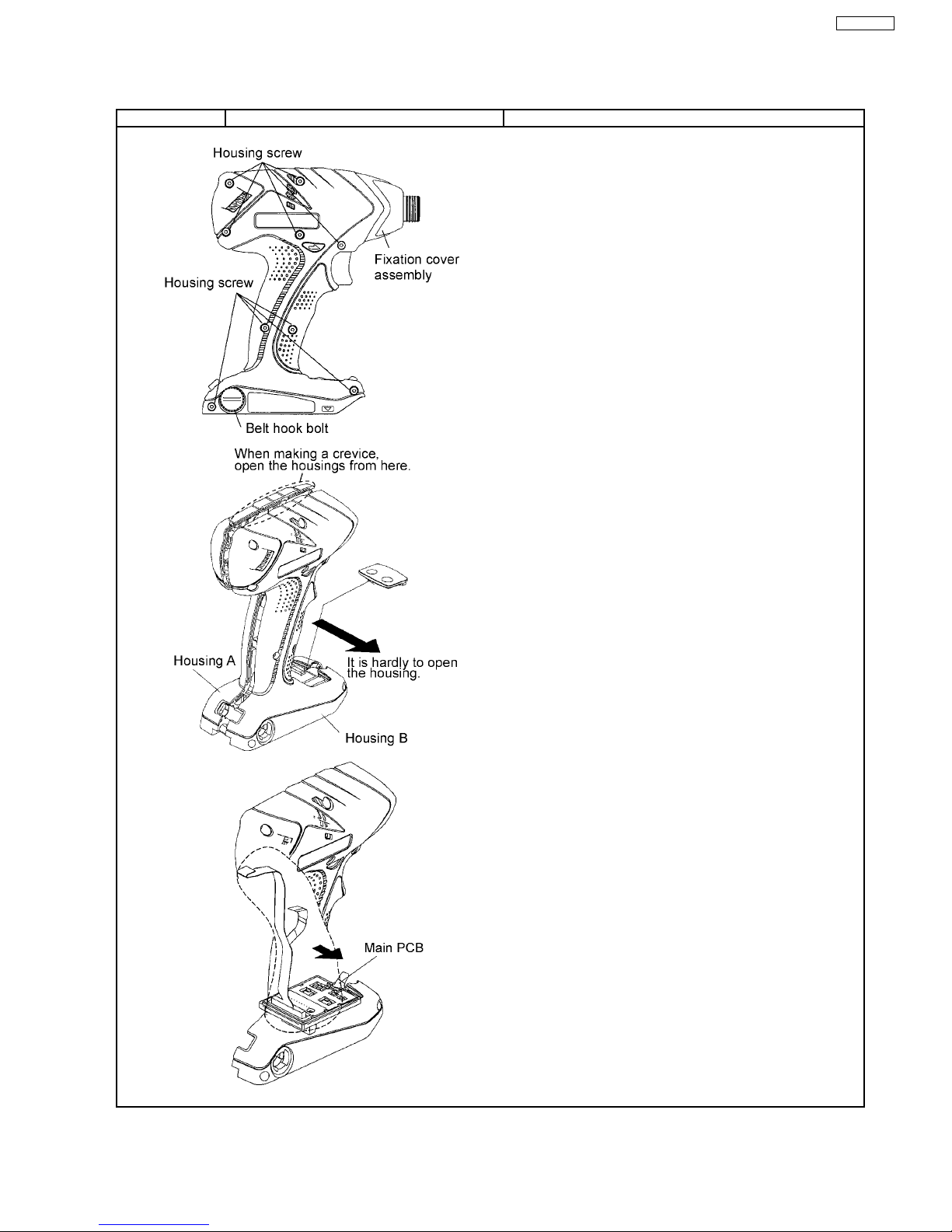

Ref. No. 1A Procedure 1A Removal and attachment of the Housings.

1. Loosen the belt hook bolt turning it counterclockwise, using a

coin or a flat blade screwdriver.

2. Take out the belt hook.

3. Remove nine housing screws.

4. Open the housing B.

NOTE :

The housing A and B is tightened as the motor mounting base

is joint fitting.

Hold the housing B and take it out vertically.

5. Take out the fixation cover, protectors and anvil block.

(Removal)

NOTE :

When opening the housings, make sure that the main PCB is

on the housing A.

If the main PCB sticks in the housing B and pull it out from the

housing A, the ribbon cable may be defected.

EY7540-X8 /

Ref. No. 1B Procedure 1A →

→→

→1B Removal and attachment of the Motor.

(Removal)

1. Take out the motor with the driving block from housing.

2. Separate the motor assembly from the driving block.

3. Take out the motor rotor assembly from the motor stator.

NOTE :

Make sure not to damage the magnet by motor rotor.

(Attachment)

1. Insert the motor rotor assembly into the stator with care of hitching

FET.

NOTE :

Make sure that there is no metal powder around the motor rotor.

Ref. No. 1C Procedure 1A →

→→

→1B →

→→

→1C Removal of the Driving Block.

1. Take out the planet gears and pins slightly tapping the driving

block on the table.

EY7540-X8 /

Ref. No. 1D Procedure 1A →

→→

→1B →

→→

→1C→

→→

→1D Removal and attachment of the Switch.

1. Take out the switch assembly from the housing.

(Attachment)

1. Connect the motor lead wires.

2. Insert the connectors into the FET, the main PCB and the motor

stator.

NOTE :

Make sure to handle the ribbon cable gently in order to avoid the

breakage.

Apply the grease (FLOIL) on the places where insert into the

connectors.

EY7540-X8 /

Ref. No. 1E Procedure 1A →

→→

→1B →

→→

→1C→

→→

→1D→

→→

→1E Assembly of the Driving Block.

1. Press fit the lead wires firmly.

2. Place the ribbon cable properly without getting caught in the lead

wires.

EY7540-X8 /

(Refer to WIRING CONNECTION DIAGRAM)

4 TROUBLESHOOTING GUIDE

EY7540-X8 /

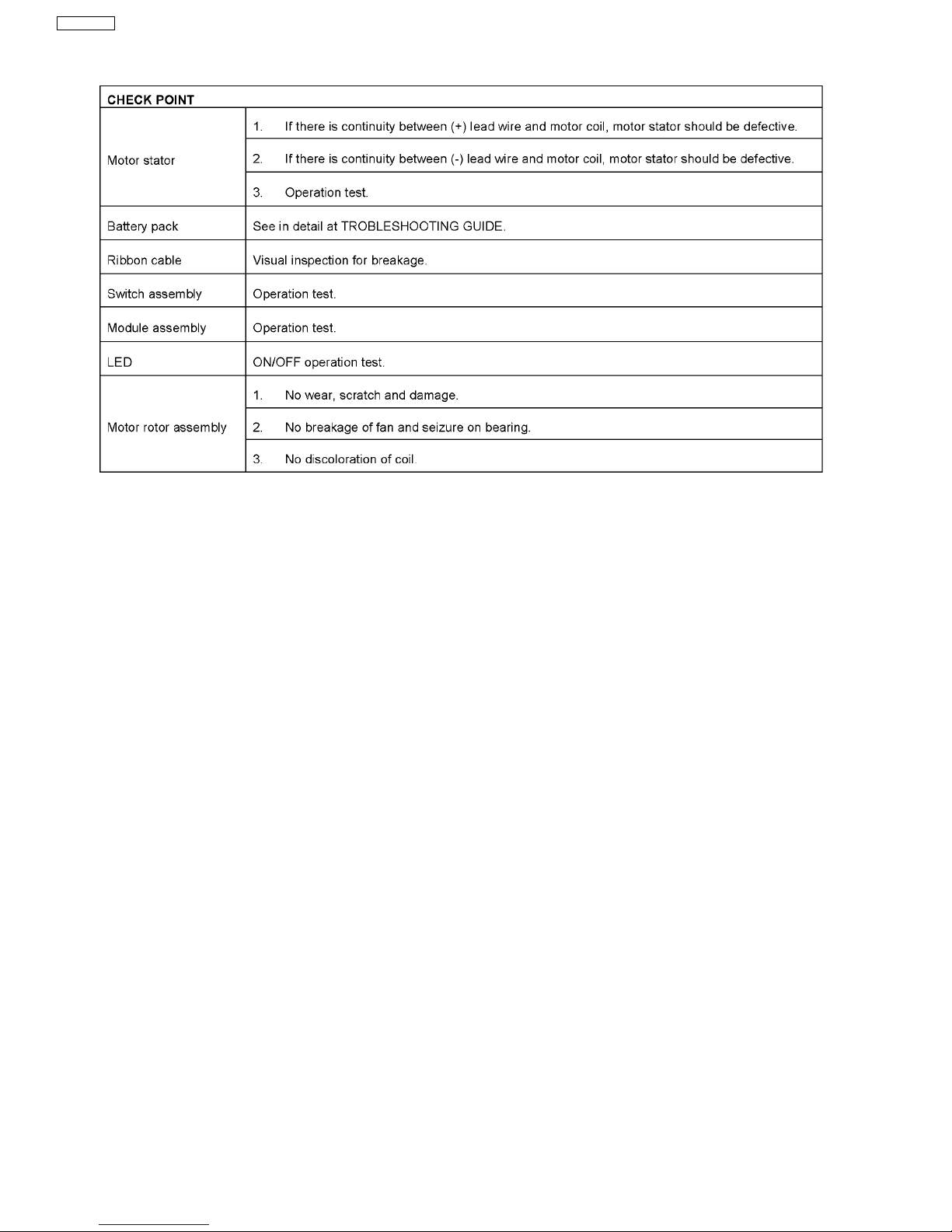

5 CHECK PARTS IDENTIFY PROCEDURE

EY7540-X8 /
