Quick Menu Guide

(Mono bloc)

Air-to-Water Heatpump

ACXF55-14590_FC0817-0_QG.indb 1ACXF55-14590_FC0817-0_QG.indb 1 7/18/2017 4:50:19 PM7/18/2017 4:50:19 PM

This Quick Guide explains how to use the Quick Menu.

Please read the Operating Instructions thoroughly before using the Quick Menu.

Before Use

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the

following options and edit the setting.

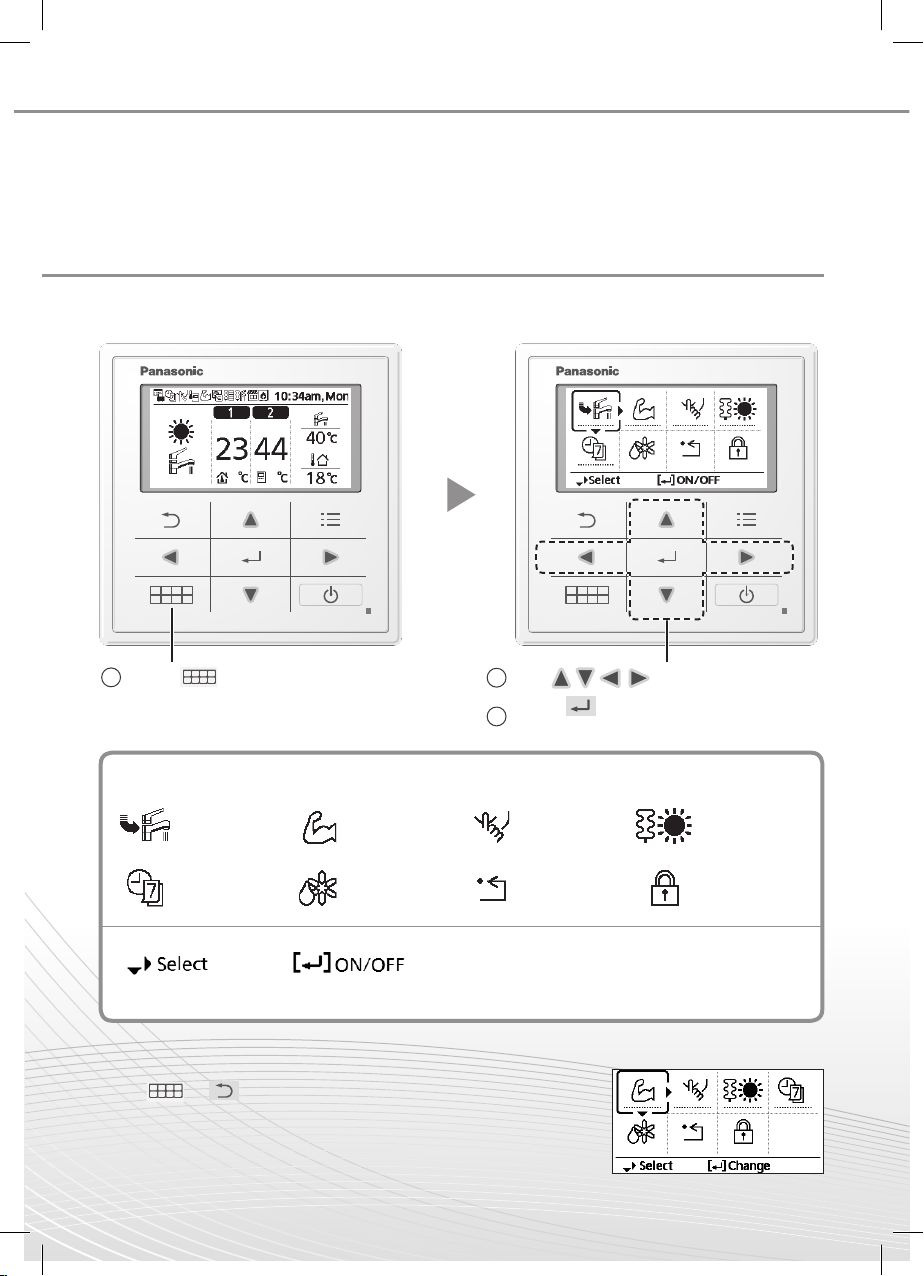

Select each setting and confirm the setting

according to the instructions displayed at the

bottom of the screen. (The icons refer to each

selection key.)

Quick Menu

To return to the Main Screen,

Press or .

Force DHW Powerful Quiet Force

Heater

Weekly

Timer Force

Defrost Error Reset R/C Lock

■Note:

• If the system is not

connected to the tank

(Tank Connection is

OFF), the Quick Menu

screen will be displayed

as right. Make sure the

Tank Connection is ON.

1Press . 2Use to select menu.

3Press to turn on/off the select

menu.

ACXF55-14590_FC0817-0_QG.indb 2ACXF55-14590_FC0817-0_QG.indb 2 7/18/2017 4:50:21 PM7/18/2017 4:50:21 PM

English

How to use the Quick Menu

Notes on operation icon

Example:

• Operation icon indicate with “ ” = OFF

• Operation icon indicate with “ ” = ON

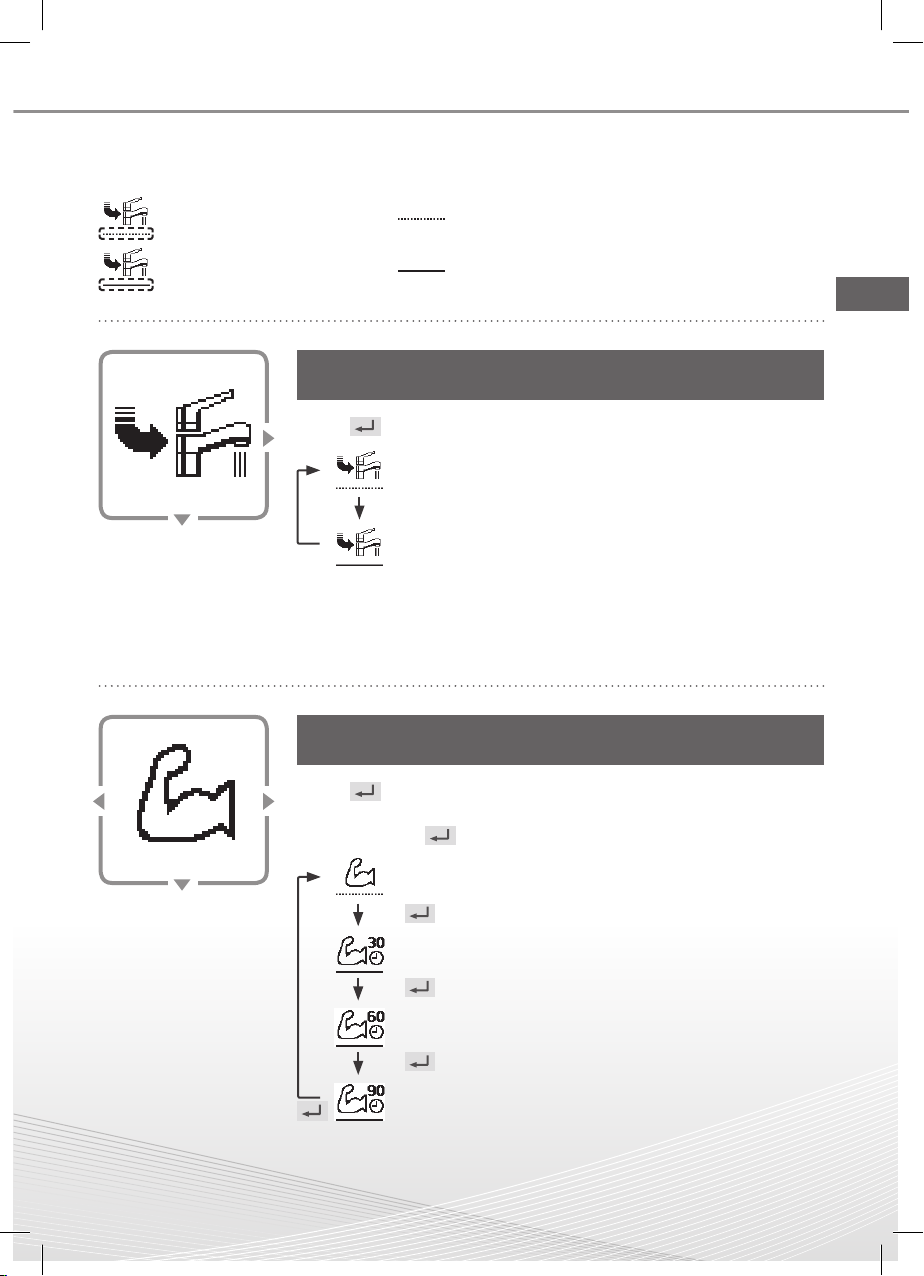

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.

• Force DHW is turned on.

■Note:

• Force DHW is disabled when Force Heater is turned on.

• When Force DHW is turned off, operation & mode should change back to

the previous memorized status.

Force DHW

Select this icon to operate the heating/cooling system

powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is

pressed.)

• Powerful mode is set off.

• The Powerful mode operates for 30 minutes.

• The Powerful mode operates for 60 minutes.

• The Powerful mode operates for 90 minutes.

■Note:

• Powerful is disabled when operation is turned OFF.

Powerful

ACXF55-14590_FC0817-0_QG.indb 3ACXF55-14590_FC0817-0_QG.indb 3 7/18/2017 4:50:21 PM7/18/2017 4:50:21 PM

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

• Quiet mode is set off.

• The Quiet mode operates at level 1.

• The Quiet mode operates at level 2.

• The Quiet mode operates at level 3.

Level 3 is the most quiet mode.

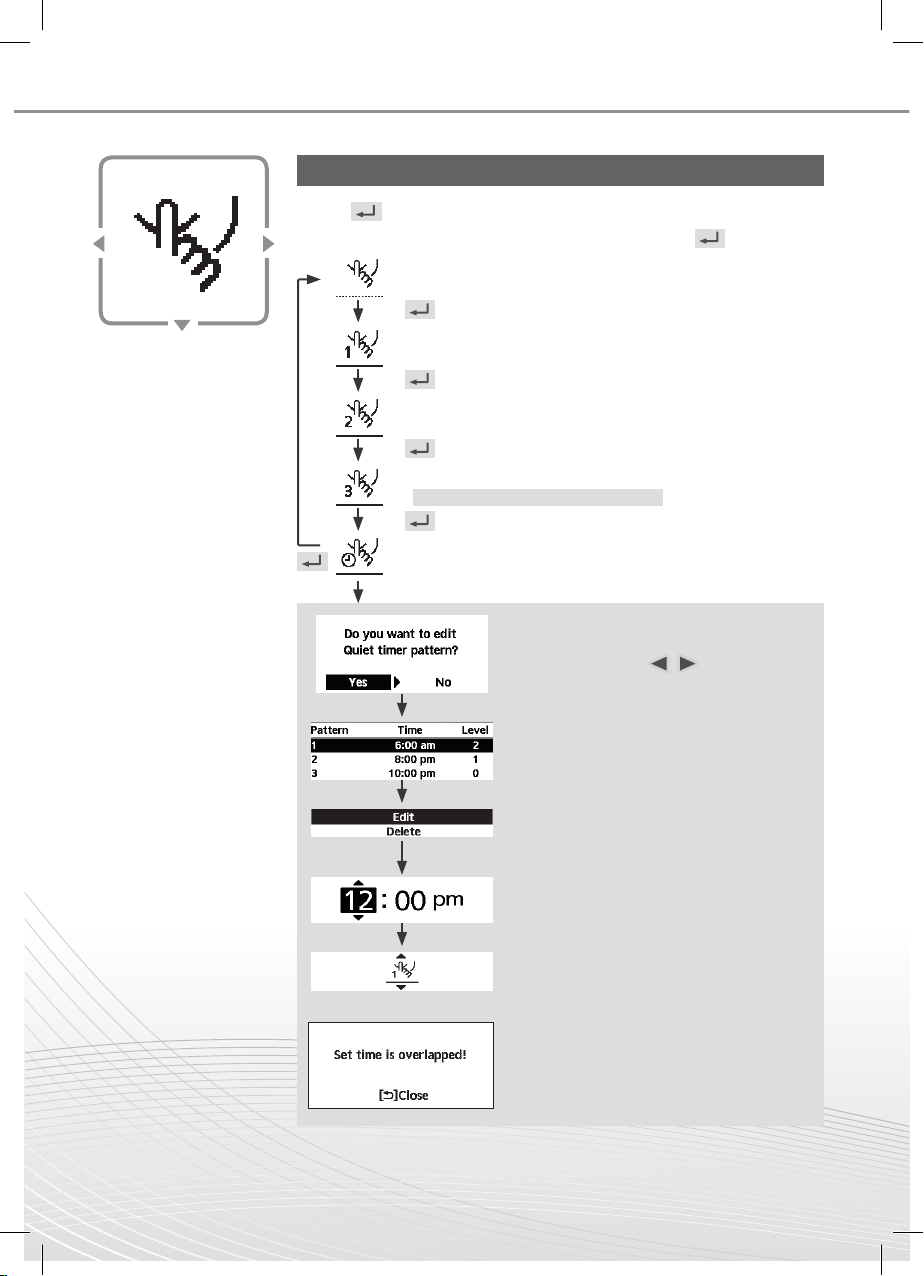

• Select this to set a timer for the Quiet mode operation.

After 1 sec delay.

Quiet

Select “Yes”.

• Select “Yes” using buttons.

Select pattern “1” ~ “6”.

Select “Edit”.

• If you select “Delete”, the timer setting of

the selected pattern will be deleted.

Set the hour and minutes.

Select the level of Quiet.

■Note:

• If the time overlaps with another pattern,

"Set time is overlapped!" will appear on

the screen.

How to use the Quick Menu

ACXF55-14590_FC0817-0_QG.indb 4ACXF55-14590_FC0817-0_QG.indb 4 7/18/2017 4:50:21 PM7/18/2017 4:50:21 PM

English

How to use the Quick Menu

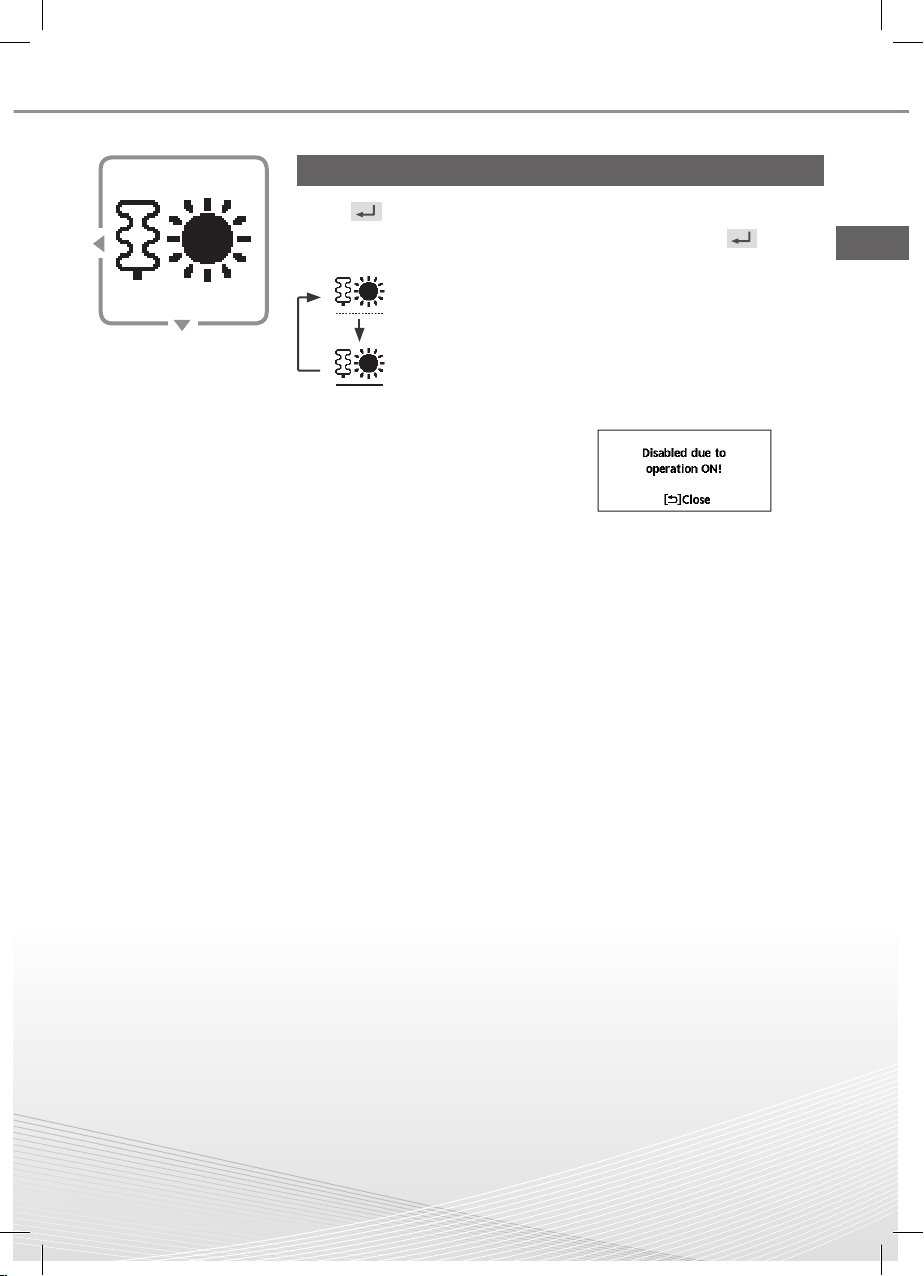

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is

pressed.)

• Force Heater is turned off.

• Force Heater is turned on.

■Note:

• Force Heater is disabled whenever

operation is already on and ‘Disabled

due to operation ON!’ will be

displayed.

Force

Heater

ACXF55-14590_FC0817-0_QG.indb 5ACXF55-14590_FC0817-0_QG.indb 5 7/18/2017 4:50:22 PM7/18/2017 4:50:22 PM

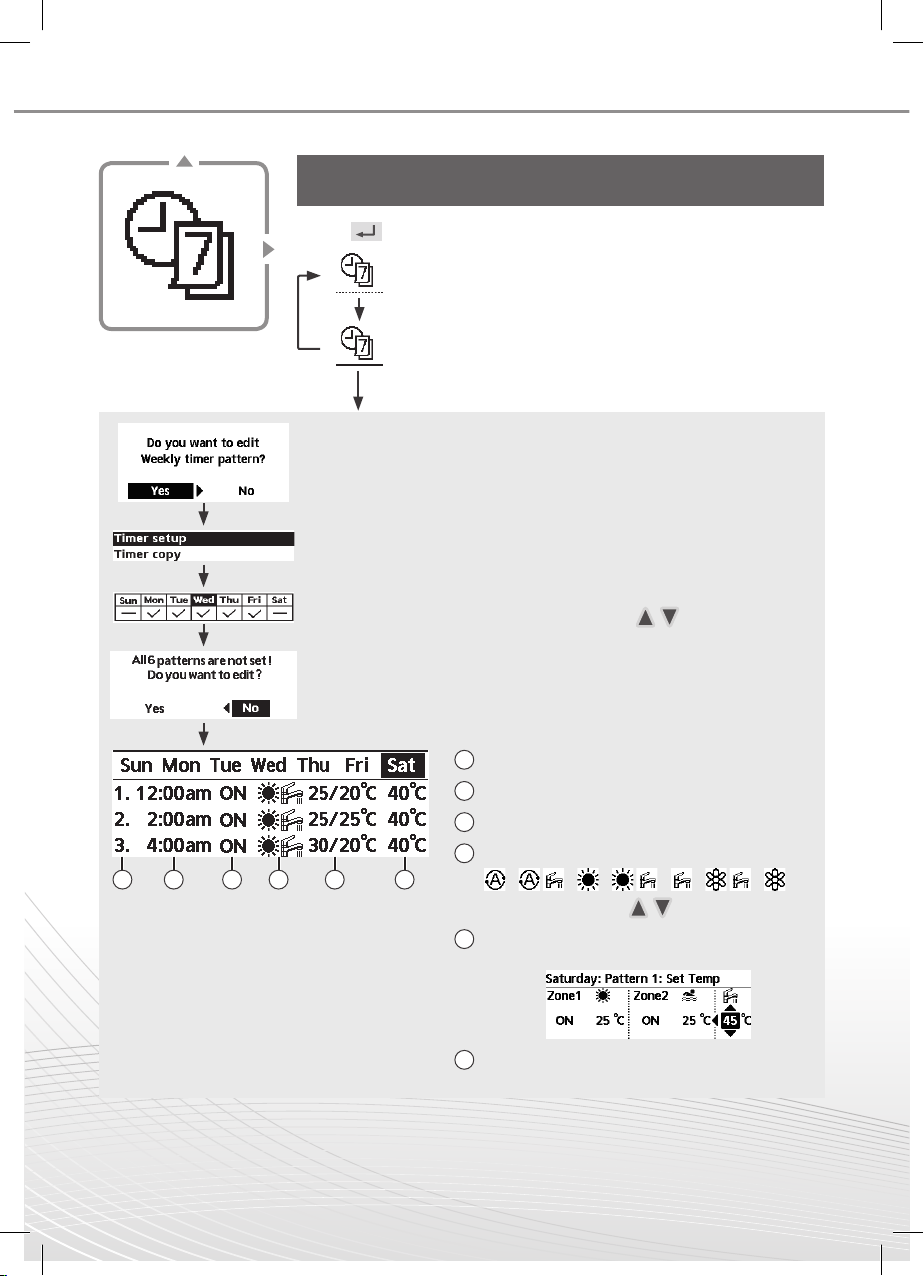

Select this icon to delete (cancel) or change the pre-set

Weekly Timer.

Press to confirm your selection.

• Timer is not ON.

• Timer is set.

After 1 sec delay.

Weekly

Timer

Select “Yes”.

• If you select “No”, the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.

• Timer copy: Select to copy a timer setting.

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

1 2 3 4 5 6

1Select pattern “1” ~ “6”.

2Set the hour and minutes of the Timer.

3Select ON/OFF of the Timer.

4Select the operation mode.

/ / / / / /

• Select mode using buttons.

5Set the temperature for both Zone 1 and 2

(if your system has the 2-Zone setting).

6Set the Tank temperature.

■Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.

• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

How to use the Quick Menu

ACXF55-14590_FC0817-0_QG.indb 6ACXF55-14590_FC0817-0_QG.indb 6 7/18/2017 4:50:22 PM7/18/2017 4:50:22 PM

English

How to use the Quick Menu

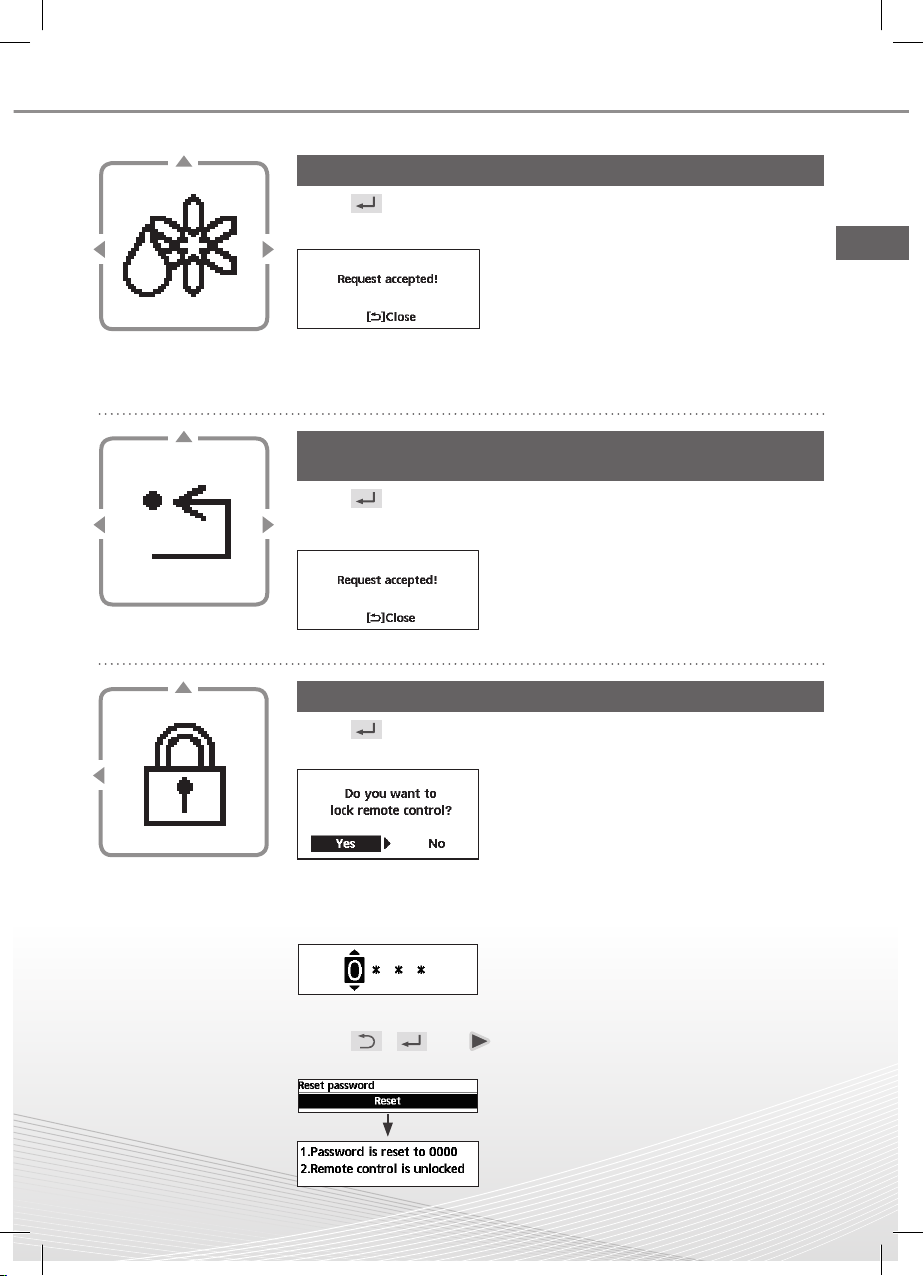

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Force

Defrost

Select to restore the previous settings when error has

occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

• Make sure all units are turned off before

selecting this mode which restores the whole

system to the previous settings.

Error Reset

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Select “Yes”.

(The Main Screen will be locked.)

• If “No” is selected, the screen will return to the

Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is

correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select “Reset”.

(The screen will be off after 3 seconds.)

R/C Lock

ACXF55-14590_FC0817-0_QG.indb 7ACXF55-14590_FC0817-0_QG.indb 7 7/18/2017 4:50:22 PM7/18/2017 4:50:22 PM

Esta guía rápida describe cómo utilizar el menú rápido.

Por favor, lea detenidamente las instrucciones de manejo antes de usar el menú rápido.

Antes de utilizar el sistema

Cómo utilizar el menú rápido

Una vez terminados los ajustes iniciales, es posible seleccionar un menú rápido para

editar los ajustes de cualquiera de las siguientes opciones.

Seleccione cada opción y confirme su configuración

siguiendo las instrucciones mostradas en la

parte inferior de la pantalla. (Estos iconos hacen

referencia a cada una de las teclas de selección).

Menú rápido

Para volver a la pantalla

principal,

Presione o .

ACS forzado Potente Silencioso Calefactor

forzado

Temporiz.

semanal

Desescarche

forzado

Borrar

errores

Bloqueo R/C

■Nota:

• Si el sistema no tiene conectado

el acumulador ACS (La conexión

al acumulador ACS está OFF), el

menú rápido se mostrará como

en esta figura. Cerciórese de

que la conexión del acumulador

ACS está ON.

1Pulse . 2

Utilice para seleccionar un menú.

3Pulse para activar o desactivar el

menú seleccionado.

ACXF55-14590_FC0817-0_QG.indb 8ACXF55-14590_FC0817-0_QG.indb 8 7/18/2017 4:50:22 PM7/18/2017 4:50:22 PM

Cómo utilizar el menú rápido

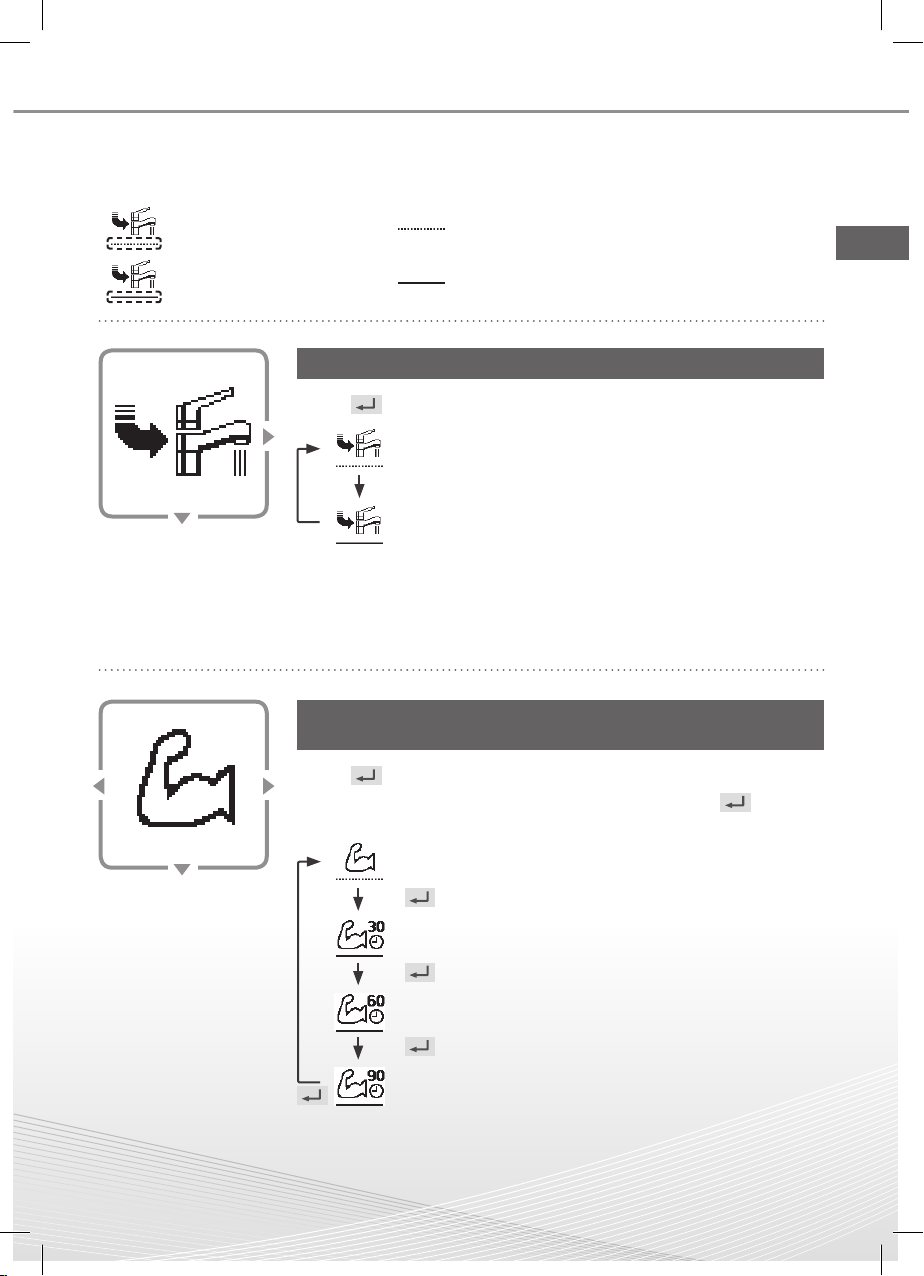

Seleccione el siguiente icono para encender y apagar el

acumulador ACS.

Pulse para confirmar su selección.

• ACS forzada desactivada.

• ACS forzada activada.

■Nota:

• Al conectar el calefactor forzado se deshabilita el ACS forzado.

• Cuando se desactiva el ACS forzada, el funcionamiento y el modo

recuperan el estado memorizado anterior.

ACS forzado

Seleccione este icono para el funcionamiento potente en

frío o calor.

Pulse para confirmar su selección.

(El funcionamiento potente se inicia aproximadamente 1 minuto después

de haber pulsado ).

• Se desactiva el funcionamiento potente.

• El modo potente funciona durante 30 minutos.

• El modo potente funciona durante 60 minutos.

• El modo potente funciona durante 90 minutos.

■Nota:

• El modo potente se desconecta al apagar el sistema.

Potente

Notas sobre el icono de funcionamiento

Ejemplo:

• Icono de funcionamiento con “ ” = OFF

• Icono de funcionamiento con “ ” = ON

Español

ACXF55-14590_FC0817-0_QG.indb 9ACXF55-14590_FC0817-0_QG.indb 9 7/18/2017 4:50:22 PM7/18/2017 4:50:22 PM

Seleccione este icono para activar el funcionamiento

silencioso.

Pulse para confirmar su selección.

(El funcionamiento silencioso se inicia aproximadamente 1 minuto

después de haber pulsado ).

• Se desactiva el funcionamiento silencioso.

• Modo silencioso funcionando en nivel 1.

• Modo silencioso funcionando en nivel 2.

• Modo silencioso funcionando en nivel 3.

El nivel 3 es el más silencioso.

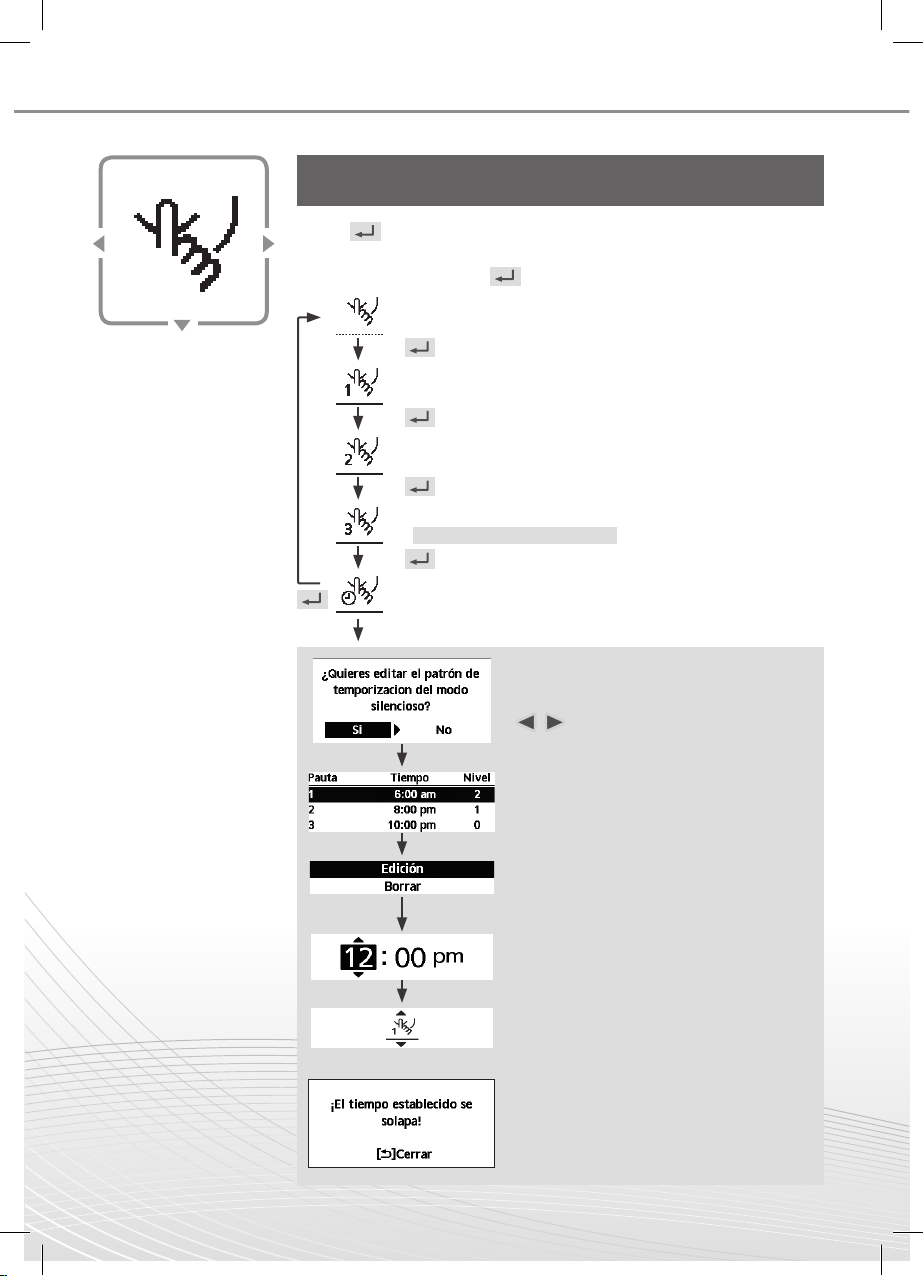

• Seleccione este icono para temporizar el modo de

funcionamiento silencioso.

Tras 1 segundo de retardo.

Silencioso

Seleccione “Si”.

• Seleccione “Si” mediante los botones

Seleccione el patrón “1” ~ “6”.

Seleccione “Edición”.

• En caso de seleccionar “Borrar”,

se borrará el ajuste del patrón del

temporizador que haya seleccionado.

Ajuste la hora y los minutos.

Seleccione el nivel de silencio.

■Nota:

• En caso de que coincida en el tiempo con

otro patrón, la pantalla mostrará

“El tiempo establecido se solapa!”.

Cómo utilizar el menú rápido

ACXF55-14590_FC0817-0_QG.indb 10ACXF55-14590_FC0817-0_QG.indb 10 7/18/2017 4:50:22 PM7/18/2017 4:50:22 PM

This manual suits for next models

Table of contents

Languages:

Other Panasonic Heat Pump manuals

Panasonic

Panasonic WH-MHF09G3E5 User manual

Panasonic

Panasonic WH-MXC09D3E8 User manual

Panasonic

Panasonic WH-SXC09F3E8 User manual

Panasonic

Panasonic Mini UM M User manual

Panasonic

Panasonic CS-KE36NKU User manual

Panasonic

Panasonic SXC09 3E5 Series User manual

Panasonic

Panasonic UX09*E5 Series User manual

Panasonic

Panasonic WH-MDC09C3E8 User manual

Panasonic

Panasonic OCU-CR1000VF8A User manual

Panasonic

Panasonic WH-UD09CE8 User manual

Panasonic

Panasonic WH-ADC0309J3E5 Technical manual

Panasonic

Panasonic WH-SDC16H9E8 User manual

Panasonic

Panasonic OCU-R200SF User manual

Panasonic

Panasonic WH-MDC07J3E5 User manual

Panasonic

Panasonic WH-SDH09C0E8 User manual

Panasonic

Panasonic WH-SDC0309K3E5 User manual

Panasonic

Panasonic WH-MXF09D3E8 User manual

Panasonic

Panasonic WH-MXC09G3E5 User manual

Panasonic

Panasonic WH-UX12DE8 User manual

Panasonic

Panasonic WH-MDC05F3E5 User manual

Panasonic

Panasonic Aquarea WH-SDC03H3E5-1 User manual

Panasonic

Panasonic WH-SDF09C3E5 User manual

Panasonic

Panasonic WH-SDH12C6E5 User manual

Panasonic

Panasonic WH-SDC09F3E8 Series User manual

Popular Heat Pump manuals by other brands

MICROWELL

MICROWELL HP 1000 GREEN Installation and user manual

Sanyo

Sanyo SAP120FCH Service manual

Daikin

Daikin EHYHBH05AA Operation manual

Bryant

Bryant 544B Specifications

Airxcel

Airxcel 45000 Series Installation, operation and maintenance instructions

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Service manual

Dimplex

Dimplex LI 16I-TUR Installation and operating instruction

Carrier

Carrier WSHP Open v3 Integration guide

TGM

TGM CTV14CN018A Technical manual

Carrier

Carrier 38MGQ Series installation instructions

Kokido

Kokido K2O K880BX/EU Owner's manual & installation guide

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Installation and service instructions

Carrier

Carrier 48EZN installation instructions

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Installation and service instructions for contractors

Ariston

Ariston NIMBUS user manual

Weishaupt

Weishaupt WWP L 7 Installation and operating instruction

GE Zoneline AZ85H09EAC datasheet

Bryant

Bryant Preferred Series installation instructions
