Panasonic FV-07VB1 User manual

Service Manual

PEG1312057CE

Version:1301

CONTENTS

2.Parts Identification

3.Wiring Diagram

4.Parts List

PAGE

Ventilating Fan

2~4

6~7

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

FV-07VB1

Model No:

1.Specifications 1

Housing Can:

FV-07VBA1

Motor / Grille Assembly:

FV-07VBB1

1. Parts Identification

FV-07VB1

1.1

1.5

907

1019

4.4/2.0

Speed Air

direction

Voltage

(V)

Frequency

(Hz)

Duct

diameter

(inches)

Noise

(sones)

Power

consumption

(W)

Speed

(rpm)

Air volume

at 0.1"WG

(CFM)

Weight

(lb./k )

Exhaust

120

HVI Certified performance based on HVI Procedures 915,916 and 920.

(Standard)

(Boost)

1.4

2.0

0.1"WG 0.25"WG 0.1"WG 0.25"WG 0.1"WG

2. Parts Identification

Main Body Section

08VSL3082

Not for use in cooking area-See installation

instructions Non destiné à la zone de cuisson -Voir

instructions d’installation.

.No usar en áreas donde

cocine - Consulte las instrucciones de instalación.

(2pcs)

18 19

(4pcs)

(3pcs)

FV-07VB1

FAN

LISTED

E78414

2. Parts Identification

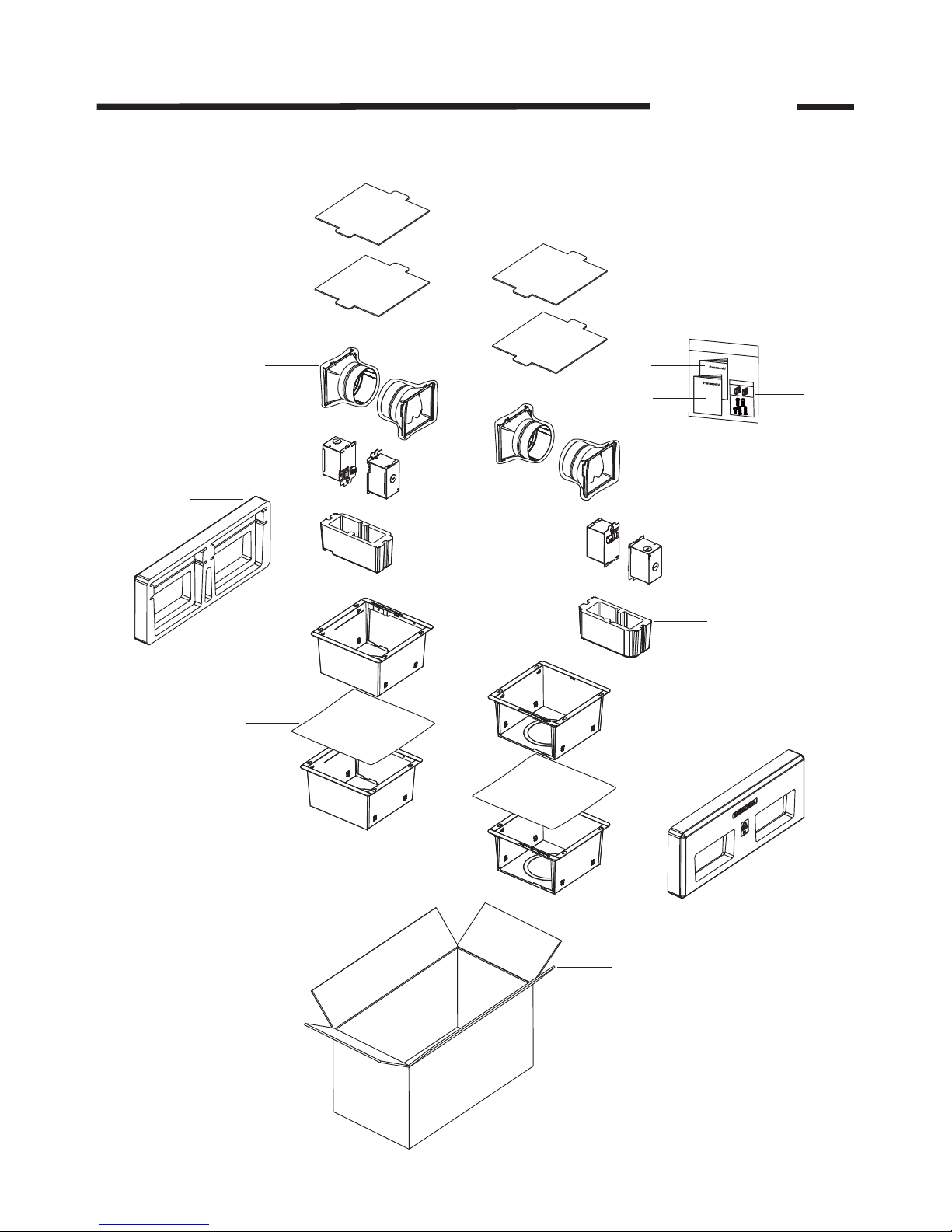

Packing Section(FV-07VBA1)

(4pcs)

(2pcs)

26 27

FV-07VB1

(4pcs)

2. Parts Identification

(4pcs)

(25)

(26) 34

(2pcs)

(4pcs)

Packing Section(FV-07VBB1)

FV-07VB1

3. Wiring diagram

Thermally - protected

(114 Fuse in motor)

Fan body

Junction box

Black

Switch

Capacitor

Earth ground

AC120V 60Hz

Power supply

White

Live

Neutral

Motor

White

Red

Black Black

White

Green

Yellow Yellow

Thermally - protected

(114 Fuse in motor)

FV-07VB1

I-Standard

II-Boost

4. Parts List

FV-07VB1

No. Part No. Part Name Q'ty Remark

1 FFV5710026S Spacer 2

2 FFV1600139S Frame Assembly 1

3 FFV0000149S Adapter Assembly 1

4 FFV2800022S Electric Section 1

5 FFV2800023S Junction Cover 1

6 FFV3450010S Earth Lead Wire 1

7 FFV2800024S Junction Box 1

8 FFV0900064S Connector Plate 1

9 FFV0900065S Connector Assembly 1

10 FFV3730118S Motor Support 1

11 FFV3730119S Motor Unit 1

12 FFV0400116S Blade 1

13 FFV7020021S Nut 1 For Fixing Blade

14 FFV0790110S Casing 1

15 FFV0900066S Connector Box 1

16 FFV0900017S Connector Box Cover 1

17 FFV3402169S Louver Assembly 1

18 FFV6730084S Warning Label 1 Stuck On Frame

19 FFV0810011S Caution Label 1 1 Stuck On Frame

20 FFV2260003S UL Mark 1 Stuck On Frame

21 FFV4020824S Name Plate 1 Stuck On Casing

A FFV7000202S Bind Tap Screw 4

B FFV7000211S Earth Screw Assembly 1 For Fixing Earth Lead Wire

C FFV7000089S Truss Tap Screw 3 For Fixing Motor Support

D FFV7000074S Truss Tap Screw 4 For Fixing Motor Unit

E FFV7000095S Pan Tap Screw 2 For Fixing Connector Box Cover

No. Part No. Part Name Q'ty Remark

22 FFV4710384S Cover Pad 4

23 FFV4650021S Poly Cover 4 For Adapter Assembly Packing

24 FFV4710385S Pad A 2

25 FFV2540181S Installation Instructions 1 English,For USA/CA Market

26 FFV2540182S Installation Instructions 1 Spanish,For USA Market

27 FFV0010239S Accessory A 4

28 FFV4710386S Pad B 2

29 FFV4650035S Poly Plate 2

30 FFV9001116S Packing Case Assembly 1

Main Body Section

Packing Section(FV-07VBA1)

4. Parts List

FV-07VB1

No. Part No. Part Name Q'ty Remark

31 FFV4650036S Poly Cover 4 For Louver Assembly Packing

32 FFV4710387S Pad A 2

33 FFV0790111S Casing Section 4

34 FFV0010240S Accessory A 1

35 FFV9001117S Packing Case Assembly 1

Packing Section(FV-07VBB1)
