Panasonic FV-0511VQ1 User manual

Model No.

Contents

GENERAL SAFETY INFORMATION

DESCRIPTION

UNPACKING

SUPPLIED ACCESSORIES

DIMENSIONS

WIRING DIAGRAM

SELECTOR INDICATION (FV-0511VQC1 only)

OPERATION (FV-0511VQC1 only)

FEATURE

INSTALLATION (NEW CONSTRUCTION)

INSTALLATION (RETROFIT)

MAINTENANCE (CLEANING)

PRACTICAL GUIDE TO INSTALLATION

SPECIFICATIONS

PRODUCT SERVICE

--------------2~3

----------------------------------------4

-----------------------------------------4

--------------------------4

-----------------------------------------5

-----------------------------------6

----------6

------------------7

---------------------------------------------7

--------8~9

-----------------------10

------------------10~11

----

-------------11

-----------------------

BACK COVER

--------------------

BACK COVER

INSTALLATION INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Representative models:

FV-0511VQ1

FV-1115VQ1

Ventilating Fan

FV-0511VQC1

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before attempting to install, operate or service

the Panasonic product. Please carefully read the “GENERAL SAFETY INFORMATION”

Failure to comply with instructions could result in personal injury or property damage.

Please explain to users how to operate and maintain the product after installation,

and this booklet should be presented to users.

Please retain this booklet for future reference.

FV-0511VQ1

FV-1115VQ1

FV-0511VQC1

1 5 V Q 1 0 4 2 0 B

English

For Your Safety

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to

equipment or property, always observe the following safety precautions.

Denotes a potential hazard that could result in serious

injury or death.

Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be

performed.

This symbol is used to alert users to a specific operating procedure that must be followed

in order to operate the unit safely.

WARNING

The following symbol word panels are used to classify and describe the level of hazard, injury, and

property damage caused when the denotation is disregarded and improper use is performed.

CAUTION

This symbol is used to alert users not to disassemble the equipment.

This symbol is used to alert users to make sure of grounding when using the equipment

with the grounding terminal.

GENERAL SAFETY INFORMATION

Explanation of symbol word panels

Denotes a hazard that could result in property damage.

To reduce the risk of fire, electric shock or injury to persons, observe the following :

Use this unit only in the manner intended by the manufacturer. If you have any questions,

contact the manufacturer.

Before servicing or cleaning unit, switch power off at service panel and lock the service

disconnecting means to prevent power from being switched on accidentally. When the

service disconnecting means cannot be locked, securely fasten a prominent warning device,

such as a tag, to the service panel.

Installation work and electrical wiring must be done by qualified person(s) in accordance with

all applicable codes and standards, including fire-rated construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)

of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s

guideline and safety standards such as those published by the National Fire Protection Association

(NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers

(ASHRAE) and the local code authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other

hidden utilities.

Ducted fans must always be vented to the outdoors.

If this unit is to be installed over a tub or shower, it must be marked as appropriate for the

application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch

circuit.

NOTICE

English

GENERAL SAFETY INFORMATION CONTINUED

WARNING

CAUTION

Make sure that the electric service supply voltage is AC 120V, 60Hz.

Canada only: Not to be installed in a ceiling thermally insulated to a value greater than R40.

Do not disassemble the unit for reconstruction. It may cause fire or electric shock.

Ceiling joist must be subjected to static load more than five times the weight of the product.

Install the fan at least 1.5m(5feet) above the floor, and the fan must be installed above a

counter or major appliances that serves as a barrier.

A statement to the effect that when the product is to no longer be used, it must not be left

in place but remove, to prevent it from possibly failing.

Do not install with a method which is not approved in the instructions.

Do not install this ventilating fan where interior room temperature may exceed 104°F (40°C)

This product must be properly grounded.

Do not use this fan with any solid-state speed control device. Solid state controls may cause

harmonic distortion which can cause motor humming noise.

Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and

the Occupation Safety and Health Act (OSHA).

Always disconnect the power source before working on or near the fan,motor or junction box.

Protect the supply wiring from sharp edges oil, grease, hot surfaces, chemicals or other objects.

Do not kink the supply wiring.

Not for use in cooking area. (Fig.A)

The special-purpose or dedicated parts, such as mounting

fixtures, must be used if such parts are provided.

For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

Floor

45°

Cooking

equipment

Fig. A

(Cooking area)

Do not install above or

inside this area

These models are UL listed for tub and shower enclosures.

English

DESCRIPTION

These products are listed by UL under UL file No. E78414.

These products use a sirocco fan driven by a DC motor powered by an integral transformer. The motor is

designed to have long operating life, high dynamic response, higher speed ranges with saving energy.

The grille covering the fan body is a spring-loaded, quick remove type. A damper for preventing air counter

flow is provided. The blower uses a high-capacity sirocco fan developed to reduce the noise level.

SUPPLIED ACCESSORIES

UNPACKING

Unpack and carefully remove the unit from carton.

Refer to the Supplied Accessories list to verify that all parts are present.

Installation

instructions

Self-drilling

screw

Warranty

sheet

Part name Part nameAppearance Quantity

Grille

Flex-Z Fast

bracket

(with 4

tapping screws

-ST4.2X20)

Appearance Quantity

(FV-0511VQC1 only)

This Panasonic ventilating fan model is equipped with a motion sensor and a humidity sensor that turn

on automatically when motion is detected, when humidity increases rapidly, or when humidity rises above

a 30% ~ 80% relative humidity set-point. It is user-adjustable to operate 0.5 ~ 60 minutes after the sensors

are no longer detected.

GENERAL SAFETY INFORMATION CONTINUED

Provide make up air for proper ventilation.

Do not install the unit where ducts are configured as shown in below.

When one switch is connected with two or more products in parallel, the unit may not function.

Therefore, parallel connection should not be allowed.

Bend close to duct adaptor

Squeezed ductSuccessive bendingExcessive bending

Adaptor

NOTICE

English

DIMENSIONS

7/8 (23.5) 4 1/2 (114)

7 1/2 (190)

1 1/2 (37)

FV-1115VQ1

Unit: inches (mm)FV-0511VQ1 , FV-1115VQ1

FV-0511VQC1

5 7/8 (151)

13 (330)

3 7/8(100)

3 3/8 (86)

10 1/4 (260)

12 (304)

10 1/4 (261) 3 7/8

(100)

13 (330)

13 1/4 ~ 15 1/2 (336~394)

16 1/2 ~ 18 3/4 (419~480)

21 1/4 ~ 23 1/2 (540~597)

10 1/4 (260)

5 7/8 (151)

5 7/8 (148)

13 (330)

7 1/2 (190)

7/8 (23.5)

4 1/2 (114)

3 7/8 (100)

12 (304)

3 3/8

(86)

13 1/4 ~ 15 1/2 (336~394)

16 1/2 ~ 18 3/4 (419~480)

21 1/4 ~ 23 1/2 (540~597)

3 3/8

(86)

6 5/8 (169)

10 1/4 (261)

13 (330)

3 7/8

(100) 3 7/8

(100)

1 1/2 (37)

Part name

Grille

Blade

Junction box

Adaptor

PCB box

Part name

No. No.

Pick-A-Flow switch

Fan body

Damper

Motion sensor location

310 Selector

Flex-Z Fast bracket

Part name

Grille

Blade

Junction box

Adaptor

PCB box

Part name

No. No. Pick-A-Flow switch

Fan body

3Damper TM

Flex-Z Fast bracket

English

WIRING DIAGRAM

SELECTOR INDICATION (FV-0511VQC1 only)

FV-0511VQ1 , FV-1115VQ1

FV-0511VQC1

Main control circuit

Humidity sensor

Fan body

Motion sensor

Motor

Junction box

AC120V

60Hz

(Power supply)

Selector

White

Black

Live (Fan)

Neutral

Green

Main control circuit

Fan body

Motor

Junction box

AC120V

60Hz

(Power supply)

White

Black

Live (Fan)

Neutral

Green

(Ground wire)

Main control

circuit

Main control

circuit

Factory setting : 20 minutes.

Position ” ” : For factory use

Factory setting is around 50%.

Timer preset selector positions

Timer

[min]

Humidity

preset selector

Selector indications

on blower unit

Timer

preset selector

Humidity selector range from around 30% to 80%

0.5 1 2 3 5 10 20 30 60

TimerHumidity

setting

(Ground wire)

English

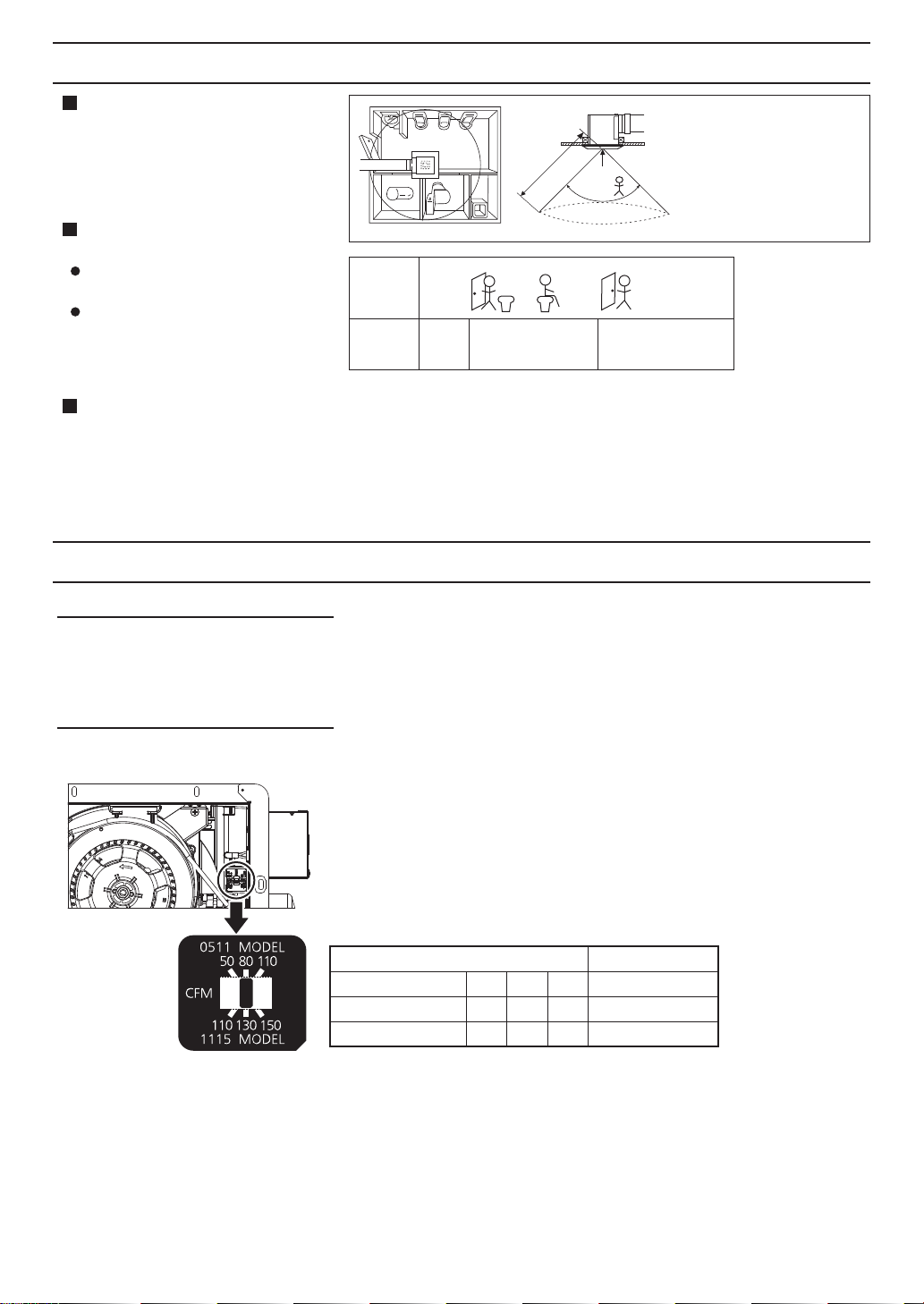

OPERATION (FV-0511VQC1 only)

Panasonic ventilating fan

responds to:

(1) Motion sensor detectible

condition.

(2) Humidity sensor detectible

condition.

Stop When motion is

detected, fan runs

90°

Remains running

until the delay time

has passed

Human

activity

The distance that motion

can be detected is limited

to 10 feet (3m).

The field of view of the

sensor is 90°.

Room temperature is

25°C (77°F).

Fan

activity

FEATURE

All the WhisperCeiling ventilating fans come with Pick-A-Flow

speed options. The Pick-A-Flow switch on the face of all

WhisperCeiling ventilating fans allow the option to choose

50 – 80 – 110 CFM for the FV-0511VQ1 or 110 – 130 – 150 CFM

for the FV-1115VQ1.

These fans can run with constant air volume depending upon

the needs of the owner.

Pick-A-Flow Feature

Pick-A-Flow

switch Air volume(CFM) Factory setting

FV-0511VQ1

FV-1115VQ1 50

110 80

130 110 80 CFM

150 130 CFM

FV-0511VQC1 50 80 110 80 CFM

Optimum Ventilation Performance:

Duct length, elbows and other factors increase static pressure which can hinder the performance of most

ventilation fans. This fan utilizes Smart Flow microchip technology that monitors the static pressure in the

system and speeds up or slows down the rpm of the fan depending upon the amount of resistance within

the ducts. This feature allows the fan to perform as rated and avoid potential installation issues.

The WhisperCeiling ventilating fans are built using DC motor technology. The DC motor is 30% - 70%

more energy efficient than the AC motor.

Outstanding Energy Savings:

INSIDE

OUTSIDE

10 feet

(3m)

sensor

Motion sensor detectible

condition

The delay time is determined

by timer preset switch.

The unit continues running for

an adjustable duration

of 0.5 to 60 minutes, after

motion is no longer detected.

1. The product will run when environment humidity rise rapidly but not reach to the humidity setting,

and stop after delay preset time.

2. Humidity setting selector is stepless change between 30 %RH~80 %RH.

3. The humidity detected by sensor may differ from the value on your hygrometer.

4. The product may turn on and off cause by the unstable environment humidity, you can improve

it by adjusting the Humidity setting selector.

English

2. Bend down 4 tabs for positioning, install the

Flex-Z Fast bracket to joists by drilling 2 tapping

screws which have been fixed on it. (Fig.2)

3. Adjust the length of Flex-Z Fast bracket as the

spacing between joists, and install to joists by

drilling the other 2 tapping screws which have

been fixed on it. (Fig.3)

4. Remove junction box cover and secure conduit

or stress relief to junction box knock-out hole.

(Fig.4)

6. Install the adaptor to Flex-Z Fast bracket by

using 2 self-drilling screws. (Fig.4)

5. Install a circular duct and secure it with clamps,

or ties and seal it with mastic or approved foil tape.

A 4 or 6 inch circular duct is needed to connect to

relevant part of adaptor. (Fig.4)

Fig.2

Mount junction box cover carefully

so that lead wires are not pinched.

7. Refer to WIRING DIAGRAM.

Follow all the local electrical safety codes

as well as the National Electrical Code (NEC).

Using UL approved wire nuts, connect

house power wires to ventilating fan wires.

(Fig.5)

2 Tapping screws

(ST4.2X20)

Bend down

4 tabs

Joist

Fig.3

Joist

2 Tapping screws

(ST4.2X20)

2 Self-drilling screws

Knock-out

hole

Junction box

cover

Conduit

Circular duct

Mastic or

approved

foil tape

Fig.4

INSTALLATION (NEW CONSTRUCTION)

Fan body

Adaptor

Fig.1

Machine screw

(M4X8)

The fan position between joists from 16" to 24"

on center can be adjusted flexibly.

Please wear gloves during the installation

work as follow.

CAUTION

machine screw (M4X8) before installation. (Fig.1)

IMPORTANT:

Remove the tape from damper and adaptor

before installation. As shown below:

Tape

Adaptor Damper

CAUTION Fig.5

BLACK

WHITE

GREEN

Wire nuts

Junction

box

120 VAC

LINE IN

Switch box

Conduit

Earth ground

Live

Neutral

1. Disconnect plug connector from receptacle (Fig.6)

and remove adaptor from fan body by removing the

English

10. Insert the grille mounting spring on the wiring

side into the slot. (Fig.8)

13. Insert the other mounting spring into the slot as

shown and mount grille to fan body. (Fig.9)

12. Adjust Pick-A-Flow switch.(Refer to indication on

FEATURE)

9. Finish ceiling work. Ceiling hole should be aligned

with the inside edge of the flange. (Fig.7)

Mount grille carefully so that lead wire is not

pinched.

CAUTION

10 1/2(270)

10 1/2 (270)

Fig.7

Unit: inches (mm)

After finishing the ceiling job, fill gap between flange

and ceiling with caulk or other sealant to prevent air

leakage

Ceiling

8. Insert fan body and slide into adapter assy

with some strength, until the flange overlaps

the Flex-Z Fast bracket. Secure the fan

body to Flex-Z Fast bracket by using 2

self-drilling screws, plug connector to

receptacle and secure the fan body to adaptor

by using machine screw (M4X8). (Fig.6)

Secure machine screw (M4X8) to the

suitable hole and not touch the Flex-Z

Fast bracket. Please fix the screw

carefully to avoid screw slip teeth.

Machine

screw

(M4X8) 2 Self-drilling

screws

Joist

Plug connector

Receptacle

Fig.6

CAUTIONCAUTION

INSTALLATION (NEW CONSTRUCTION) CONTINUED

Ceiling

Fig.8

Clasp

11. Insert the motion sensor on the grille and dress

the wire as shown. (Fig. 8)

Motion Sensor

(FV-0511VQC1

only).

Fig.9

Grille

Ceiling

Gloves

Mounting spring

English

MAINTENANCE (CLEANING)

Routine maintenance must be done

every year. Please wear gloves during

the cleaning work.

Never use gasoline, benzene, thinner or

any other such chemicals for cleaning the

ventilating fan.

Do not immerse motor in water when cleaning.

Do not soak resin parts in water over 140°F (60°C).

Do not use cleaning sprays, solvents, or water on

or near the sensors.

WARNING

CAUTION

Disconnect power source before working

on unit.

INSTALLATION (RETROFIT)

2. Follow the step 1 , 4 , 5 , 7 on INSTALLATION

(NEW CONSTRUCTION). (Before connect the

circular duct to the adaptor, should pull down the

circular duct from the ceiling)

Disconnect power source before working

on unit.

5. Follow the step 10 to 13 on INSTALLATION

(NEW CONSTRUCTION).

Remove the existing fan and cut ceiling opening.

Secure the Flex-Z Fast bracket to joists

by drilling 4 tapping screws (ST4.2x20) which

have been fixed on it. Existing ductwork and

wiring left in place. (Fig.10)

3. Install the adaptor to Flex-Z Fast bracket by

using 2 self-drilling screws. (Fig.11)

4. Secure the fan body to Flex-Z Fast bracket by

using 2 self-drilling screws, plug connector to

receptacle and secure the fan body to adaptor

by using machine screw (M4X8). (Fig.12)

Secure machine screw (M4X8) to the suitable

hole and not touch the Flex-Z Fast bracket.

Please fix the screw carefully to avoid screw

slip teeth.

CAUTION

WARNING

Ceiling Flange

Joist

Machine screw (M4X8)

2 Self-drilling screws (Fix the

flange and Flex-Z Fast

through the ceiling) TM bracket

Mastic or

approved

foil tape

2 Self-drilling screws

Ceiling

Joist

Knock-out

hole

Junction box

cover

Conduit Circular duct

10 7/8 (275)

Conduit Circular duct Joist

4Tapping

(ST4.2x20)

Unit: inches (mm)

Fig.10

Fig.11

Fig.12

Ceiling (already existed)

screws

Other manuals for FV-0511VQ1

This manual suits for next models

Table of contents

Other Panasonic Fan manuals

Panasonic

Panasonic Whisper-Lite FV-08VQL4 User manual

Panasonic

Panasonic F-M15H2 User manual

Panasonic

Panasonic FV-23BW2H User manual

Panasonic

Panasonic WhisperGreen FV-08VKS2 User manual

Panasonic

Panasonic F-M12A0 User manual

Panasonic

Panasonic WhisperSense FV-08VQC5 User manual

Panasonic

Panasonic Whisper Green FV-11VK3 User manual

Panasonic

Panasonic FV-15NLFS1 User manual

Panasonic

Panasonic Whisper Green-Lite FV-08VKML2 User manual

Panasonic

Panasonic FV-28NX3 User manual

Panasonic

Panasonic FV-10VEC2 User manual

Panasonic

Panasonic FV-1115VQ1 User manual

Panasonic

Panasonic WhisperSense FV-08VQCL6 User manual

Panasonic

Panasonic Whisper Green FV-13VKM2 User manual

Panasonic

Panasonic FV-0511VQCL1 User manual

Panasonic

Panasonic F-M15H5 User manual

Panasonic

Panasonic FV-08-11VFL5E User manual

Panasonic

Panasonic WhisperCeiling FV-20VQ3 User manual

Panasonic

Panasonic WhisperLite FV-05VQ5 User manual

Panasonic

Panasonic Whisper Fit-Lite FV-11VFL3 User manual

Panasonic

Panasonic Whisper Fit-Lite FV-05VFL3 User manual

Panasonic

Panasonic FY-250ZDY8 User manual

Panasonic

Panasonic FV-08VSL3 User manual

Panasonic

Panasonic FV-05VF2 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual

Litex Industries

Litex Industries E-CGL52CB5C1 installation guide

Lindab

Lindab LTDF installation instructions
