Panasonic DVD-F65GCS User manual

ORDERNO. MD0306241C3

DVD/CD Player

DVD-F65GCS / DVD-F65GN

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

Signal system: PAL625/50, PAL525/60, NTSC

Operating tempurature

range: +5to+35°C (+41 to+95°F)

Operating humidityrange: 5 to90%RH (no condensation)

Discs played[8cm or12 cm]

(1) DVD-RAM, (DVD-VR compatible)

(2) DVD-Audio

(3) DVD-Video

(4) DVD-R (DVD-Videocompatible)

(5) CD-Audio(CD-DA)

(6) VideoCD

(7) SVCD (Confirming toIEC62107)

(8) CD-R/CD-RW

(CD-DA, Video-CD formatteddiscs)

(9) MP3/WMA*

- Maximumnumber of tracks and groupsrecognizable:

999 tracks and 99 groups

- Compatiblecompression rate:

MP3: between32 kbpsand 320 kbps

WMA*: between48 kbpsand 192 kbps

(10)JPEG*

- Exif Ver 2.1JPEG Baselinefiles

- Maximumnumber of pictures and groupsrecognized:

3000 pictures and 300 groups

- Picture resolution:

between320 x249 xand 6144 x4096 pixels(Sub

sampling is4:2:2or4:2:0

(11)HighMATLevel 2(Audioand Image)

Videooutput:

Output level: 1Vp-p(75 )

Output terminal: Pinjack (1system)

S videooutput:

Y output level: 1Vp-p(75 )

C output level: NTSC; 0.286Vp-p(75 )

PAL; 0.300 Vp-p(75 )

Output terminal: S terminal (1system)

Component videooutput:

(NTSC: 480P/480I, PAL: 576I)

Y output level: 1Vp-p(75 )

PBoutput level: 0.7Vp-p(75 )

PRoutput level: 0.7Vp-p(75 )

Output terminal: Pinjack

(Y:green, PB:blue, PR:red)

Number of terminal: 1system

Audiooutput:

Output level: 2Vrms (1kHz, 0dB)

Output terminal: Pinjack

Number of terminal: 2channel: 1system

Audioperformance:

(1) Frequency

response:

DVD (linear

audio):

4Hz-22kHz (48 kHz sampling)

4Hz-44kHz (96 kHz sampling)

DVD audio: 4Hz-88kHz (192 kHz sampling)

CD audio: 4Hz-20kHz

(2) S/N ratio:

CD audio: 115dB

(3) Dynamicrange:

DVD (linear

audio):

102dB

CD audio: 98dB

(4) Total harmonicdistortion:

CD audio: 0.0025%

Digital audiooutput:

Optical digital output: Optical terminal

Pickup:

Wavelength: 665nm/ 790 nm

Laser power: CLASS 2/CLASS 1

Power supply: AC 220-240 V, 50 Hz

Power consumption: 15 W

Dimensions: 430 (W) x405 (D) x59.7(H) mm

Mass: 4.1kg

Power consumption instandbymode: approx. 0.6W

Note:

1. Specificationsaresubject to changewithoutnotice.

Mass and dimensionsareapproximate.

2003 PanasonicAVCNetworks Singapore Pte. Ltd. All rights

reserved. Unauthorized copying and distribution isaviolation of

law.

1. Before Repair and Adjustment

Disconnect AC power, discharge PowerSupplyCapacitors C1011 & C1012 through a 10 , 5W

resistortoground.

DO NOTSHORT-CIRCUITDIRECTLY (witha screwdriverblade, forinstance), as this may

destroysolidstate devices.

Afterrepairs are completed, restore powergraduallyusing a variac, toavoidovercurrent.

Current consumption at AC 220V-240V inNO SIGNALmode shouldbe ~163 mA .

2. Safety Precautions

2.1. General Guidelines

1. When servicing, observe the original lead dress. Ifashort circuit

isfound, replace all parts which have been overheated or

damaged bythe short circuit.

2. After servicing, see to itthat all the protective devices such as

insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to

prevent the customer from being exposed to shock hazards.

2.1.1. Leakage Current ColdCheck

1. Unplug the AC cord and connect ajumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the

jumpered AC plug and each exposed metalliccabinet part on the

equipment such as screwheads, connectors, control shafts, etc.

When the exposed metallicpart has areturn path to the chassis,

the reading shouldbe between 1M and 5.2M .

When the exposed metal does not have areturn path to the

chassis, the reading must be ~.

Figure 1

2.1.2. Leakage Current Hot Check / (See Figure1)

1. Plug the AC cord directlyinto the AC outlet. Donot use an

isolation transformer for thischeck.

2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F

capacitor, between each exposed metallicpart on the set and a

good earth ground such as awater pipe, as showninFigure 1.

3. Use an AC voltmeter, with 1000 phms/voltor more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallicpart, and measure the voltage at

each point.

5. Reverse the AC plug inthe AC outlet and repeat each of the above

measurements.

6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A

leakage current tester (Simpson Model 229 or equivalent) maybe

used to make the hot checks, leakage current must not exceed 1/2

milliamp. Incase ameasurement isout of the limits specified,

there isapossibilityof ashock hazard, and the equipment should

be repaired and rechecked before itisreturned to the customer.

3. Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor(solidstate) devices canbe damagedeasilybyelectricity. Such

components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical

ES devices are integratedcircuits and some field-effect transistors and semiconductor“chip”

components. The following techniques shouldbe usedtohelpreduce the incidence of

component damage causedbyelectrostatic discharge (ESD).

1. Immediatelybefore handling anysemiconductor component or

semiconductor-equiped assembly, drainoff anyESDon your

bodybytouching aknownearth ground. Alternatively, obtainand

wear acommerciallyavailabledischarging ESDwrist strap, which

shouldbe removed for potential shock reasons prior to applying

power to the unitunder test.

2. After removing an electrical assemblyequiped with ES devices,

place the assemblyon aconductive surface such as aluminium

foil, to prevent electrostaticcharge buildup or exposure of the

assembly.

3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES

devices.

4. Use onlyan anti-staticsolder remover device. Some solder

removal devices not classified as “anti-static(ESDprotected)”

can generate electrical charge to damage ES devices.

5. Donot use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Donot remove areplacement ES device from its protective

package until immediatelybefore you are readyto install it. (Most

replacement ES devices are packaged with leads electrically

shorted together byconductive foam, aluminium foil or

comparableconductive material).

7. Immediatelybefore removing the protective material from the

leads of areplacement ES device, touch the protective material to

the chassisor circuitassemblyinto which the device will be

installed.

Caution

Besure no power isapplied to the chassisor circuit, and observe

all other safetyprecautions.

8. Minimize bodilymotions when handling unpackaged replacement

ES devices. (Otherwise harmless motion such as the brushing

together of your clothes fabricor the lifting of your foot from a

carpeted floor can generate staticelectricity(ESD)sufficient to

damage an ES device).

4. Accessories Remote control

AC mainlead(ForGCS only)

AC mainlead(ForGN only)

Audio/VideoCable

5. Precaution of Laser Diode

CAUTION :

Thisunitutilizes aclass 1laser.

Invisiblelaser radiation isemitted from the optical pickup lens.

Wavelength: 658nm/790nm.

Maximum output radiation power from pickup: 100 W/VDE

When the unitisturned on :

1. Donot look directlyinto the pick up lens.

2. Donot use optical instruments to look at the pick up lens.

3. Donot adjust the preset variableresistor on the pickup lens.

4. Donot disassemblethe optical pick up unit.

5. Ifthe optical pick up isreplaced, use the manufacturer’sspecified

replacement pick up only.

6. Use of control or adjustments or performance of procedures other

than those specified hereinmayresultinhazardous radiation

exposure.

CAUTION!

THIS PRODUCTUTILIZES A LASER.

USE OFCONTROLS OR ADJUSTMENTS OR PERFORMANCE OFPROCEDURES OTHER THAN

THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Use of Caution Labels

6. Handling the Lead-free Solder

6.1. About lead free solder (PbF)

Distinction of PbF P.C.B.:

P.C.B.s (manufactured) using leadfree solderwill have a PbF stampon the P.C.B.

Caution:

-Pb free solder has ahigher melting point than standard solder;

Typicallythe melting point is50 -70°F (30 -40°C)higher. Please

use ahigh temperature soldering iron. Incase of soldering iron

with temperature control, please set itto 700 ± 20°F (370 ± 10°C).

-Pb free solder will tend to splash when heated too high (about

1100°F/600°C).

-When soldering or unsoldering, please completelyremove all of

the solder on the pins or solder area, and be sure to heat the

soldering points with the Pb free solder until itmelts enough.

7. Cautions to be taken when handling Optical Pickup

The laserdiode usedinside optical pickup couldbe destroyeddue tostatic electricityas a

potential difference is causedbyelectrostatic loaddischargedfromclothes orhumanbody.

Handling the parts carefullytoavoidelectrostatic destruction during repair.

7.1. Handling Optical Pickup

1. Donot impact on optical pickup as the unitstructurallyuses an

extremelyprecise technology.

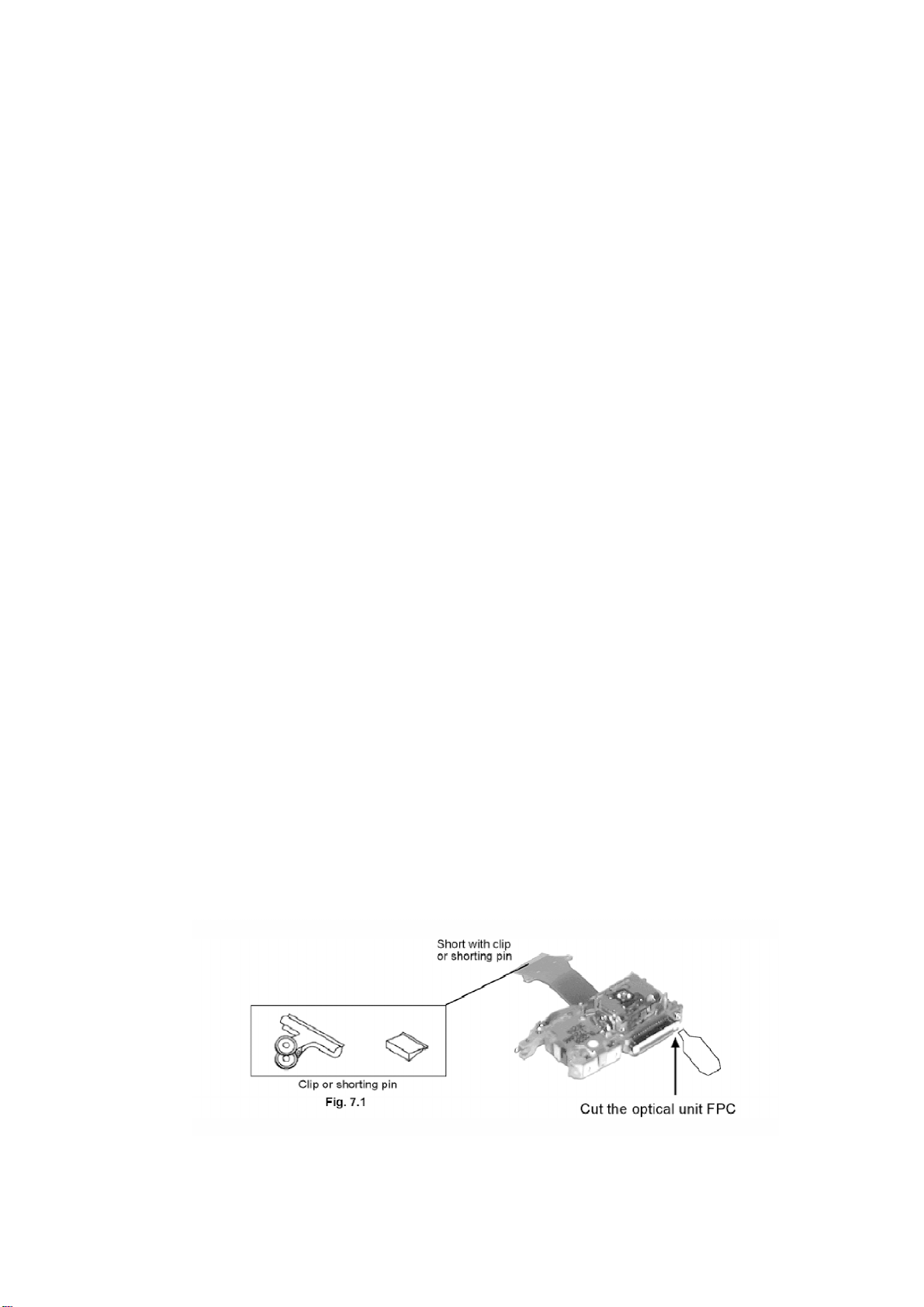

2. Short-circuitthe flexiblecableof optical pickup remove from the

circuitboard using ashort-circuitpinor clipinorder to prevent

laser diode from electrostaticdestruction (Refer to Fig. 7.1and

Fig. 7.2)

3. Donot handleflexiblecables forciblyas thismaycause snapping.

Handlethe parts carefully(Refer to Fig. 7.1)

4. Anew optical pickup isequipped with an anti-staticflexiblecable.

After replacing and connecting to the flexibleboard, cut the anti-

staticflexiblecable. (Refer to Fig. 7.1)

7.2. Cautions to be taken during replacement of Optical Pickup

Suppliedoptical pickup is equippedwitha short clipfound its flexible cable inordertoprevent

electrostatic destruction of laserdiode. Before connection, remove the short clip, and check

that the short land is opened. (Remove solderif the part is short-circuit).

7.3. Grounding for Preventing ElectrostaticDestruction

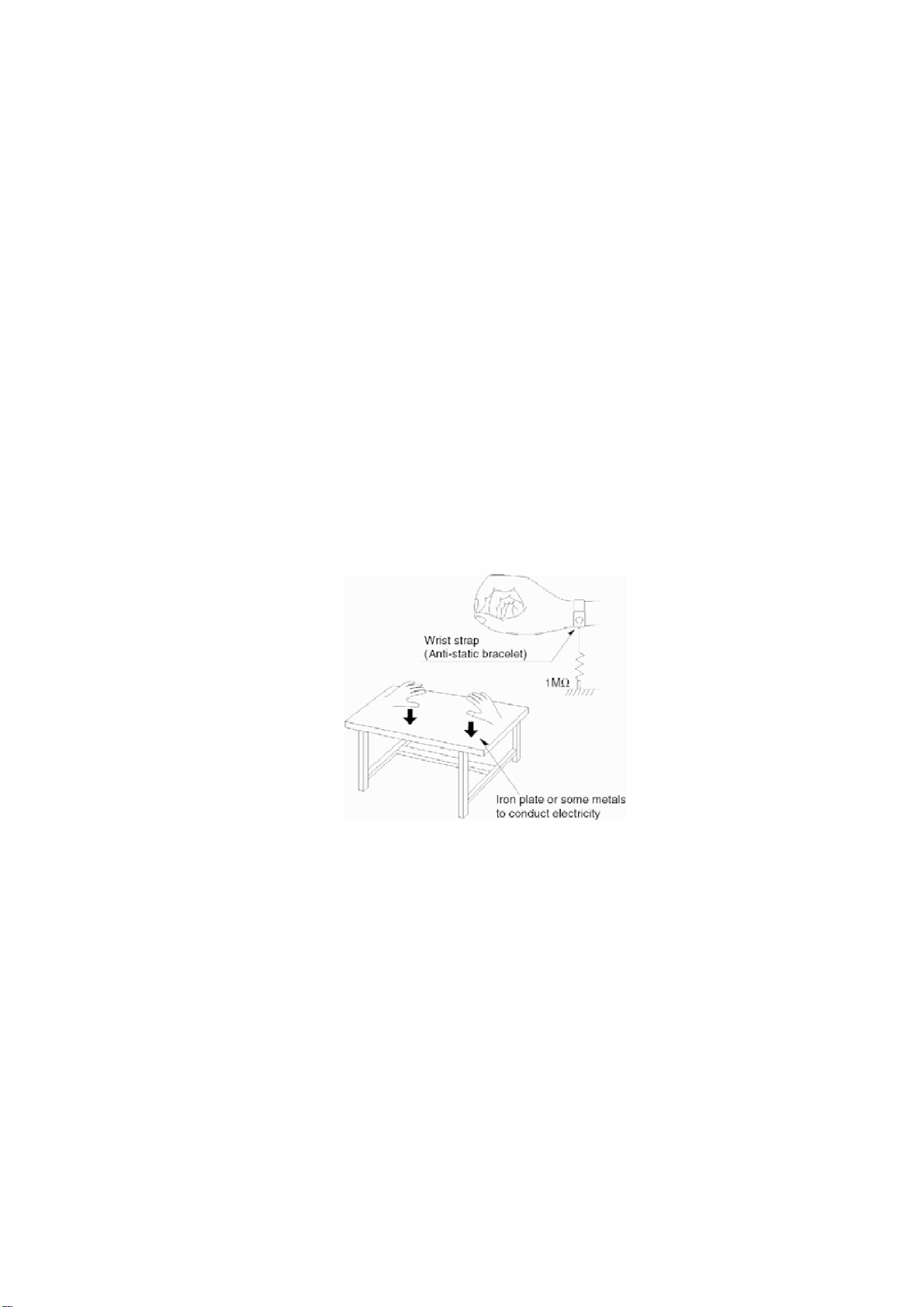

1. Human bodygrounding

Use the anti-staticwrist strap to discharge the staticelectricity

accumulated inyour body. (Refer to Fig. 7.2)

2. Work place grounding

Place aconductive material (conductive sheet) or ironboard

where optical pickup isplaced. (Refer to Fig. 7.2)

Note :

Keep your clothes awayfrom optical pickup as wrist strap does not

release the staticelectricitycharged inclothes.

Fig. 7.2

8. Optical Pickup Self-Diagnosis and Replacement

Procedure

8.1. Self-diagnosis

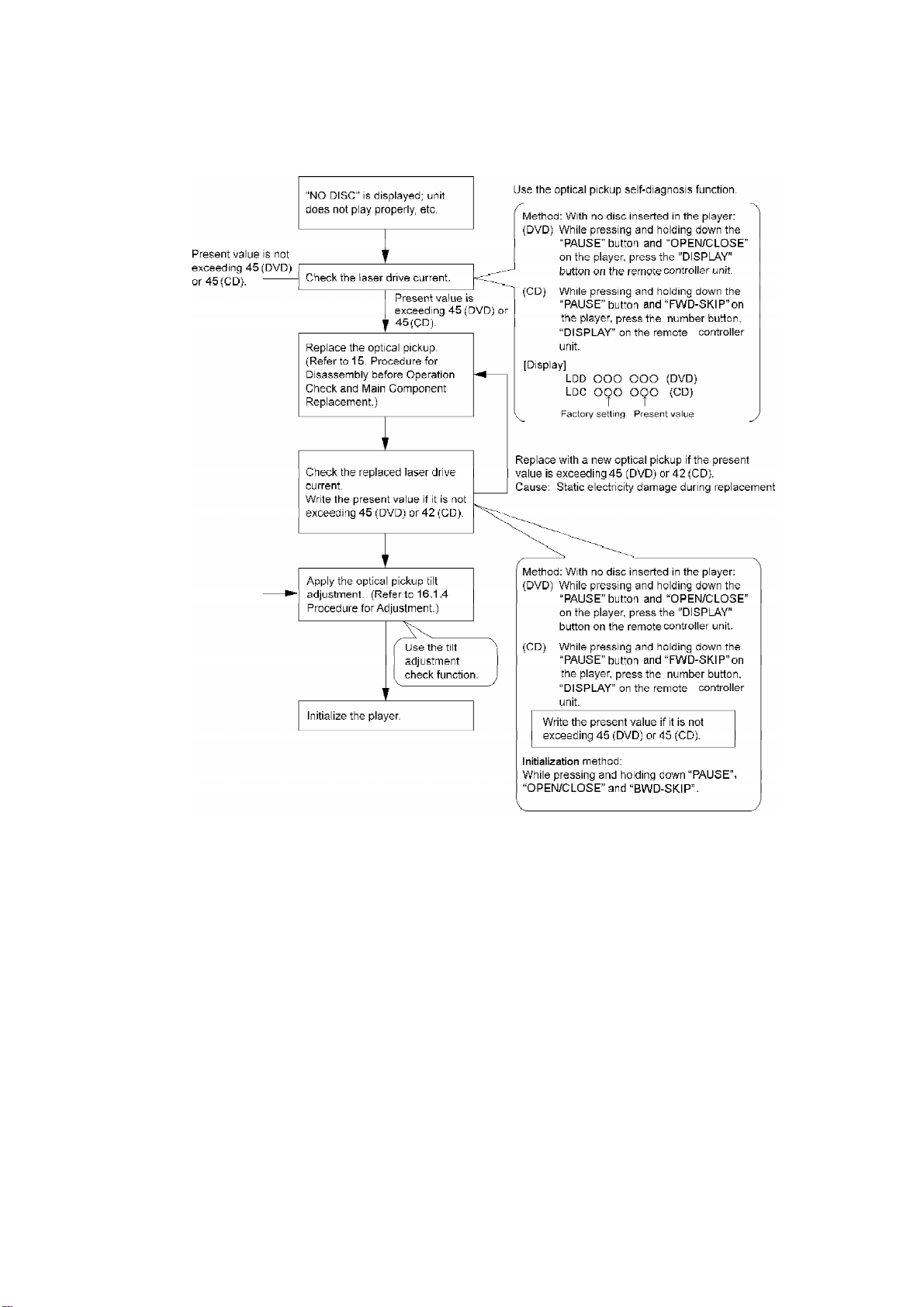

This unit is equippedwiththe optical pickup self-diagnosis function and the tilt adjustment

check function. Followthe procedure describedbelowduring repairinordertoperform self-

diagnosis and tilt adjustment effectively. Especiallywhen“NO DISC” is displayed, be sure to

applythe self-diagnosis function before replacing withanoptical pickup. Replacement of

optical pickup generallyrequires whenthe present value of laserdrive exceeds 45 (DVD) or45

(CD).

Note:

Start diagnosis withinthree minutes afterturning on the power(as diagnosis fails whenthe unit

becomes warm).

8.2. Cautions to BeTaken During Replacement of Optical Pickup

and SpindleMotor

Before replacing the optical pickup and spindle motor, check a total usage time respectively.

Followthe checking method describedbelow.

This manual suits for next models

Other Panasonic DVD Player manuals

Panasonic

Panasonic DVD-CV40 User manual

Panasonic

Panasonic DVD-S97 User manual

Panasonic

Panasonic DVDRP62 - DIG. VIDEO DISC PLAY User manual

Panasonic

Panasonic DVDRP82 - DIG. VIDEO DISC PLAY User manual

Panasonic

Panasonic PalmTheater DVD-LV60 User manual

Panasonic

Panasonic SL-DT100GCS User manual

Panasonic

Panasonic PVD4741 - DVD/VCR DECK User manual

Panasonic

Panasonic DVDC220 - DVD C220 Changer User manual

Panasonic

Panasonic DVD-S35 User manual

Panasonic

Panasonic CQ-DX200W5 User manual

Panasonic

Panasonic CX-DH801W User manual

Panasonic

Panasonic NV-VP60GL User manual

Panasonic

Panasonic CQDVR592U - AUTO RADIO/CD/DVD PL User manual

Panasonic

Panasonic DVD-S24 User manual

Panasonic

Panasonic DVD-CV52 User manual

Panasonic

Panasonic DVD-S500 User manual

Panasonic

Panasonic DVD-S35GD User manual

Panasonic

Panasonic DVD-K33 User manual

Panasonic

Panasonic DVD-S25UP-S Operating User manual

Panasonic

Panasonic DVD-P10 User manual

Panasonic

Panasonic DVD-KA84GA User manual

Panasonic

Panasonic DVDRP82 - DIG. VIDEO DISC PLAY User manual

Panasonic

Panasonic DVD-S48 User manual

Panasonic

Panasonic PalmTheater DVD-L50 User manual

Popular DVD Player manuals by other brands

Sony

Sony DVP-F11 Service manual

Philips

Philips DVP3560K/F8 user manual

LENCO

LENCO DVP-740 X2 user manual

JVC

JVC XV-N650BEU Service manual

Aiwa

Aiwa XD-DV370 operating instructions

MedeaWiz

MedeaWiz Sprite 4K DV-S4 user manual

Denon

Denon DVM-1805 - DVD Changer operating instructions

Toshiba

Toshiba SD-3815 owner's manual

Tevion

Tevion 44330 user guide

Samsung

Samsung DVD-HD860 manual

Sylvania

Sylvania DP170SL8 Service manual

Toshiba

Toshiba SD-P1200 Service manual

JVC

JVC XV-D9000E instructions

Dolby Laboratories

Dolby Laboratories CP650 user manual

Philips

Philips DVD737K/931 Technical specifications

Denon

Denon DVD-5900 Service manual

Philips

Philips DVD 951 Specifications

Philips

Philips DVDR3460 quick start guide
