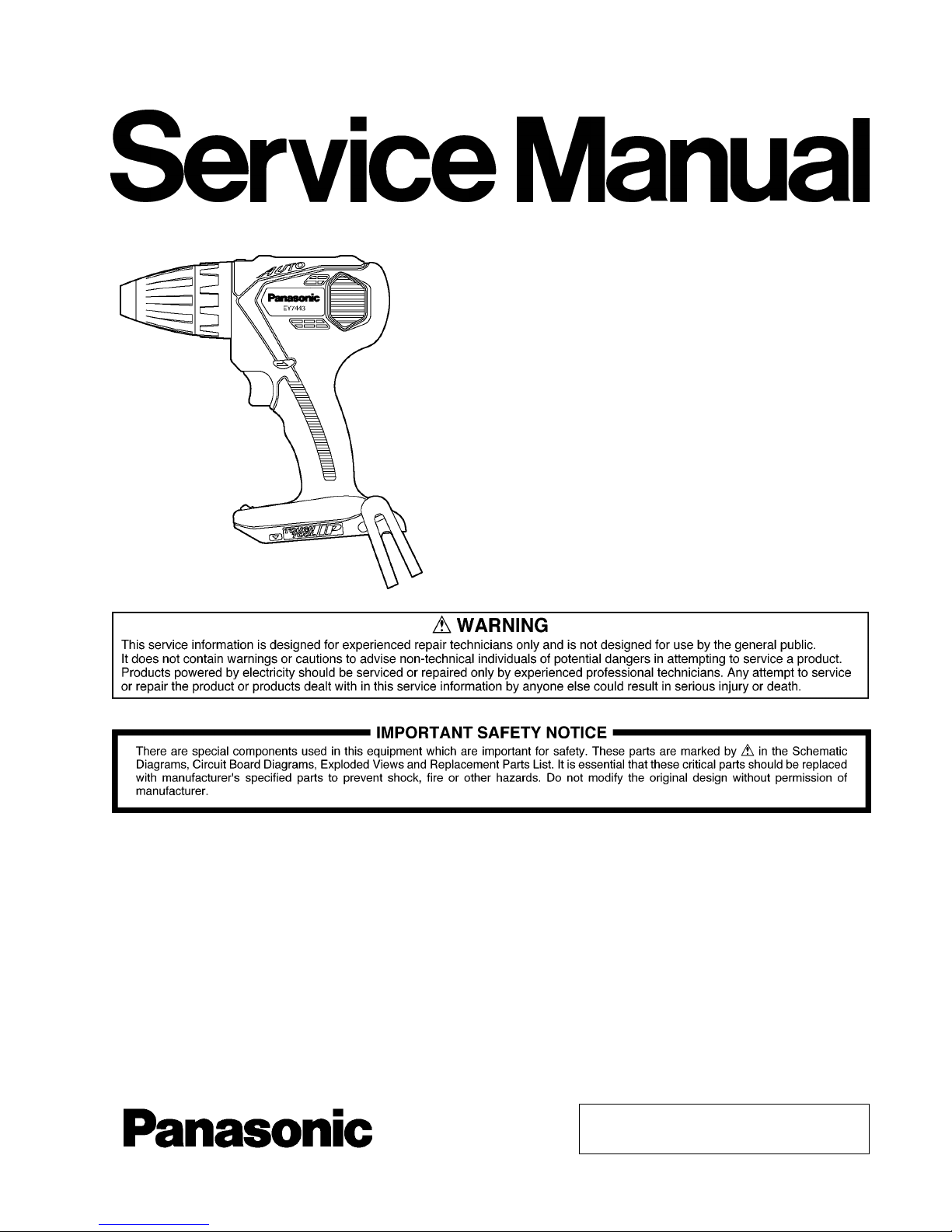

Panasonic EY7443 User manual

distribution is a violation of law.

Order Number PTD1301X17CE

Cordless Auto Drill & Driver

Model No. EY7443

Europe

Oceania

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 8

5 Wiring Connection Diagram ---------------------------------16

6 Schematic Diagram ---------------------------------------------16

7 Exploded View and Replacement Parts List -----------17

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

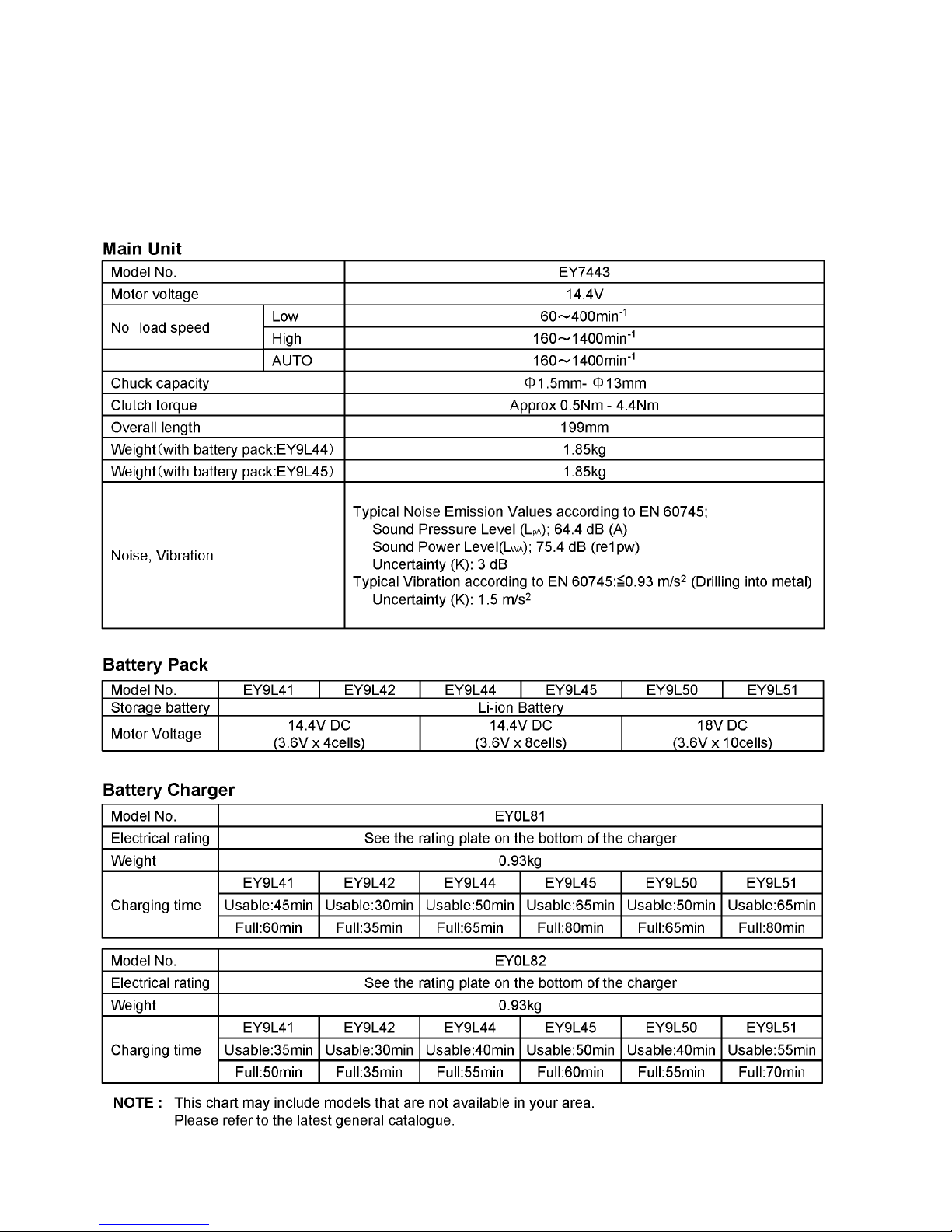

2 Specifications

3 Troubleshooting Guide

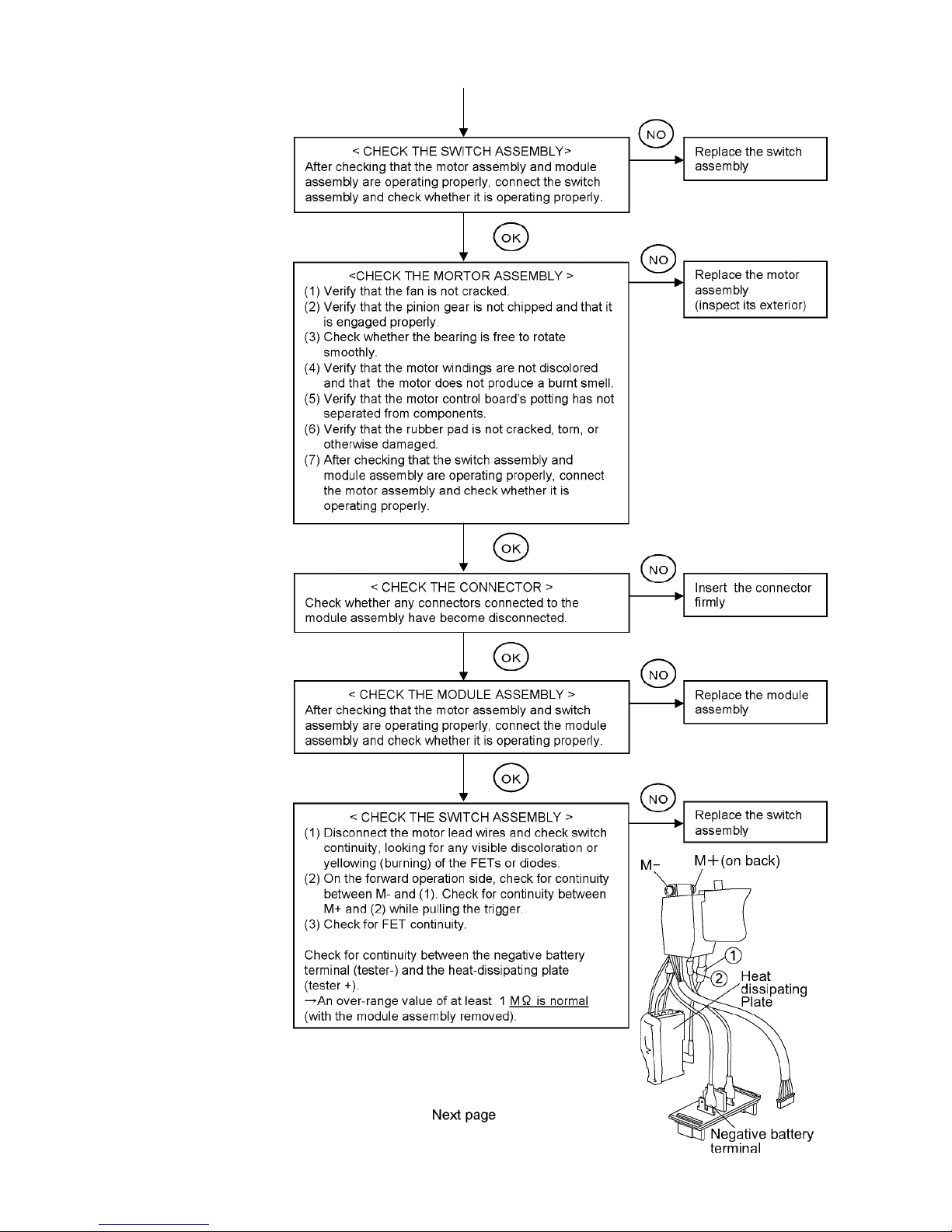

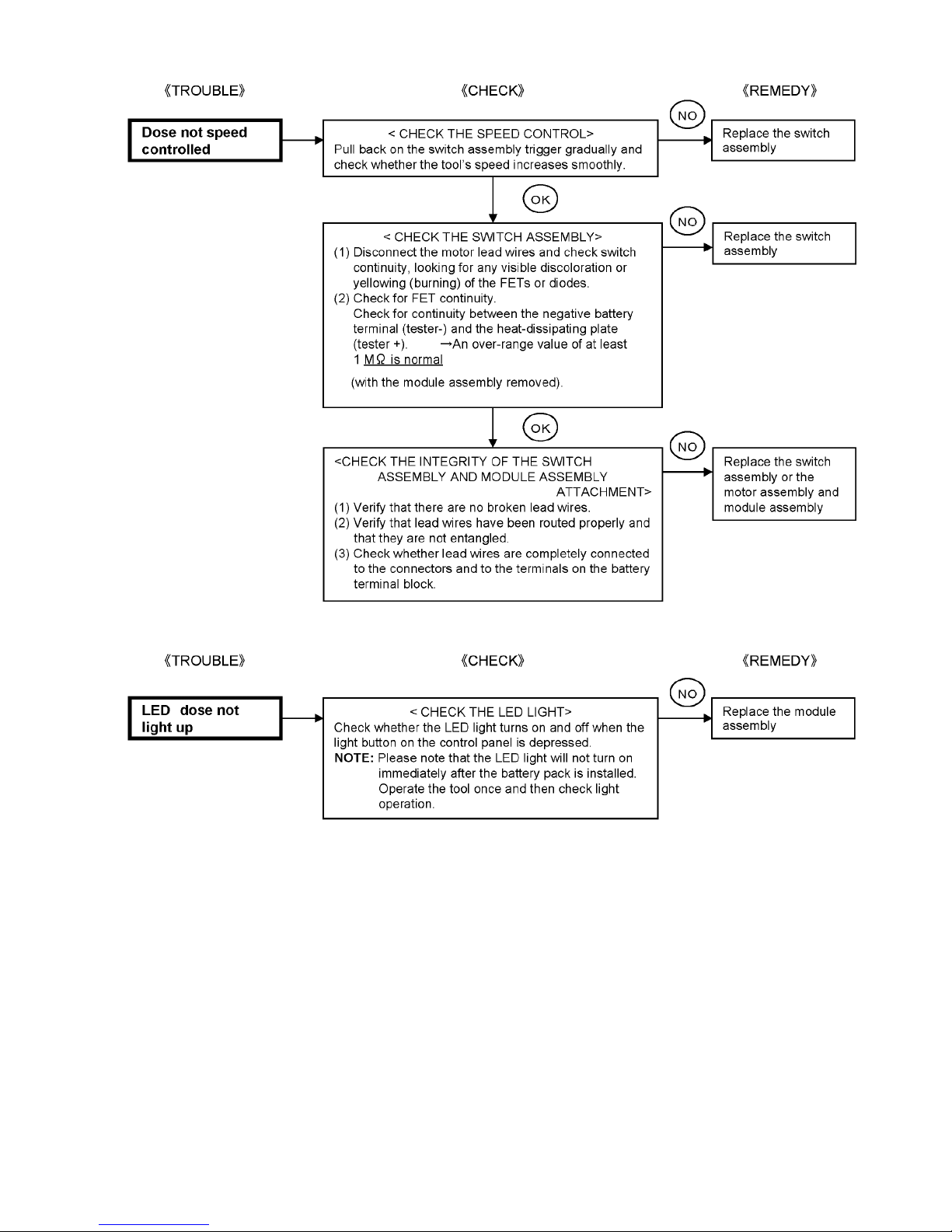

3.1. Troubleshooting Guide

3.2. Trial Operation (After Checking Troubleshooting Guide)

3.2.1. Assembly

• Confirm if there is no gap between housing A and B by pinching lead wires.

• There is no dust or deformation on battery terminals.

• Confirm if there is no dirt when repairing.

3.2.2. Operation

• Check whether the tool operates properly in both the forward and reveres directions.

• Check whether the LED light turns on and off each time the LED light on/off button is depressed.

• Check whether the tool detects the load and switches gears automatically during AUTO mode operation (continuous speed

adjustment).

• Check whether the gear can be fixed during HIGH/LOW mode operation.

• Check whether the tool speed is normal after repair and reassembly.

• High mode: 180 to 1,400 rpm

• Low mode: 50 to 400 rpm

• Check whether the tool may become hot in a short operation.

• Set the clutch handle to the mark and check whether the tool rotates without any clutch operation.

• Operate (rotate) the keyless chuck and check whether the chuck’fs three jaws move smoothly.

• Pull the trigger all the way back and check whether the tool stops rotating immediately when it is released.

3.2.3. Integrity

• With the switch activated, shake the tool back and forth and up and down and verify that its sound does not change excessively.

• Rotate the clutch handle and check whether the clutch switches properly.

• Check whether the keyless chuck is attached securely to the tool.

• Check whether the chuck's jaws operate properly.

• Check for the presence of any dirt or foreign matter from the repair process on the outside of the tool.

4 Disassembly and Assembly Instructions

*To assemble the tool, start with 5-12 and proceed to 5-1

*Set the clutch handle to select ''HIGH" position.

4.1. Removing the keyless chuck

4.2. Removing the plate hook

4.3. Removing the housing

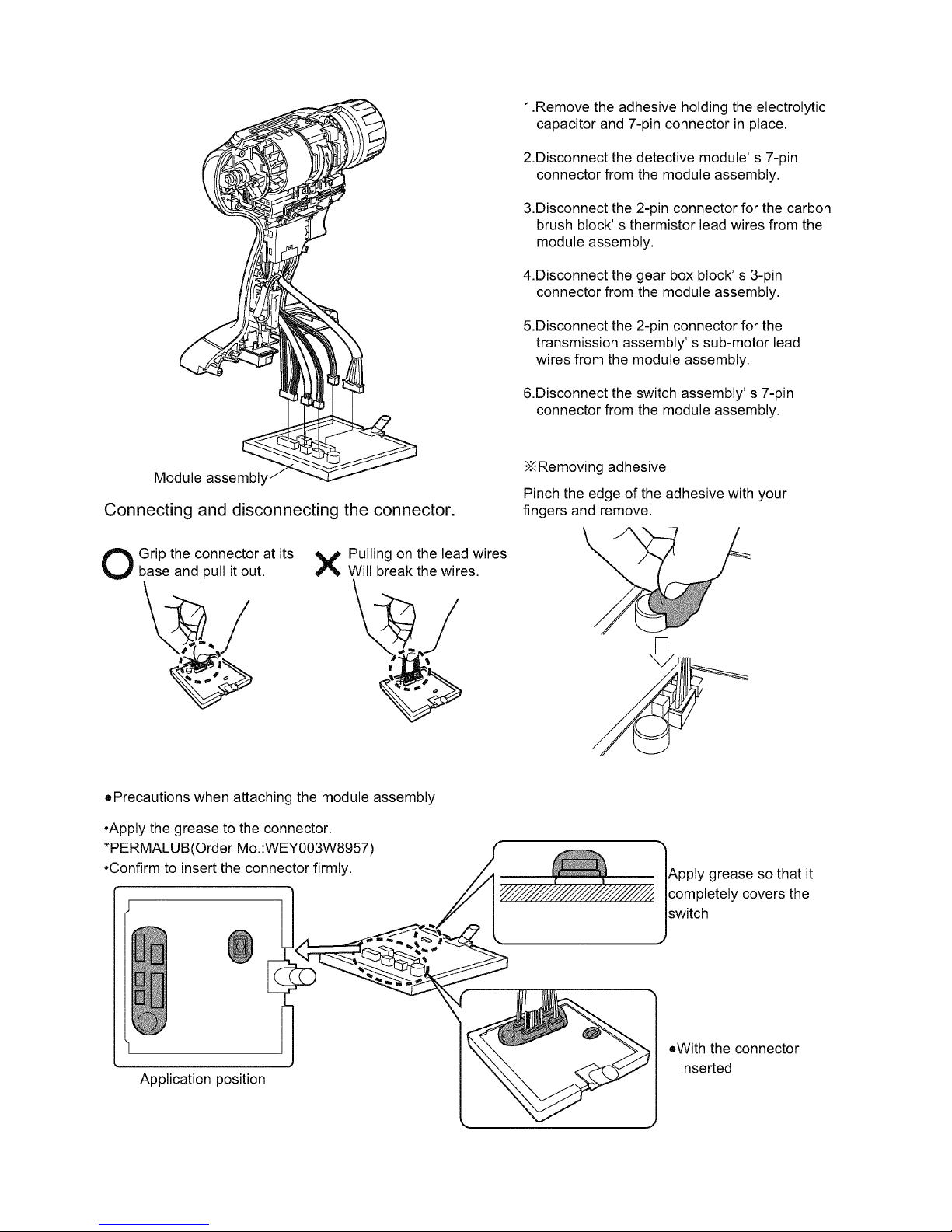

4.4. Removing the Module assembly
