Basic Operating Instructions
Digital Camera
Model No. DMC-LF1
Please read these instructions carefully before using this product, and
save this manual for future use.
More detailed instructions on the operation of this camera
are contained in “Operating Instructions for advanced
features (PDF format)” in the supplied CD-ROM. Install it on
your PC to read it.
GN
2 VQT5A30 (ENG)
Dear Customer,
We would like to take this opportunity to thank you for purchasing this Panasonic
Digital Camera. Please read these Operating Instructions carefully and keep
them handy for future reference. Please note that the actual controls and
components, menu items, etc. of your Digital Camera may look somewhat
different from those shown in the illustrations in these Operating Instructions.
Carefully observe copyright laws.
• Recording of pre-recorded tapes or discs or other published or broadcast
material for purposes other than your own private use may infringe copyright
laws. Even for the purpose of private use, recording of certain material may
be restricted.
Information for Your Safety
WARNING:
To reduce the risk of fire, electric shock or product damage,
•Do not expose this unit to rain, moisture, dripping or
splashing.
•Use only the recommended accessories.
•Do not remove covers.
•Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
The socket outlet shall be installed near the equipment and shall be
easily accessible.
■Product identification marking
Product Location
Digital camera Bottom
(ENG) VQT5A30 3
■About the battery pack
CAUTION
• Danger of explosion if battery is incorrectly replaced. Replace
only with the type recommended by the manufacturer.
• When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a
long period of time with doors and windows closed.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above
60 °C or incinerate.
■About the AC adaptor (supplied)
CAUTION!
To reduce the risk of fire, electric shock or product damage,
•Do not install or place this unit in a bookcase, built-in cabinet or in
another confined space. Ensure this unit is well ventilated.
• The unit is in the standby condition when the AC adaptor is connected. The
primary circuit is always “live” as long as the AC adaptor is connected to an
electrical outlet.
4 VQT5A30 (ENG)
■Cautions for Use
• Do not use any other USB connection cables except the supplied one or a
genuine Panasonic USB connection cable (DMW-USBC1: optional).
• Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
• Use a “High Speed HDMI micro cable” with the HDMI logo. Cables that do not
comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (TypeD-TypeA plug, up to 2 m long)
Keep this unit as far away as possible from electromagnetic equipment
(such as microwave ovens, TVs, video games etc.).
• If you use this unit on top of or near a TV, the pictures and/or sound on this
unit may be disrupted by electromagnetic wave radiation.
• Do not use this unit near cell phones because doing so may result in noise
adversely affecting the pictures and/or sound.
• Recorded data may be damaged, or pictures may be distorted, by strong
magnetic fields created by speakers or large motors.
• Electromagnetic wave radiation generated by microprocessors may adversely
affect this unit, disturbing the pictures and/or sound.
• If this unit is adversely affected by electromagnetic equipment and stops
functioning properly, turn this unit off and remove the battery or disconnect AC
adaptor (supplied). Then reinsert the battery or reconnect AC adaptor and turn
this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
• If you record near radio transmitters or high-voltage lines, the recorded
pictures and/or sound may be adversely affected.
-If you see this symbol-
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the correct
method of disposal.
(ENG) VQT5A30 5
Contents
Before use
■Camera handling
●Keep the camera away from excessive vibration, force, or pressure.
●The camera is not dust resistant, splash resistant, or waterproof.
Avoid using the camera in places with excessive dust or sand, or where
water can come into contact with the camera.
■
Condensation (When the lens, the LCD monitor or the viewfinder is fogged up)
●
Condensation may occur when the camera is exposed to sudden changes of
temperature or humidity. Avoid these conditions, which may make the lens,
the LCD monitor or the viewfinder dirty, cause mould, or damage the camera.
●If condensation does occur, turn off the camera and wait about two hours
before using it. Once the camera adjusts to the surrounding temperature,
the fogging will clear naturally.
Information for Your Safety .... 2
Before use................................ 5
Standard accessories ............. 6
Names and Functions of
Main Parts ................................ 7
Inserting and removing the battery
or SD memory card (optional)
........ 9
Charging the battery ............. 10
Setting the clock.................... 11
Setting the menu ................... 12
Taking still pictures ............... 13
Recording motion pictures... 15
Using the control ring ........... 16
Taking pictures with the
composition determined
[Composition Guide]............. 18
Viewing your pictures ........... 19
Deleting pictures ................... 20
What you can do with the
Wi-Fi®function....................... 21
Reading the Operating
Instructions (PDF format) ..... 23
Supplied software.................. 24
Specifications ........................ 26
Limited Warranty
(ONLY FOR AUSTRALIA) ...... 29
6 VQT5A30 (ENG)
Standard accessories
Check that all the accessories are supplied before using the camera. Part
numbers are as of May 2013. These may be subject to change.
Battery pack
DMW-BCN10E
• Charge the battery
before use.
Battery pack is indicated as
battery pack or battery in the text.
AC adaptor
VSK0776
Hand strap
VFC4297
USB connection cable
K1HY08YY0034
CD-ROM
• Software:
Use it to install the
software on your
PC.
CD-ROM
VFF1217
• Operating
Instructions for
advanced features
• SD Memory Card, SDHC Memory Card and SDXC Memory Card are
indicated as card in the text.
• Cards are optional. You can record or play back pictures on the built-in
memory when you are not using a card.
• Consult the dealer or your nearest Service Centre if you lose the supplied
accessories. (You can purchase the accessories separately.)
• Please dispose of all packaging appropriately.
• Keep small parts in a safe place out of the reach of children.
• The illustrations and screens in this manual may differ from the actual product.
(ENG) VQT5A30 7

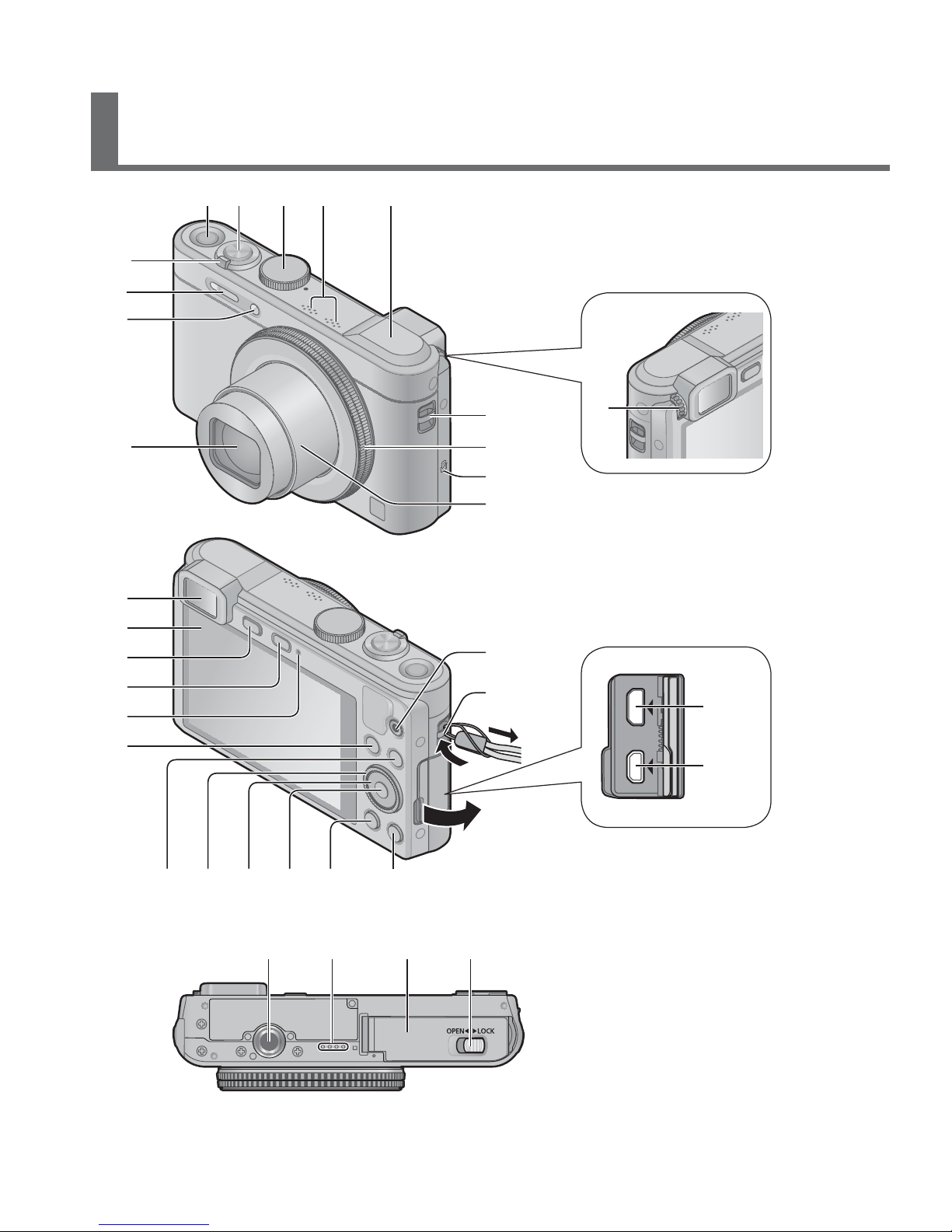

Names and Functions of Main Parts
12 3 4 5
7
8
10
11
12
13
15
16
17
18
19
20
21 22 23 25 26
27
28 29
30
31 32 33 34
9
14
6
24
Names and Functions of Main Parts
8 VQT5A30 (ENG)
1 Camera [ON/OFF] button
2 Shutter button
3 Mode dial
4 Microphones
5 [Wi-Fi] antenna
6 Diopter adjustment dial
7 Strap eyelet
8 Control ring
9 NFC antenna
10 Lens barrel
11 Zoom lever
12 Flash
13 Self-timer indicator/
AF Assist Lamp
14 Lens
15 Viewfinder
16 LCD monitor
17 [LVF] button
• Use this to switch display
between viewfinder and LCD
monitor.
18 [Wi-Fi] button
19 Charging lamp/
Wi-Fi®connection lamp
20 [Fn] button
21 Playback button
22 Control dial
23 Cursor button
• In this manual, the button that
is to be used is indicated by
.
24 [MENU/SET] button
25 [DISP.] button
26 [Q.MENU/ ] / [ ] button
27 Motion picture button
28 Strap eyelet
• We recommend using the
supplied hand strap to avoid
dropping the camera.
29 [HDMI] socket
30 [AV OUT/DIGITAL] socket
• This socket is also used when
charging the battery.
31 Tripod mount
• Do not attach to a tripod with a
5.5 mm or longer screw. Doing
so may damage this unit.
32 Speaker
33 Card/Battery door
34 Release lever
(ENG) VQT5A30 9
Inserting and removing the battery or
SD memory card (optional)
Make sure that the camera is turned off.
Slide the release lever ( ) to the
[OPEN] position and open the card/
battery door
Insert the battery and card, making sure
that their orientation is correct
• Battery: Insert the battery all the way firmly and
check that it is locked by lever ( ).
• Card: Insert the card all the way firmly until it
clicks. Do not touch the terminals on the
back of the card.
Close the door
Slide the release lever to the [LOCK] position.
■To remove
•To remove battery:
Move lever in direction of
arrow.
Lever
•To remove card:
Push the card until it clicks, then pull
the card out.
Press Pull out
●Always use genuine Panasonic batteries (DMW-BCN10E).
●If you use other batteries, we cannot guarantee the quality of this product.
●Keep the Memory Card out of reach of children to prevent swallowing.
●We recommend using a Panasonic card.
10 VQT5A30 (ENG)
Charging the battery
•The battery that can be used with this unit is DMW-BCN10E.
•The battery is not charged when the camera is shipped. Charge the
battery before use.
•Charge the battery with the AC adaptor (supplied) indoors (10 °C to
30 °C).
Make sure that the camera is turned off.
Insert the battery to this unit, and then connect this unit to
the AC adaptor (supplied) ( ) or a PC ( )
To the electrical outlet
USB connection cable (supplied)
■Charging lamp ( )
On: Charging in progress (Red)
Off: Charging stops (Charging time: Approx. 160 min)
When using the AC adaptor (supplied), observe the following points as improper
connections may cause malfunctions.
●Do not use any other USB connection cables except the supplied one or a
genuine Panasonic USB connection cable (DMW-USBC1: optional).
●Do not use any other AC adaptors except the supplied one.
●Do not use the AC adaptor (supplied) or the USB connection cable (supplied)
with other devices.
Other manuals for LUMIX DMC-LF1
6
Table of contents
Other Panasonic Digital Camera manuals
Panasonic
Panasonic Lumix DMC-G3K Technical specifications
Panasonic
Panasonic Lumix DMC-LC5PP User manual
Panasonic
Panasonic DMC-SZ9 User manual
Panasonic
Panasonic Lumix DC-TZ200D User manual
Panasonic
Panasonic LUMIX DMC-FZ2B User manual
Panasonic
Panasonic DMCFX700 - DIGITAL STILL CAMERA Instruction Manual
Panasonic
Panasonic AWHE100N - HD INTEGRATED CAMERA User manual
Panasonic
Panasonic PalmCam PV-SD5000 User manual
Panasonic
Panasonic Lumix DMC-FS3 User manual
Panasonic
Panasonic HDCZ10000P User manual
Panasonic
Panasonic DMC-GX1 Lumix User manual
Panasonic
Panasonic LUMIX DC-LX100M2 User manual
Panasonic
Panasonic iPalm PV-DC3000 User manual
Panasonic
Panasonic Lumix DMC-TZ60 Technical specifications
Panasonic
Panasonic LUMIX DMC-FX150 User manual
Panasonic
Panasonic LUMIX DMC-FZ18 User manual
Panasonic
Panasonic CF-D1 Series Wiring diagram
Panasonic
Panasonic Lumix DMC-FZ1000 User manual
Panasonic
Panasonic Lumix DMC-FZ150 Installation and service instructions
Panasonic
Panasonic DMC FS7A - Lumix Digital Camera Instruction Manual
