Panasonic Lumix DMC-FT4 Technical specifications

Before use, please read these instructions completely.

More detailed instructions on

the operation of this camera are

contained in “Operating

Instructions for advanced features

(PDF format)” in the supplied CD-ROM. Install

it on your PC to read it.

Basic Operating Instructions

Digital Camera

Model No. DMC-FT4

until

2012/02/22

VQT4E06

F0212HY0

VQT4E06~Cover_eng.fm 1 ページ２０１２年１月２４日　火曜日　午後２時４９分

VQT4E06 (ENG)

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic Digital

Camera. Please read these Operating Instructions carefully and keep them handy for

future reference. Please note that the actual controls and components, menu items, etc.

of your Digital Camera may look somewhat different from those shown in the

illustrations in these Operating Instructions.

Carefully observe copyright laws.

•Recording of pre-recorded tapes or discs or other published or broadcast material for

purposes other than your own private use may infringe copyright laws. Even for the purpose

of private use, recording of certain material may be restricted.

Information for Your Safety

∫Product identification marking

WARNING:

To reduce the risk of fire, electric shock or product damage,

•Do not let water or other liquids drip or splash inside the unit.

•Do not expose accessories (battery pack, battery charger, AC adaptor, SD memory

card and etc.) to rain, moisture, dripping or splashing.

•Use only the recommended accessories.

•Do not remove covers.

•Do not repair this unit by yourself. Refer servicing to qualified service personnel.

The socket outlet shall be installed near the equipment and shall be easily

accessible.

Product Location

Digital Camera Bottom

Battery Charger Bottom

DMC-FT4&TS4GN-VQT4E06_eng.book 2 ページ２０１２年１月２３日　月曜日　午前１０時２８分

(ENG) VQT4E06

∫About the battery pack

•Do not heat or expose to flame.

•Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with

doors and windows closed.

∫About the battery charger

•The battery charger is in the standby condition when the AC power supply cord is connected.

The primary circuit is always “live” as long as the power cord is connected to an electrical

outlet.

CAUTION

•Danger of explosion if battery is incorrectly replaced. Replace only with the type

recommended by the manufacturer.

•When disposing the batteries, please contact your local authorities or dealer and ask for

the correct method of disposal.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or

incinerate.

CAUTION!

To reduce the risk of fire, electric shock or product damage,

•Do not install or place this unit in a bookcase, built-in cabinet or in another

confined space. Ensure this unit is well ventilated.

DMC-FT4&TS4GN-VQT4E06_eng.book 3 ページ２０１２年１月２３日　月曜日　午前１０時２８分

VQT4E06 (ENG)

∫Cautions for Use

•Do not use any other AV cables except the supplied one.

•Do not use any other USB connection cables except the supplied one.

•Always use a genuine Panasonic HDMI micro cable (RP-CHEU15: optional).

Part number: RP-CHEU15 (1.5 m)

In the event of abnormal operation (e.g. if the unit emits smoke or an unusual smell),

immediately stop operating the unit and consult the Panasonic Customer Care Centre

on 132600.

Keep this unit as far away as possible from electromagnetic equipment (such as

microwave ovens, TVs, video games etc.).

•If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be

disrupted by electromagnetic wave radiation.

•Do not use this unit near cell phones because doing so may result in noise adversely

affecting the pictures and/or sound.

•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields

created by speakers or large motors.

•Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,

disturbing the pictures and/or sound.

•If this unit is adversely affected by electromagnetic equipment and stops functioning properly,

turn this unit off and remove the battery or disconnect AC adaptor (DMW-AC5G: optional).

Then reinsert the battery or reconnect AC adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

•If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound

may be adversely affected.

-If you see this symbol-

Information on Disposal in other Countries outside

the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your

local authorities or dealer and ask for the correct

method of disposal.

DMC-FT4&TS4GN-VQT4E06_eng.book 4 ページ２０１２年１月２３日　月曜日　午前１０時２８分

(ENG) VQT4E06

Contents

Information for Your Safety......................................................................................... 2

Before Use .................................................................................................................... 6

Standard Accessories ................................................................................................. 7

(Important) About the Waterproof/Dustproof and Anti-shock Performance

of the Camera ............................................................................................................... 9

Names and Functions of Main Parts ........................................................................ 14

Charging the Battery.................................................................................................. 15

Inserting and Removing the Card (optional)/the Battery ....................................... 16

Sequence of operations ............................................................................................ 17

Recording using the GPS function........................................................................... 19

Sensors (compass/altimeter/barometer) are operated........................................... 21

Restricting the GPS/sensor functions ..................................................................... 22

Reading the Operating Instructions (PDF format) .................................................. 23

Installing supplied software...................................................................................... 24

Specifications............................................................................................................. 25

DMC-FT4&TS4GN-VQT4E06_eng.book 5 ページ２０１２年１月２３日　月曜日　午前１０時２８分

VQT4E06 (ENG)

Before Use

•Do not apply strong shock or vibration by dropping or knocking the camera. Also, do

not apply strong pressure to the camera.

–Waterproof performance may be impaired.

–Lens or LCD monitor may be damaged.

–It may cause malfunction in the performance or the function.

∫When inner side of the lens is fogged (condensation)

It is not a malfunction or failure of the camera. It may be

caused by the environment in which the camera is used.

What to do when inner side of the lens is fogged

•Turn off the power and open the side door in a place with constant

ambient temperature, away from high temperatures, humidity,

sand and dust. The fog will disappear naturally in 10 minutes to

2 hours with the side door open when the temperature of the

camera gets close to the ambient temperature.

•Contact Panasonic’s Service Centre if the fogging does not disappear.

Conditions in which inner side of the lens may be fogged

Condensation may occur and the inner side of the lens may be fogged when the

camera is used in areas that undergo a significant change in temperature or in high

humidity, such as the following:

•When the camera is used underwater suddenly after being on a hot beach etc.

•When the camera is moved to a warm area from a cold area, such as at a ski resort or

at high altitude

•When the side door is opened in a high-humidity environment

Please be sure to read “(Important) About the Waterproof/Dustproof and Anti-shock

Performance of the Camera”(P9) before using this unit underwater to prevent the unit

from being mishandled, which may cause water to seep in.

DMC-FT4&TS4GN-VQT4E06_eng.book 6 ページ２０１２年１月２３日　月曜日　午前１０時２８分

(ENG) VQT4E06

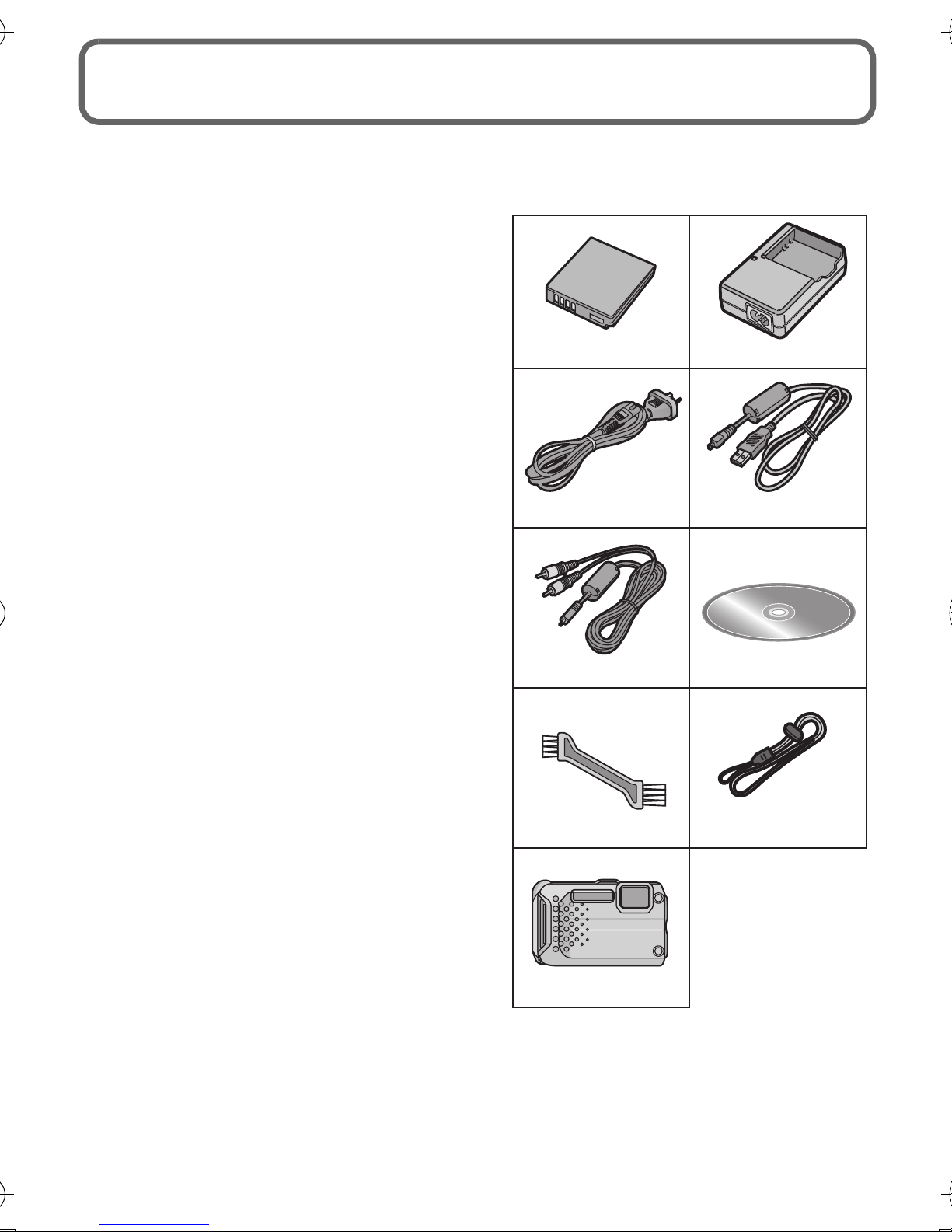

Standard Accessories

Check that all the accessories are supplied before using the camera.

Product numbers correct as of January 2012. These may be subject to change.

1 Battery Pack

(Indicated as battery pack or battery in

the text)

Charge the battery before use.

2 Battery Charger

(Indicated as battery charger or

charger in the text)

3 AC Cable

4 USB Connection Cable

5AVCable

6 CD-ROM

•Software

•Operating Instructions for advanced

features

Install on your PC before use.

7Brush

8 Hand Strap

9 Silicone Jacket

•Supplied accessories are not waterproof

(excluding Hand Strap and Silicone Jacket).

•Keep the Brush out of reach of children to

prevent swallowing.

•SD Memory Card, SDHC Memory Card and

SDXC Memory Card are indicated as card in

the text.

•The card is optional.

You can record or play back pictures on the

built-in memory when you are not using a

card.

•Consult the dealer or your nearest Service

Centre if you lose the supplied accessories.

(You can purchase the accessories

separately.)

DMW-BCF10E DE-A60A

VFC4393

K1HY08YY0018

K1HY08YY0017

K2CJ29A00002

VFF0994

VYC1013

VMG1988

VQT4E06~Body1_eng.fm 7 ページ２０１２年１月２６日　木曜日　午後３時１１分

VQT4E06 (ENG)

Attach is recommended to prevent unintentional opening of the side door when

used in the mountains or near water.

•Check that this unit is turned off.

•Attach the Silicone Jacket where there is no sand or dust.

Securely attach the Silicone Jacket to the

camera.

•Attach the Silicone Jacket carefully. It may get damaged

when attached forcefully.

•Be sure to remove any foreign objects (sand etc.) or

water (sea water etc.) adhered inside the Silicone

Jacket. If not removed, the foreign objects or water may

scratch or dirty the camera. We recommend that you remove the Silicone Jacket from the

camera, rinse, and then wipe away the water with a soft dry cloth.

∫Maintenance after using

•Remove the silicone jacket from the unit carefully. It may get damaged when removed

forcefully.

•Take the camera out of the Silicone Jacket, and check that foreign objects (sand etc.) or

water (sea water etc.) are not adhered.

•Rinse with water, wipe off water with a soft dry cloth, and dry the camera in a well ventilated

shaded area.

•Do not dry the camera with hot air from a dryer or similar. It may become unusable due to

deformation.

•Do not use chemicals such as benzine, thinner, alcohol, or cleanser, or soap or detergents.

•After use, remove the Silicone Jacket. Do not store the camera for a long period of time with

the Silicone Jacket still attached.

Attaching the Silicone Jacket

DMC-FT4&TS4GN-VQT4E06_eng.book 8 ページ２０１２年１月２３日　月曜日　午前１０時２８分

(ENG) VQT4E06

(Important) About the Waterproof/

Dustproof and Anti-shock Performance of

the Camera

This does not guarantee no destruction, no malfunction, or waterproofing in all

conditions.

¢1 This means that the camera can be used underwater for specified time in specified

pressure in accordance with the handling method established by Panasonic.

¢2 “MIL-STD 810F Method 516.5-Shock” is the test method standard of the U.S. Defense

Department, which specifies performing drop tests from a height of 122 cm, at

26 orientations (8 corners, 12 ridges, 6 faces) using 5 sets of devices, and passing the

26 orientation drops within 5 devices. (If failure occurs during the test, a new set is used to

pass the drop orientation test within a total of 5 devices)

Panasonic’s test method is based on the above “MIL-STD 810F Method 516.5-Shock”.

However, the drop height was changed from 122 cm to 200 cm dropping onto 3 cm thick

plyboard. This drop test was passed.

(Disregarding appearance change such as loss of paint or distortion of the part where

drop impact is applied.)

Waterproof/Dustproof Performance

This camera’s waterproof/dustproof rating complies with the “IPX8” and

“IP6X” ratings. Provided the care and maintenance guidelines described in

this document are strictly followed, this camera can operate underwater, to a

depth not exceeding 12 m for a time not exceeding 60 minutes. (¢1)

Anti-shock Performance

This camera also complies with “MIL-STD 810F Method 516.5-Shock”. The

camera has cleared a drop test from a height of 2 m onto 3 cm thick plywood.

In most cases this camera should not sustain any damage if dropped from a

height not exceeding 2 m. (¢2)

DMC-FT4&TS4GN-VQT4E06_eng.book 9 ページ２０１２年１月２３日　月曜日　午前１０時２８分

VQT4E06 (ENG)

∫Handling of the camera

•Waterproofing is not guaranteed if the unit is subject to an impact as a result of being hit or

dropped etc. If an impact to the camera occurs, it should be inspected (subject to a fee) by a

Panasonic’s Service Centre to verify that the waterproofing is still effective.

•When the camera is splashed with detergent, soap, hot spring, bath additive, sun oil, sun

screen, chemical, etc., wipe it off immediately.

•Waterproof function of the camera is for sea water and fresh water only.

•Any malfunction caused by customer misuse, or mishandling will not be covered by the

warranty.

•The inside of this unit is not waterproof. Water leakage will cause malfunction.

•Supplied accessories are not waterproof (excluding Hand Strap and Silicone Jacket).

•Card and battery are not waterproof. Do not handle with a wet hand. Also, do not insert wet

card or battery into the camera.

•Do not leave the camera for a long period of time in places where temperature is very low

(at ski resorts or at high altitude etc.) or very high (above 40 oC), inside a car under strong

sunlight, close to a heater, on the beach, etc. Waterproof performance may be degraded.

∫About the [Precautions] demonstration display

([Requirements for Underwater use])

•[Precautions] is displayed when the power is turned on for the first time after purchase, with

the side door completely closed.

•Please check beforehand to maintain the waterproof performance.

1Press 2to select [Yes], and press [MENU/SET].

•It will automatically skip to the clock setting screen if [No] is selected before it starts.

2Press 2/1to select the picture.

•It can be forcefully ended by pressing [MENU/SET].

•When it is forcefully ended while checking by turning the unit off or pressing [MENU/

SET], [Precautions] is displayed every time the power is turned on.

3After the final screen (12/12), press [MENU/SET] to finish.

•When [MENU/SET] is pressed after the final screen (12/12), [Precautions] is not

displayed from the next time the power is turned on.

•This can also be viewed from [Precautions] in the [Setup] menu.

2: Return to the previous screen

1: View the next screen

DMC-FT4&TS4GN-VQT4E06_eng.book 10 ページ２０１２年１月２３日　月曜日　午前１０時２８分

Other manuals for Lumix DMC-FT4

Table of contents

Other Panasonic Digital Camera manuals

Panasonic

Panasonic Lumix DMC-GX1K Installation and service instructions

Panasonic

Panasonic NV-VX55A User manual

Panasonic

Panasonic DMC-TZ7EB User manual

Panasonic

Panasonic Lumix DMC-TZ15 User manual

Panasonic

Panasonic Lumix DMC-FS22 User manual

Panasonic

Panasonic DMC-TZ80EB User manual

Panasonic

Panasonic Lumix DMC-SZ1P User manual

Panasonic

Panasonic lumix DMC-SZ8 User manual

Panasonic

Panasonic LUMIX DMC-GX85K Technical specifications

Panasonic

Panasonic Lumix DMC-FH22 Technical specifications

Panasonic

Panasonic Lumix DMC-G5X Technical specifications

Panasonic

Panasonic Lumix DMC-FH25 Technical specifications

Panasonic

Panasonic DMCFZ40 - DIGITAL CAMERA - ADVANCED FEATURES Technical specifications

Panasonic

Panasonic Lumix DMC-G6X Technical specifications

Panasonic

Panasonic Lumix DMC-FP8 User manual

Panasonic

Panasonic DMC-FX35P User manual

Panasonic

Panasonic LUMIX DMC-G85K Technical specifications

Panasonic

Panasonic Lumix DMC-ZS19 User manual

Panasonic

Panasonic DMC-ZS20W Installation and service instructions

Panasonic

Panasonic Lumix DMC-SZ7 Installation and service instructions

Panasonic

Panasonic Lumix DMC-G6K Installation and service instructions

Panasonic

Panasonic DMC FX10 - Lumix Digital Camera User manual

Panasonic

Panasonic Lumix DMC-LC33 User manual

Panasonic

Panasonic LUMIX DMC-FZ28 User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
