Please use this manual together with the service manual for

Model No.DMC-FS6P/PC/PR/PU/EB/EE/EF/EG/EP/GC/GJ/GK/GN/GT Vol.1 Order No.DSC0902003CE.

TABLE OF CONTENTS PAGE PAGE

1 SERVICE NAVIGATION------------------------------------------3

1.1. INTRODUCTION-------------------------------------------3

1.2. Important Notice 1:(Other than U.S.A. and

Canadian Market) -----------------------------------------3

1.3. About the Lens Unit ---------------------------------------3

2 INITIAL SETTINGS------------------------------------------------4

3DIAGRAMS----------------------------------------------------------7

3.1. Overall Block Diagram------------------------------------7

3.2. Flash Top Schematic Diagram--------------------------8

4 REPLACEMENT PARTS LIST ---------------------------------9

4.1. Frame & Casing Section -------------------------------10

4.2. Packing & Accessories Section---------------------- 11

1 SERVICE NAVIGATION

1.1. INTRODUCTION

This Service Manual contains technical information which will help service personnel to understand and service the Digital Camera

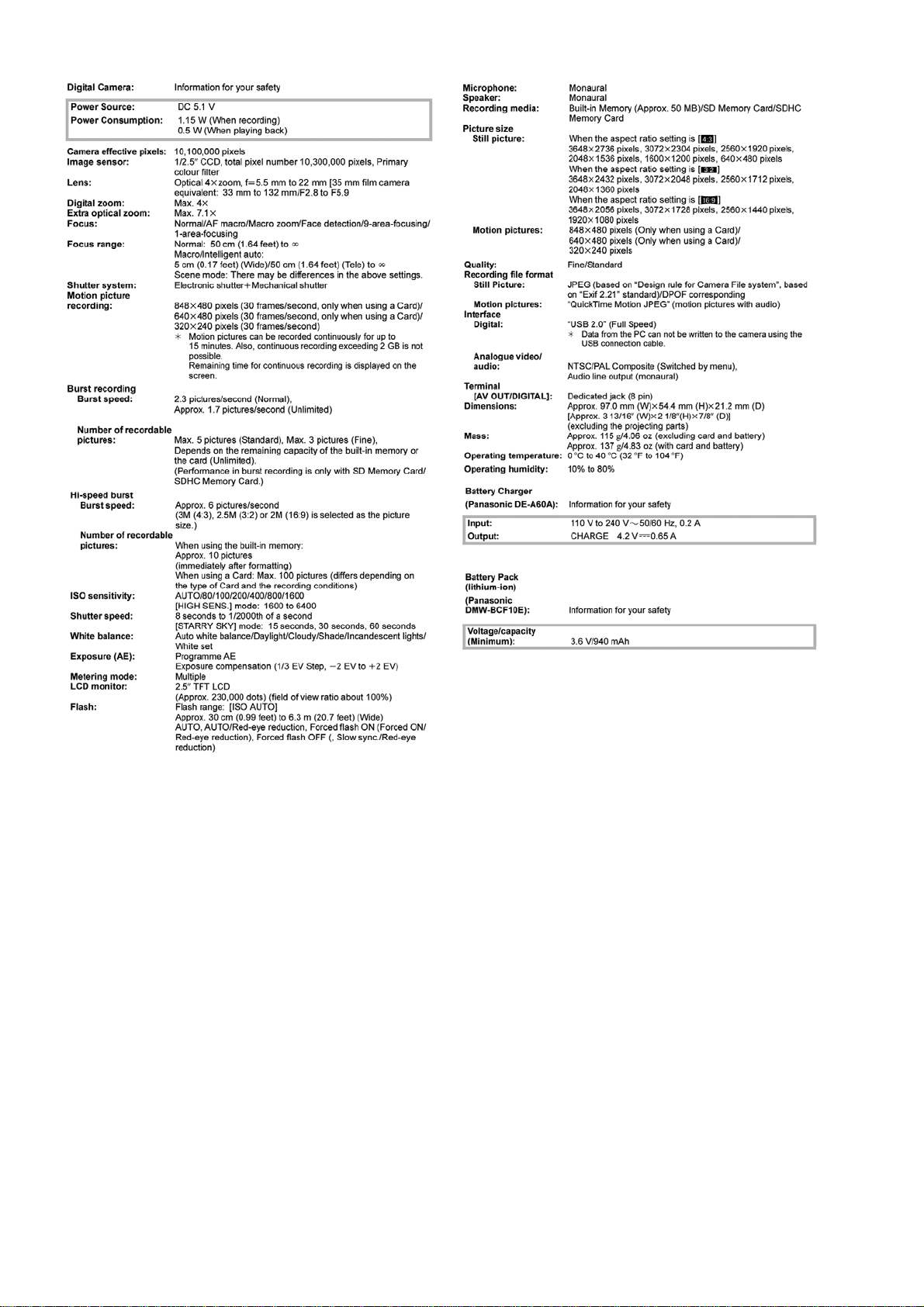

Digital Camera; DMC-FS62 series

The Digital Camera DMC-FS62 series have been developed based on DMC-FS6 series.

Since this Service Manual does not cover the same part which is already described in the Service Manual for DMC-FS6 series,

when servicing, refer to the descriptions in the Service Manual for ; DMC-FS6P/PC/PR/PU/EB/EE/EF/EG/EP/GC/GJ/GK/GN/GT:

Order No. DSC0902003CE (Service Manual Vol. 1).

1.2. Important Notice 1:(Other than U.S.A. and Canadian Market)

When a part replacement is required for repairing MAIN PCB , replace as an assembled parts.

The following category is/are recycle module part. please send it/them to Central Repair Center.

MAIN PCB : VEP56074E

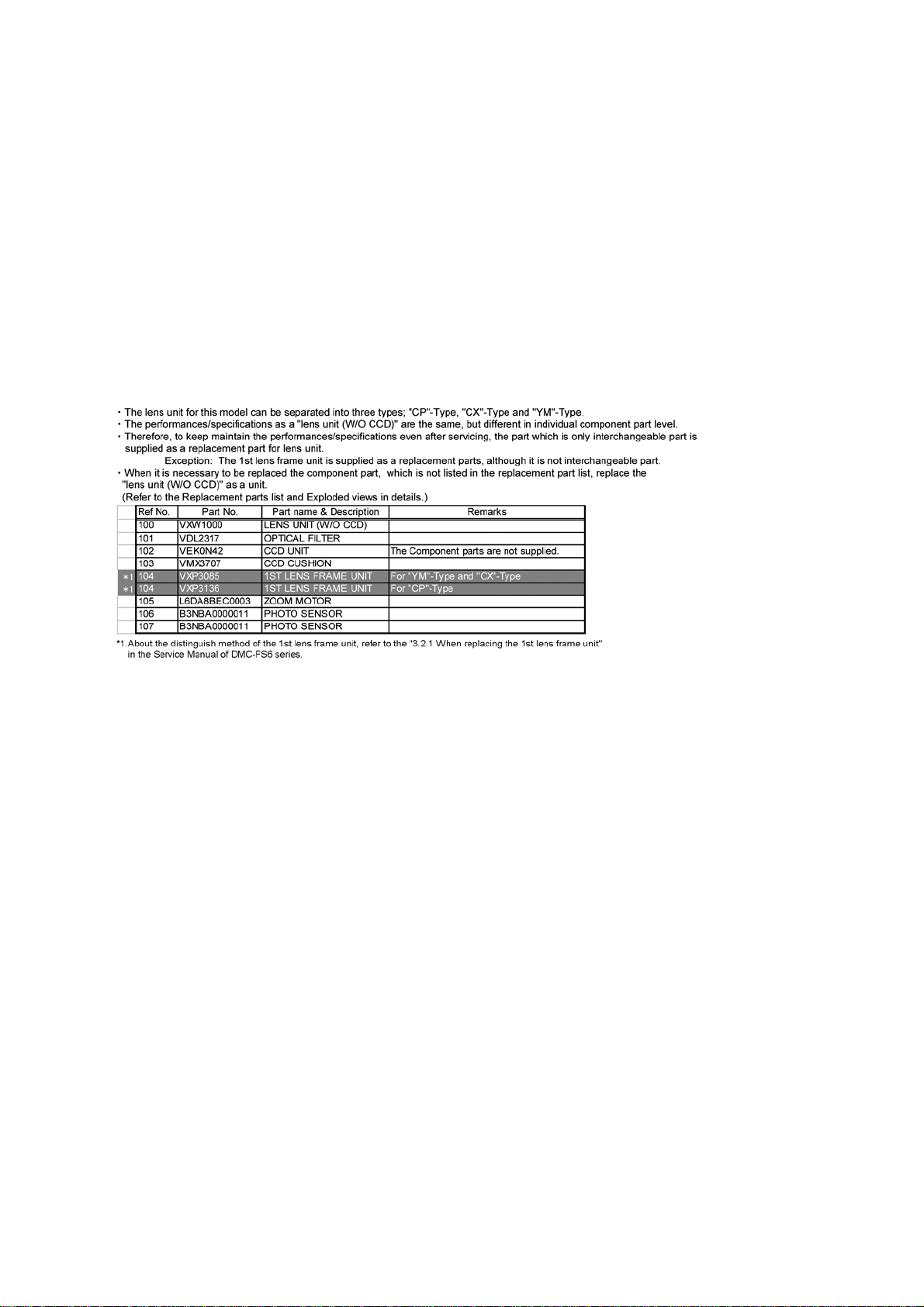

1.3. About the Lens Unit

2 INITIAL SETTINGS

After replacing the MAIN PCB, be sure to perform the initial settings after achieving the adjustment by ordering the following

procedure in accordance with model suffix of the unit.

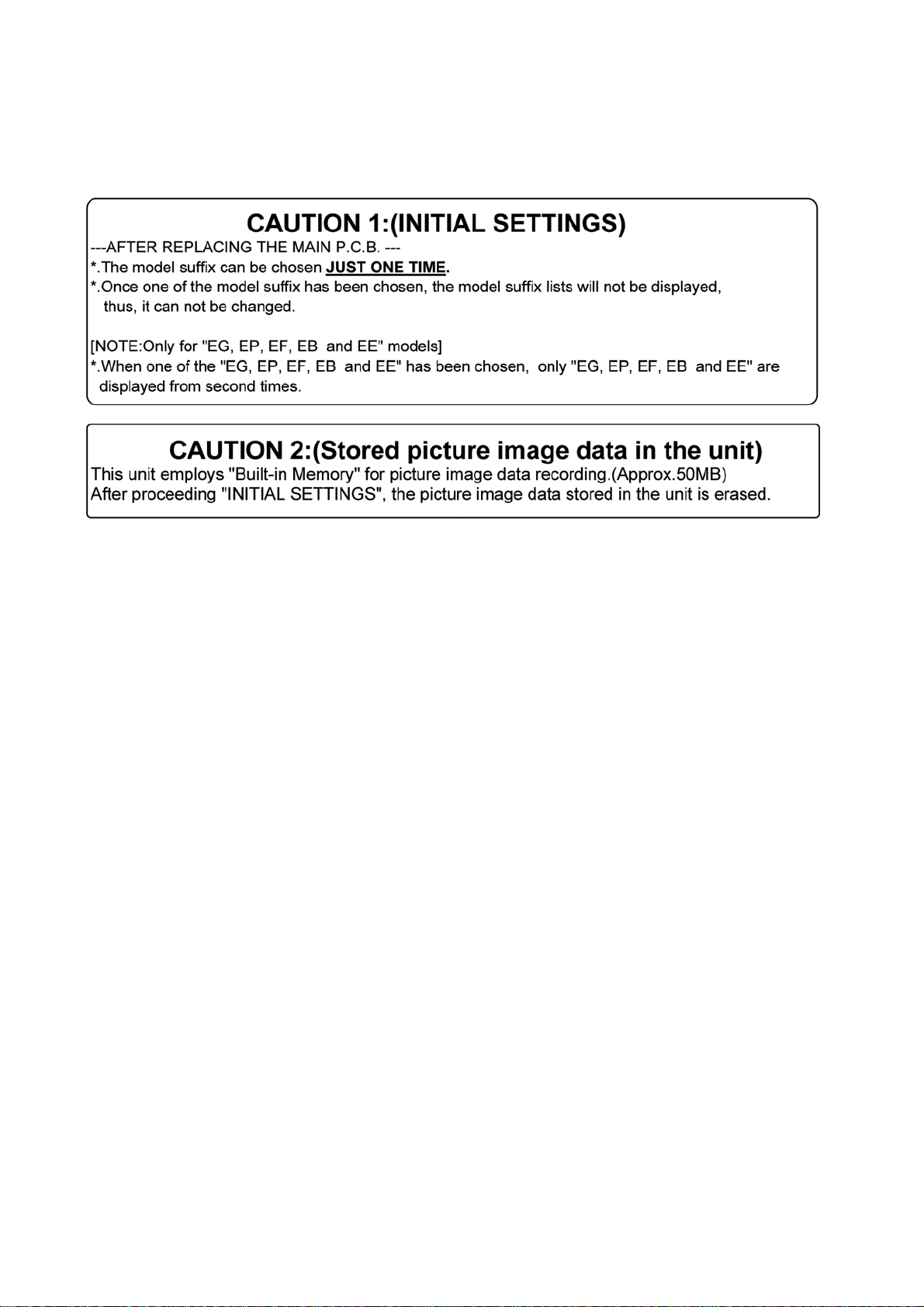

1. IMPORTANT NOTICE:

Before proceeding Initial settings, be sure to read the following CAUTIONS.

2. PROCEDURES:

• Precautions: Read the above "CAUTION 1" and "CAUTION 2", carefully.

• Preparation:

1. Attach the Battery or AC Adaptor with a DC coupler to the unit.

2. Set the recording mode to the [NORMAL PICTURE] mode.

(Press the [MODE] button and select the [NORMAL PICTURE] by pressing the “[ UP ] and [DOWN] of Cursor buttons”,

then press the [MENU/SET] button.)

NOTE:

If the unit is other than [NORMAL PICTURE] mode, it does not display the initial settings menu.

•Step 1. The temporary cancellation of “INITIAL SETTINGS”:

Set the [REC]/[PLAYBACK] selector switch to “[ REC ] (Camera mark)”.

While keep pressing “[ UP ] of Cursor button” and [ iA ] button simultaneously, turn the Power on.

•Step 2. The cancellation of “INITIAL SETTINGS”:

Set the [REC]/[PLAYBACK] selector switch to “[ PLAYBACK ]”.

Press “[ UP ] of Cursor button” and [ iA ] button simultaneously, then turn the Power off.

•Step 3. Turn the Power on:

Set the [REC]/[PLAYBACK] selector switch to “[ REC ] (Camera mark)”, and then turn the Power on.

•Step 4. Display the INITIAL SETTING:

NOTE:

If the unit is other than [NORMAL PICTURE] mode, it does not display the initial settings menu.

While keep pressing [ MENU/SET ] and “[ RIGHT ] of Cursor buttons” simultaneously, turn the Power off.

The "INITIAL SETTINGS" menu is displayed.

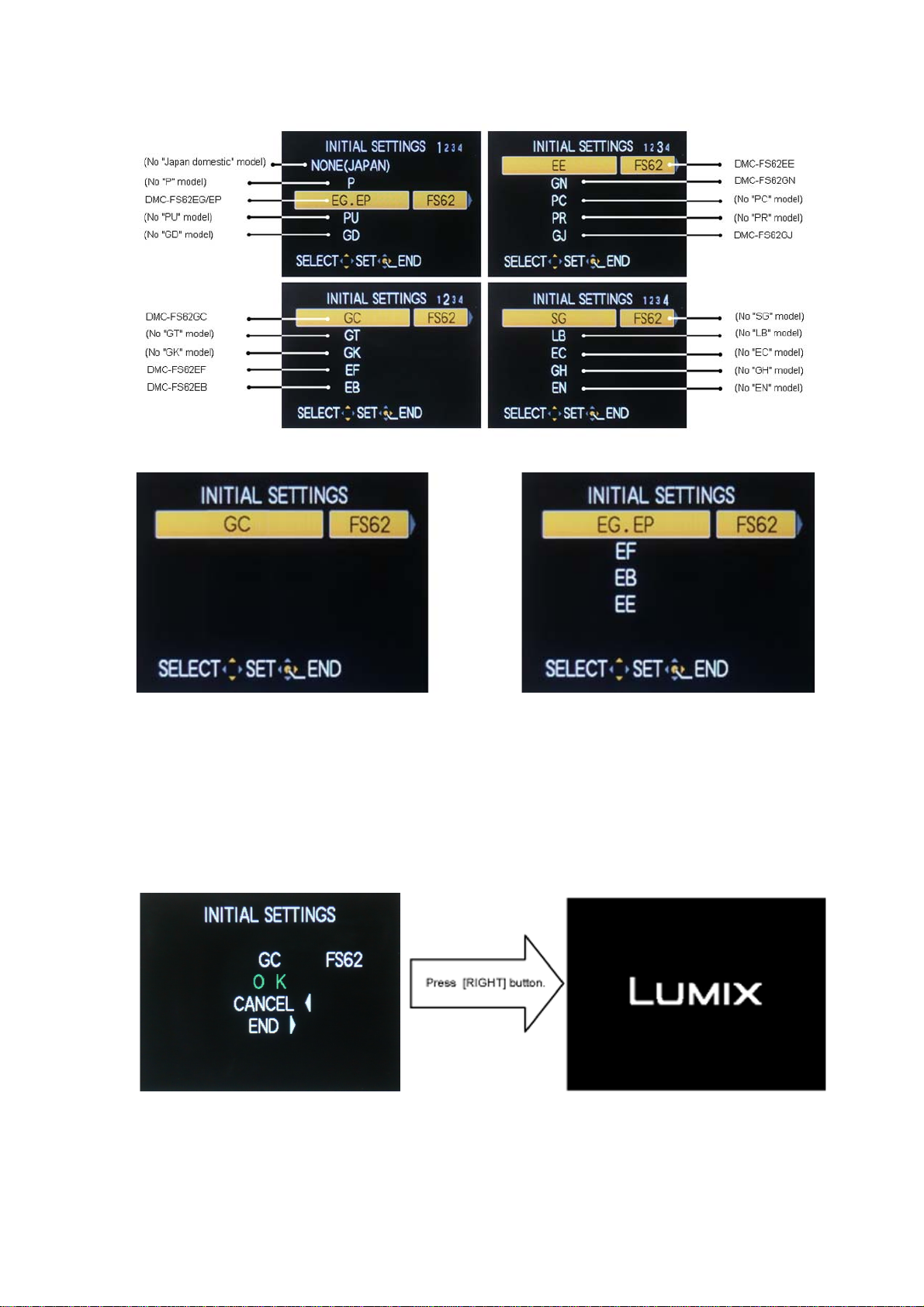

There are two kinds of “INITIAL SETTINGS” menu form as follows:

[CASE 1. After replacing MAIN P.C.B.]

When MAIN P.C.B. has just been replaced, all of the model suffix is displayed as follows. (Four pages in total)

[CASE 2. Other than “After replacing MAIN P.C.B.”]

•Step 5. Chose the model suffix in “INITIAL SETTINGS”: (Refer to “CAUTION 1”)

[Caution: After replacing MAIN P.C.B.]

The model suffix can been chosen, JUST ONE TIME

Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can be changed.

Therefore, select the area carefully.

Select the area with pressing “[ UP ] / [ DOWN ] of Cursor buttons”.

•Step 6. Set the model suffix in “INITIAL SETTINGS”:

Press the “[ RIGHT ] of Cursor buttons”.

The only set area is displayed, and then press the “[ RIGHT ] of Cursor buttons” after confirmation.

(The unit is powered off automatically.)

•Step 7. CONFIRMATION:

Confirm the display of “PLEASE SET THE CLOCK” in concernd language when the unit is turned on again.

When the unit is connected to PC with USB cable, it is detected as removable media.

1) As for your reference, major default setting condition is as shown in the following table.

•Default setting (After “INITIAL SETTINGS”)

MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS

a) DMC-FS62EG PAL English Date/Month/Year

b) DMC-FS62EP PAL English Date/Month/Year

c) DMC-FS62EF PAL French Date/Month/Year

d) DMC-FS62EB PAL English Date/Month/Year

e) DMC-FS62EE PAL Russian Date/Month/Year

f) DMC-FS62GC PAL English Date/Month/Year

g) DMC-FS62GN PAL English Date/Month/Year

h) DMC-FS62GJ PAL Thai Date/Month/Year

3 DIAGRAMS

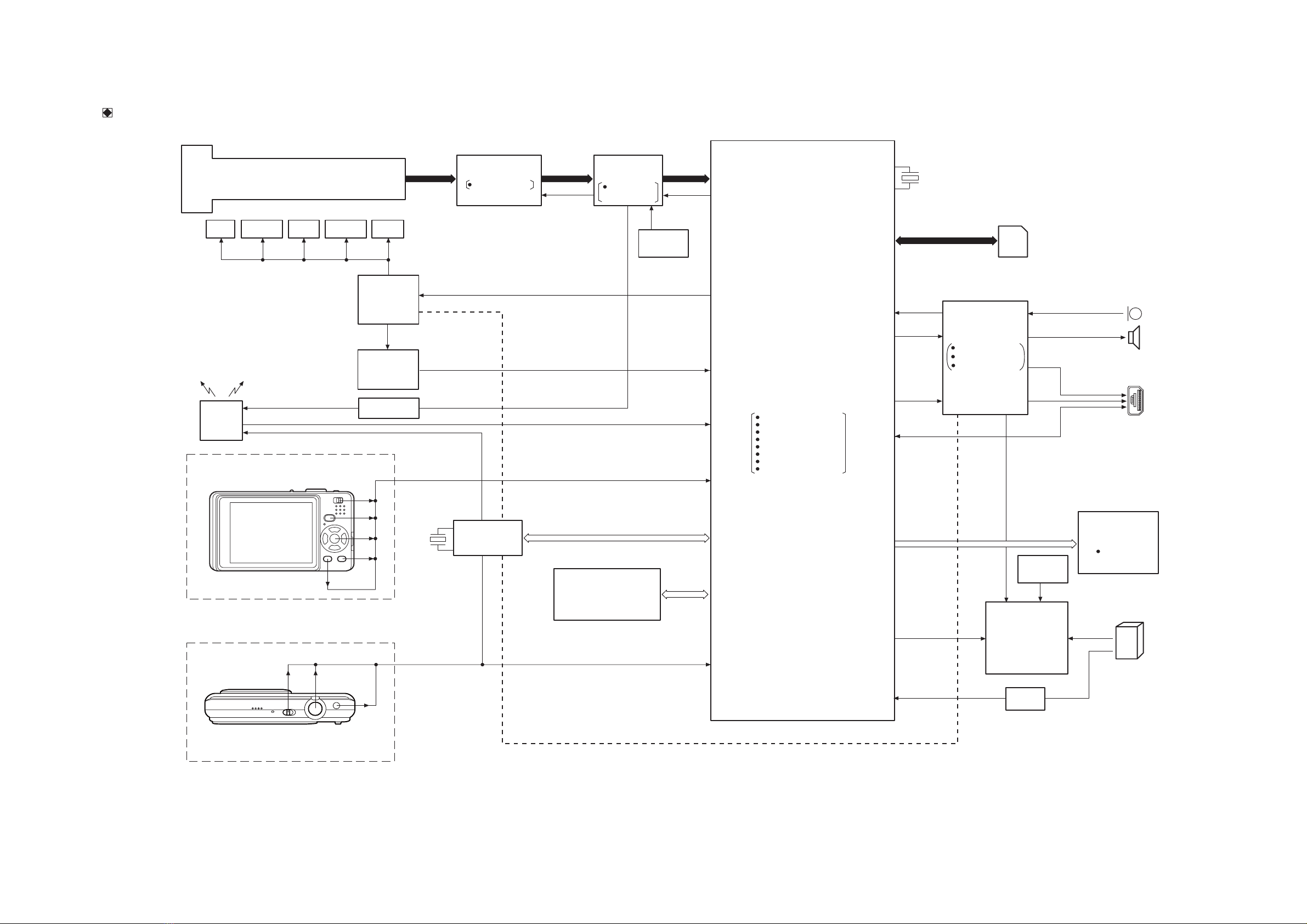

3.1. Overall Block Diagram

CCD

IC3001

CCD SIGNAL

PROCESSOR

FOCUSIRIS

SDRAM/256Mbit

NAND FLASH ROM/512Mbit

CARD

(POWER SUPPLY)

BATTERY

REAR OPERATION UNIT

OVERALL BLOCK DIAGRAM

OIS UNIT

IC9101

SYSTEM IC

MOTOR DRIVE,

OIS DRIVE&

PRE PROCESS

IC6001

VENUS4

CAMERA PROCESS

J-PEG COMP/EX PANDS

MEDIA I/F

USB I/F

MAIN MICROPROCESSOR

FLASH

TOP OPERATION UNIT

IC1001

POWER

SHUTTER

IC9101

SYSTEM IC

IC6002

ZOOM

OIS CONTROL

LENS DRIVE

LCD DRIVE

AV OUT / DIGITAL

TERMINAL

COLOR LCD

PANEL

(33mm ~ 132mm)

IC7101

GYRO

SENSOR X/Y

IC9101

SYSTEM IC

MICROPHONE

MICROPHONE AMP

SPEAKER CONTROL

SPEAKER

1/2.5" 10 MEGA PIX CDS, AGC,

A/D, TG,

CCD DRIVER

2.5" PANEL

230k dots

X6001

(24MHz)

X9101

(32.768kHz)

VIDEO OUT

IC8001

IGBT DRIVER

IC6004

FeRAM

IC3002

REGLATOR

IC1210

REGLATOR

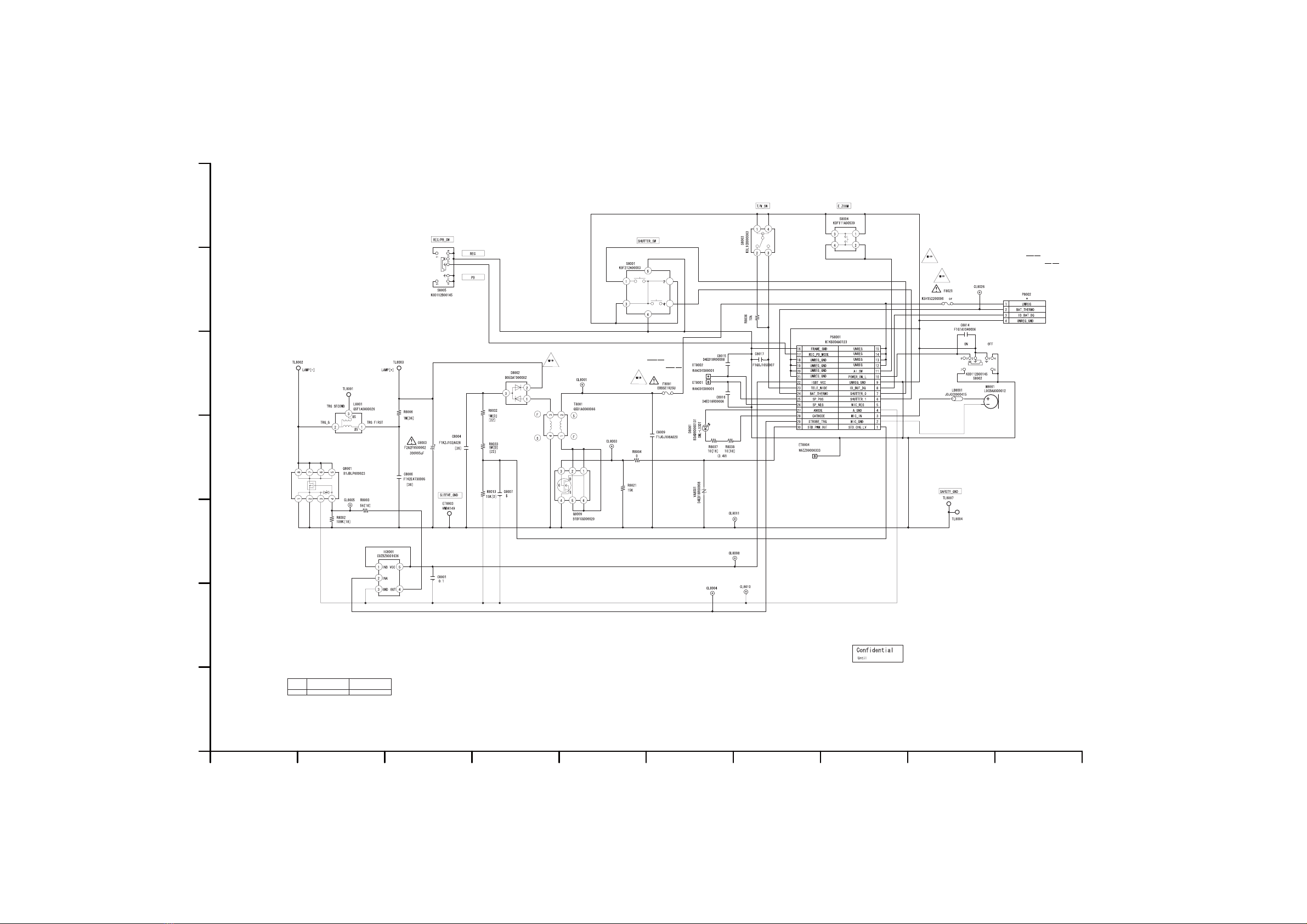

3.2. Flash Top Schematic Diagram

,DRAZAHERIFTSNIAGANOITCETORPDEUNITNOCROF:NOITUAC .ESUFV23A52.1EPYTEMASEHTHTIWYLNOECALPER

SEUQSIRSELEUNI

TNOCNOITCETORPENURUOP:NOITNETTA .V23A52.1EPYTEMÉMEDELBISUFSEDEUQRESILITU'NEIDNECNI'D

V23A52.1

,DRAZAHERIFTSNIAGANOITCETORPDEUNITNOCROF:NOITUAC .ESUFV23A5.1EPYTEMASEHTHTIWYLNOECALPER

SEUQSIRSELEUNIT

NOCNOITCETORPENURUOP:NOITNETTA .V23A5.1EPYTEMÉMEDELBISUFSEDEUQRESILITU'NEIDNECNI'D

V23A5.1

poThsalF margaiDcitamehcS

01987654321

Variation Category

P8002 K4ZZ04000051 K4ZZ04000052

DMC-FS6/FS7/FS15

FS8/FS62/FS12

DMC-FS25

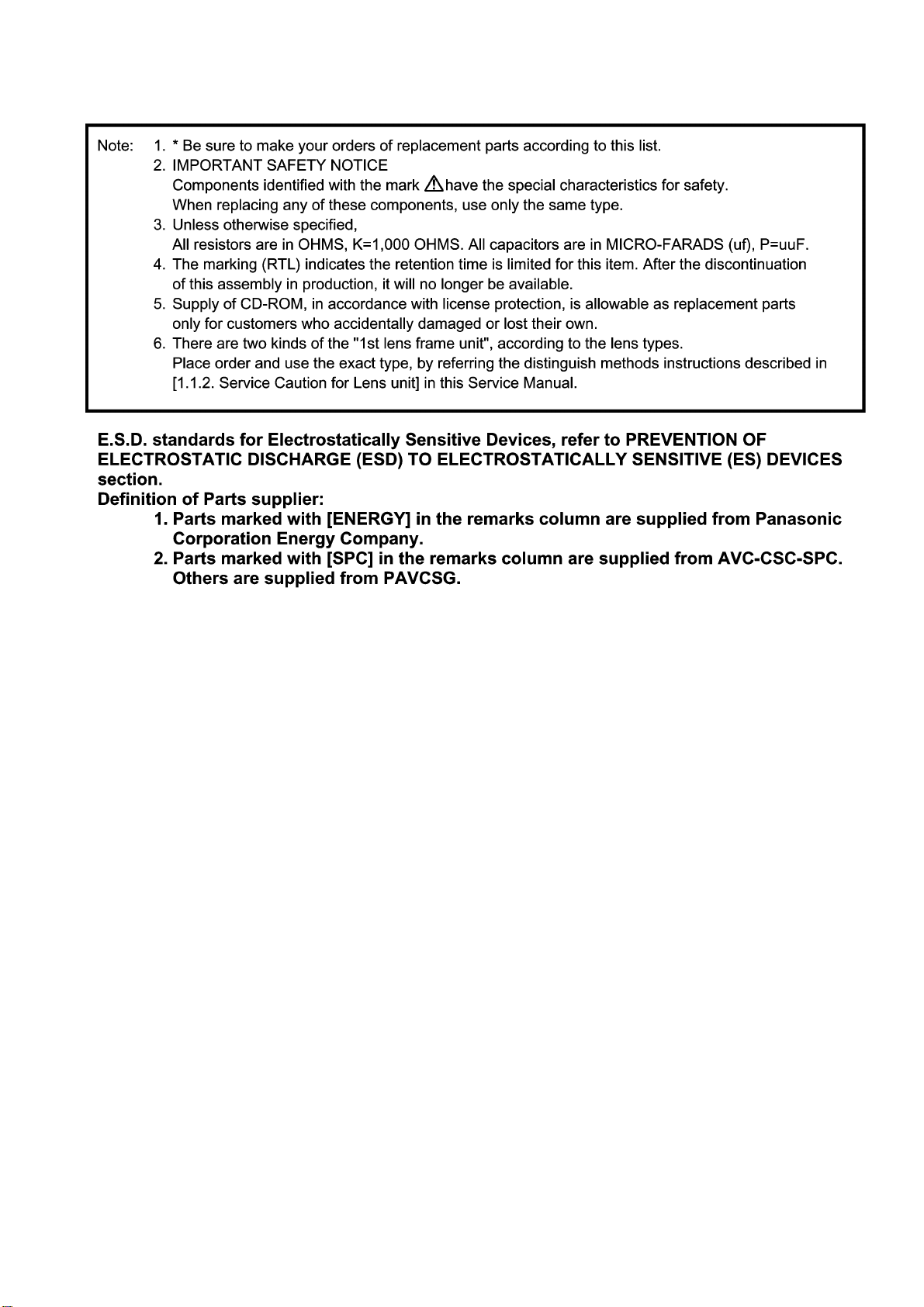

4 REPLACEMENT PARTS LIST

4.1. Frame & Casing Section

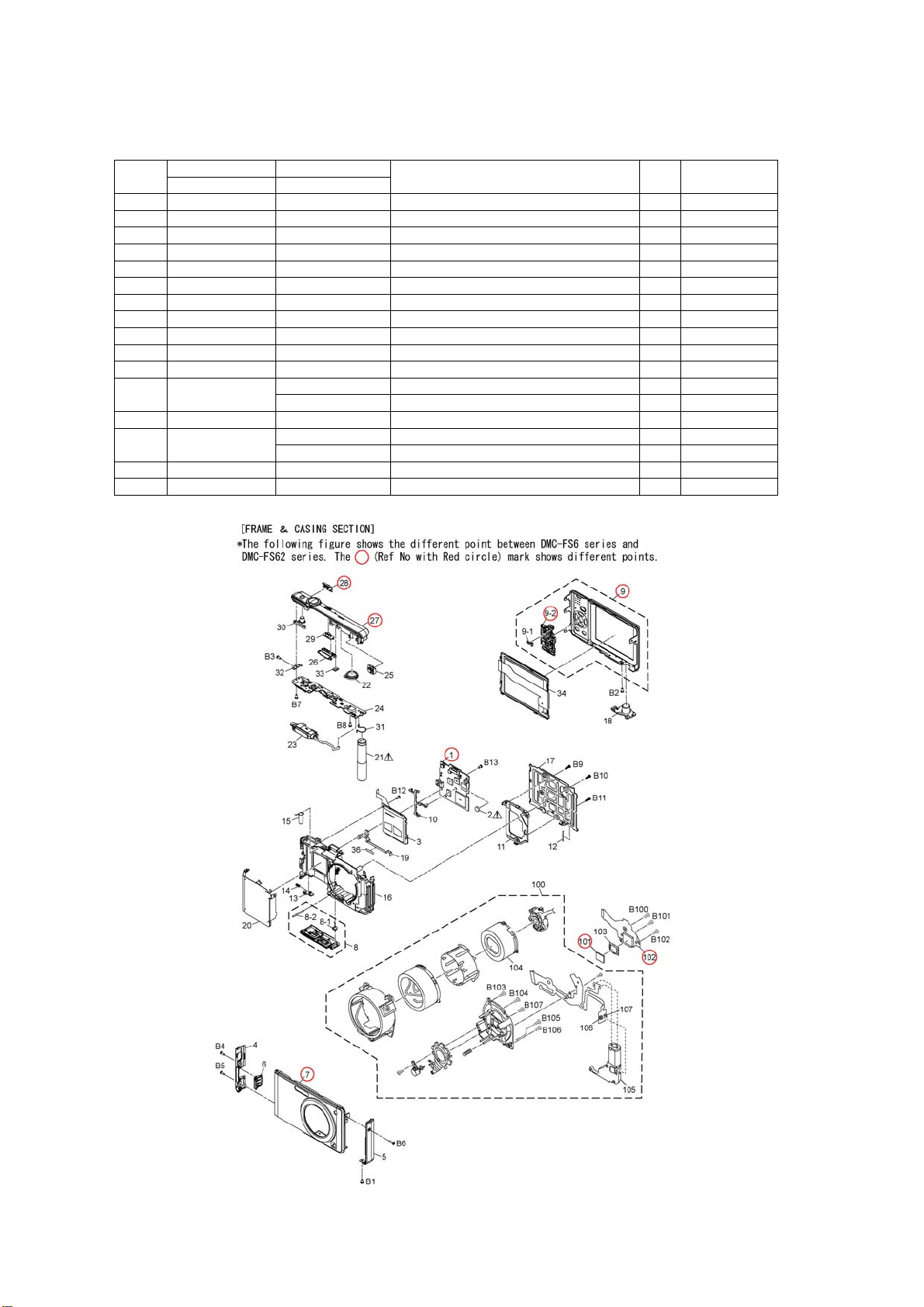

COMPARISON CHART:

The following table shows difference between DMC-FS6 series and DMC-FS62 series.

Ref No. Original Part No. New Part No. Part Name & Description Pcs Remarks

DMC-FS6 series DMC-FS62 series

1 VEP56074A VEP56074E MAIN P.C.B. 1 (RTL) E.S.D.

7 VYK2Y23 VYK3H78 FRONT CASE UNIT 1 (-S)

7 VYK2Y24 VYK3H79 FRONT CASE UNIT 1 (-K)

7 VYK2Y25 VYK3J50 FRONT CASE UNIT 1 (-A)

7 VYK2Y26 VYK3J48 FRONT CASE UNIT 1 (-P)

7 VYK2Y27 VYK3J52 FRONT CASE UNIT 1 (-R)

9 VYK2Y33 VYK3H82 REAR CASE UNIT 1 (-S)

9 VYK2Y34 VYK3H83 REAR CASE UNIT 1 (-K)

9 VYK2Y35 VYK3J51 REAR CASE UNIT 1 (-A)

9 VYK2Y36 VYK3J49 REAR CASE UNIT 1 (-P)

9 VYK2Y37 VYK3J53 REAR CASE UNIT 1 (-R)

9-2 VGU0D72 VGU0D72 CORSOR BUTTON 1 (-S,-A,-P,-R)

VGU0E98 CURSOR BUTTON 1 (-K)

27 VYK3H27 VYK3H81 TOP ORNAMENT UNIT 1

28 VGU0C05 VGU0C05 REC/PLAYBACK SELECTOR KNOB 1 (-S,-A,-P,-R)

VGU0E99 REC/PLAYBACK SELECTOR KNOB 1 (-K)

101 VDL1956 VDL2317 OPTICAL FILTER 1 [SPC]

102 VEK0N41 VEK0N42 CCD UNIT 1 E.S.D. [SPC]
