Panasonic LUMIX DMC-FH20 Technical specifications

Basic Operating Instructions

Digital Camera

Model No. DMC-FH20

DMC-FH3

DMC-FH1

Before connecting, operating or adjusting this product,

please read the instructions completely.

Please also refer to Operating

Instructions (PDF format)

recorded on the CD-ROM

containing the Operating Instructions

(supplied).

You can learn about advanced operation methods

and check the Troubleshooting section.

until

2010/1/30

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT2K51

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 1 ページ２００９年１２月２２日　火曜日　午後５時１７分

VQT2K51 (ENG)

Dear Customer,

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on

the market today. Used properly, we’re sure it will bring you and your family

years of enjoyment. Please take time to fill in the information on the below.

The serial number is on the tag located on the underside of your Camera. Be

sure to retain this manual as your convenient Camera information source.

Please note that the actual controls and components, menu items, etc. of

your Digital Camera may look somewhat different from those shown in the

illustrations in these Operating Instructions.

Carefully observe copyright laws.

•Recording of pre-recorded tapes or discs or other published or broadcast

material for purposes other than your own private use may infringe copyright

laws. Even for the purpose of private use, recording of certain material may be

restricted.

A lithium ion battery that is recyclable powers the product

you have purchased. Please call 1-800-8-BATTERY for

information on how to recycle this battery.

Model No.

Serial No.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 2 ページ２００９年１２月１６日　水曜日　午後１０時４０分

(ENG) VQT2K51

Information for Your Safety

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT

DAMAGE,

•DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING

OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH

AS VASES, SHALL BE PLACED ON THE APPARATUS.

•USE ONLY THE RECOMMENDED ACCESSORIES.

•DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE

EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

Product Identification Marking is located on the bottom of units.

This Class B digital apparatus complies with Canadian ICES-003.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 3 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

∫About the battery pack

•Do not heat or expose to flame.

•Do not leave the battery(ies) in an automobile exposed to direct sunlight for a

long period of time with doors and windows closed.

∫About the battery charger

CAUTION

Battery pack (Lithium ion battery pack)

•Use the specified unit to recharge the battery pack.

•Do not use the battery pack with equipment other than the specified unit.

•Do not get dirt, sand, liquids, or other foreign matter on the terminals.

•Do not touch the plug terminals (iand j) with metal objects.

•Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes,

wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the

eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with

the same or equivalent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer’s instructions.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC

(140 oF) or incinerate.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT

IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK

OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT

CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE

VENTILATION VENTS.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 4 ページ２００９年１２月１６日　水曜日　午後１０時４０分

(ENG) VQT2K51

∫Cautions for Use

•Always use a genuine Panasonic AC adaptor (DMW-AC5PP; optional).

•Do not use any other AV cables except the supplied one.

•Do not use any other USB connection cables except the supplied one.

Keep the camera as far away as possible from electromagnetic

equipment (such as microwave ovens, TVs, video games etc.).

•If you use the camera on top of or near a TV, the pictures and sound on the

camera may be disrupted by electromagnetic wave radiation.

•Do not use the camera near cell phones because doing so may result in noise

adversely affecting the pictures and sound.

•Recorded data may be damaged, or pictures may be distorted, by strong

magnetic fields created by speakers or large motors.

•Electromagnetic wave radiation generated by microprocessors may adversely

affect the camera, disturbing the pictures and sound.

•If the camera is adversely affected by electromagnetic equipment and stops

functioning properly, turn the camera off and remove the battery or disconnect

AC adaptor (DMW-AC5PP; optional). Then reinsert the battery or reconnect AC

adaptor and turn the camera on.

Do not use the camera near radio transmitters or high-voltage lines.

•If you record near radio transmitters or high-voltage lines, the recorded pictures

and sound may be adversely affected.

Battery charger

This battery charger operates on AC between 110 V and 240 V.

But

•In the U.S.A. and Canada, the battery charger must be connected to a 120 V

AC power supply only.

•When connecting to an AC supply outside of the U.S.A. or Canada, use a

plug adaptor to suit the AC outlet configuration.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 5 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

-If you see this symbol-

Information on Disposal in other Countries outside

the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your

local authorities or dealer and ask for the correct

method of disposal.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 6 ページ２００９年１２月１６日　水曜日　午後１０時４０分

(ENG) VQT2K51

Contents

Information for Your Safety ........................................................................... 3

Standard Accessories ................................................................................... 8

Names of the Components ........................................................................... 9

Charging the Battery ................................................................................... 11

About the Built-in Memory/the Card ............................................................ 13

Inserting and Removing the Card (optional)/the Battery ............................. 14

Setting Date/Time (Clock Set)..................................................................... 15

• Changing the clock setting.................................................................... 15

Setting the Menu ......................................................................................... 16

Selecting the [REC] Mode........................................................................... 17

Taking pictures using the automatic function (ñ:Intelligent Auto Mode)... 18

• Scene detection .................................................................................... 19

Motion Picture Mode ................................................................................... 20

Playing back Pictures ([NORMAL PLAY])................................................... 21

Deleting Pictures ......................................................................................... 21

Reading the Operating Instructions

(PDF format) ............................................................................................... 22

Specifications.............................................................................................. 24

Digital Camera Accessory System.............................................................. 27

∫About illustrations in these operating instructions

The procedure is described for DMC-FH1 as an example.

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 7 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

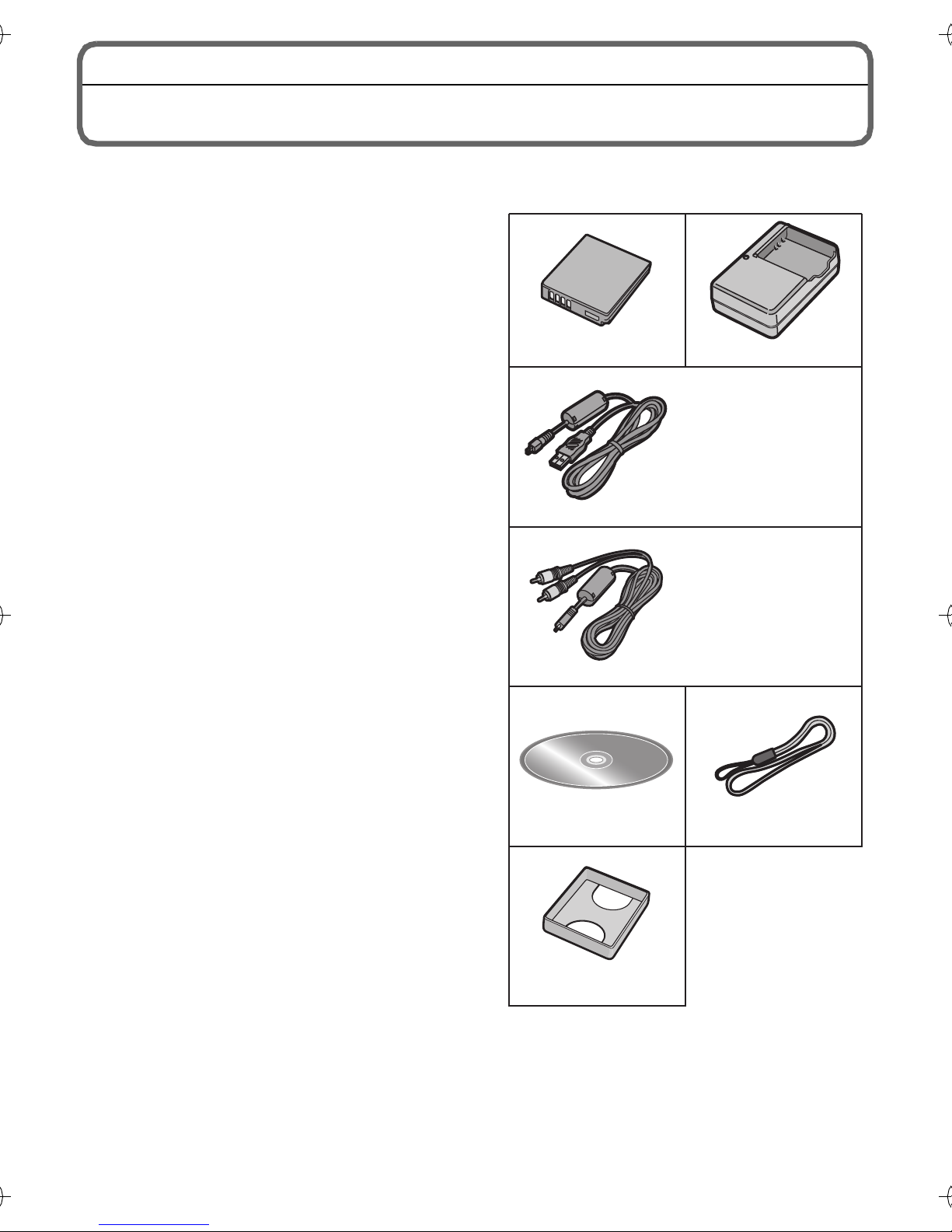

Standard Accessories

Check that all the accessories are included before using the camera.

Product numbers correct as of January 2010. These may be subject to change.

1 Battery Pack

(Indicated as battery pack or

battery in the text)

Charge the battery before use.

2 Battery Charger

(Indicated as battery charger or

charger in the text)

3 USB Connection Cable

4AVCable

5 CD-ROM

•Software:

Use it to install the software to your

PC.

•Operating Instructions

6 Hand Strap

7 Battery Case

•SD Memory Card, SDHC Memory Card

and SDXC Memory Card are indicated

as card in the text.

•The card is optional.

You can record or play back pictures

on the built-in memory when you are

not using a card.

•For information about optional

accessories, refer to the “Digital

Camera Accessory System”.

•If any accessories are lost, customers in

Canada should contact 1 800 99-LUMIX

(1-800-995-8649) for further information

about obtaining replacement parts.

5 6

CGA-S/106B

K1HA08CD0027

VFC4297

DE-A59B

VFF0554

VGQ0D56

K1HA08AD0001

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 8 ページ２００９年１２月２１日　月曜日　午後２時９分

(ENG) VQT2K51

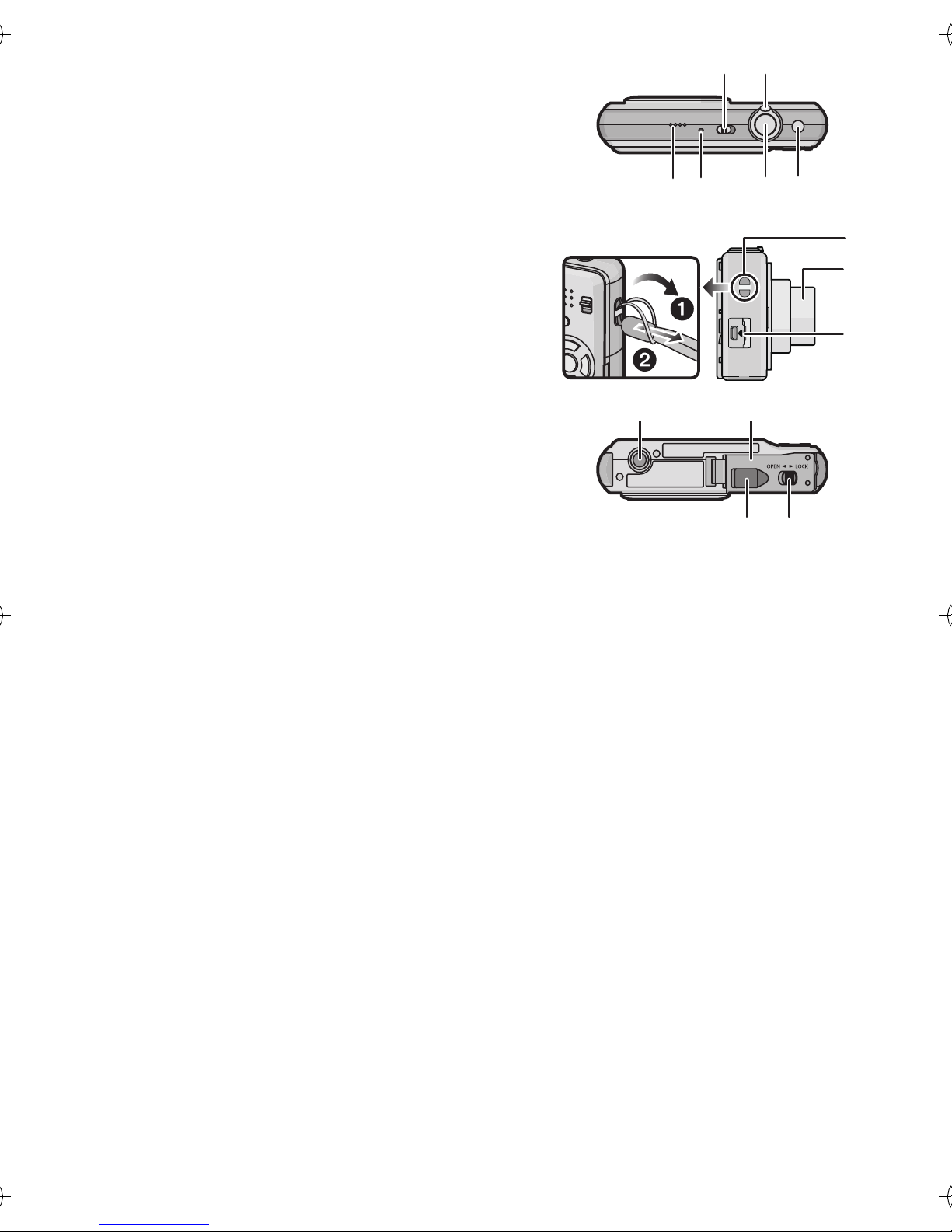

Names of the Components

1Flash

2 Lens

3 Self-timer indicator

AF assist lamp

4LCDmonitor

5 [MENU/SET] button

6 [DISPLAY] button

7 [Q.MENU]/Delete button

8 [MODE] button

9 [REC]/[PLAYBACK] selector switch

10 Cursor buttons

A: 3/Exposure compensation

B: 4/Macro Mode

C: 2/Self-timer button

D: 1/Flash setting button

In these operating instructions, the cursor buttons are described as shown

in the figure below or described with 3/4/2/1.

e.g.: When you press the 4(down) button

or Press 4

1 2 3

4109

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 9 ページ２００９年１２月１６日　水曜日　午後１０時４０分

VQT2K51 (ENG)

11 Camera ON/OFF switch

12 Zoom lever

13 Speaker

14 Microphone

15 Shutter button

16 Intelligent auto button

17 Hand strap eyelet

•Be sure to attach the hand strap when

using the camera to ensure that you will

not drop it.

18 Lens barrel

19 [AV OUT/DIGITAL] socket

20 Tripod receptacle

•When you use a tripod, make sure the

tripod is stable when the camera is

attached to it.

21 Card/Battery door

22 Release lever

23 DC coupler cover

•When using an AC adaptor, ensure that

the Panasonic DC coupler (DMW-DCC4;

optional) and AC adaptor (DMW-AC5PP;

optional) are used.

•We recommend you use a battery with

sufficient battery power or the AC adaptor

when recording motion pictures.

•If while recording motion pictures using the

AC adaptor and the power supply is cut off

due to a power outage or if the AC adaptor

is disconnected etc., the motion picture

being recorded will not be recorded.

13 14 15 16

2223

DMC-FH20&FH3&FH1PC-VQT2K51_eng.book 10 ページ２００９年１２月１６日　水曜日　午後１０時４０分

Other manuals for LUMIX DMC-FH20

This manual suits for next models

Table of contents

Other Panasonic Digital Camera manuals

Panasonic

Panasonic Lumix DMC-FX9 User manual

Panasonic

Panasonic DMC-CM1 Technical specifications

Panasonic

Panasonic HM-TA20P User manual

Panasonic

Panasonic NV-DCF5ENA User manual

Panasonic

Panasonic TY-CC20W User manual

Panasonic

Panasonic KAIROS User manual

Panasonic

Panasonic LUMIX DMC-FS12 Technical specifications

Panasonic

Panasonic LUMIX DMC-FZ10EB User manual

Panasonic

Panasonic LUMIX DMC-F27 Installation and service instructions

Panasonic

Panasonic LUMIX DMC-LS1EB User manual

Panasonic

Panasonic DMC-TS6 LUMIX Installation and service instructions

Panasonic

Panasonic DMC-FX30A - Lumix Digital Camera Instruction Manual

Panasonic

Panasonic Lumix DMC-TZ60 Technical specifications

Panasonic

Panasonic Lumix DMC-ZS10 User manual

Panasonic

Panasonic Lumix DMC-FZ1000 Technical specifications

Panasonic

Panasonic Lumix S1R User manual

Panasonic

Panasonic BMET500 - CAMERA HEAD UNIT User manual

Panasonic

Panasonic Lumix DMC-FT25 User manual

Panasonic

Panasonic Lumix DMC-G6 User manual

Panasonic

Panasonic DMC-GH1K - Lumix Digital Camera User manual

Panasonic

Panasonic DMC-TS20K Installation and service instructions

Panasonic

Panasonic AW-HE2P User manual

Panasonic

Panasonic AG-GH4 series Use and care manual

Panasonic

Panasonic LUMIX DMC-GX8 User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
