Basic Operating Instructions
Dual Camera
Model No. HX-DC3
Please read these instructions carefully before using this product,
and save this manual for future use.
This document explains basic operations
of the unit. For more detailed explanation,
please refer to “Operating Instructions
(PDF format)” which is recorded in the
enclosed CD-ROM.
until
2013/1/21
VQT4U81
1AG6P1P6613--(S)
HX-DC3GCGAGN-VQT4U81_mst.book 1 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
2 VQT4U81
∫Concerning the battery
Information for Your Safety
WARNING:
To reduce the risk of fire, electric shock or product damage,
≥Do not expose this unit to rain, moisture, dripping or splashing.
≥Do not place objects filled with liquids, such as vases, on this unit.
≥Use only the recommended accessories.
≥Do not remove covers.
≥Do not repair this unit by yourself. Refer servicing to qualified
service personnel.
CAUTION!
To reduce the risk of fire, electric shock or product damage,
≥Do not install or place this unit in a bookcase, built-in cabinet or in
another confined space. Ensure this unit is well ventilated.
≥Do not obstruct this unit’s ventilation openings with newspapers,
tablecloths, curtains, and similar items.
≥Do not place sources of naked flames, such as lighted candles, on
this unit.
The socket outlet shall be installed near the equipment and shall be
easily accessible.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above
60 oC or incinerate.
CAUTION
≥Danger of explosion if battery is incorrectly replaced. Replace only
with the type recommended by the manufacturer.
≥When disposing the batteries, please contact your local authorities
or dealer and ask for the correct method of disposal.
HX-DC3GCGAGN-VQT4U81_mst.book 2 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
VQT4U81 3
∫Product identification marking
-If you see this symbol-
Product Location
Dual Camera Battery holder
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
HX-DC3GCGAGN-VQT4U81_mst.book 3 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
4 VQT4U81
∫Cautions for use
For Australia and New Zealand
In the event of abnormal operation (e.g. if the unit emits smoke or an
unusual smell), immediately stop operating the unit and consult the
Panasonic Customer Care Centre on 132600.
Keep this unit as far away as possible from electromagnetic
equipment (such as microwave ovens, TVs, video games etc.).
≥If you use this unit on top of or near a TV, the pictures and/or sound on
this unit may be disrupted by electromagnetic wave radiation.
≥Do not use this unit near cell phones because doing so may result in
noise adversely affecting the pictures and/or sound.
≥Recorded data may be damaged, or pictures may be distorted, by
strong magnetic fields created by speakers or large motors.
≥Electromagnetic wave radiation generated by microprocessors may
adversely affect this unit, disturbing the pictures and/or sound.
≥If this unit is adversely affected by electromagnetic equipment and
stops functioning properly, turn this unit off and remove the battery or
disconnect AC adaptor. Then reinsert the battery or reconnect AC
adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
≥If you record near radio transmitters or high-voltage lines, the recorded
pictures and/or sound may be adversely affected.
About connecting to a PC
≥Do not use any other USB cables except the supplied one.
About connecting to a TV
≥Do not use any other AV cables except the supplied one.
≥Always use a genuine Panasonic HDMI mini cable (RP-CDHM15,
RP-CDHM30: optional).
∫About recording formats and compatibility of the unit
≥The unit is an MP4 format (MPEG-4 AVC file standard) Dual Camera
for recording high-definition motion pictures.
≥AVCHD and MPEG2 motion pictures are different formats, and are not
therefore supported by the unit.
∫Indemnity about recorded content
Panasonic does not accept any responsibility for damages directly or
indirectly due to any type of problems that result in loss of recording or
HX-DC3GCGAGN-VQT4U81_mst.book 4 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
VQT4U81 5
edited content, and does not guarantee any content if recording or editing
does not work properly. Likewise, the above also applies in a case where
any type of repair is made to the unit (including any other non-built-in
memory related component).
∫About Condensation (When the lens or the LCD
monitor is fogged up)
Condensation occurs when there is a change in temperature or humidity,
such as when the unit is taken from outside or a cold room to a warm
room. Please be careful, as it may cause the lens or LCD monitor to
become soiled, moldy, or damaged.
When taking the unit to a place which has a different temperature, if the
unit is accustomed to the room temperature of the destination for about
one hour, condensation can be prevented. (When the difference in
temperature is severe, place the unit in a plastic bag or the like, remove
air from the bag, and seal the bag.) When condensation has occurred,
remove the battery and/or the AC adaptor and leave the unit like that for
about one hour. When the unit becomes accustomed to the surrounding
temperature, fogginess will disappear naturally.
∫Cards that you can use with this unit
SD Memory Card, SDHC Memory Card and SDXC Memory Card
≥4 GB or more Memory Cards that do not have the SDHC logo or 48 GB
or more Memory Cards that do not have the SDXC logo are not based
on SD Memory Card Specifications.
≥Refer to page 13 for more details on SD cards.
∫For the purposes of these operating instructions
≥SD Memory Card, SDHC Memory Card and SDXC Memory Card are
referred to as the “SD card”.
≥Functions that can be used for motion picture recording/motion picture
playback are indicated by in these operating instructions.
≥Functions that can be used for still picture recording/still picture
playback are indicated by in these operating instructions.
≥Functions that can be used for audio recording/audio playback are
indicated by in these operating instructions.
≥Pages for reference are indicated by an arrow, for example: l00
≥“File” is used to mean “scene”, “still picture” and “audio file”.
HX-DC3GCGAGN-VQT4U81_mst.book 5 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
6 VQT4U81
Information for Your Safety..... 2
Accessories.............................. 7
Optional accessories........... 7
Preparation
Power supply............................ 8
Inserting/removing
the battery ........................... 8
Charging the battery ......... 10
Charging and recording
time ................................... 12
Recording to a card ............... 13
Cards that you can use
with this unit ...................... 13
Inserting/removing
an SD card ........................ 13
Turning the unit on/off........... 15
Setting date and time............. 15
Basic
Recording motion pictures.... 17
Recording still pictures ......... 18
Recording audio ..................... 19
Intelligent Auto Mode............. 19
Motion picture/Still picture/
Audio playback....................... 20
Watching Video/
Pictures on your TV ........... 21
Using the menu screen.......... 22
Language selection ........... 24
Formatting ......................... 24
Using the zoom....................... 24
Double range zoom ........... 25
Others
About copyright...................... 26
Specifications ......................... 27
Limited Warranty
(ONLY FOR AUSTRALIA) .... 31
Contents
∫How to open the Operating Instructions
(PDF format)
When you insert the CD-ROM and open the [INDEX.pdf] in the CD-
ROM, the Operating Instructions list will be displayed. Click the
document name of the Operating Instructions you would like to open.
≥Adobe Reader is required to view the PDF file. Please download it
from the homepage of Adobe Systems Incorporated.
HX-DC3GCGAGN-VQT4U81_mst.book 6 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
VQT4U81 7
*1 Keep the lens cap out of reach of children to prevent swallowing.
*2 To prevent the unit from dropping, be sure to attach the handstrap.
Optional accessories
Some optional accessories may not be available in some countries.
Accessories

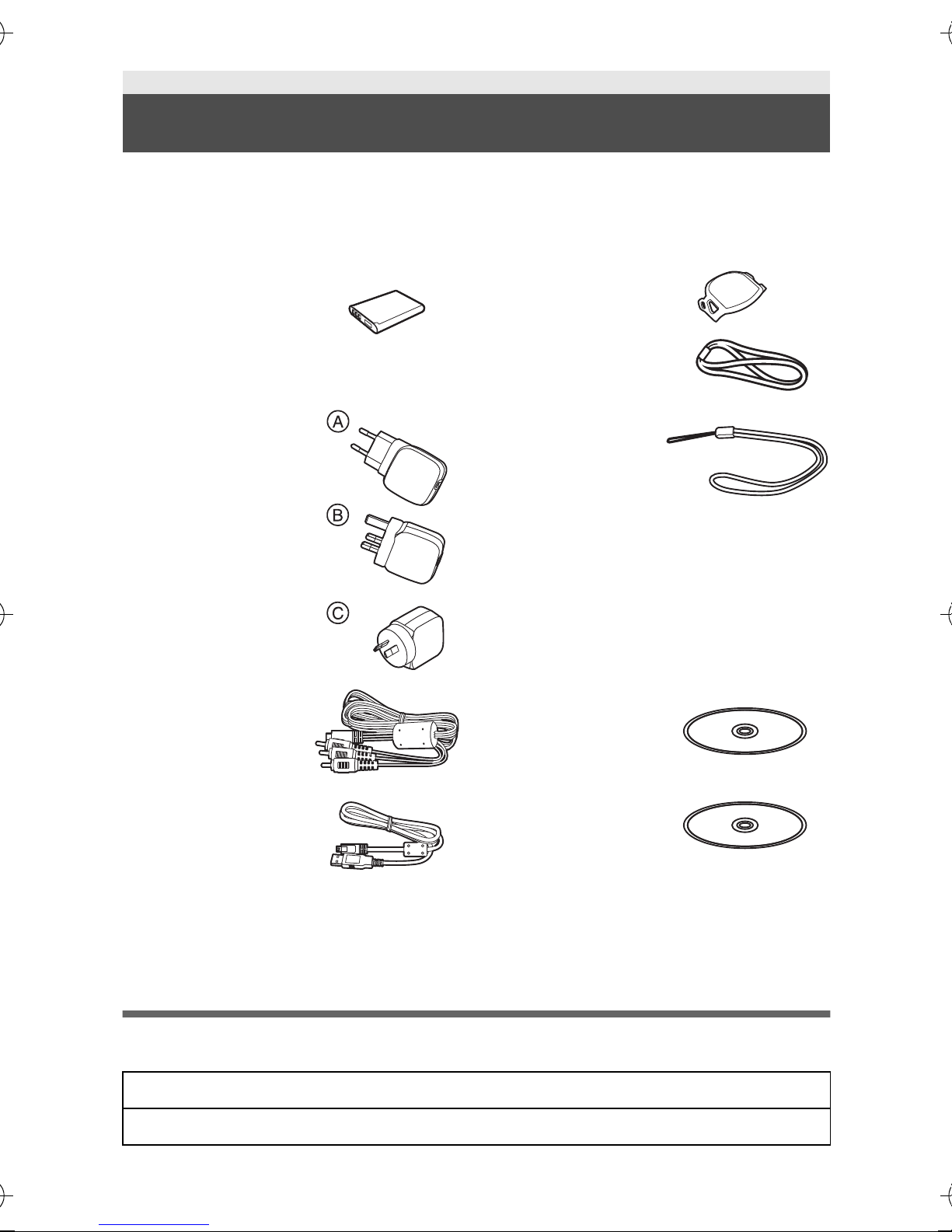

Check the accessories before using this unit.
Product numbers correct as of Dec. 2012. These may be subject to
change.
Battery pack
VW-VBX070
Lens cap*1
VFC4701
Lens cap strap
VFC4702
AC adaptor
(GA)
AVSK0751
(GC)
BVSK0752
(GN)
CVSK0753
Handstrap*2
VFC4627
AV cable
VFA0543
CD-ROM
Software
USB cable
VFA0554
CD-ROM
Operating
Instructions
VFF1167
Battery pack (lithium/VW-VBX070)
HDMI mini cable (RP-CDHM15, RP-CDHM30)
HX-DC3GCGAGN-VQT4U81_mst.book 7 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
8 VQT4U81
∫About batteries that you can use with this unit
The battery that can be used with this unit is VW-VBX070.
Inserting/removing the battery
≥Press the power button to turn off the unit. (l15)

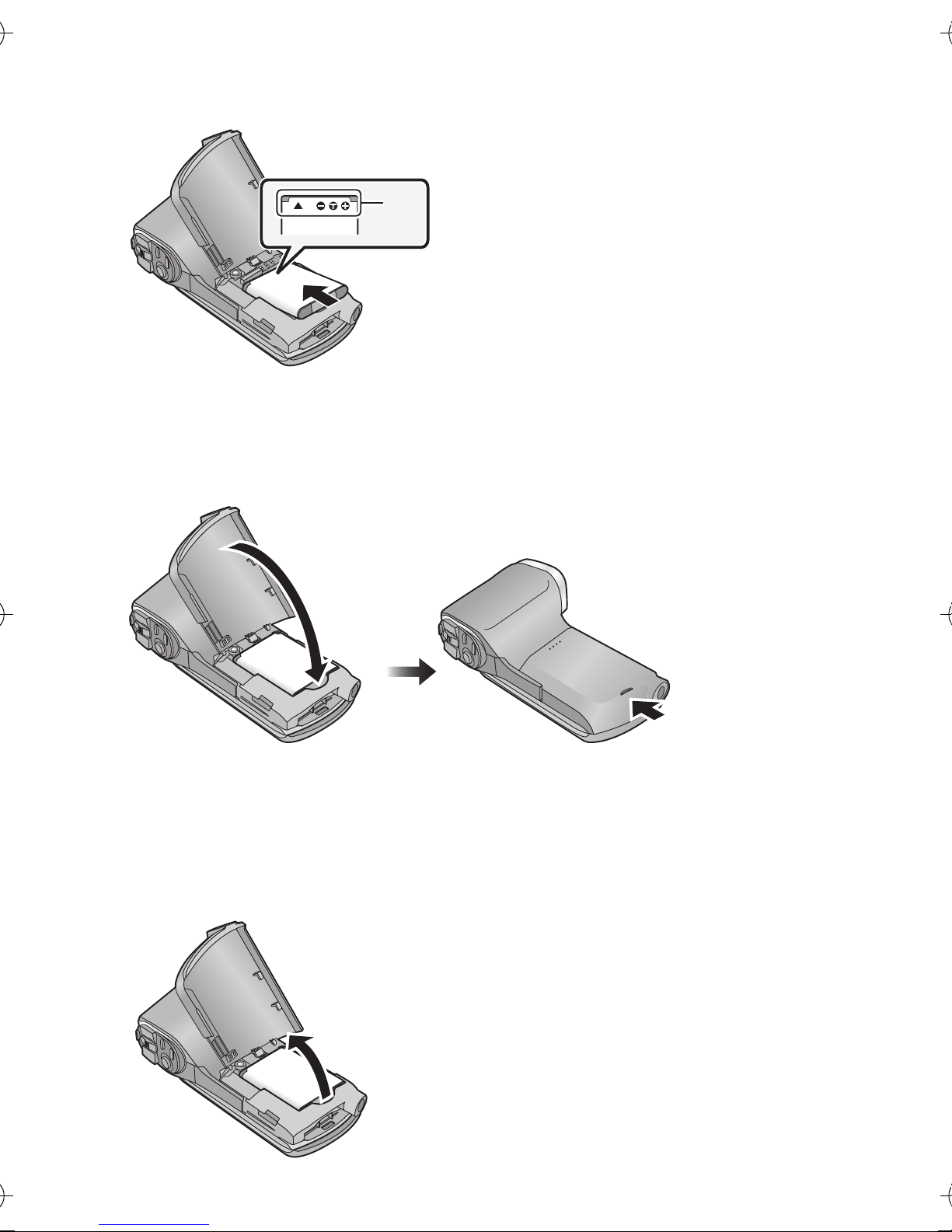

1Open the battery/card cover.
Preparation
Power supply
It has been found that counterfeit battery packs which look very
similar to the genuine product are made available to purchase in
some markets. Some of these battery packs are not adequately
protected with internal protection to meet the requirements of
appropriate safety standards. There is a possibility that these battery
packs may lead to fire or explosion. Please be advised that we are not
liable for any accident or failure occurring as a result of use of a
counterfeit battery pack. To ensure that safe products are used we
would recommend that a genuine Panasonic battery pack is used.
1
Slide while pushing the battery/
card cover.
2Open the battery/card cover.
HX-DC3GCGAGN-VQT4U81_mst.book 8 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
VQT4U81 9
2Insert the battery, taking care to match up the
terminal markings.
Aterminal markings
≥
Insert the battery so that the terminal markings face up. It is possible to mistakenly
Insert the battery upside down, so be sure to check the orientation carefully.
3Close the battery/card cover.
≥Securely close it until it clicks.
Removing the battery
Press and hold down the power button to turn off the unit, then pull up and
remove the battery.
≥Always check that the LCD monitor and status indicator lamp are off.
≥Keep the battery pack out of reach of children to prevent swallowing.
HX-DC3GCGAGN-VQT4U81_mst.book 9 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
10 VQT4U81
Charging the battery
The unit is in the standby condition when the AC adaptor is connected.
The primary circuit is always “live” as long as the AC adaptor is
connected to an electrical outlet.
Important:
≥The AC adaptor and USB cable are for use with this unit only. Do
not use them with other equipment. Similarly, do not use AC
adaptors and USB cables from other equipment with this unit.
≥The battery is charged while the unit is off or in the Standby Mode.
The battery cannot be charged while the unit is recording or
playing back.
≥It is recommended to charge the battery in a temperature between
10 oC and 30 oC. (The battery temperature should also be the
same.)

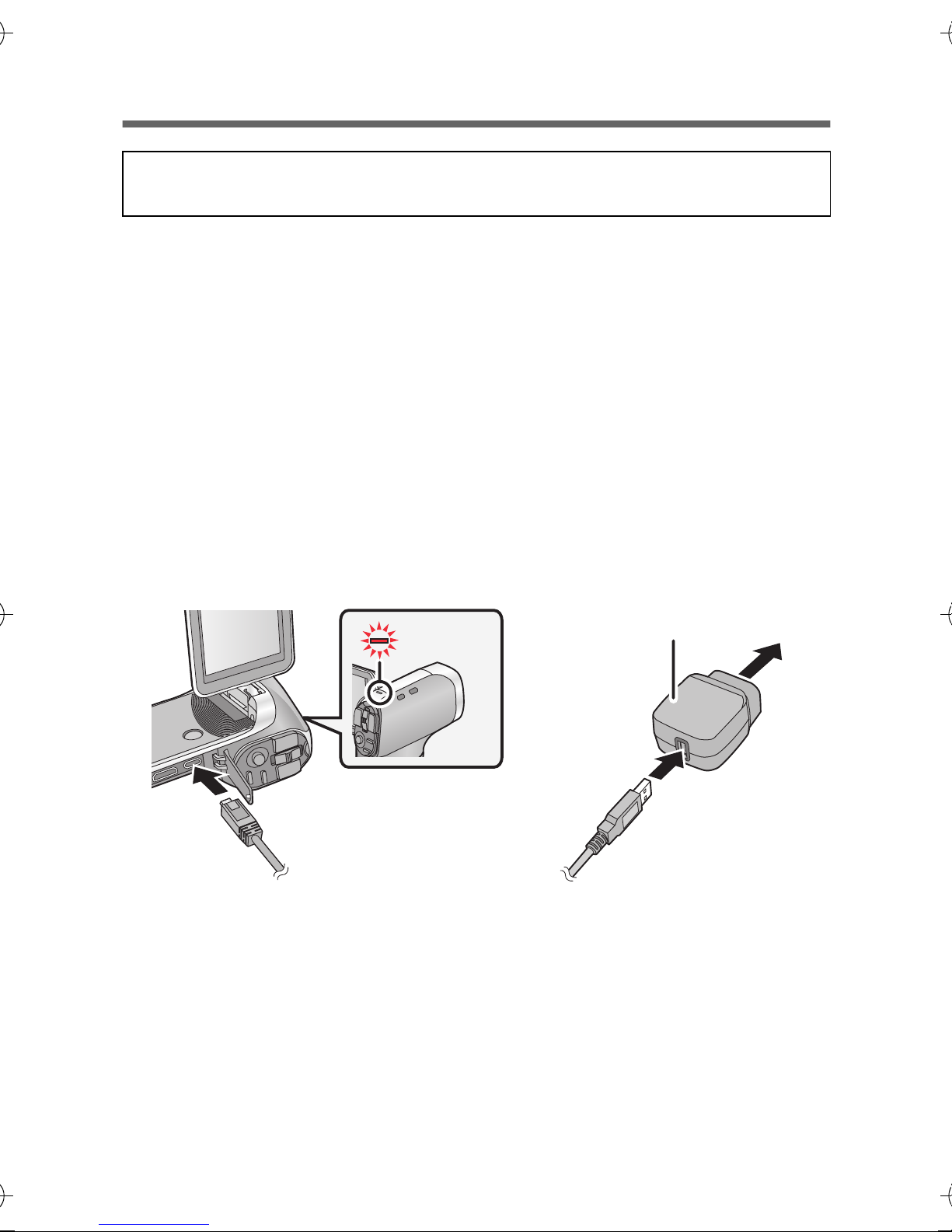

AStatus indicator
BAC adaptor
CTo the AC outlet
≥Insert the plugs as far as they will go.
When this unit is purchased, the battery is not charged. Charge
the battery fully before using this unit for the first time.
HX-DC3GCGAGN-VQT4U81_mst.book 10 ページ ２０１２年１２月２６日 水曜日 午前１０時８分
Other manuals for HX-DC3
2
Table of contents
Other Panasonic Camcorder manuals
Panasonic
Panasonic VDR-M20 User manual
Panasonic
Panasonic AG-DVX200PJ User manual
Panasonic
Panasonic Palmcoder PalmSight PV-L679 User manual
Panasonic
Panasonic NV-DS88EN User manual
Panasonic
Panasonic HC-W580M User manual
Panasonic
Panasonic AJSDC915 - DVC PRO CAMCORDER User manual
Panasonic
Panasonic HC-V550 Technical specifications
Panasonic
Panasonic NV-GS30EN User manual
Panasonic
Panasonic NV-VX1A User manual
Panasonic
Panasonic Viera HX-DC10 Technical specifications
Panasonic
Panasonic AG-X2 User manual
Panasonic
Panasonic HC-V550P User manual
Panasonic
Panasonic Digital Palmcoder Multicam PV-DC152-K User manual
Panasonic
Panasonic AKHC931BP - MULTI-FORMAT CAMERA User manual
Panasonic
Panasonic SDR-SW20P User manual
Panasonic
Panasonic Palmcorder PV-A208 User manual
Panasonic
Panasonic P2HD AG-HPX250 User manual
Panasonic
Panasonic HC-V270 Installation and service instructions
Panasonic
Panasonic Mini DV NV-DS12EG Mini DV NV-DS12B User manual
Panasonic
Panasonic HDC-HS300 User manual
