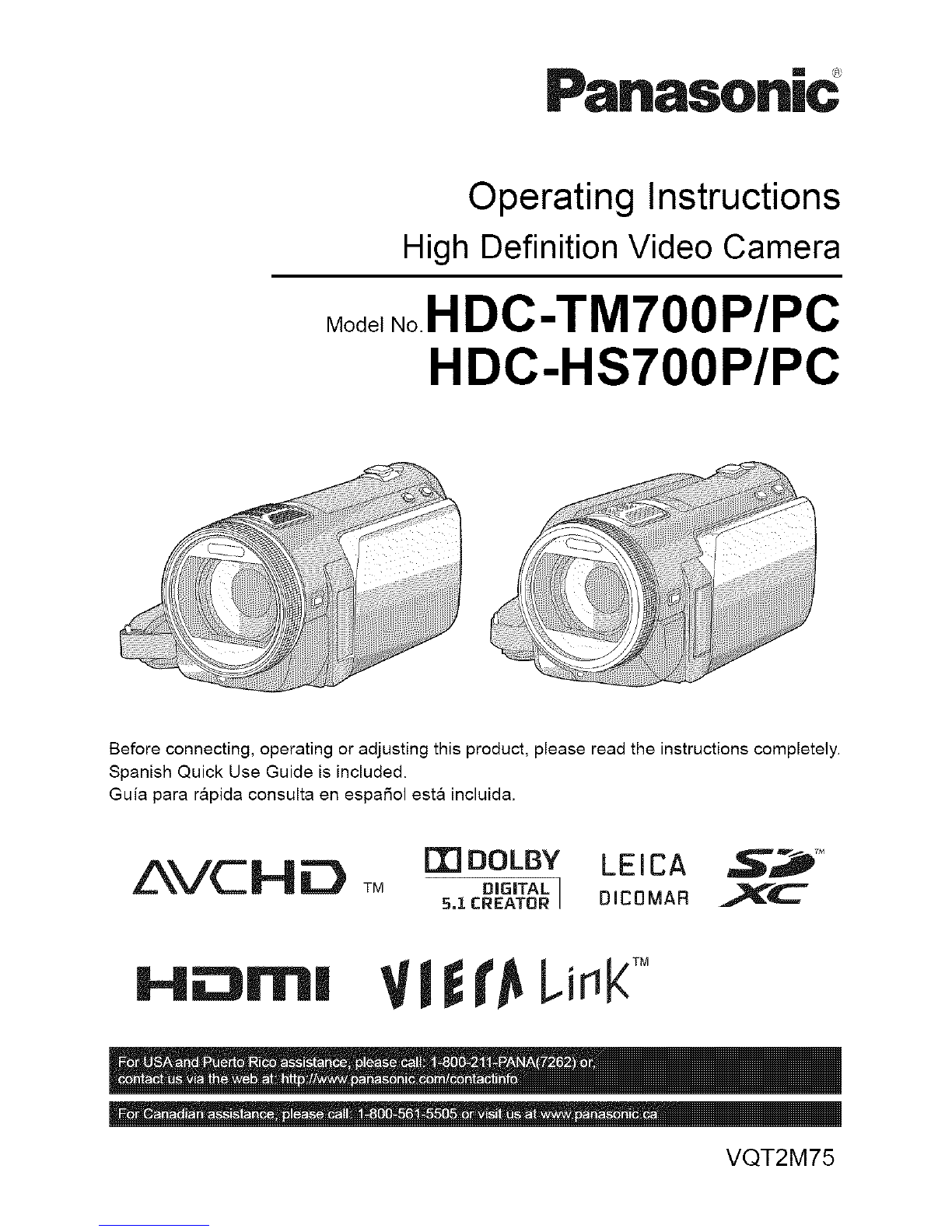

Panasonic HDC-HS700PC User manual

Pa.aso.ic _

Operating Instructions

High Definition Video Camera

Model .o.HDC-TM 700 P/PC

HDC-HS700P/PC

Before connecting, operating or adjusting this product, please read the instructions completely.

Spanish Quick Use Guide is included.

Guia para r&pida consulta en espaSol esta incluida.

AVCH_ TM m DOLBY LEICA _M

DIGITAL I DICOMAR _l_'_C

5=1 CREATOR

H_rnl Vl t_Li_K_

VQT2M75

Recording with Manual

focus

vIDL_JL_

Perform focus adjustments using the multi manual ring.

If auto focusing is difficult due to the conditions, then use Manual Focus.

4_ Change the mode to _ or O.

•Press the iA/MANUAL button or CAMERA FUNCTION button to switch to Manual

Mode. (-_ 82)

•For how to perform the settings when using the viewfinder, refer to page 82

/MANUALO

CAMERA

FUNCTION

O Rotate the multi manual ring to adjust the focus.

!(When MF assist function is used)

Select the menu.

:[RECORD SETUP]

[MF ASSIST] _[ON]

• it is possible to set from the quick

menu. (-) 45)

2Touch [FOCUS].

3Touch [MF] to change to

Manual Focus.

• MF appears on the screen.

4Adjust the focus by rotating

the ring.

The in-focus area is displayed in blue. The

normal screen returns approximately

2 seconds after you finish bringing the

subject into focus.

• When [MF ASSIST] is [OFF], the blue

area is not displayed.

• To restore Auto Focus, touch [AF] of step

3 or press the iA/MANUAL button.

• Zoom operation cannot be performed

using the multi manual ring.

• The blue display does not appear on the

images actually recorded.

VQT2M75

Playback Operations

For details on the basic playback operations, refer to page 41.

Fast forward/

rewind playback

Skip playback

(to the start of a

scene)

Slow-motion

playback

Frame-by-frame

playback

The motion picture

is advanced one

frame at a time.

During Playback

During Pause

•When the operation

icon disappears,

touch the screen to

display the icon again

Touch I_1_ during playback to fast

forward.

(Touch 4< to rewind.)

• The fast forward/rewind speed

increases if you touch 1_1_-/,_1 again.

(The display on the screen changes

from I_1_ to _.)

• Normal playback is restored when you

touch _-/lll.

Press the 14_ or I_1_1button during

playback.

(Operation is possible _ _

with the remote _ _

control only.)

With the playback paused, continue

touching ||_.

(4B| is for slow rewind playback)

Playback is slow while touching.

• Normal playback is restored when you

touch I_HR.

• When slow-motion pictures are piayed back

in reverse, they will be shown continuously

at approximately 213rd the speed of normal

playback (intervals of 0.5 seconds).

With the playback paused, touch |J!_.

(Touch "qliJto advance the frames one

at a time in the reverse direction.)

• Normal playback is restored when you

touch b,-/R.

• When the frames are advanced one at a

time in the reverse direction, they will be

shown in intervals of 0.5 seconds.

VQT2M75

Direct playback

1) Touch 1_ to display the direct playback

bar O.

2) Touch the direct playback bar.

• The playback is paused and the image

is skipped until the position you

touched.

• Playback starts again when you release

the touch screen.

• Touch _1 to display the operation icon,

• Direct playback bar cannot be operated

with the remote control.

A single frame from the recorded motion picture can be saved as a still picture.

Picture size of the still picture to be recorded is _ (1920× 1080).

1Pause at the scene you want to save as a still picture during

playback.

• It is convenient to use slow-motion playback and frame-by-frame playback.

2Press the 0button fully.

• Date the motion picture was recorded will be registered as date of the still picture.

• Quality will be different from the normal still picture.

VQT2M75

Animageofonesceneisdisplayedasathumbnailatsetsearchcondition.Scenecanbe

playedbackfromanymidwaypointofthesceneyouwishtosee.

• OperatethezoomleverortheadjustzoombuttonstoO_sideandchangeoverthe

thumbnaildisplaytoHighlight&Timeframeindex.(-)43)

/Touch selected search condition.

• Next (previous) scene can be displayed by touching

2Touch the desired condition.

[3 SECONDS]I[6 SECONDS]I[12 SECONDS]/

[MINUTES]/[FACE]/[HIGHLIGHT] O Selected search

• When you select [FACE], thumbnails for sections of the condition

motion picture in which faces were recognized will be Q Scene selection

displayed.

• A portion judged to be clearly recorded will be detected and displayed in thumbnail if you

select [HIGHLIGHT].

3(Only when [MINUTES] is selected)

Touch _]/[_ to set the time.

• It can be set up to a maximum of 60 minutes.

• Touch [ENTER].

4Touch the thumbnail to be played back.

• Next (previous) thumbnail can be displayed by touching [_/[_.

Playback of the first scene starts after playback of the last scene finishes.

:[VIDEO SETUP] _[REPEAT PLAY] _[ON] I

The O indication appears on the full screen views.

• All the scenes are played back repeatedly. (When playing back motion pictures by date, all

the scenes on the selected date are played back repeatedly.)

VQT2M75

Ifplaybackofascenewasstoppedhalfway,theplaybackcanberesumedfromwhereitwas

stopped.

:[VIDEO SETUP] _[RESUME PLAY] _[ON] I

If playback of a motion picture is stopped, N¢ appears on the thumbnail view of the stopped

scene.

• The memorized resume position is cleared if you turn off the power or change the mode.

(The setting of [RESUME PLAY] does not change.)

You can zoom in by touching a still picture during playback.

1Touch the part you wish to zoom in on during still picture playback.

• The still picture is zoomed in on, centering on the part you touched. With each touch, you

zoom in further. (x 1 _ x2 _ x4)

2Move your position on the zoomed still

picture by touching A/I'/_I/I_.

• The location of the zoom displays for about 1 second when

zooming in (zooming out) or moving the displayed location.

• The more picture is enlarged, the more its quality

deteriorates. O Displayed location of

the zoom

Zooming out from the zoomed still picture

Touch _, tozoom out. (x4_ x2_ xl)

• Touch _ to return to normal playback (x 1).

• You can also perform zoom operations using the zoom lever or the adjust zoom buttons.

VQT2M75

Various playback

functions

The scenes or the still pictures recorded on the same day can be played back in succession.

1Touch the date select icon.

O Date select icon

2Touch the playback date.

The scenes or the still pictures recorded on the date selected are displayed as thumbnails.

3Touch the scene or the still picture to be played back.

• Playing back of all the scenes or the still pictures returns if the power is turned off or the

mode is changed.

• Even if scenes are recorded on the same day, they are grouped separately in the following

cases. -1, -2... is added after the recording date displayed on the screen.

When the number of scenes exceeds 99

When the media is repaired

When the Interval recording is used

• Even if still pictures are recorded on the same day, they are grouped separately in the

following cases.

When the number of still pictures exceeds 999

When pictures are recorded in Hi-Speed Burst Shooting mode ( [_ is indicated after the

date in the list by date).

• r__ is displayed after the date in the list by date for the still pictures created from the motion

picture. (-) 87)

VQT2M75

Apartcanbeextractedandplayedbackevenwhennotsettonormalplayback.

1Touch E_.

2Touch the desired playback mode.

[FACE HIGHLIGHT]: Giving priority to the parts with detected faces, the part that was

recognized as clearly recorded is extracted from a long recording,

and it can be played back in a short time with music added.

[HIGHLIGHT]: Part that was recognized as clearly recorded is extracted from a

long recording, and it can be played back in a short time with

music added.

lINTEL. SCENE]: Scenes can be played back with music, excluding a portion of

the scene judged to have failed to shoot due to fast movement

of this unit, camera shake, or focus error.

3Touch the desired item.

• When [FACE HIGHLIGHT]/[HIGHLIGHT] is selected

[PRIORITY SETUP]*: Select the person registered for face recognition to be played

back. (-)92)

[PLAYBACK TIME]: select the tirnet o play baCk;i,-) 931

[MUSIC SELECT]: Select the music to be played on playback. (-,) 93)

* This appears only when [FACE HIGHLIGHT] is selected.

• When [INTEL. SCENE] is selected

[DATE SETUP]: Select the dateto be played back, (-') 93)

[MUSIC SELECT]: Select the music to be played on playback. (-.)93)

4Touch [START].

• When Face Highlight Playback/Highlight Playback is selected, the playback time is

displayed and playback is paused.

5Select the playback operation. (-) 41, 86)

• When the playback is finished or stopped, the screen to select [REPLAY],

[SELECTAGAIN] or [EXIT] is displayed. Touch the desired item.

VQT2M75

• Playingbackofallthescenesreturnsifthepoweristurnedofforthemodeischanged.

(Highlightplayback)

• Highlightplaybackcannotbeperformedwithinterval-recordedmotionpictures.(-)67)

(intelligentsceneselection)

• Upto9sectionscanbeskippedforasinglescene.

• Whenmotionpicturesareskipped,theimagestopsmomentarily.

• Dividedscenewillnotbeskipped.

• FordatathatareeditedwiththeeditingfunctionofHDWriterAE2.1,theIntelligentscene

selectionisdisabled.

•Scene setting

1 Touch [SELECT SCENES] or [SELECT DATE].

2(When [SELECT SCENES] is selected)

Touch the scenes to be played back.

• Up to 99 scenes can be selected in succession.

• When touched, the scene is selected and *,/ is

displayed. Touch the scene again to cancel the

operation.

(When [SELECT DATE] is selected)

Touch the date to be played back.

• A maximum of 7 days can be selected.

• When touched, the date is selected and surrounded

by red. Touch the date again to cancel the operation.

3 Touch [Enter]/[ENTER].

•Priority setting

1 Touch [SELECTED FACE].

• If you touch [NONE], any detected face, including the face of person registered for Face

Recognition, is given priority on playback.

2 (When [SELECTED FACE] is selected)

Touch a face to specify.

• You can specify up to 6 faces, which are to be played

back in priority.

• When touched, the registered face is selected and

surrounded by red. Touch the registered face again to

cancel the operation.

• Touch [ENTER]. When a single face is specified, the name registered for that face is

displayed. When multiple faces are specified, the number of faces is displayed.

VQT2M75

•Playback time setting

Touch the playback time to set.

•The playback time of [AUTO] is a maximum of

approx. 5 minutes.

• Playback time may become shorter than the setting,

or it may not even play back if the part recognized as

clearly recorded is short.

•Date setting

Touch the playback date.

•Music setting

1 Touch your favorite music.

• When [NO MUSIC] is selected, the audio recorded at

the time of shooting is played back.

• To adjust the volume of music during playback or

audio testing, operate the volume lever or the adjust

zoom buttons. (-_ 43)

2 Touch [ENTER].

To test the music audio

Touch [START].

• Touch the other music option to change the music to be tested.

• When you touch [STOP], the music playback stops.

VQT2M75

This manual suits for next models

Table of contents

Other Panasonic Camcorder manuals

Panasonic

Panasonic HC-WXF990 Technical specifications

Panasonic

Panasonic Palmcorder PalmSight PV-L658 User manual

Panasonic

Panasonic NV-M5AM User manual

Panasonic

Panasonic HDC-HS900K User manual

Panasonic

Panasonic PV-DV952 User manual

Panasonic

Panasonic Palmcorder PV-DV221 User manual

Panasonic

Panasonic NV-VS70EN/A User manual

Panasonic

Panasonic AG-DVC7 User manual

Panasonic

Panasonic HDC-TM700 User manual

Panasonic

Panasonic HDC-SD60 User manual

Panasonic

Panasonic NV-VS3A User manual

Panasonic

Panasonic NV-MX500EG User manual

Panasonic

Panasonic AGDVC200 - DV CAMCORDER User manual

Panasonic

Panasonic SDR-S9 User manual

Panasonic

Panasonic NV-S1A User manual

Panasonic

Panasonic AG AG-HPX170 User manual

Panasonic

Panasonic Palmcorder VDR-D50P User manual

Panasonic

Panasonic AJ-HPX3100G User manual

Panasonic

Panasonic NV-DS60 Owner's manual

Panasonic

Panasonic AG-HMC80PJ User manual

Panasonic

Panasonic NV-RX6EN User manual

Panasonic

Panasonic HC-W580M User manual

Panasonic

Panasonic AG-CX6 User manual

Panasonic

Panasonic SDR-S7 Technical specifications

Popular Camcorder manuals by other brands

Toshiba

Toshiba CAMILEO Z100 user guide

Canon

Canon RC 260 instructions

Sony

Sony Handycam DCR-DVD7E operating guide

Brinno

Brinno TimeLapse TLC200 user manual

JVC

JVC GR-SXM68AC Schematic diagram

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p user guide

MYDLINK

MYDLINK DCS-6100LH Quick installation guide

Sony

Sony video Hi8 Handycam CCD-TR555 operating instructions

SECURECOM

SECURECOM V-5014B installation guide

Sharper Image

Sharper Image U-VIDEO instruction manual

JVC

JVC AA-V15EG instruction manual

Canon

Canon LEGRIA HV40 instruction manual

Sony

Sony Handycam DCR-VX2000 Service manual

RCA

RCA CC616 user guide

ATIK Cameras

ATIK Cameras Horizon manual

Sony

Sony Handycam HDR-CX580V owner's manual

Sharp

Sharp ViewcamZ VL-Z8H Operation manual

Philips

Philips M620/21 operating instructions
