Panasonic KX-TS620B User manual

rights reserved. Unauthorized copying and

distribution is a violation of law.

KX-TS620B

KX-TS620W

Telephone Answering System

Black Version

White Version

(for U.S.A.)

Telephone Equipment

ORDER NO. KM40606094CE

J01

1 FOR SERVICE TECHNICIANS 3

2 CAUTION 3

3 OPERATING INSTRUCTIONS 4

3.1. Location of Controls 4

3.2. Display 5

3.3. Connection 6

3.4. Troubleshooting 8

4 REPLACEMENT PARTS LIST 10

5 FOR SCHEMATIC DIAGRAM 11

6 SCHEMATIC DIAGRAM (MAIN) 12

7 SCHEMATIC DIAGRAM (OPERATION) 14

Note:

Because section 3 of this manual is an extract from the operating instructions for this model, it is subject to change without notice.

You can download and refer to the original operating instructions on TSN Server for further information.

CONTENTS

Page Page

KX-TS620B / KX-TS620W

1 FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable to static electricity.

When repairing, the following precautions will help prevent recurring malfunctions.

1. Cover the plastic parts boxes with aluminum foil.

2. Ground the soldering irons.

3. Use a conductive mat on the worktable.

4. Do not touch IC or LSI pins with bare fingers.

2 CAUTION

1. Danger of explosion if battery is incorrectly replaced.

2. Replace only with the same or equivalent type recommended by the manufacturer.

3. Dispose of used batteries according to the manufacture’s Instructions.

KX-TS620B / KX-TS620W

3 OPERATING INSTRUCTIONS

3.1. Location of Controls

KX-TS620B / KX-TS620W

3.2. Display

KX-TS620B / KX-TS620W

3.3. Connection

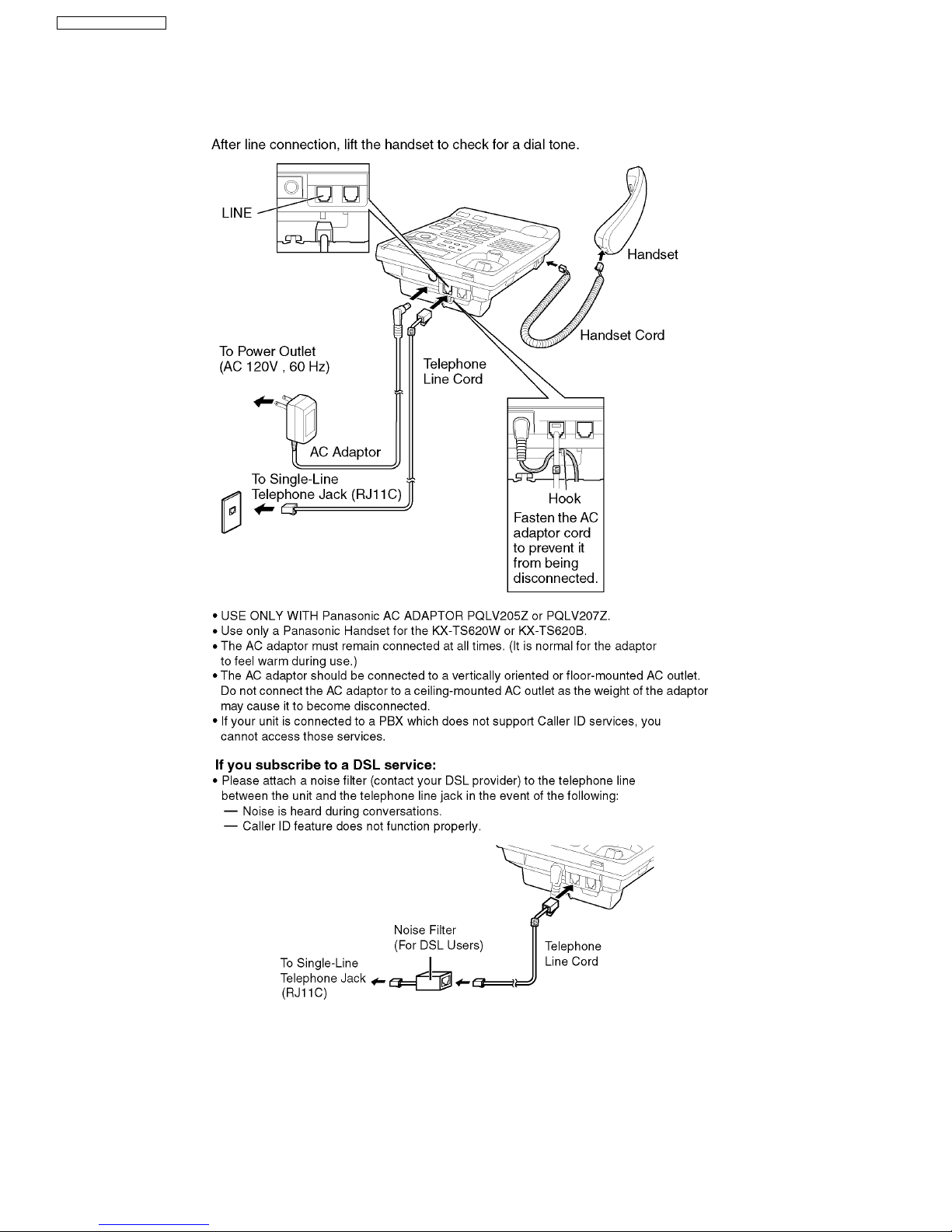

3.3.1. Connecting the Handset/AC Adaptor/Telephone Line Cord

KX-TS620B / KX-TS620W

3.3.2. Connecting a Communication Device

KX-TS620B / KX-TS620W

3.4. Troubleshooting

KX-TS620B / KX-TS620W

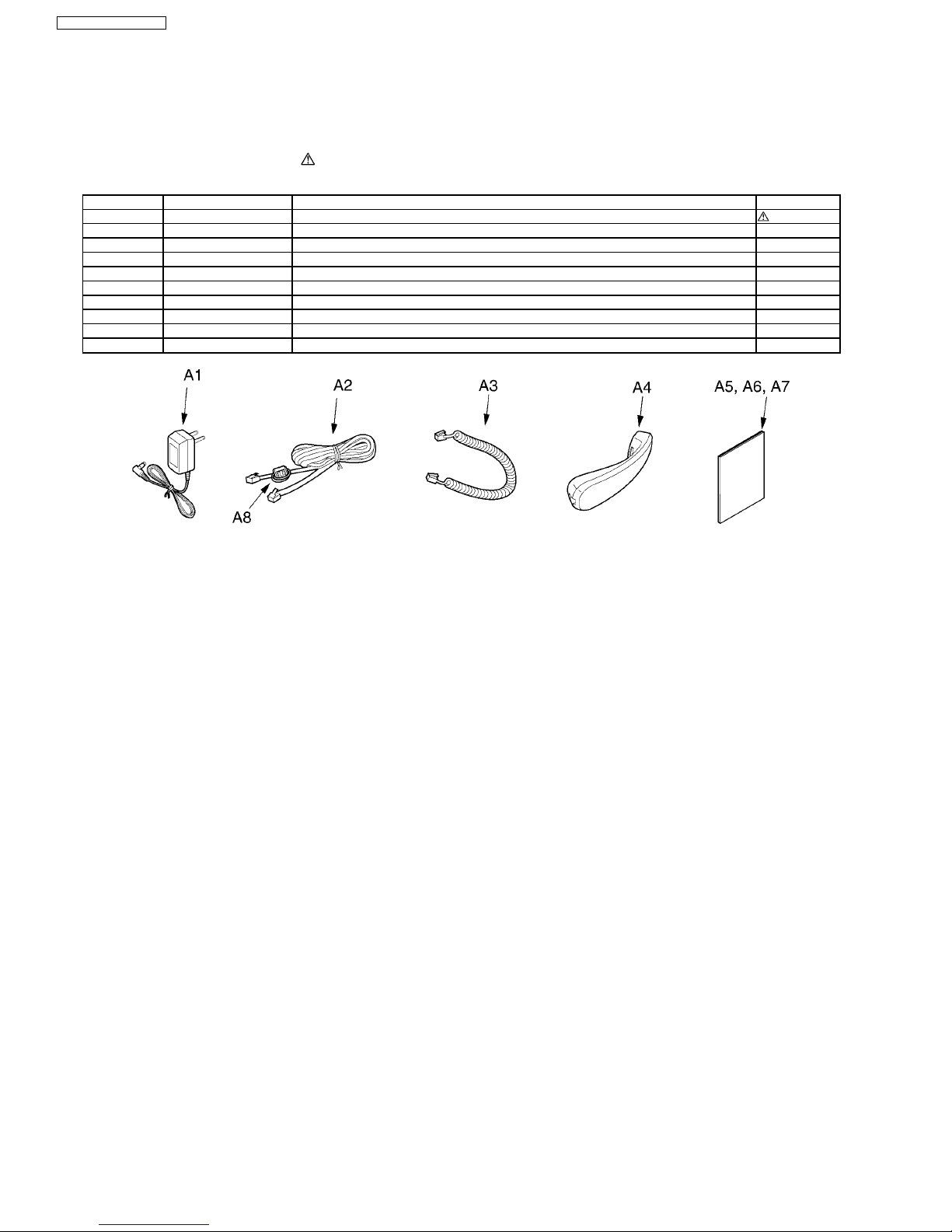

4 REPLACEMENT PARTS LIST

Note:

1. Important safety notice

Components identified by the mark indicates special characteristics important for safety.

When replacing any of these components, only use specified manufacture´s parts.

Ref. No. Part No. Part Name & Description Remarks

A1 PQLV205Z/PQLV207Z AC ADAPTOR

A2 PQJA10075Z TEL CORD

A3 PQJA212N CURL CORD (for KX-TS620B)

A3 PQJA212M CURL CORD (for KX-TS620W)

A4 PQJXF0101Z HANDSET (for KX-TS620B)

A4 PQJXF0102Z HANDSET (for KX-TS620W)

A5 PQQX15397Y INSTRUCTION BOOK (for English)

A6 PQQW15305Y LEAFLET, QUICK GUIDE (for Spanish)

A7 PQQW12560Z LEAFLET

A8 KRCBC130714B FERITE CORE

KX-TS620B / KX-TS620W
