Panasonic KX-TCD515NL User manual
— 1 —
Digital Cordless Answering System
Model No. KX-TCD515NL
Quick Guide
The guide is provided to allow a quick set-up of the basic features and
operations of this phone. Please read the Operating Instructions for further
details.
Before Initial Use

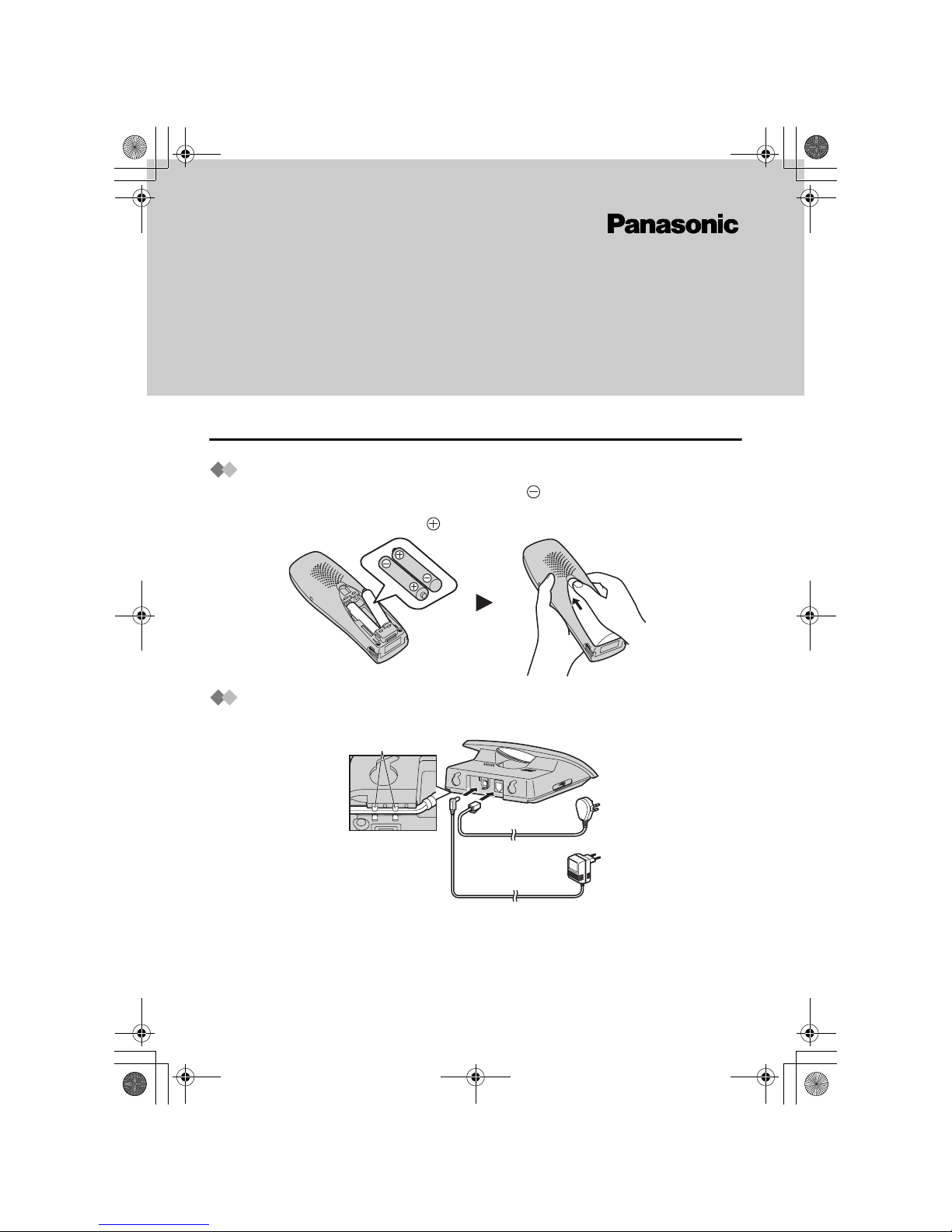

Battery Installation
Please ensure the batteries are inserted as shown. part should be inserted first.
Close the cover as indicated by the arrow.
•When you replace the batteries, part should be removed first.
Connection
Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.
•The AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
•Never install telephone wiring during a lightning storm.
•USE ONLY WITH Panasonic AC ADAPTOR PQLV19CE.
LINE
14
3
2
Fasten the AC
adaptor cord to
prevent it from
being
disconnected.
Hook
Hooks
QG_515NL_e.fm Page 1 Tuesday, July 22, 2003 8:00 PM
— 2 —
Location of Controls
Handset
Base Unit
1 - LEFT SOFT KEY
2 - TALK Button
3 - JOYSTICK
4 - SPEAKERPHONE Button
5 - RECALL Button
6 - RIGHT SOFT KEY
7 - POWER/TALK OFF Button
8 - CLEAR Button
9 - INTERCOM Button
7
1
0
3
6
2
4
8
9
5
Receive
r
Display
1
2
3
4
5
6
7
Charge
Contact
8
9
Ringer/Charge
LED
Headset
Jack
Charge
Contact
Microphone
Rear side
Speaker
LINE
PAGE Button
QG_515NL_e.fm Page 2 Tuesday, July 22, 2003 8:00 PM
— 3 —
Operations
Function Action
Power ON/OFF Press and hold .
Making a Call Press and dial the number.
Answering a Call Press .
Terminating a Call Press .
Key Lock ON/OFF Press and hold . To cancel, press and hold .
Redialling the last number
dialled Press , .
Dialling from the Redial List Press , to select a number, press .
Storing caller information in
the handset phonebook
Press , , press to select “H/set
Phonebook”, enter name, press , enter phone
number, press , select the desired category,
press twice.
Dialling from the handset
phonebook Press , to select a number, press .
Dialling from the Caller ID List Press (or move ), to select , press
, to select a number, press .
Adjust Receiver Volume Move during a call.
Speakerphone Press .
Muting Your Conversation Press during a call.
To cancel, press once more.
Answering System ON/OFF Press (or move ),to select , press
, to select “Answer On” or “Answer Off”,
press .
QG_515NL_e.fm Page 3 Tuesday, July 22, 2003 8:00 PM
— 4 —
Handset Settings Menu Chart
Press (or move ), to select .
1st Menu 2nd Menu 3rd Menu
Setting Handset
Set Date/Time
Memo Alarm
Ringer Option Ringer Volume
EXT Ringer Type
INT Ringer Type
Paging Tone
Private Ring
Tone Option Key Tone
Display Option Standby Display
Talk Display
Select Language
Private Colour
Category Name
To select each menu,
press .
Call Option Call Bar
Direct Call No.
Direct On/Off
Registration Register H/set
Cancel Base
Select Base Auto
Base 1
Base 4
Other Option Change H/S PIN
Change H/S Name
Auto Talk
LetterWise
Battery Type
Reset Handset
•••
QG_515NL_e.fm Page 4 Tuesday, July 22, 2003 8:00 PM
— 5 —
Base Unit Settings Menu Chart
Press (or move ), to select .
1st Menu 2nd Menu 3rd Menu
Setting Base
Ringer Option Ringer Volume
Call Option Recall
Pause Time
To select each menu,
press , then enter
4-digit base unit PIN.
(Factory Preset 0000)
Emergency Call
Set ARS
Call Restricted
Cancel Handset
Other Option Change Base PIN
Reset Base
QG_515NL_e.fm Page 5 Tuesday, July 22, 2003 8:00 PM
— 6 —
SMS Feature (Text Message)
You can send and receive text messages between other fixed and mobile phones that
also support a compatible SMS feature and network.
The SMS feature is only available after subscribing to Caller ID.
See SMS Feature chapter in the Operating Instructions for further details.
Function Action
Writing and
Sending a New
Message
Press (or move ).
to select “ ”, then press .
to select “Create”, then press .
Enter message (see notes in Operating Instructions).
Press .
Enter phone number, then press .
to select “Yes” or “No”, then press .
Press to select “Send”.
Receiving a Text
Message
When a new message has been received, “ ” is displayed
and a tone sounds.
Displaying/Reading
the Incoming
Message List
Press (or move ).
to select “ ”, then press .
to select “Receive List”, then press .
to select desired Incoming Message, then press .
to scroll the message to read.
PQQW13002ZA F0603-0
QG_515NL_e.fm Page 6 Friday, August 1, 2003 10:19 AM
%
!
$
"
&
'
#
Digital Cordless Answering System
Operating Instructions
Model No. KX-TCD515NL
Contents
Preparation
Before Initial Use..........................2
Important Information...................5
Location of Controls.....................6
Meanings of Icons above
SOFT KEYS.................................7
Meanings of Symbols
and Operations of Keys ...............8
Display .........................................9
Setting up...................................10
Cordless Telephone
Using the Telephone..................14
Caller ID.....................................19
List Menu ...................................20
Using the Phonebook.................23
SMS Feature (Text Message)....31
Settings Menu Chart ..................42
Handset Settings........................44
Base Unit Settings .....................56
Multi-Unit User Operations.........63
Walkie-Talkie .............................70
Answering System
Answering System .....................73
Useful Information
Using the Belt Clip .....................85
Optional Headset .......................85
Wall Mounting ............................85
Before Requesting Help.............86
Character Table .........................90
Index ..........................................92
Technical Information.................93
Guarantee..................................94
Caller ID and SMS Compatible
Please read these Operating Instructions before using the unit
and save for future reference.
Charge the batteries for about 7 hours before initial use.
Preparation Cordless Telephone Useful InformationAnswering System
515NL_e.book Page 1 Tuesday, July 15, 2003 1:53 PM
2
Before Initial Use
Features
Digital Answering System
Up to 30 minutes recording time or up to 64 messages, with time/day stamp
that records when messages were received and counts the total number.
SMS (Short Message Service) compatibility
Now the convenience of sending and receiving text messages is available
from a home telephone.
32-Polyphonic Ring Tones
A variety of high-quality sounds can be reproduced for your ring tones.
You can choose from 9 preset melodies and 6 ring tones.
Hands-Free Speakerphone
You can talk without holding the handset.
Convenient for talking while doing something else.
Headset Jack
Plug in the optional headset and the hands-free facility provides total ease
and freedom of use.
Illuminated Keypad
Lights up when there is an incoming call or you touch any key for easier
operation even in the dark.
200+20-Station Phonebook
Stores 200 station names and numbers with the built-in telephone
directory of the handset to be recalled easily and stores 20 station names
and numbers in the base unit for Audible Caller ID feature.
Multiple Handsets
Up to 6 handsets can be registered with a single base unit for added
convenience. (Optional handset/charger is available separately.)
LCD Backlight
Lights up when there is an incoming call or you touch any key for easier
operation even in the dark.
7
1
0
3
6
2
4
8
9
5
515NL_e.book Page 2 Tuesday, July 15, 2003 1:53 PM
3
Preparation
Before Initial Use
Thank you for purchasing your new Panasonic digital cordless telephone.
Dear purchaser,
You have acquired a KX-TCD515NL, which is a product made in accordance with the
Digital Enhanced Cordless Telecommunications (DECT). DECT technology is
characterized by high-security protection against interceptions as well as high-quality
digital transmission. This telephone was designed for a wide range of applications. For
example, this telephone can be used within a network of base units and handsets,
constituting a telephone system which:
•
operates up to 6 handsets at one base unit.
•
allows an intercom between 2 handsets.
•
allows the operation of a handset at up to 4 base units, expanding the communication
radio area.
Caller ID and SMS Services, where available, are telephone company services. After
subscribing to Caller ID, this phone will display the caller’s phone number.
515NL_e.book Page 3 Tuesday, July 15, 2003 1:53 PM
4
Before Initial Use
Accessories (specific to product type)
AC Adaptor
PQLV19CE
Telephone Line Cord Rechargeable Batteries
(AAA size)
HHR-4EPT/BA2 (P03P)
one one two
Belt Clip Battery Cover
one one
Additional accessories are available for purchase. Contact your Panasonic Service
Centre for further details. 070 - 3314500
515NL_e.book Page 4 Tuesday, July 15, 2003 1:53 PM
