Original Tractor Cabs 12244 User manual
1
YESTERDAY TODAY
Cab # 12244 for Kubota BX23S
PARTS LIST –ASSEMBLY INSTRUCTIONS
IMPORTANT!
READ THIS MANUAL CAREFULLY AND KEEP FOR FUTURE REFERENCE
CAUTION!
REMOVE THE VINYL PANELS FOR TRANSPORT IN AN OPEN TRUCK OR
TRAILER
WARNING
THIS CAB WILL NOT PROTECT OPERATOR FROM INJURIES CAUSED BY ROLLOVER,
COLLISION, OR OTHER ACCIDENTS
122440921
Go to our YouTube Channel and watch the Installation Video.
2
LIMITED WARRANTY
SNOW REMOVAL EQUIPMENT CABS
COVERED BY WARRANTY
ORIGINAL TRACTOR CAB CO., INC., (the "Company") warrants to the owner that each new product listed below is
merchantable and free of defects in workmanship and material.
During the warranty period, the dealer from whom the product was bought, or the Company, will provide, free of charge,
parts and the shipping costs of parts necessary to correct any defect in workmanship and material.
WARRANTY PERIOD
The company products listed below are warranted for the stated period from the date of the original purchase:
1. Cabs for tractors and snow removal equipment 1 Year
2. Company manufactured accessories for above cabs 1 Year
3. Sunshades for lawn and garden tractors 1 Year
4. Repair parts 1 Year
OWNER'S RESPONSIBILITIES
The owner of a new Company manufactured product must do the following to qualify for warranty service:
1. Retain the original invoice or other proof of purchase to avoid unnecessary difficulties in determining eligibility for warranty
work.
2. Notify the dealer from whom the product was bought, or the company, as soon as possible after discovery of a possible
defect, and provide proof of original purchase.
To notify the company write to: Original Tractor Cab Co., Inc., P.O. Box 97, Arlington, IN 46104.
3.The owner may, upon notification by the Company, be required to return the defective part, or parts, to the Company for
inspection and warranty service.
NOT COVERED BY WARRANTY
The following are not covered by this warranty:
1. Transportation charges to and from servicing dealer or the company.
2. New products which have been subject to misuse, negligence or accident, or have been altered or repaired in a manner
not authorized by the company.
3. Windshield wipers, lights, or accessories that are warranted separately by their respective manufacturers, except
company agrees to make available to the owner whatever warranty benefits may be made available to the Company by
the manufacturers.
All implied warranties, except to the extent prohibited by any applicable law, shall have no greater duration than
the warranty period for the applicable product, some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
The Company’s liability arising out of warranties representation, instructions, or defects from any abuse, shall
be limited exclusively to repair or replacing parts under the condition in the warranty, and in no event will
Company be liable for incidental or consequential damages. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have rights that vary from state to state.
3
WARNING
This cab is designed to provide foul weather protection only. It does not provide protection from
noise, exhaust fumes, chemicals or injury from roll-over, collision, or other accidents.
1. Do not operate machine in confined areas without proper ventilation.
2. Thoroughly check area of operation before using machine.
3. The cab adds height to the machine. Low tree limbs and other overhead structures that did
not interfere with the operation of the machine before, may now be obstacles.
MAINTENANCE INSTRUCTIONS
Periodically check all bolts to see that they are tight. If bolts become loose, failure of cab parts may
occur.
Door latches and hinges should be lubricated with light machine oil for proper operation.
DO NOT CLEAN THE CLEAR PLASTIC WINDOWS WHEN THE PLASTIC IS DRY.
THE CLEAR PLASTIC WILL SCRATCH.
Avoid contact with plastic windows. Keep plastic windows clean by washing them with clear running
water and rubbing with your bare hands, only. The use of a rag, sponge or brush will scratch the
plastic. Liquid soap may also be used for window cleaning. During freezing weather, an automotive
windshield washer solvent may be used.
Use liquid soap and water to clean colored vinyl portions. Scrubbing with a brush or rag is also
permitted on the colored vinyl portions.
STORAGE INSTRUCTIONS
Prior to storage clean the windows and colored vinyl parts with a mild automotive detergent, rinse
with clean water and allow it to thoroughly dry. Store cab in a clean dry place out of direct sunlight.
Avoid folding plastic windows.
INSTALLATION
READ THIS MANUAL COMPLETELY BEFORE BEGINNING INSTALLATION.
The right side of the machine is determined from the operators seated position.
The words "bolt" will refer to a 1/4”x5/8” bolt and "lock nut"’ will refer to a 1/4” lock nut unless
specified otherwise.
Do not tighten bolts during assembly unless instructed to do so.
Park vehicle on level ground and remove start key.
4
Carton Contents Cab #12244 for Kubota BX23S
Key #
Part #
Qty.
Description
1
12079
1
Foot, RH
2
12080
1
Foot, LH
3
10926
2
Front Post
4
12249
1
Front Panel Frame
5
10002
1
Top Frame Brace, RH
6
10003
1
Top Frame Brace, LH
7
12245
1
Rear Bracket, RH
8
12246
1
Rear Bracket, LH
9
40062
1
Rear Post, RH
10
40063
1
Rear Post, LH
11
12247
1
Rear Curtain Support
12
12097
2
Vinyl Stay
13
10001
1
Top Frame
14
12190
1
ABS Plastic Top, Orange
15
12088-B
1
Door, RH
16
12089
1
Door Bottom, RH
17
12108-B
1
Door, LH
18
12248
1
Door Bottom, LH
19
12107
1
Rear Curtain
20
10749-B
1
Windshield
21
12094-B
1
Front Panel Vinyl
9820
1
Door Hardware Package
12109
1
Hardware Package (contents listed below)
786
15
1/4”-20 x 5/8” Bolt
788
8
1/4”-20 x 3/4” Bolt
60217
23
1/4”-20 Nylock Nut
1514
4
1/4” Flat Washer
5583
4
3/8”-16 x 2 1/4” Bolt
60478
4
3/8”-16 Nylock Nut
4902
2
Notched Vinyl Cap For top of Rear Post
Tools Required:
7/16” Socket and Wrench
9/16” Socket and Wrench
3/32” Allen Wrench
Needle nose pliers for Front Panel Springs under the step plate.
5

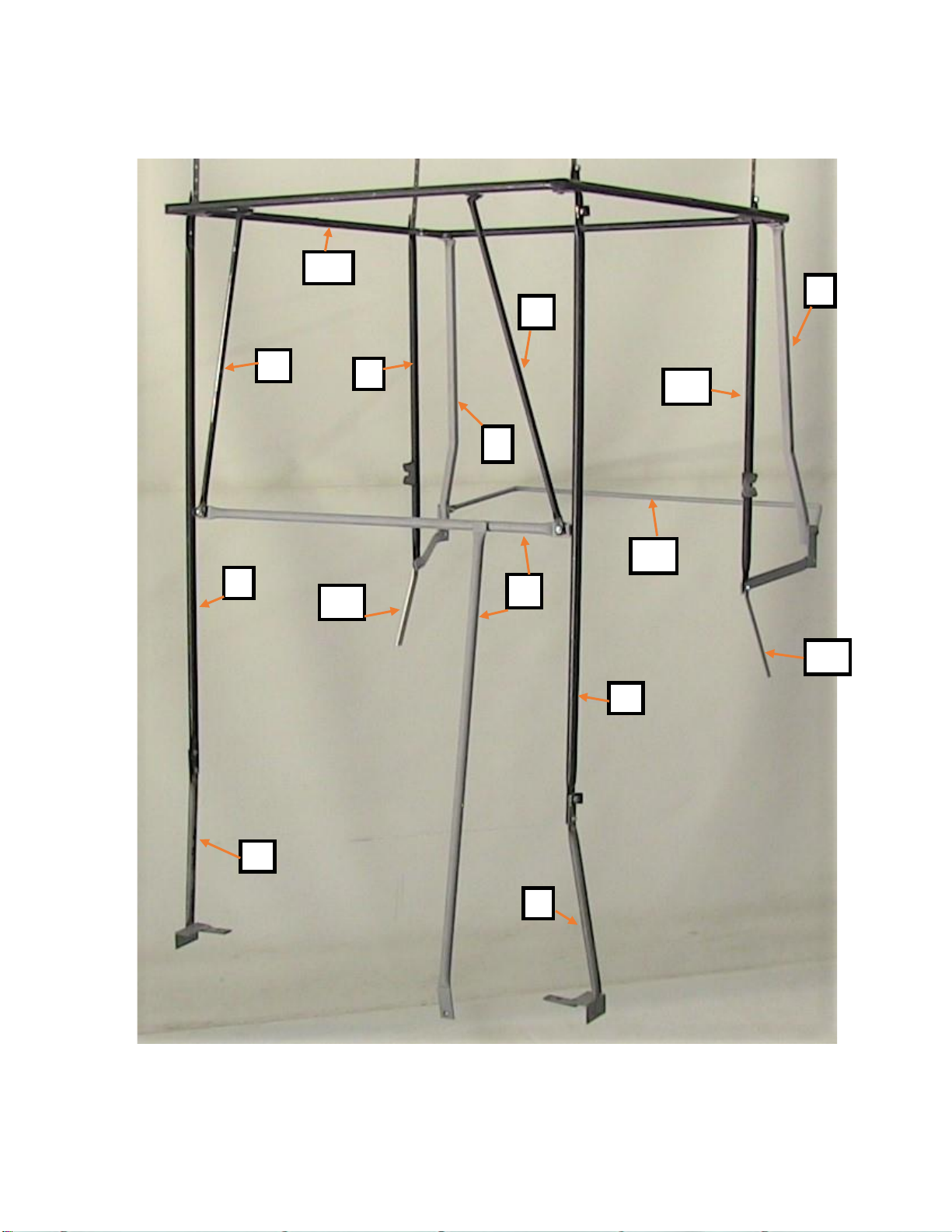

Step 1; See Figure 1:
Use the parts list and Figure 1 to identify the steel parts.
10
13
6
5
12
11
9
8
7
3
4
3
2
1
12
6

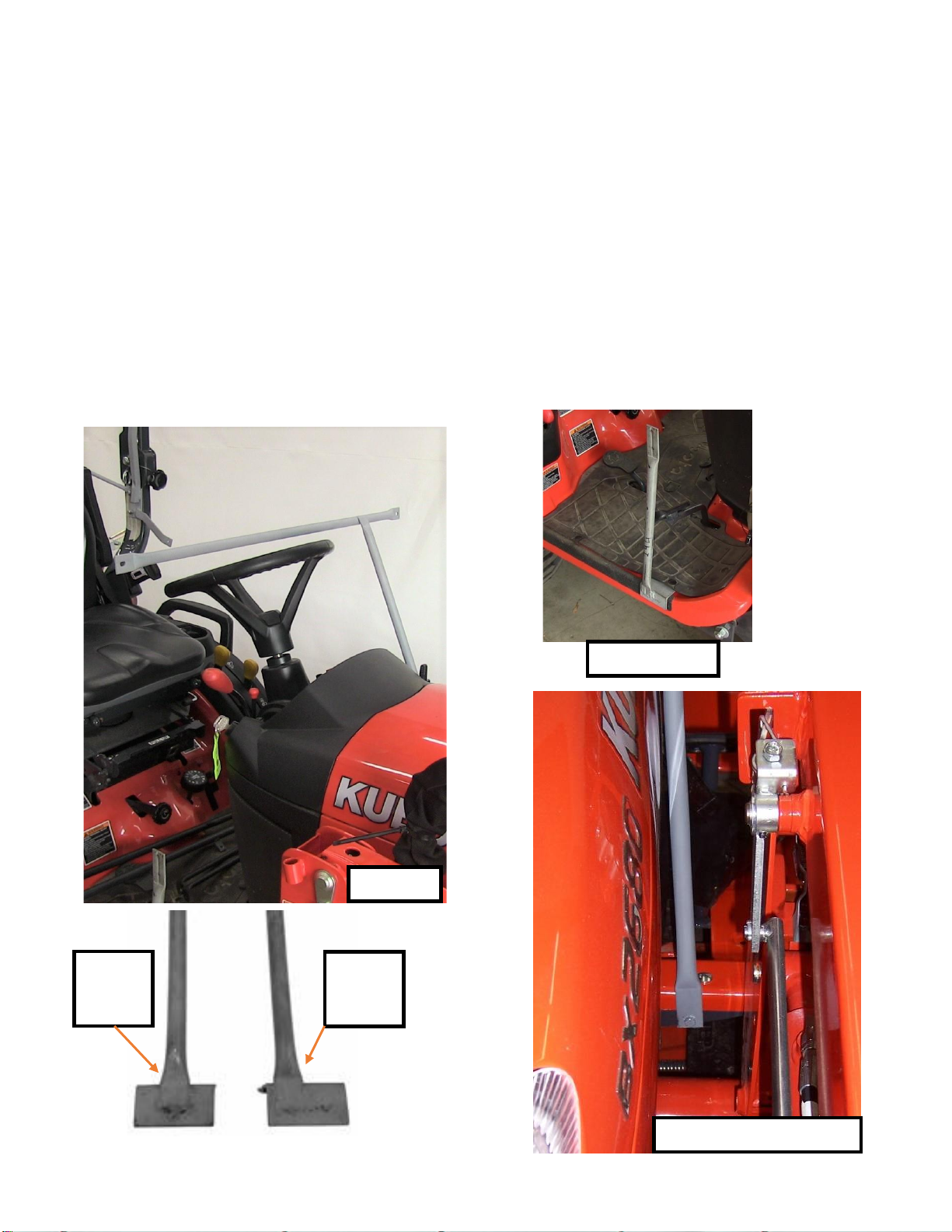

Step 2; See Figure 2:
Install Right Foot (1), Left Foot (2) and Front Panel Frame (4).
A. Pull the floormats back from the front corners of the step plate. Place the Right Foot
on the step plate as shown.
B. Insert a ¼” x ¾” bolt down through the holes. Add a nylock nut, do not tighten at
this time.
C. Repeat these steps on the left side with Left Foot.
D. Place the Front Panel Frame over the hood. Use a ¼” x 5/8” bolt and a nylock nut
to fasten the left side to the hole in Figure 2D. Tighten enough to hold upright.
Figure 2
Figure 2D- Left Side
(2) LH
Foot
(1) RH
Foot
Figure 2A
7

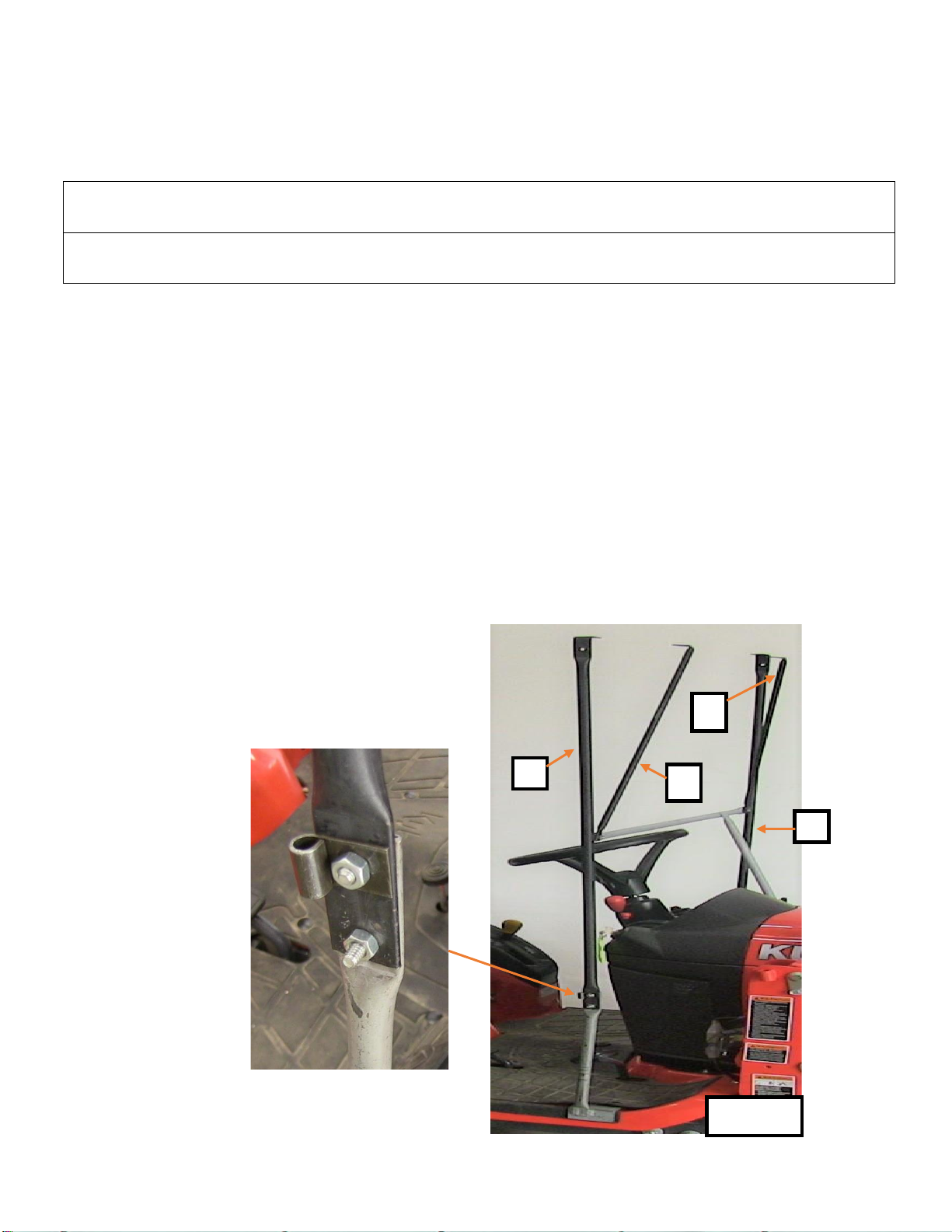

Step 3; See Figure 3:
Install Front Posts (3) and Right & Left Top Frame Braces (5 & 6)
Note: If you are installing an optional Safety Glass Windshield, omit the Top
Frame Braces 5 & 6.
Note: Bent ends of Top Frame Braces will point rearwards and lay flat when
properly installed.
A. Insert a ¼” x 5/8” bolt outward through the lower hole in the foot and the post. Add
a nut, do not tighten at this time.
B. Insert a ¼” x ¾” bolt outward through the upper hole in the foot and the post. Place
a hinge from the door hardware package over the bolt and add a nylock nut. Do not
tighten at this time.
C. Insert a ¼” x ¾” bolt forward through the tab on the post, the end of the front panel
frame and then the lower end of the top frame brace. Add a nylock nut, do not tighten
at this time.
D. Repeat on left side of tractor.
3
5
6
3
Figure 3
8

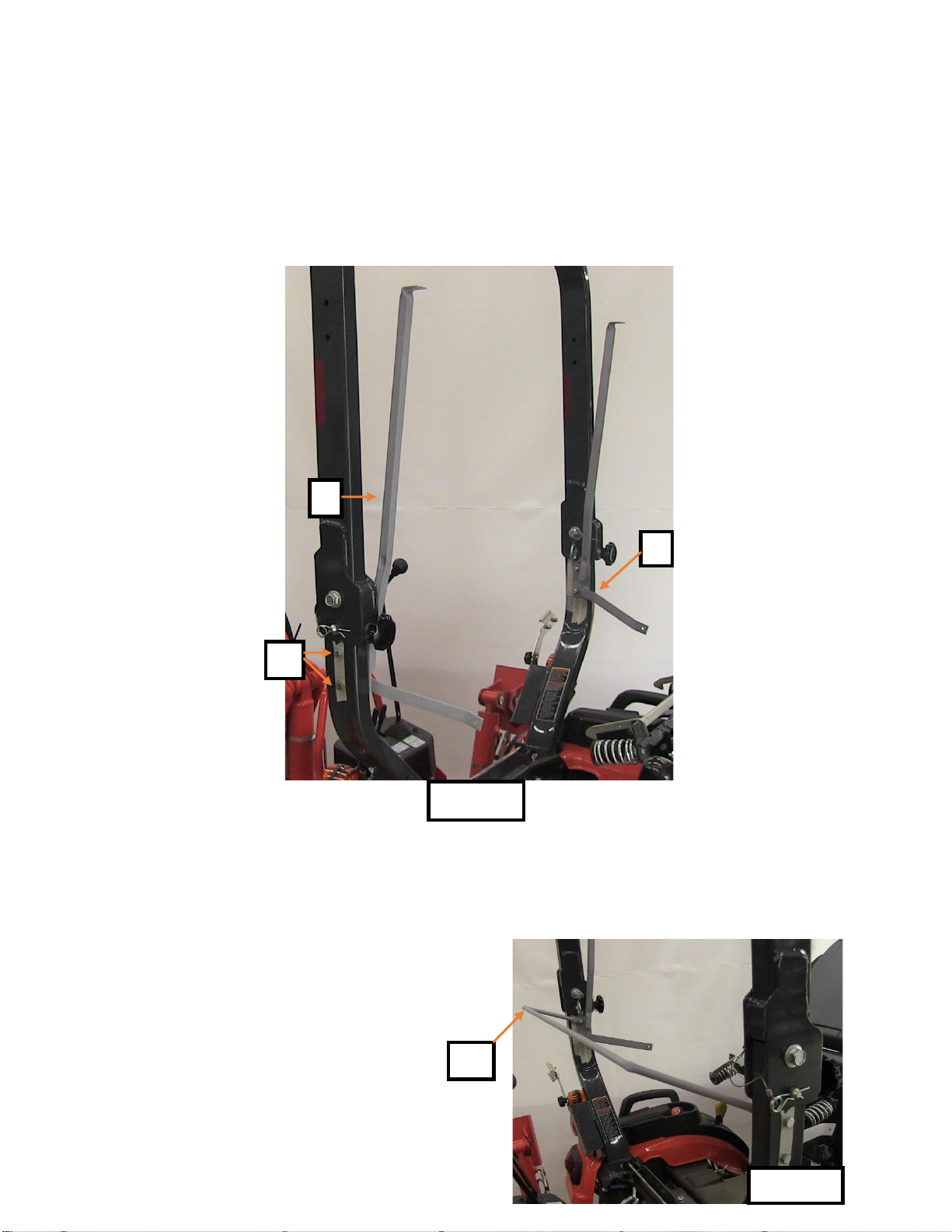

Step 4; See Figure 4:
Install Right and Left Rear Brackets (7 & 8).
A. Place the Right Rear Bracket over the holes at Reference A. Insert two 3/8” x 2 ¼”
bolts out through the holes. Add a 3/8” nylock nut to the bottom bolt only, do not
tighten at this time.
B. Repeat on the left side.
Step 5; See Figure 5:
Install Rear Curtain Support (11)
A. Place the Rear Curtain Support onto the top bolt of the RH Rear Bracket, add a
3/8” nylock nut. Do not fully tighten.
B. Repeat with LH Rear Bracket.
A
7
Figure 4
8
11
Figure 5
9

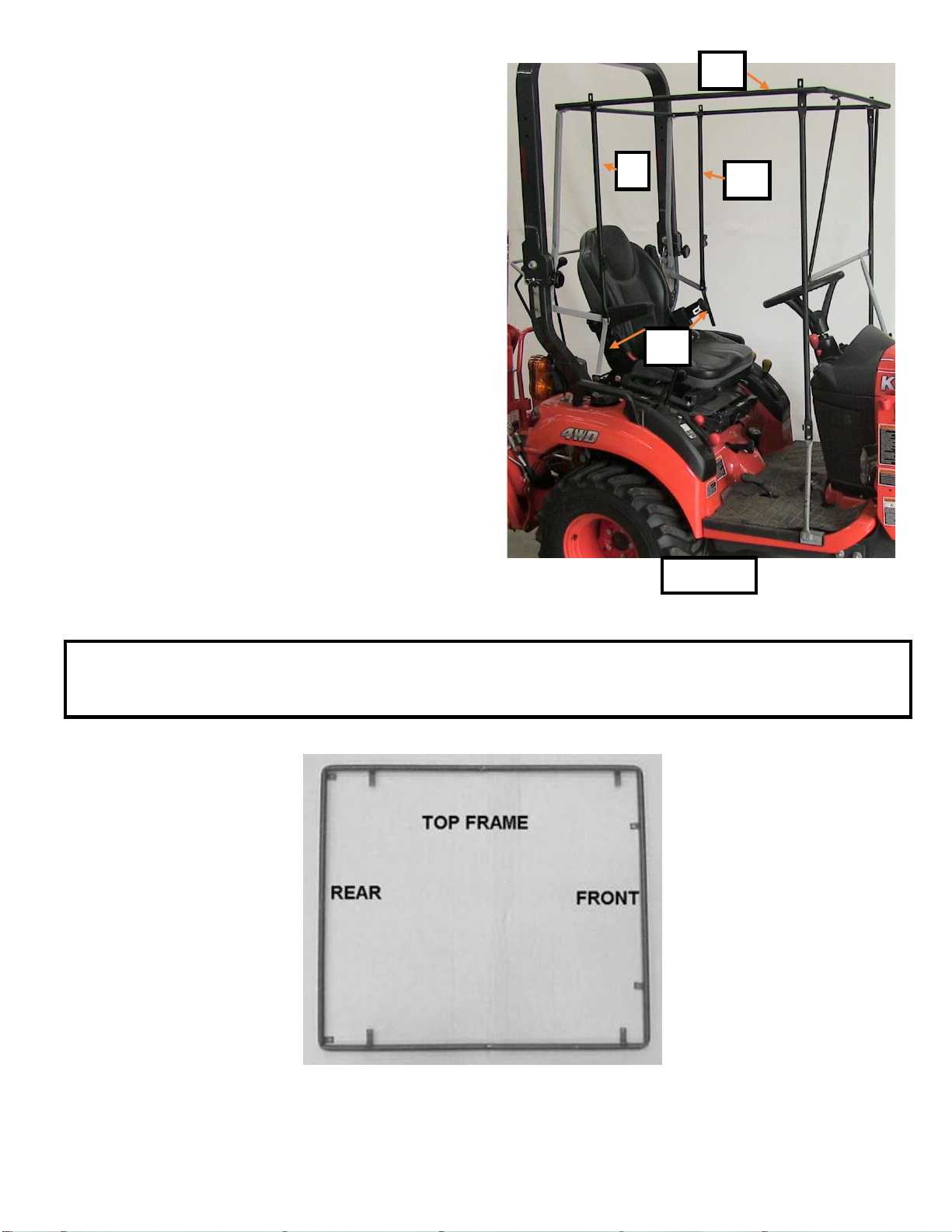

Step 6; See Figure 6:
Install Top Frame (13), Rear Posts RH
& LH (9 & 10) and Vinyl Stays (12)
A. Place the Top Frame onto the bent
ends of the posts.
B. Insert six ¼” x 5/8” bolts up through
the Rear brackets, Front Posts and Top
Frame Braces. Add nuts, do not
tighten at this time.
C. Insert a ¼” x 5/8” bolt up through the
RH Rear Post and the tab in the Top
Frame. Add a nut, do not tighten at
this time. Repeat on Left Side.
D. Insert a ¼” x ¾” bolt outwards
through the RH Rear Bracket, RH Rear
Post then the Vinyl Stay. Add a nut, do
not fully tighten. Repeat on Left Side.
Figure 6
Note: When Rear Posts are properly installed, latch plates will be to the front
with the notch to the outside of the enclosure.
12
10
9
13
10

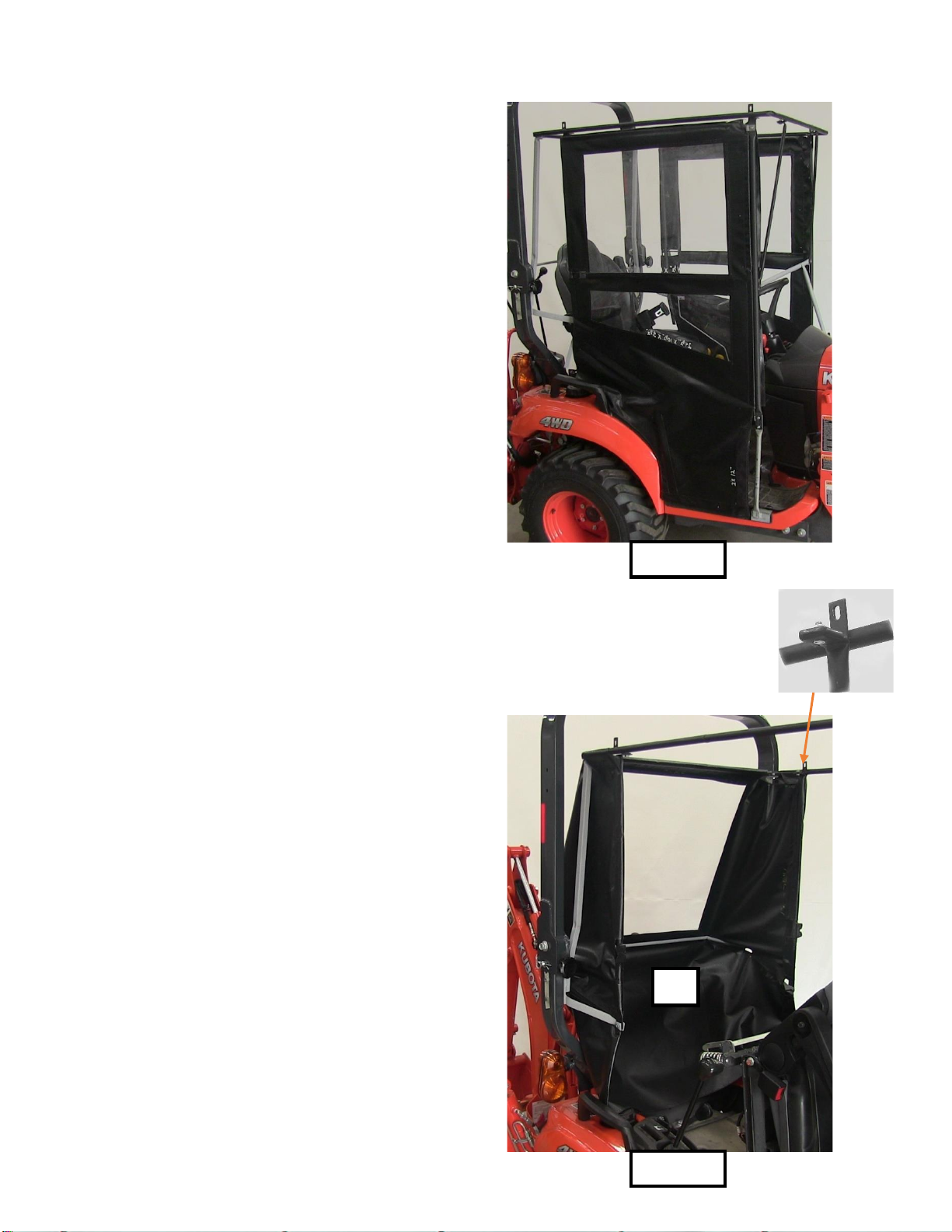

Step 7; See Figure 7:
Install the Doors for frame/door
alignment.
A. Follow the instructions in the Door
Hardware Package to install the Door
Bottoms and the Door Latches.
B. Install, close and latch both Doors.
C. Tighten all loose bolts from
previous steps at this time.
D. Remove the doors by opening them
and lifting it up and out of the bottom
hinge and dropping it out of the top
hinge.
Step 8; See Figure 8:
Install Rear Curtain (19)
A. Close the Velcro flaps around the top
frame at the back and corners.
B. Close the Velcro flaps over the rear
posts and around the brackets.
C. Close the Velcro flaps around the
Vinyl Stays.
D. Close the Velcro over the Rear
Bracket.
E. Place a notched Plastic Protector
over the bend ends of each Rear Post.
(See inset)
Figure 7
Figure 8
19
