BRIEFINTRODUCTION

Thank you for your purchase of this Indoor / Outdoor

Thermometer. Please read these instructions

carefully and keep the manual well for future

reference.

The receiver unit has a clear and easy-to-read

display that shows the indoor temperature, time,

the maximum & minimum temperature records in

the past 24 hours as well as the outdoor temperature

measured and transmitted from the remote sensors.

It is able to receive and display readings from up to

3 remote sensors.

The 433 MHz technology means no wire installation is

required and you can place the sensors anywhere you

like within 30m (100ft) from the main (indoor) unit.

This product is designed to synchronize its date and

time automatically once it is within range of the

signal from the atomic clock in Germany/England.

OVERVIEW

RECEIVER

1.SNOOZE/LIGHT key:

•In normal time mode, press it once to turn on

the backlight for 5 seconds.

•Press it to silence the current alarm when it is

goingandenterthe snoozemode for8 minutes.

2.LCD display:

•Displays outdoor & indoor temperature, time

and date.

3.Ice Alert indicator light:

•Flashes when the outdoor temperature is

between -2.0°C (28 °F) and 3.0°C (37 °F).

4.+/CHANNEL key:

•Press it once to switch among Channel 1, 2

and 3.

811

•Press and hold it for 2 seconds to view the

channels automatically. Press it again to exit

the automatic display mode.

•In time setting mode, press it to increase the

setting values.

5.SET CLOCK key:

•In normal time mode, press it once to enter

the normal time setting mode.

•In normal time setting mode, press it to step

the setting items. Press and hold it to exit the

setting mode in any step.

6.-/MIN.MAX. key:

•Press it to show the minimum and maximum

temperature records in the past 24 hours.

•Press and hold it for 3 seconds to delete the

minimum and maximum temperature records.

•In time setting mode, press it to decrease the

setting values.

7.SENSOR key:

•Press it once to search a sensor.

•During the reception period, press and hold it

for 3 seconds to stop the reception.

8.°C/°F slide switch:

•SlideittoswitchbetweenCelsiusandFahrenheit.

9.ALARM ON/OFF key:

•Press it once to turn on the backlight and

display the alarm time for 5 seconds.

•Press it again to turn on/off the alarm.

10.SET ALARM key:

•Press it once to turn on the backlight for 5

seconds, and at the same time to enter the

alarm time setting mode.

•In alarm time setting mode, press it to step

the setting items.

11.RESET key:

•Press it to return all values to default values.

•In case of malfunction, the unit may be

required to reset.

12.RCC key:

•In normal time mode, press it once to receive

the RC signal for reception testing.

•During the reception period, press and hold it

for 8 seconds to stop the reception.

13.UK/EU slide switch:

•Slide it to select the country version between

EU (Germany) and UK (England).

14.BATTERYCOMPARTMENT:

•Accommodates 2 AA size batteries.

15.BATTERY DOOR

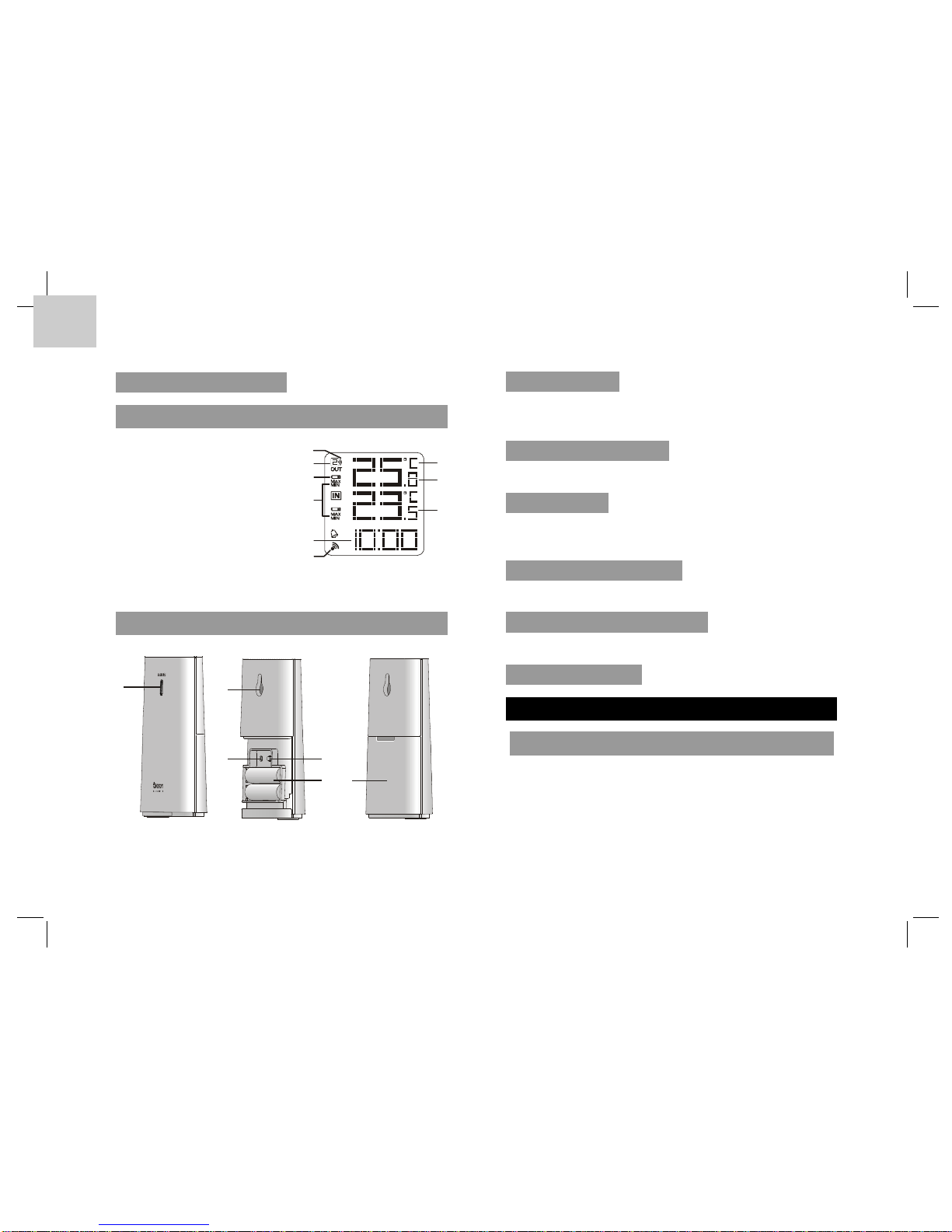

LCD DISPLAY

1. Sensor signal

2. Channel

3. Low battery indicator

4. Min.&Max.temperature

5. Time

6. Signal reception indicator

7. °C & °F

8. Outdoor temperature

9. Indoor temperature

SENSOR

1.LED indicator:

•Flashes when the remote unit transmits a

reading.

2.Wall-mounting holder:

•Supports the sensor on the wall.

3.RESET key:

• Press it to restart the sensor and return all

values to default values.

4.CHANNEL slide switch:

•Assign the sensor to channel 1, 2 or 3.

5.BATTERY COMPARTMENT:

•Accommodates 2 AAA size batteries.

6.BATTERY DOOR

RECEPTION OF SENSOR SIGNAL

OPERATING THE MAIN UNIT

1. Remove the battery door and slide “UK/EU”

switch to select the desired country version.

2. Insert 2 new AA size batteries as per the polarity

informationmarkedonthebatterycompartment.

3. Press “RESET” key to restart the clock.

4. Slide “°C/°F” switch to select between Celsius

and Fahrenheit.

5. Replace the battery door.

6. Press “+/CHANNEL” key to select the desired

channel.

Note When the sensor signal is received, the icon

“ ” will be displayed on the LCD.

OPERATING THE SENSOR

1. Remove the battery door and slide

“CHANNEL” switch to synchronize the channel

with receiver.

2. Insert 2 new AAA size batteries as per the

polarity information marked on the battery

compartment.

3. Press “RESET” key to restart the clock.

4. Replace the battery door.

Note

The transmission range may vary depending on

many factors. You may need to experiment with

various locations to get the best results.

Standard Alkaline batteries contain significant

amounts of water. Because of this they will freeze

in low temperatures of approximately -12°C (10°F).

Disposable Lithium batteries have a much lower

threshold for temperature with an estimated

freezing range of below -30°C (-22°F).

Wireless ranges can be impacted by a variety of

factors such as extremely cold temperatures.

Extreme cold may temporarily reduce the effective

range between the sensor and the base station. If

the unit’s performance fails due to low temperature,

the unit will resume proper functioning as the

temperature rises to within the normal temperature

range (i.e. no permanent damage will occur to the

unit due to low temperatures).

Main unit is searching for the sensor(s)

(the icon will be flashing)

The sensor(s) cannot be found

Sensor 1 has been found

(the icon will be displayed,

but won't flash)

The sensor(s) cannot be found after

operating the main unit for 60 minutes

and “--”

(Outdoor

temperature

Area)

RECEPTION OF RADIO CONTROLLED

TIME SIGNAL

The time and calendar are radio-controlled. The

current time and calendar are automatically

synchronized with time signal transmitted from

Germany/England.

When used for the first time (after inserting batteries

or pressing “RESET” key), and then after 5 minutes,

the clock will start to receive the time signal. The

signalreceptionindicator will beflashingfor 7 minutes.

SIGNAL RECEPTION INDICATOR

The wave segment flashing means time signals are

being received. The signal quality could be classified

into 3 types:

Note

1. The unit will automatically search for the time

signal at 2:00 (3:00 or 4:00 is also available if

the signal is not received at 2:00), 8:00, 14:00

and 20:00 each day.

2. Always place the unit away from interfering

sources such as TV set, computer, etc.

3. Avoid placing the unit on or next to metal

plates.

4. Closed area such as airport, basement, tower

block or factory is not recommended.

5. Do not start reception in moving articles such

as vehicles or trains.

TIME AND CALENDAR MANUAL SETTING

If you are out of reach of the Radio Controlled

sensor or if the reception is not reachable, the time

and calendar can be set manually. As soon as the

signal of sensor is received again, the clock will

automatically synchronize with the exact time and

calendar.

1. In normal time mode, press “SET CLOCK”

key once to enter the time setting mode.

2. Press “+/CHANNEL” or “-/MIN.MAX.” key to

change the settings.

3. Press “SET CLOCK” to confirm. The setting

order is: 12/24-hr format, time, +/-23 hours

time difference, year, day/month format,

date.

4. Press “SET CLOCK” key to save and exit the

setting mode.

No signal Weak signal

Excellent signal

Note

1. During the setting period, press and hold “+/

CHANNEL” or “-/MIN.MAX.” key to speed up

the change of settings.

2. Through “+/-23 hours time difference” setting,

the precise time of another area will be shown.

ALARM TIME SETTING

1. In normal time mode, press “SET ALARM”

key once to enter the alarm time setting

mode.

2. Press “+/CHANNEL” or “-/MIN.MAX.” key to

set hour/minute.

3. Press “SET ALARM” key to save and exit the

setting mode. “” indicates alarm is ON.

Note

1. Thealarmwill beautomaticallyturned onwhen

you set the alarm time.

2. During the alarm time setting period, press

and hold “+/CHANNEL” or “-/MIN.MAX.” key

to speed up the change of settings.

USING ALARM FUNCTION

1. Set the alarm time as the above section.

2. Innormaltime mode,press“ALARMON/OFF”

key once to display the current alarm time.

3. Press it again to turn alarm ON/OFF.

Normal time mode

Alarm time setting mode

12/24 Hr setting Time setting

Time difference setting

Year settingMD/DM settingMonth-Date setting

TO SILENCE THE ALARM

1. Press “SNOOZE/LIGHT” to silence the alarm

for 8 minutes. The “ ” will be flashing.

2. Press “ALARM ON/OFF” key to turn the alarm

off and activate it again after 24 hours.

3. If no key is pressed within 120 seconds, the

alarm will be turned off and be activated

again after 24 hours.

READING INDOOR & OUTDOOR

TEMPERATURE RECORDS

Slide “ºC/ºF” switch to select between Celsius and

Fahrenheit.

Note

1. If no signals are received or the transmission

is interfered, “--” will appear on the display.

2. Relocate the clock or sensor in other positions

to try out where your clock receives the

signals best. After several trials in vain,

please reset the clock thoroughly.

MAX.temperature records

MIN.temperature records

VIEWINGTHEMIN. &MAX.TEMPERATURE

RECORDS

1. Innormalmode, press “-/MIN./MAX.” key once

to show the minimum indoor & outdoor

temperature records in the past 24 hours.

2. Press it twice to show the maximum

temperature records.

3. Press it once again to exit.

Note Press and hold it for 3 seconds to delete

the minimum and maximum temperature records.

USING ICE ALERT FUNCTION

If the outdoor temperature range is -2.0ºC ~ 3.0ºC

(28.4ºF ~ 37.4ºF), the ice alert indicator light will be

turned on and flash.

BATTERY REPLACEMENT

If the low battery indicator “” displays beside

the outdoor temperature, it means that the battery

power of sensor is not enough, and you should

replace with 2 AAA size batteries at once.

While if the low battery indicator “” displays

beside the indoor temperature, it indicates that you

should replace batteries of the main unit with 2 new

AA size batteries.

Note

Attention!Pleasedispose of theusedunit orbatteries

in an ecologically safe manner.

Low battery indicator

PLACEMENT OF MAIN UNIT AND

SENSOR

For the sensor, place the screw on the desired wall

and hang the sensor by the recessed hole in the

back of it or simply place it on the desktop.

For the main unit, you can just place it on the table

by itself.

Other manuals for EW92

Table of contents

Languages:

Other Oregon Scientific Weather Station manuals

Oregon Scientific

Oregon Scientific BAR626 User manual

Oregon Scientific

Oregon Scientific WR606 User manual

Oregon Scientific

Oregon Scientific RMR383HGA_M_OP User manual

Oregon Scientific

Oregon Scientific RGR126N User manual

Oregon Scientific

Oregon Scientific WR606 User manual

Oregon Scientific

Oregon Scientific BAR388HG User manual

Oregon Scientific

Oregon Scientific BAR208HG User manual

Oregon Scientific

Oregon Scientific Clima Control RMR500 User manual

Oregon Scientific

Oregon Scientific NAPOLI RM998PA User manual

Oregon Scientific

Oregon Scientific EB312E User manual

Oregon Scientific

Oregon Scientific THN802-01 User manual

Oregon Scientific

Oregon Scientific BA113 User manual

Oregon Scientific

Oregon Scientific BAR806HG User manual

Oregon Scientific

Oregon Scientific Color Weather Station AWS888N User manual

Oregon Scientific

Oregon Scientific WMR86N User manual

Oregon Scientific

Oregon Scientific WMR180 User manual

Oregon Scientific

Oregon Scientific WMR100NA User manual

Oregon Scientific

Oregon Scientific WMR200 User manual

Oregon Scientific

Oregon Scientific ECLIPSE User manual

Oregon Scientific

Oregon Scientific BAR800 User manual

Oregon Scientific

Oregon Scientific BAR686 User manual

Oregon Scientific

Oregon Scientific RAR502X User manual

Oregon Scientific

Oregon Scientific RAR213HGX-01 User manual

Oregon Scientific

Oregon Scientific WMR89 User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
