INTRODUCTION

Congratulations on your purchase of the BAR913 Digital Weather

Forecaster with Hygrometer and RF Clock. The BAR913 is an all-

in-one weather forecasting device and clock.

The BAR913, a weather forecasting device, has several weather

related functions. A main feature is that it takes and records

temperatures in more than one location. Using a wireless remote

thermo-sensor, it can simultaneously monitor temperatures in

three remote locations. The unit will show temperature trends and

record maximum and minimum temperature readings.

As part of the weather forecasting function, a built-in barometer

that displays atmospheric pressure. Using graphic illustrations

the unit displays atmospheric pressure trends and displays forecasts

as sunny, partly cloudy, cloudy, and rainy.

The BAR913 is also a Radio Frequency (RF) controlled clock. It can

automatically synchronize its current time and date when it is

brought within an approximate 1500 km radius of the radio signal

generated from Frankfurt, Germany (DCF77).

Included with this unit is a hygrometer. This feature graphically

illustrates the current comfort level, displays the current humidity,

and shows maximum and minimum humidity levels.

Other features of the BAR913 include, backlight, extra-large liquid

crystal display (LCD), and a daily crescendo alarm with an eight

minute snooze function.

No wire installation is required between the main and remote units.

As the BAR913 operates at 433 MHz, it can be used in the USA and

most places in Continental Europe.

MAIN FEATURES: MAIN UNIT

A. FRONT DISPLAY

The extra-large LCD occupies the front panel. The LCD is

subdivided into five easy-to-read sections. Each section

has a specific purpose that relates to weather forecasting,

humidity, or clock / calendar / alarm functions.

A1. WEATHER FORECAST WINDOW

-Graphically illustrates a weather forecast

-Indicates trends in atmospheric pressure

-Indicates when main unit battery is low

A2. REMOTE TEMPERATURE WINDOW

-Displays current temperature, remote sensor unit

-Indicates the minimum / maximum remote temperature

-Displays remote temperature as Fahrenheit(°F) or Celsius(°C)

-Indicates remote temperature trend

-Indicates when the remote sensor battery is low

-Indicates the remote sensor channel

A3. MAIN UNIT TEMPERATURE WINDOW

-Displays current indoor temperature

-Indicates minimum / maximum indoor temperature

-Displays indoor temperatures as Fahrenheit(°F) / Celsius(°C)

A4. HYGROMETER WINDOW

-Graphically illustrates the level of comfort.

-Current humidity

-Maximum and minimum humidity level

A5. TIME/DATE/ALARM WINDOW

-Displays the current time, date (day, month, and year), or

alarm time

-Radio Frequency (RF) status indicator [ ]

-“ALARM ON” icon, indicates when the alarm is active [ ]

-Alarm indicator [

ALARMALARM

ALARM

]

-A.M. / P.M. indicator

B. CONTROL BUTTONS

B1. CHANNEL BUTTON

Sets the remote sensor channel.

B2. MEMORY BUTTON

Displays minimum and maximum temperature readings, and

erases memory data

B3. UP(+)DOWN(-) BUTTONS

Sets the increase or decrease in the value of a setting.

B4. MODE BUTTON

Changes the display mode of the clock, and alters time/date

setting

B5. SNOOZE/LIGHT BAR

Activates the snooze function, functions to turn on the

backlight

B6. ALARMSET BUTTON[]

Displays the alarm time, or changes the alarm time

B7. ALARM OFF/ON BUTTON[ ]

Activates and deactivates the alarm

C. BACK PANEL

C1. BATTERY COMPARTMENT

Accommodates four UM-3 or “AA” size batteries

C2. RESET SLOT

Resets the unit by returning all setting to their default values

C3. °C/°F SLIDE SWITCH

Selects between Centigrade (°C ) or Fahrenheit(°F) display

C4. COLLAPSIBLE TABLE STAND

Easy-open table stand with lock

MAIN FEATURES:

REMOTE SENSOR UNIT

The remote sensor is an independent component. It comes with

a wall-mount holder and removable table stand.

D1. LCD

Displays the current temperature monitored by the remote

unit

D2. LED INDICATOR

Flashes when the remote unit transmits a reading

D3. °C/°F SLIDES WITCH

Selects between Centigrade (°C) and Fahrenheit (°F)

D4. CHANNEL SLIDE SWITCH

Designates the remote sensor Channel 1, Channel 2 or

Channel 3

D5. RESET BUTTON

Returns all settings to default values

D6. BATTERY COMPARTMENT

Accommodates two UM-4 “AAA” size batteries

D7. BATTERY DOOR

D8. WALL-MOUNT HOLDER

Supports the remote unit in wall-mounting

D9. REMOV ABLE TABLE STAND

For standing the remote unit on a flat surface

BEFORE YOU BEGIN

For best operation:

1. Insert batteries for the remote unit first. Then proceed with

inserting the batteries for the main unit.

2. Position the remote unit and the main unit within effective

transmission range. In usual circumstances, the effective range

is 30 meters.

3. Though the remote unit is weather proof, it should be placed

away form direct sunlight, rain or snow.

BATTERY INSTALLATION:

REMOTE UNIT

The remote unit uses two (2) UM-4 or “AAA” size batteries.

Installation:

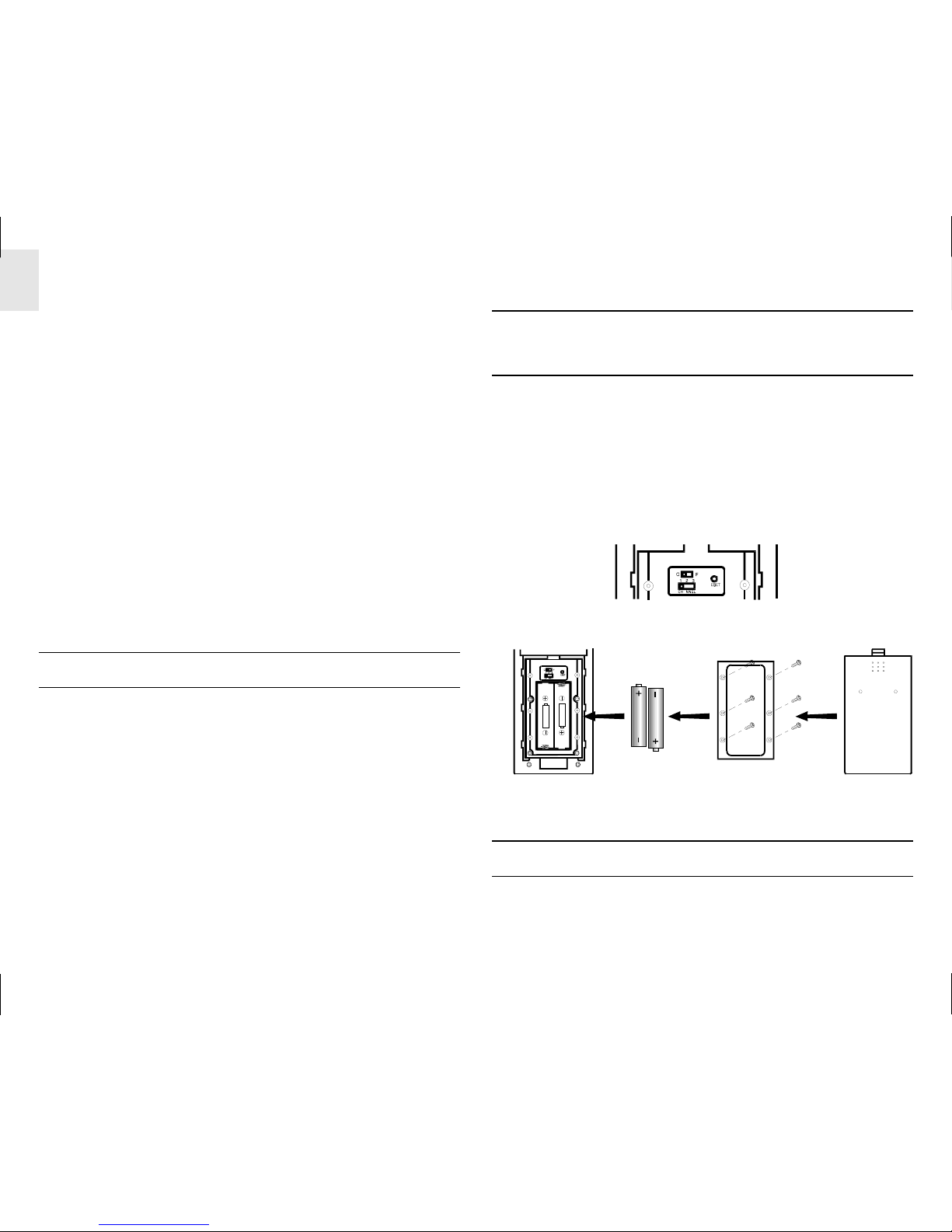

1. Remove the outer battery compartment door.

2. Remove inner screws and open the inner clear plastic

compartment door.

3. Select the channel number on the CHANNEL slide switch.

4. Select the temperature display unit on the °C/°F slide switch.

5. Insert the batteries strictly according to the polarities shown.

6. Replace the battery compartment door and secure its screws.

BATTERY INSTALLATION: MAIN UNIT

1. Gently lift the tab on the battery compartment door.

2. Insert four UM-3 or “AA” size alkaline batteries.

3. Replace the battery compartment door.

Note: For both the remote sensor and the main unit, replace batteries

when they are low. The [ ] battery low indicator in the outdoor

temperature window will be displayed when the batteries are low.

ABOUT RADIO RECEPTION

The BAR913 is designed to automatically synchronize its calendar

clock once it is brought within range of the Frankfurt DCF77 radio

signal. It will scan and adjust every full hour.

When the BAR913 is within range, its radio-control mechanism

will override all manual settings.

When the unit is receiving radio signal, the RADIO RECEPTION

signal will start to blink. A complete reception generally takes

about two to 10 minutes, depending on the strength of the radio

signal.

When the reception is complete, the RADIO RECEPTION signal

will stop blinking. The strength of the reception for the last full

hour will be indicated.

For better reception, place the clock away from metal objects and

electrical appliances to minimize interference.

Should you wish to deactivate the RF controlled function, press

MODE and DOWN(-) button simultaneously.

To reactivate the RF control function, press MODE and UP(+)

simultaneously.

HOW TO USE THE BACKLIGHT

Press SNOOZE/LIGHT baronce.Thebacklightwill be activate for

five seconds.

Strong

Weak

No signal

Receiving

3. Setting the time

Press MODE again, the hour settings will flash. Use the UP(+)

or DOWN(-) button to enter the hours. Holding down either the

up or down position will increase or decrease the value rapidly.

Press MODE again, the minute settings will flash. Again, use the

UP(+) or DOWN(-) button to change the minutes.

Note: When changes are made to the clock settings, the seconds

will start from zero.

4. Setting the calendar

Proceeding for the time display:

Press MODE again, the calendar settings are displayed and the

year is flashing. Use the UP(+) or DOWN(-) button to change the

year.

Press MODE button, the month settings will flash. Enter the

appropriate month using the UP(+) or DOWN(-) button.

Press MODE button, the day settings will flash. Enter the

appropriate day using the UP(+) or DOWN(-) button.

Press MODE again. The day (D) and month (M) symbols will

flash. The unit provides an option that allows either the day or

the month to be indicated first. Using the UP(+) or DOWN (-)

button, select whether the calendar reads as: Day/Month; or

Month/Day.

Day / Month Month / Day

Press MODE again to confirm and exit.

HOW TO MANUALLY SET THE CLOCK

1. Setting the 12hr./24hr. clock display

Press MODE and hold for three seconds. The 12-hr value will

flash. Use the UP(+) or DOWN(-) buttons to make a selection

between a twenty-four hour display and a twelve hour display.

2. Setting the Multilingual Day-Of-The-Week Function

The day-of-the-week can be expressed as an abbreviation in five

different languages. The languages and their selected

abbreviations for each day of the week are

shown in the language chart below.

Proceeding from the clock display:

Press MODE again and the language setting will flash. Use the

UP(+) or DOWN(-) button to select E for English, I for Italian, D

for German, F for French, or S for Spanish.

German

Arrow

indicator

Temperature

Trend Steady FallingRising

ATMOSPHERIC PRESSURE

The atmospheric pressure indicator, in the weather forecast window,

uses arrows to indicate if the atmospheric pressure is increasing,

remaining stable, or decreasing.

HOW TO SET AND ACTIVATE THE

ALARM

1. To set the Alarm

Press ALARM button to display the alarm time.

Press ALARM and hold for three seconds, the value for the hour

setting will flash.

Press UP(+) or DOWN(-) buttons to make changes to the alarm

hour setting.

Press ALARM, the minute setting will flash. Enter the value for

the minute setting.

Press ALARM to exit.

The alarm is automatically activated.

2. To deactivate the alarm setting

Press ALARM ON/OFF [] to activate or deactivate the

alarm setting. When the ALARM ON icon [ ]is visible, the

alarm is set. The alarm will active at the specified time.

ALARM AND SNOOZE FUNCTION

When the alarm activates, the backlight will go on for five seconds

and the ALARM ON icon will flash.

The alarm function has a built in crescendo type alarm system.

Initially, the active alarm will have a gentle sound. The intensity

will increase in three stages. Without interruption, the unit will

alarm for two minutes.

To stop the alarm, press any button. However, if the SNOOZE/

LIGHT bar is pressed, the SNOOZE functionwill be triggered. The

alarm will stop and the ALARM ON icon blinks for eight minutes.

Then the alarm activates again.

To deactivate the SNOOZE function, press the ALARM ON/OFF

button.

CHECKING INDOOR AND REMOTE

SENSOR TEMPERATURES

Theindoor temperature readings,and indoor temperaturemaximum/

minimum indicator are all part of the INDOOR TEMPERATURE

window.

The OUTDOOR temperature window displays remote sensor

temperatures, maximum and minimum temperatures and outdoor

temperature trends. This window also displays the remote sensor

channels and a remote sensor battery low [ ] icon.

The temperature can be shown in Centigrade (°C) or Fahrenheit

(°F). Select the appropriate reading by using the °C/°F slide switch

(located in the battery compartment). Slide the switch to °C for

Centigrade or °F for Fahrenheit.

This unit is able to measure outdoor temperatures within -50°C (-

58°F) and +70°C (+158°F) and indoor temperatures within -9.9° C

(14.2° F) and 70.° C (158.°F). If the temperature goes above or below

these amounts, the display will show a flashing “HHH” or “LLL”.

NOTE ON OUTDOOR-REMOTE

TEMPERATURE

Once batteries are in place in the remote unit, it will start

transmitting samplings at 30 second intervals.

If no signals are received when the outdoor-remote temperature is

selected, “ ” will be displayed. To force the main unit to

search for remote sensor signals, press MEMORY and CHANNEL

simultaneously.

If that fails, check that the remote sensor is still in place. Make sure

the transmission is within range and the path is clear of obstacles

and interference.

Repeat this procedure whenever you find discrepancies between

the display on the main unit and the display on the remote sensor.

NOTE ON SETTING REMOTE SENSOR

CHANNELS

The unit has an auto-scan function that sequentially displays

temperature readings of up to three remote sensors. If more than one

remote sensor is being used, set the channel before inserting the

batteries.

Arrow

indicator

Temperature

Trend Steady FallingRising

MAXIMUM AND MINIMUM

TEMPERATURES

The maximum and minimum recorded temperatures will be

automaticallystoredinmemory.Todisplaythem,press MEMORY.

Press MEMORYagaintoalternatebetweenthemaximum,minimum,

and current temperatures. The respective MAX or MIN indicator

will be displayed.

To clear the memory, press MEMORY button and hold for three

seconds. The maximum and minimum recorded temperatures will

be erased. Subsequently, if you press MEMORY after the memory

has been erased, the maximum and minimum temperature will have

the same values as the current reading.

TEMPERATURE TREND

The temperature trend indicator shows the trend of temperatures

collected at that particular remote sight. Three trends: rising, steady,

and falling will be shown.

WEATHER FORECAST

The unit is capable of detecting atmospheric pressure changes.

Basedoncollecteddata,itcanpredicttheweatherfortheforthcoming

12 to 24 hours. The effective range covers an area of 30 to 50 km.

Table of contents

Languages:

Other Oregon Scientific Weather Station manuals

Oregon Scientific

Oregon Scientific THGR221 User manual

Oregon Scientific

Oregon Scientific RMR203HG User manual

Oregon Scientific

Oregon Scientific WMH90 User manual

Oregon Scientific

Oregon Scientific EW93 User manual

Oregon Scientific

Oregon Scientific WMR100NA User manual

Oregon Scientific

Oregon Scientific BARM688 User manual

Oregon Scientific

Oregon Scientific BAR208HG User manual

Oregon Scientific

Oregon Scientific BAR206X User manual

Oregon Scientific

Oregon Scientific WMR86N User manual

Oregon Scientific

Oregon Scientific BAR638HGA User manual

Oregon Scientific

Oregon Scientific BAR938HG User manual

Oregon Scientific

Oregon Scientific BAR310HG User manual

Oregon Scientific

Oregon Scientific BAR938HG User manual

Oregon Scientific

Oregon Scientific BAR608HGA User manual

Oregon Scientific

Oregon Scientific BAR112HG User manual

Oregon Scientific

Oregon Scientific Global 5-Day Weather Adviser II I600 User manual

Oregon Scientific

Oregon Scientific Alize BAR268HG User manual

Oregon Scientific

Oregon Scientific BAR636A User manual

Oregon Scientific

Oregon Scientific BAR888 User manual

Oregon Scientific

Oregon Scientific BAR888A User manual

Oregon Scientific

Oregon Scientific BAR386 User manual

Oregon Scientific

Oregon Scientific LW301 User manual

Oregon Scientific

Oregon Scientific S+ARCK PS-L03 User manual

Oregon Scientific

Oregon Scientific BAR609HGA User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
