Oregon Scientific BAR688HG User manual

Wireless Weather Station with

Temperature / Humidity, Ice Alert

and Radio-Controlled Clock

Model: BAR688HG

USER MANUAL

P/N:086L004344-058 REV 1

1/94

Wireless Weather Station with

Temperature / Humidity, Ice Alert and

Radio-Controlled Clock

Model: BAR688HG

USER MANUAL

CONTENTS

Contents................................................................ 1

Introduction........................................................... 2

Clock Overview..................................................... 2

Front View........................................................... 2

Back View............................................................ 2

LCD Display......................................................... 3

Remote Sensor (THGN122N)............................. 4

Getting Started...................................................... 4

Batteries.............................................................. 4

Remote Sensor...................................................... 4

Sensor Data Transmission.................................. 6

Clock ..................................................................... 6

Clock Reception.................................................. 6

Reception Signal ................................................ 6

Set Clock............................................................. 6

Alarm...................................................................... 7

Barometer.............................................................. 7

Set Altitude.......................................................... 7

Weather Forecast................................................. 7

Temperature and Humidity.................................. 8

Temperature, Humidity And Pressure Trend...... 8

Ice Warning ....................................................... 8

Hi / Lo Temperature / Humidity Alarms................ 8

Heat Index............................................................ 8

Comfort Zone....................................................... 9

Moon Phase.......................................................... 9

Reset..................................................................... 9

Precautions .......................................................... 10

Speciﬁcations....................................................... 10

About Oregon Scientiﬁc...................................... 11

EU-Declaration of Conformity............................. 11

P/N:086L004344-058 REV 1

2/94

INTRODUCTION

Thank you for selecting this Oregon ScientiﬁcTM Wireless

Weather Station with Temperature / Humidity, Ice Alert

and Radio-Controlled Clock (BAR688HG). This clock

is supplied with a remote sensor (THGN122N) and can

support up to 3 sensors in total (additional sensors sold

separately).

NOTE Please keep this manual handy as you use

your new product. It contains practical step-by-step

instructions, as well as technical speciﬁcations and

warnings you should know about.

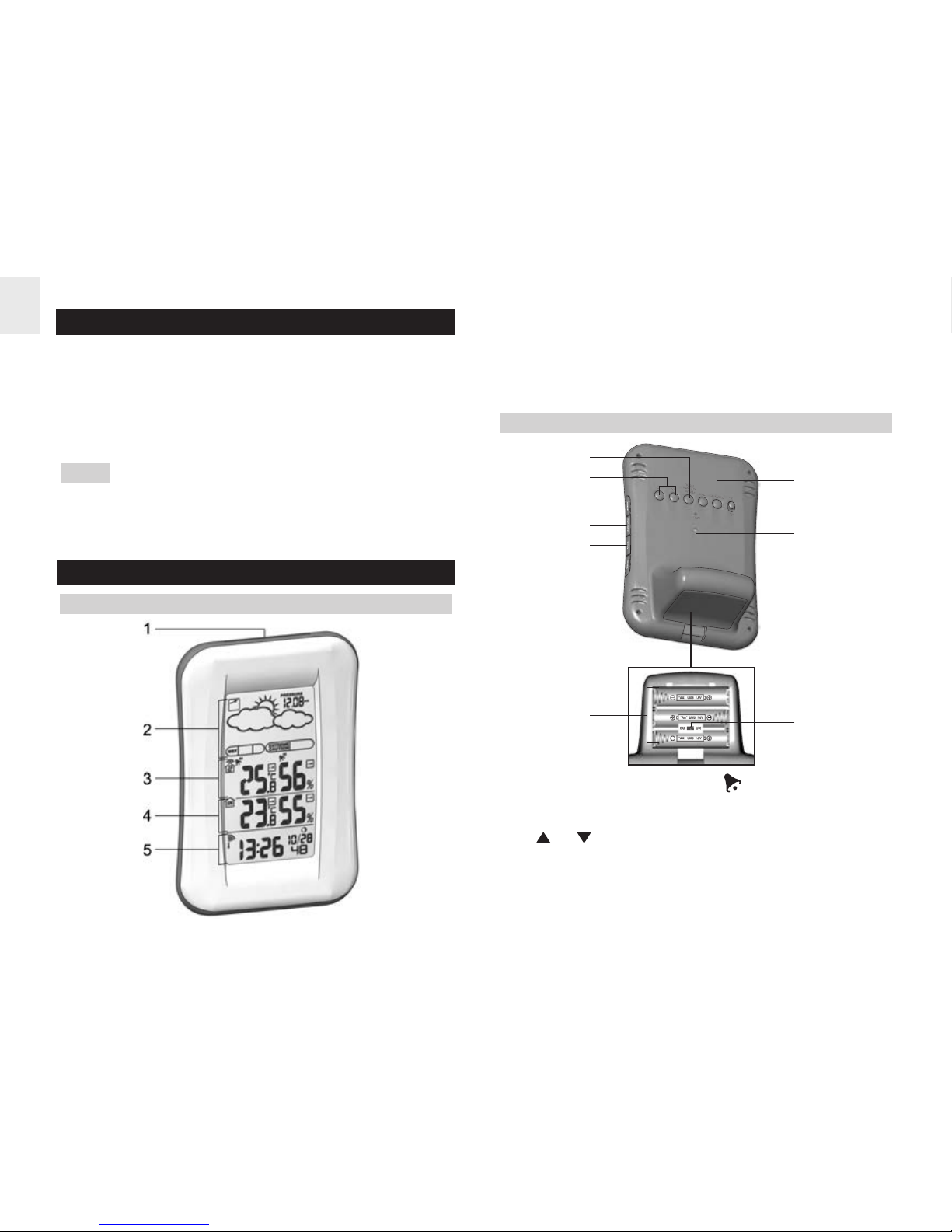

CLOCK OVERVIEW

FRONT VIEW

1. SNOOZE

2. Weather Forecast Area

3. Outdoor Temperature Area

4. Indoor Temperature Area

5. Clock / Alarm Area

BACK VIEW

1. TEMP / HUMIDITY HI / LO : Change settings or

enable / disable hi or lo temperature / humidity alarm

for channel 1

2. / : Increase / decrease setting; activate /

deactivate clock reception signal

3. CHANNEL: Switch remote sensor display

4. HEAT INDEX: Display heat index

5. MODE: Change settings / display

P/N:086L004344-058 REV 1

3/94

LCD DISPLAY

Weather Forecast Area:

1. Pressure trend

2. Weather forecast

3. Comfort zone

4. Pressure icon

5. Altitude icon

6. Pressure / altitude unit

7. UV index icon

6. ALARM: View alarm status; set alarm

7. Battery compartment

8. MEM: View current, maximum and minimum tem-

perature / humidity

9. PRESSURE: Select pressure unit; set altitude

10. °C / °F: Select temperature unit

11. RESET: Reset unit to default settings

12. EU / UK switch

Outdoor Temperature Area:

1. Heat index icon

2. Hi / lo temperature alarm

3. Sensor reception icon

4. Sensor battery low

5. Max / min icon

6. Temperature display

7. Ice warning is active

8. Hi / lo humidity alarm

9. Temperature trend

10. Humidity trend

11. Humidity display

Indoor Temperature Area:

1. Indoor sensor icon

2. Max / min icon

3. Temperature display

4. Temperature trend

5. Humidity trend

6. Humidity display

P/N:086L004344-058 REV 1

4/94

Clock / Alarm Area:

1. Alarm set

2. AM / PM icon

3. Clock signal reception

4. Low battery icon

5. Clock

6. Alarm mode icon

7. Moon phase

REMOTE SENSOR (THGN122N)

1. LED status indicator:

Blinks red during data

transmission

1. Wall mount hole

2. RESET hole

3. CHANNEL switch

4. Battery compartment

GETTING STARTED

BATTERIES

Insert batteries before ﬁrst use, matching the polarity (+

and -). Press RESET after each battery change.

indicates main unit batteries are low.

NOTE Do not use rechargeable batteries. We

recommend that you use alkaline batteries with this

product for longer usage and lithium batteries in

temperatures below freezing.

REMOTE SENSOR

The sensor collects temperature readings approx. every

40 seconds and sends them to the main unit. The main

unit can collect data from up to 3 sensors.

To set up the sensor:

1. Remove the screws from the battery door.

2. Insert the batteries, matching the polarity (+ / -).

P/N:086L004344-058 REV 1

5/94

For best results:

• Place the sensor out of direct sunlight and

moisture.

• Do not place the sensor more than 30 m (100 ft) from

the main (indoor) unit.

• Position the sensor so that it faces the main (indoor)

unit, minimizing obstructions such as doors, walls,

and furniture.

• Place the sensor in a location with a clear view to the

sky, away from metallic or electronic objects.

• Position the sensor close to the main unit during cold

winter months as below-freezing temperatures may

affect battery performance and signal transmission.

3. Select a channel. Make sure you use a different

channel for each sensor.

4. Place the sensor near the main unit. Press RESET

on the sensor.

5. Simultaneously press CHANNEL and MEM on the

main unit to initiate signal sending between the

sensor and main unit.

6. Close the battery door and secure the screws.

7. Place the sensor in the desired location using the

table stand or wall mount.

The transmission range may vary depending on many

factors. You may need to experiment with various

locations to get the best results.

Standard Alkaline batteries contain signiﬁcant amounts

of water. Because of this they will freeze in low

temperatures of approximately -12°C (10°F). Disposable

Lithium batteries have a much lower threshold for

temperature with an estimated freezing range of below

-30°C (-22°F).

Wireless ranges can be impacted by a variety of factors

such as extremely cold temperatures. Extreme cold

may temporarily reduce the effective range between the

sensor and the base station. If the unit's performance

fails due to low temperature, the unit will resume proper

functioning as the temperature rises to within the normal

temperature range (i.e. no permanent damage will occur

to the unit due to low temperatures).

P/N:086L004344-058 REV 1

6/94

SENSOR DATA TRANSMISSION

The sensor reception icon in the remote sensor area

shows the status.

ICON DESCRIPTION

and “- - . -“

(Outdoor

temperature Area)

The sensor cannot be found.

Search for the sensor or

check batteries

A channel has been found

and sensor signal is being

received

Main unit is searching

for the sensor(s)

To search for a sensor:

Simultaneously, press and hold MEM and CHANNEL

for 2 seconds.

NOTE If the sensor is still not found, check the batteries,

obstructions, and remote unit location.

CLOCK

CLOCK RECEPTION

This product is designed to synchronize its date and time

automatically once it is within range of :

• DCF-77 generated from Frankfurt, Germany for

Central Europe.

• MSF-60 generated from Anthorn, England.

RECEPTION SIGNAL

To enable and force a signal search:

Press and hold for 2 seconds.

To disable the signal reception:

Press and hold for 2 seconds.

STRONG SIGNAL WEAK SIGNAL NO SIGNAL

SET CLOCK

If the clock signal reception is enabled and a signal is

being received the clock does not need to be manually

set.

1. Press and hold MODE for 2 seconds.

2. Press or to change the settings.

Clock signal reception indicator:

The clock collects the radio signals whenever it is within

1500 km (932 miles) of a signal.

NOTE Slide the EU / UK switch to appropriate position for

your location. Repeat each time you reset the unit.

NOTE Initial reception takes 2-10 minutes for ﬁrst set

up or when RESET is pressed. Once complete, the

reception icon will stop blinking. If the signal is weak, it

can take up to 24 hours to get a valid signal.

P/N:086L004344-058 REV 1

7/94

SET ALTITUDE

To ensure barometric readings are reliable set the altitude

to reﬂect distance from sea level at your position.

1. Press and hold PRESSURE for 2 seconds.

2. Use and to set the altitude in 10 m (33 ft)

increments from 100 m (328 ft) to 2500 m (8202 ft).

3. Press PRESSURE to conﬁrm.

ALARM

To set the alarm:

1. Press and hold ALARM for 2 seconds.

2. Press / to set hour / minute.

3. Press ALARM to conﬁrm. indicates alarm is ON.

To toggle alarms ON / OFF:

1. Press ALARM to display alarm time.

2. Press ALARM again to turn alarm ON / OFF.

To silence the alarm:

• Press SNOOZE to silence it for 8 minutes.

• Press any key except SNOOZE to turn the alarm off

and activate it again after 24 hours.

BAROMETER

Barometer readings from the past 24 hours are stored by

the main unit and used to provide weather forecast.

To select barometer measurement unit:

Press PRESSURE to toggle between mb and inHg.

3. Press MODE to conﬁrm.

4. The settings order is: time zone offset, hour, minute,

year, month, day and language.

NOTE The time zone offset can be used to set the clock

up to + / - 9 hours from the received clock signal time.

If you have disabled the clock signal reception (i.e.

manually setting the clock), do not set a value for time

zone offset.

NOTE The language options are English (E), German

(D), French (F), Italian (I), and Spanish (S).

Press MODE to choose between the clock with seconds

and clock with weekday display modes.

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of

weather within a 30-50 km (19-31 mile) radius based

on barometric pressure trend readings.

ICON DESCRIPTION

Clear

Cloudy

Rainy

Partially Cloudy

P/N:086L004344-058 REV 1

8/94

TEMPERATURE AND HUMIDITY

To toggle temperature unit:

Press °C / °F.

To view outdoor sensors temperature readings:

Press CHANNEL.

To auto-scan between sensors:

Press and hold CHANNEL for 2 seconds.

Each sensor’s data is displayed for 3 seconds.

To end auto-scan:

Press CHANNEL or MEM.

To toggle between current, minimum and maximum

records for the selected sensor:

Press MEM repeatedly.

To clear the records:

Press and hold MEM for 2 seconds.

ICE WARNING

If the channel 1 sensor falls between 3°C to –2°C (37°F

to 28°F), ﬂashes to warn you that the temperature is

approaching freezing.

NOTE The warning will automatically stop if the

temperature goes outside the ice-warning range.

TEMPERATURE, HUMIDITY AND PRESSURE TREND

The temperature, humidity and pressure trend icons are

based on recent sensor readings.

RISING STEADY FALLING

HI / LO TEMPERATURE /HUMIDITY ALARMS

Temperature and humidity alerts can be set to sound

if sensor set to channel 1 records above or below a

temperature/humidity of your choice.

To set alarm ON / OFF:

1. Press and hold TEMP / HUMIDITY HI / LO .

2. Use and to select high / low temperature /

humidity alarm. Press TEMP / HUMIDITY HI / LO

to conﬁrm.

3. Press / to set alarm ON / OFF and press TEMP

/ HUMIDITY HI / LO to conﬁrm.

4. If alarm has been activated, use and to select

the temperature / humidity.

5. Press TEMP / HUMIDITY HI / LO to conﬁrm.

To silence the hi / lo alarm:

Press any key. The alarm resets automatically and will

resound if the hi / lo temperature is recorded again.

HEAT INDEX

The heat index combines temperature and humidity data

to describe the actual temperature felt.

P/N:086L004344-058 REV 1

9/94

WARNING HEAT INDEX MEANING

Extreme

danger

Strong risk of

dehydration / sun

stroke

54.5°C / (130°F)

or above

Danger Heat exhaustion

likely

40.5 - 54°C

(105 - 129°F)

Extreme

caution

Possibility of heat

dehydration

32.2 - 40°C

(90 - 104°F)

Caution Possibility of heat

exhaustion

26.6 - 31.7°C

(80 - 89°F)

• To display the heat index, press HEAT INDEX.

• To toggle between current / maximum / minimum

readings, press HEAT INDEX, then press CHANNEL

to select channel 1-3 or indoor, followed by MEM.

• To toggle between temperature / humidity and heat

index display, press and hold HEAT INDEX for 2

seconds. Press HEAT INDEX again to stop this

feature.

NOTE If the heat index is below 80°F / 26°C, or the

desired channel is not working, the heat index will

display NA .

COMFORT ZONE

The comfort zone assesses the climate based on current

temperature and humidity measurements.

ICON TEMPERATURE HUMIDITY

> 70%Any

40 - 70%

20 - 25°C

(68 - 77°F)

< 40%Any

MOON PHASE

• When calendar is set press or to view the moon

phase for the next / previous day.

• Press and hold or to scan through the years

(2001 to 2099).

Waxing Crescent

New Moon

Waxing Gibbous

First Quarter

Full Moon

Last Quarter

Waning Gibbous

Waning Crescent

RESET

Press RESET to return the unit to the default settings.

P/N:086L004344-058 REV 1

10/94

Other manuals for BAR688HG

Table of contents

Languages:

Other Oregon Scientific Weather Station manuals

Oregon Scientific

Oregon Scientific PRYSMAchrome BAR292 User manual

Oregon Scientific

Oregon Scientific WMR200 User manual

Oregon Scientific

Oregon Scientific EB312E User manual

Oregon Scientific

Oregon Scientific BAR182HG User manual

Oregon Scientific

Oregon Scientific Monza FAW-101 User manual

Oregon Scientific

Oregon Scientific BAR112HGLA User manual

Oregon Scientific

Oregon Scientific EB313HGN User manual

Oregon Scientific

Oregon Scientific TW369 User manual

Oregon Scientific

Oregon Scientific BAR218HG User manual

Oregon Scientific

Oregon Scientific BAR321HGN User manual

Oregon Scientific

Oregon Scientific Global 5-Day Weather Adviser II I600 User manual

Oregon Scientific

Oregon Scientific BAR988HG User manual

Oregon Scientific

Oregon Scientific WMR200A User manual

Oregon Scientific

Oregon Scientific EW93 User manual

Oregon Scientific

Oregon Scientific RM600A User manual

Oregon Scientific

Oregon Scientific Mirror Weather Station MR238 User manual

Oregon Scientific

Oregon Scientific BAR638HG User manual

Oregon Scientific

Oregon Scientific RMR606HGPA User manual

Oregon Scientific

Oregon Scientific WMR300 User manual

Oregon Scientific

Oregon Scientific BA112 User manual

Oregon Scientific

Oregon Scientific RMR203HG User manual

Oregon Scientific

Oregon Scientific Modena FSW-301 User manual

Oregon Scientific

Oregon Scientific IWA-80004 User manual

Oregon Scientific

Oregon Scientific BAR338P User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
