INTRODUCTION

Thank you for selecting the Oregon Scientiﬁc™ Compass

Watch (RA126). The RA126 is a very useful product for

any outdoor activity as it can help you locate your position

and ﬁnd your direction using the bearing tracking system.

Equipped with temperature function, it is the perfect

companion for any user who wishes to venture into the

great outdoors. The RA126 bundles a digital compass,

northern calibration, true north calibration, adjustable

declination angle, bearing tracking system stopwatch and

temperature.

IMPORTANT

• The measurement functions built into the RA126 are

not meant to substitute professional measurement

or industrial precision devices. Values produced

by this watch should be considered as reasonable

representations only.

• Oregon Scientiﬁc™ assumes no responsibility for any

loss, or any claims by third parties that may arise through

the use of this watch.

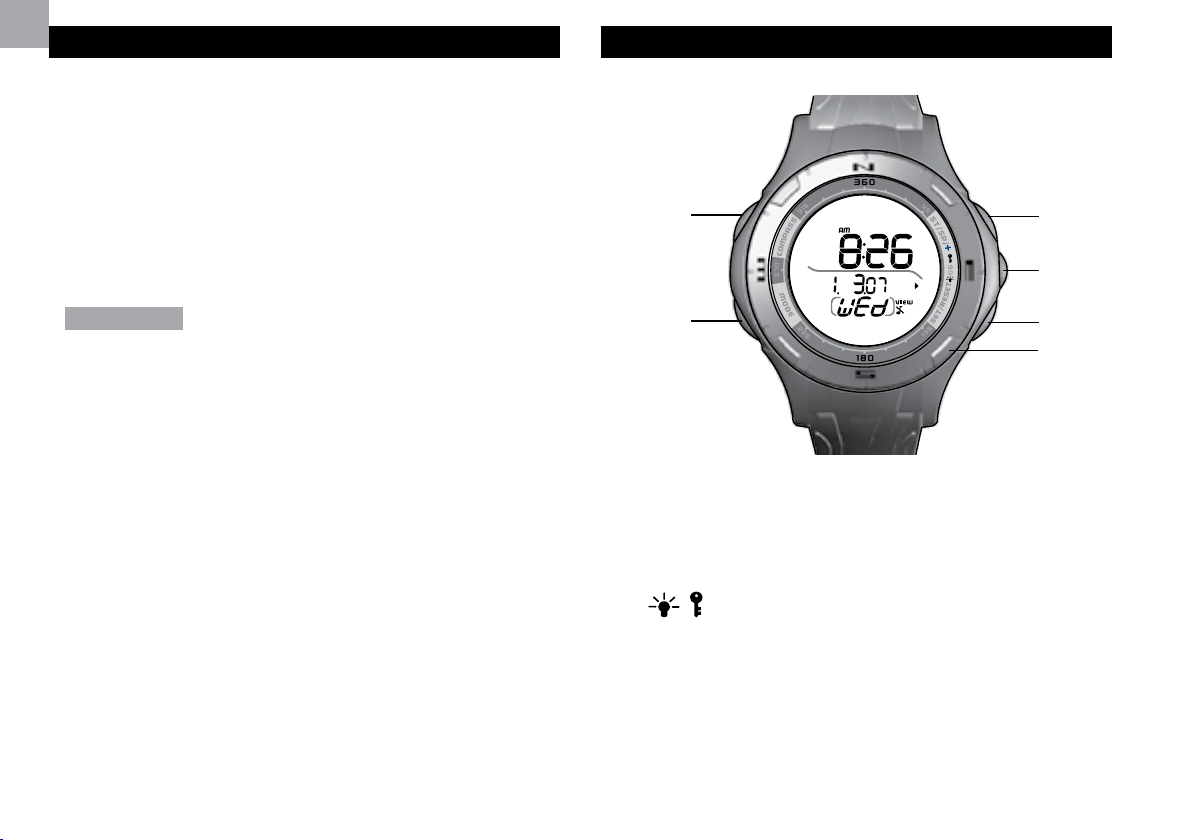

COMPASS WATCH

1. COMPASS / -: Activate compass; lower setting values

2. MODE: Toggle main modes; quit setting modes quickly

3. ST / SP / +: Start / stop stopwatch; increase setting

values

4. / : Turn on EL backlight; Activate keypad lock

5. SET / RESET / VIEW: Enter setting modes; toggle sub-

modes; Reset stopwatch

6. Turning Bezel with cardinal points: North, South, East

and West.

RA126 IM EN R5.indd 2 2007.7.27 12:21:33 PM

GETTING STARTED

４

1. : Stopwatch is shown or running

2. : Alarm is set; will ﬂash when activated

3. : Smart indicator to lower values

4. “ “: Directional arrows indicates your position

5. : Master digits: i.e. Time

6. : Minor digits: i.e. Stopwatch

7. : Smart indicator to return / quick conﬁrm

8. Cardinal direction

9. : Indicates which way to turn the watch when

calibrating the compass

10. : Sub-mode page indicator

11. : Indicates bearing tracking system in switched

12. : Press ST / SP / + to increase values

13. : Keypad lock activated

14. : Low battery

15. Smart indicator

16. : Keypad tone is turned OFF

17. :Temperature icon

GETTING STARTED

TURN ON WATCH (FIRST-TIME USE ONLY)

Press and hold any key for 2 seconds to activate the LCD

display.

GETTING STARTED

The watch uses a 1 x CR2032 lithium battery, which has

already been installed. See below for battery warnings.

LOW BATTERY

ICON DESCRIPTION

The watch battery is low.

RA126 IM EN R5.indd 3 2007.7.27 12:21:39 PM

Appears when the battery

is too low to operate the

sensor. “- -” is shown instead

of temperature and compass

values.

To replace battery:

1. Using a coin, remove battery compartment lid by twisting

counter-clockwise until it clicks out of place.

2. Remove the old batteries and insert the new matching

the polarities.

3. Replace the lid by twisting it clockwise until ﬁrmly in

place.

NOTE When battery is replaced it is important to re-

calibrate the magnetic sensor.

USE IN THE WATER

The RA126 is water-resistant up to 50 meters (164 feet).

RAIN

SPLASHES

ETC

SHOWERING

(WARM/

COOL

WATER

ONLY)

LIGHT

SWIMMING

/ SHALLOW

WATER

SHALLOW

DIVING/

SURFING/

WATER

SPORTS

SNORKELING

/ DEEP

WATER

DIVING

50M /

164

FEET OK OK OK OK NO

NOTE Set the unit before exposing it to excessive water.

Pressing the keys while in the water or during heavy

rainstorms may cause water to enter the unit.

OPERATION

BACKLIGHT AND KEYPAD LOCK

Press to turn backlight ON for 5 seconds.

NOTE The backlight function will not operate while the low

battery icon is displayed and it will return to normal

once batteries have been replaced.

To toggle keypad lock ON / OFF:

Press and hold / . indicates keypad is locked.

RA126 IM EN R5.indd 4 2007.7.27 12:21:45 PM

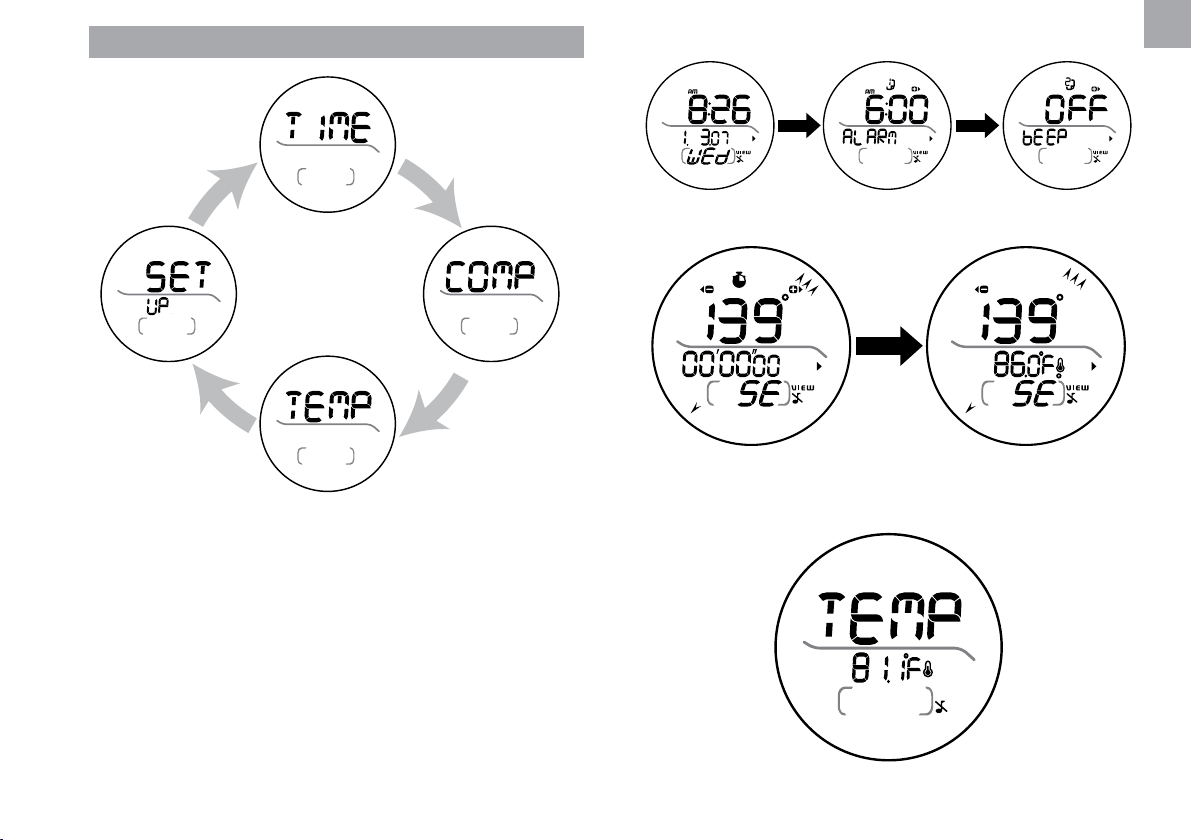

OPERATING MODES

Time

Set Compass

Temperature

Press MODE to switch between:

• Clock mode

• Compass mode

• Temperature mode

• Set up mode

To scroll through sub-modes:

Press SET to scroll through the mode options in each

mode. They are as follows:

Clock mode:

Time Alarm Beep ON / OFF

Compass mode:

Compass with watch Compass with temperature

Temperature mode:

RA126 IM EN R5.indd 5 2007.7.27 12:21:47 PM

set up mode:

Bearing Tracking

Calibration

True north

Declination

CLOCK MODE

TO SET THE TIME AND DATE

1. Press MODE to navigate to Clock mode.

2. Press SET to navigate to time and date.

3. Press and hold SET to enter settings.

4. Press ST / SP / + to scroll upwards and COMPASS /

-to scroll downwards through the setting options. The

setting sequence is as follows: 12 / 24-hour time; hour;

minute; year; day-month / month-day; month; day;

temperature unit.

5. Press SET to conﬁrm.

NOTE If no key is pressed for ten seconds, the display will

return to Clock mode.

STOPWATCH

SET

MODE

1. Press MODE to navigate to Compass mode.

2. Press SET to navigate to Compass with stopwatch.

3. Press ST / SP / + to start and stop the stopwatch.

4. Press and hold SET to reset.

NOTE Unless you stop the stopwatch, “ ” will blink in

all modes to remind you that the stopwatch is still timing.

To view Compass with temperature:

• Press MODE to navigate to Compass mode.

• Press SET to navigate to Compass with temperature.

NOTE The compass display is active for 30 seconds at a

time. After this, the compass will go into power saving mode

and “- - -” will appear on the display.

To re-activate the compass, press COMPASS.

RA126 IM EN R5.indd 6 2007.7.27 12:21:49 PM

TO SET THE ALARM

ST/SP/+

SET

MODE

1. Press MODE to navigate to Clock mode.

2. Press SET to navigate to Alarm.

3. Press and hold SET to enter settings.

4. Press ST / SP / + to scroll upwards and COMPASS /

-to scroll downwards through the setting options. The

setting sequence is as follows: hour; minute.

5. Press SET to conﬁrm.

To activate or deactivate the alarm:

• Press MODE to navigate to Clock mode.

• Press SET to navigate to Alarm and press ST / SP / + to

turn the alarm on or off. will indicate that the alarm

has been activated.

• Press SET to conﬁrm.

NOTE When the alarm clock is activated, it will sound at

the set time every day. Press any button to stop the alarm

for that day. The alarm clock is still active and will set off

again the following day.

To silence the keys:

• Press MODE to navigate to Clock mode.

• Press SET to navigate to Beep ON / OFF.

• Press ST / SP / + to silence or to turn on key sounds.

COMPASS

ABOUT THE COMPASS

The compass shows the bearing of your position in degrees

due North. The outer circumference of the display consists

of 60 segments that graphically show your bearing. Three

lit segments represent South whereas one lit segment

represents North, as shown below.

２

３

４

５

1. South

2. Bearing

3. Stopwatch

4. Cardinal point

5. North

COMPASS AND CALIBRATION

Before the compass is ﬁrst used, we recommend that you

calibrate the compass sensor.

To calibrate the compass sensor:

• Press MODE to navigate to the Set up mode.

RA126 IM EN R5.indd 7 2007.7.27 12:21:51 PM

• Press SET to navigate to Calibration mode option.

• Press and hold SET to begin calibration of the compass.

Rotate the watch counter clockwise at the same speed

as the moving segments around the circumference of

the display. The rotation will be ﬁnished once you have

performed 1 ¼ turns and the display will appear as shown

below when nearing the end of its calibration.

SET

MODE

NOTE The compass should be calibrated:

• Before you use it for the ﬁrst time.

• When the battery is replaced.

• Before you leave for an extended outdoor activity.

• Whenever it is exposed to strong magnetic sources,

extreme cold, or you suspect that other environmental

conditions have affected the compass readings.

• If you notice that the compass is not showing the

direction correctly.

TO SET THE TRUE NORTH CALIBRATION

When you do not know the declination angle, the true north

calibration function can be used to compensate for the

difference between magnetic and true north. All you need

to know is the direction of true north (this can be found from

landmarks in your immediate vicinity). Setting the true north

calibration makes the compass reading more accurate.

1. Press MODE to navigate to Set up mode.

2. Press SET to navigate to True north mode option.

3. Turn the compass to the direction of true north and

press ST / SP / +.

To toggle True north calibration ON / OFF:

• Press MODE to navigate to Set up mode.

• Press SET to navigate to True north mode option.

• Press ST / SP / + to toggle true north mode to ON /

OFF

NOTE If the declination angle is turned ON, the True north

function will automatically turn itself OFF and vice-versa.

DECLINATION ANGLE

ABOUT DECLINATION

Declination is the angle between where a compass needle

points (magnetic North Pole) and the true North Pole. The

declination angle can vary from 0-30 degrees East (E)

or West (W) and can be found on most maps or on the

Internet.

For declinations in the United States:

http://www.ngdc.noaa.gov/seg/geomag/jsp/Declination.jsp

1. Enter your zip code in the area provided

RA126 IM EN R5.indd 8 2007.7.27 12:21:52 PM

2. Click “Get Location”

3. Scroll down and click “Compute”

For declinations in Canada:

http://www.geolab.nrcan.gc.ca/geomag/apps/mdcal_e.php

When you set the declination angle on the compass you

compensate for the difference between true and magnetic

north. This increases it’s accuracy.

To set the declination angle:

1. Press MODE to navigate to Set up mode.

2. Press SET to navigate to Declination mode option.

3. Press and hold SET to enter settings mode.

4. Press ST / SP / + or COMPASS / - to toggle settings.

The setting options are as follows: WEST / EAST

declination angle.

5. Press SET to conﬁrm.

BEARING TRACKING SYSTEM

ABOUT THE BEARING TRACKING SYSTEM

The bearing tracking system enables you to lock onto

a bearing, which you will be able to relocate using the

compass. By locking the bearing you can see when you

deviate from your course and how much you need to

correct it to get back on track.

TO SET THE BEARING TRACKING SYSTEM

1. Press MODE to navigate to Set up mode.

2. Press and hold SET to enter setting mode.

• The top ﬁgure shows your last bearing locked.

• The bottom ﬁgure shows your current bearing.

ST/SP/+

SET

MODE

3. Point the compass in the desired direction and press

SET.

4. Press SET to ﬁne tune the bearing. Press ST / SP / + to

increase and COMPASS / - to decrease the bearing.

5. Press SET to conﬁrm.

6. In the Compass mode, the locked bearing will appear

instead of the cardinal reading.

Once the bearing tracking system has been set, the

compass segments on the display will show how far you

deviate from your locked course. See the examples below:

A. The locked bearing is 94 and the current bearing is

94.

B. Your locked bearing is 94 and your current bearing is

120.

RA126 IM EN R5.indd 9 2007.7.27 12:21:54 PM

Other manuals for RA126

Table of contents

Languages:

Other Oregon Scientific Watch manuals

Oregon Scientific

Oregon Scientific RA121 User manual

Oregon Scientific

Oregon Scientific ALTIMO RA129 User manual

Oregon Scientific

Oregon Scientific 17000 User manual

Oregon Scientific

Oregon Scientific UA100 User manual

Oregon Scientific

Oregon Scientific Tracker RA122 User manual

Oregon Scientific

Oregon Scientific RMW128C User manual

Oregon Scientific

Oregon Scientific SL110 User manual

Oregon Scientific

Oregon Scientific RA900 User manual

Oregon Scientific

Oregon Scientific SW202 User manual

Oregon Scientific

Oregon Scientific RA122 User manual

Oregon Scientific

Oregon Scientific SE900 User manual

Oregon Scientific

Oregon Scientific SE900 User manual

Oregon Scientific

Oregon Scientific SL928D User manual

Oregon Scientific

Oregon Scientific RA126 User manual

Oregon Scientific

Oregon Scientific SE900 User manual

Oregon Scientific

Oregon Scientific OUTBREAKER RA201 User manual

Oregon Scientific

Oregon Scientific SE900 User manual

Oregon Scientific

Oregon Scientific SE900 User manual

Oregon Scientific

Oregon Scientific RA121 User manual

Oregon Scientific

Oregon Scientific SL110 User manual

Oregon Scientific

Oregon Scientific RA121 User manual

Oregon Scientific

Oregon Scientific SL110 User manual

Oregon Scientific

Oregon Scientific VIBRA Trainer Elite User manual

Oregon Scientific

Oregon Scientific Outbreaker Mountain-Ski RA103 User manual

Popular Watch manuals by other brands

Pandora

Pandora WATCH2 quick guide

Casio

Casio QW-4343 Service manual

Suunto

Suunto X6 user guide

Seiko

Seiko N830 instruction manual

MotionX

MotionX 365 user guide

Garmin

Garmin VENU SQ 2 owner's manual

QCY

QCY Watch GTC manual

Canyon

Canyon Cindy CNE-KW41WP quick guide

Esq

Esq Watches Operating instructions warranty & service guide

Crane

Crane AA5-CDSM-3A user manual

Timex

Timex W-214 product manual

DETOMASO

DETOMASO MATERA manual

Geemarc

Geemarc Watch N Shake user guide

LORUS

LORUS W590 instruction manual

STENLILLE

STENLILLE Actío user manual

Casio

Casio 5594 Operation guide

Sinn

Sinn HUNTER'S WATCH 3. Edition manual

Slazenger

Slazenger SLZ800 manual
