Oreck BK95519 User manual

CORDLESS UPRIGHT VACUUM

USER MANUAL

For use with model BK95519.

IMPORTANT:

READ CAREFULLY BEFORE

ASSEMBLY AND USE.

Appearance of the product may differ slightly from the images depicted.

ELEVATE

PRODUCT FEATURES

Product Features

Carton Contents

AOn/Off Fingertip Controls

BErgonomic Handle

COuter Bag

DPower Head

EBattery

FCharger

+ Manual

18V ONE PWR™Battery & Charger

Every ONEPWR

™

battery works with every ONEPWR

™

product.

1To charge align the ribs on the battery

pack to the grooves in the charger.

Slide the battery pack into the charger.

3When charge is complete the

lights on the battery will turn off

and the light on the charger will

be solid.

2When charging, the lights on the

battery will illuminate to show the

state of charge. The light on the

charger will ash.

4To remove the battery pack from

the charger, press the latches and

pull up on the battery pack.

NOTE: Batteries are shipped in a low charge condition to prevent possible problems. You should

charge them before rst use.

NOTE: If the light on the charger ashes red, there is an error with the battery or the charger. Try

again or call customer service for support at 800-406-2005.

CHARGING AMBIENT TEMPERATURE RANGE:

5 °C – 40 °C (41 °F – 104 °F)

BATTERY MODEL NUMBER

2.0Ah BH15020

3.0Ah BH15030

3.0Ah MAX BH25030

4.0Ah BH15240

4.0Ah MAX BH25040

6.0Ah BH15260

NOTE: Use with any thing other than the 6Ah pack will yield lower runtime.

How To Insert The Battery

1Insert battery into housing by

aligning grooves with ribs on the

battery and sliding battery into

until it clicks into battery dock.

2To remove battery press both grey

side tabs and slide battery out of

battery dock.

HOW TO INSERT THE BATTERY

Getting Started

Make sure Upper

Tube Connector

(A) is installed on

Upper Tube (B).

2Insert Upper Tube

into the top of Debris

Transfer Tube (C) until

it locks in place.

3Twist Upper Tube

Connector (A) clockwise

until it clicks to secure

Upper Tube (B).

(A)

(B)

(C)

CAUTION:

NOT TO BE USED FOR GROOMING A PET. FULLY ASSEMBLE PRODUCT TO USE.

GETTING STARTED

Make sure the ltration bag

(A) is attached properly to the

ltration bag dock (B). Attachment

instructions are located on

the ltration bag and in the

maintenance section of this

manual. Your vacuum comes

with a bag preinstalled for your

convenience. Do not operate

without a bag.

Step on (A) power head and

pull handle back to lower into

operating position. Return handle

to full upright position to engage

lock. This product features Auto

Stop and will not operate in the

upright position by disengaging

power to the motor.

Push ngertip controls forward

to select hard oor or carpet.

Push the controls back to the off

position when the product is not

in use.

Getting Started

Please read “Important Safety Instructions” before use.

(A)

(B)

(A)

1Unzip the Filtration

Bag Case completely. 2Pull the cardboard

collar on the ltration

bag downward to

release the bag dock

from the dock port.

3Gently pull the cardboard

collar on the ltration

bag up to engage the self

sealing lock and remove

from the bag dock.

Discard.

4Slide a new ltration

bag collar rmly into

the bag dock ensuring

all hooks on dock door

are inserted on the

cardboard collar.

Maintenance - How To Replace The Filter Bag

WARNING:

TO REDUCE THE RISK OF PERSONAL INJURY, BEFORE CLEANING OR SERVICING. DO

NOT USE VACUUM WITHOUT FILTRATION BAG IN PLACE.

WARNING:

IF APPLIANCE OR CHARGER IS NOT WORKING AS IT SHOULD, HAS BEEN DROPPED,

DAMAGED, LEFT OUTDOORS, OR DROPPED INTO WATER, CALL CUSTOMER SERVICE AT 1-800-406-2005 PRIOR TO CONTINUING USE.

WARNING:

VERY FINE MATERIALS, SUCH AS FACE POWDER OR CORNSTARCH MAY SEAL THE

FILTRATION BAG AND CAUSE IT TO BURST EVEN THOUGH IT IS ONLY PARTIALLY FULL. CHANGE THE BAG OFTEN WHEN CLEANING THIS

TYPE OF MATERIAL.

HOW TO REPLACE THE FILTER BAG

5Rotate bag dock up

and press rmly on

the ltration bag at

indicated points until

it snaps into place.

6Zip up the ltration bag

case completely.

Maintenance - How To Replace The Filter Bag

WARNING:

IF APPLIANCE OR CHARGER IS NOT WORKING AS IT SHOULD, HAS BEEN DROPPED,

DAMAGED, LEFT OUTDOORS, OR DROPPED INTO WATER, CALL CUSTOMER SERVICE AT 1.800.406.2005 PRIOR TO CONTINUING USE.

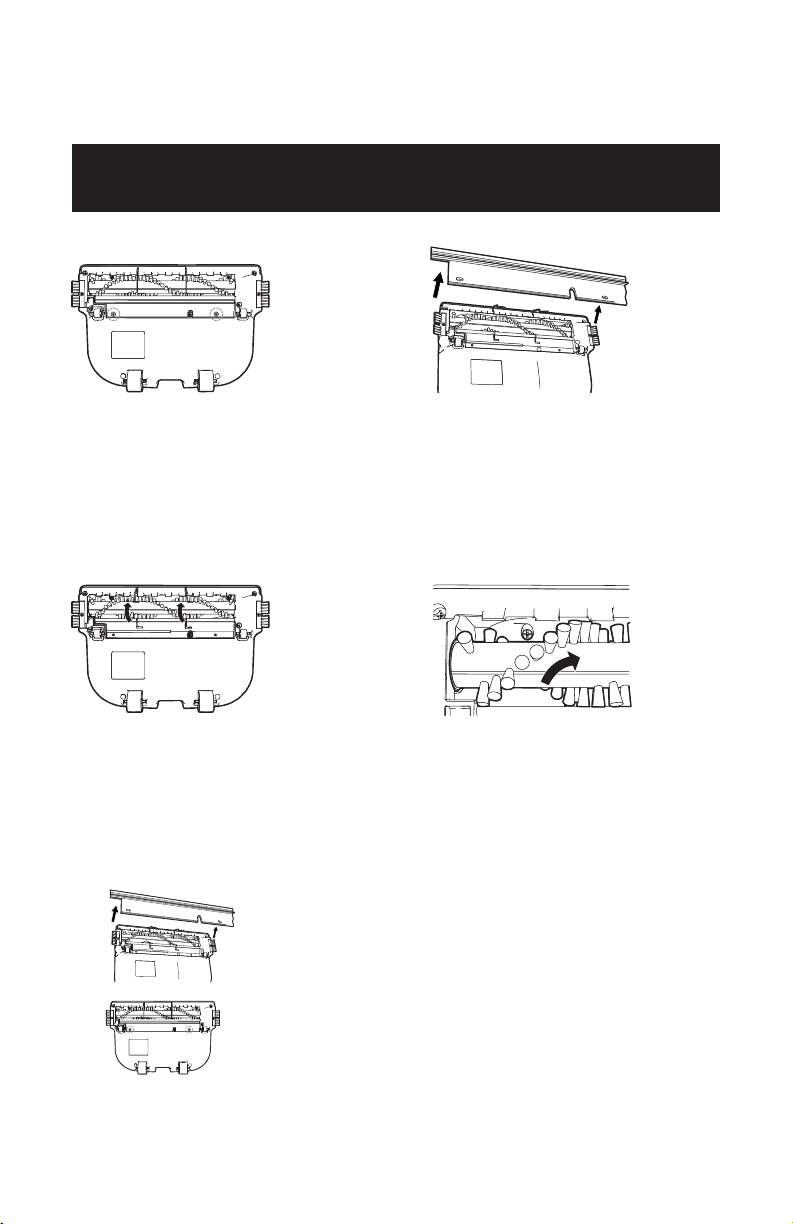

Maintenance - Quick Access Brushroll Cleaning

1Remove the two black

screws. 2Lift wiper blade from

the bottom plate.

3Lift up metal guards

to access the brushroll

channel. 4Clear brushroll

of debris and

obstructions by using

scissors to cut across

the channel.

5Put metal guards back

into place and secure

wiper back into place

with the two black

screws.

WARNING:

RISK OF PERSONAL INJURY-BRUSHROLL MAY SUDDENLY RESTART-TURN POWER

SWITCH OFF AND REMOVE BATTERY BEFORE CLEANING OR SERVICING.

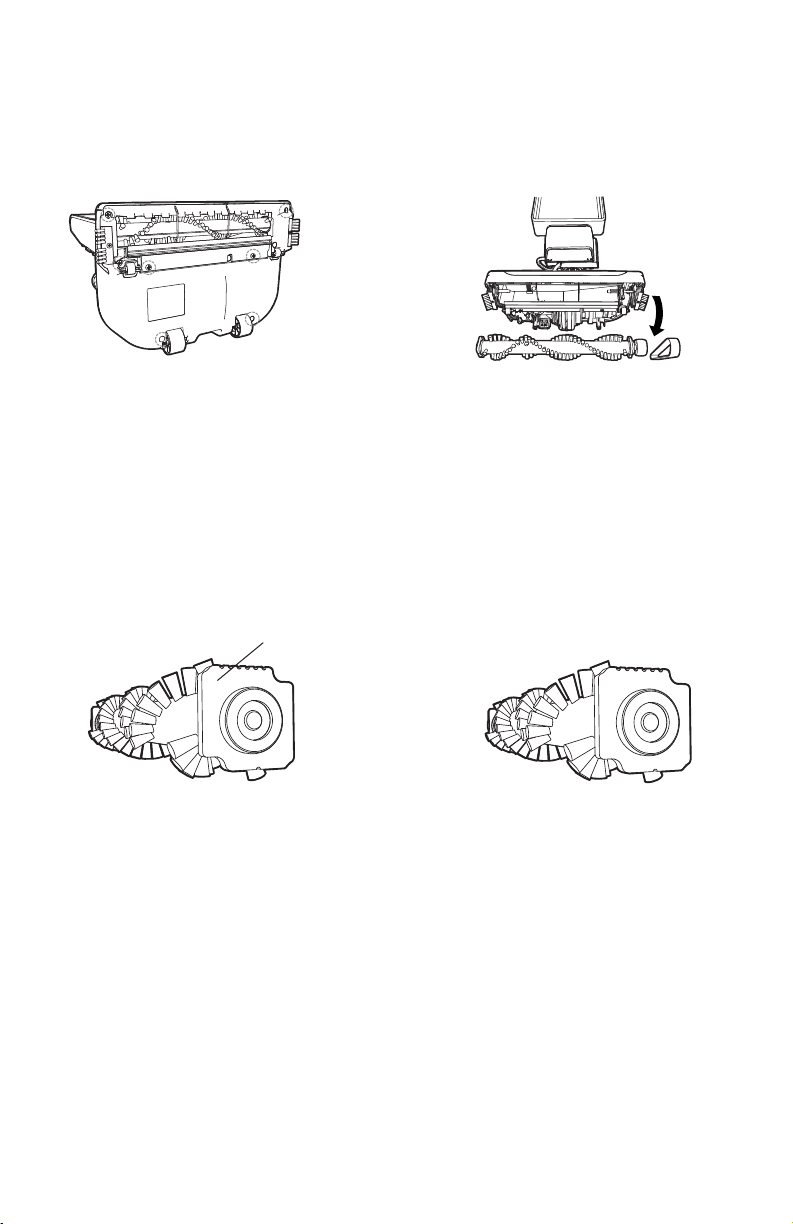

REMOVING THE BRUSHROLL AND BELT

2Remove the brushroll

belt and brushroll from

the holding channels

inside of the power

head nozzle.

1Lay the unit at to access

the power head nozzle.

Remove the 7 screws to take

off the baseplate from the

power head.

3Rotate both plastic black

endcaps at the ends of the

brushroll to show a single notch

“NORMAL” position. Insert

back into the holding channels

of the power head nozzle.

Maintenance - Removing the Brushroll and Belt

NORMAL

4When rotating the black

endcaps on the brushroll,

make sure both endcap

settings are the same and

faceup when you insert

the brushroll.
