Orcomm ORC 7TF User manual
User Manual V1.2
orc 7 TF
7” Touch Screen Monitor
This manual and guide is designed for the product and technology stated on the front. And requires that the installation of the
equipment follows the instructions given by the manufacturer and in compliance with the standards in force.
All the equipment must only be used for the purpose it was designed for.
All the products comply with the requirements of Directive 2006/95/EC as certified by the CE mark they carry.
Source To Site declines any responsibility for improper use of the apparatus, for any alterations made by others for any reason
or for the use of non-original accessories or materials.
Do not route the riser wires in proximity to power supply cables (230/400V).
Cut off the power supply before carrying out any maintenance work.
For any Electrical devices Installation, mounting and assistance procedures must only be performed by specialised electricians.
CONTENTS
DOOR ENTRY 3
INCOMMING CALL 4
DND (Privacy from callers) 5
CONCIERGE AND MESSAGING 6
MISSED CALLS 6
WEATHER 7
RSS FFEDS 7
APPEARANCE 8
PAIRING MOBILE PHNOE 9
RINGTONE 10
MONITOR DESCRIPTION –LIGHTING & DOOR ENTRY
1 2 3 4 5
6 7 8 9 10
1. Lighting control –Home lighting control for all rooms
2. All off –When pressed all lights turn off
3. All low –When pressed lights turn on to user default
4. All on –When pressed all lights turn on
5. Time and Date
6. Weather App –Current local weather –When pressed weekly forecast
7. Concierge –Multi use button. When pressed will call concierge or
Missed Call = Messages =
8. DND –When pressed will switch from Do not disturb to ON and OFF
OFF = ON =
9. More –When pressed will take you to more settings
10. RSS Feed –When selected in settings the RSS feed will scroll along with info
DOOR ENTRY –INCOMING CALL
1 2 3 4
5 6 7 8 9 .

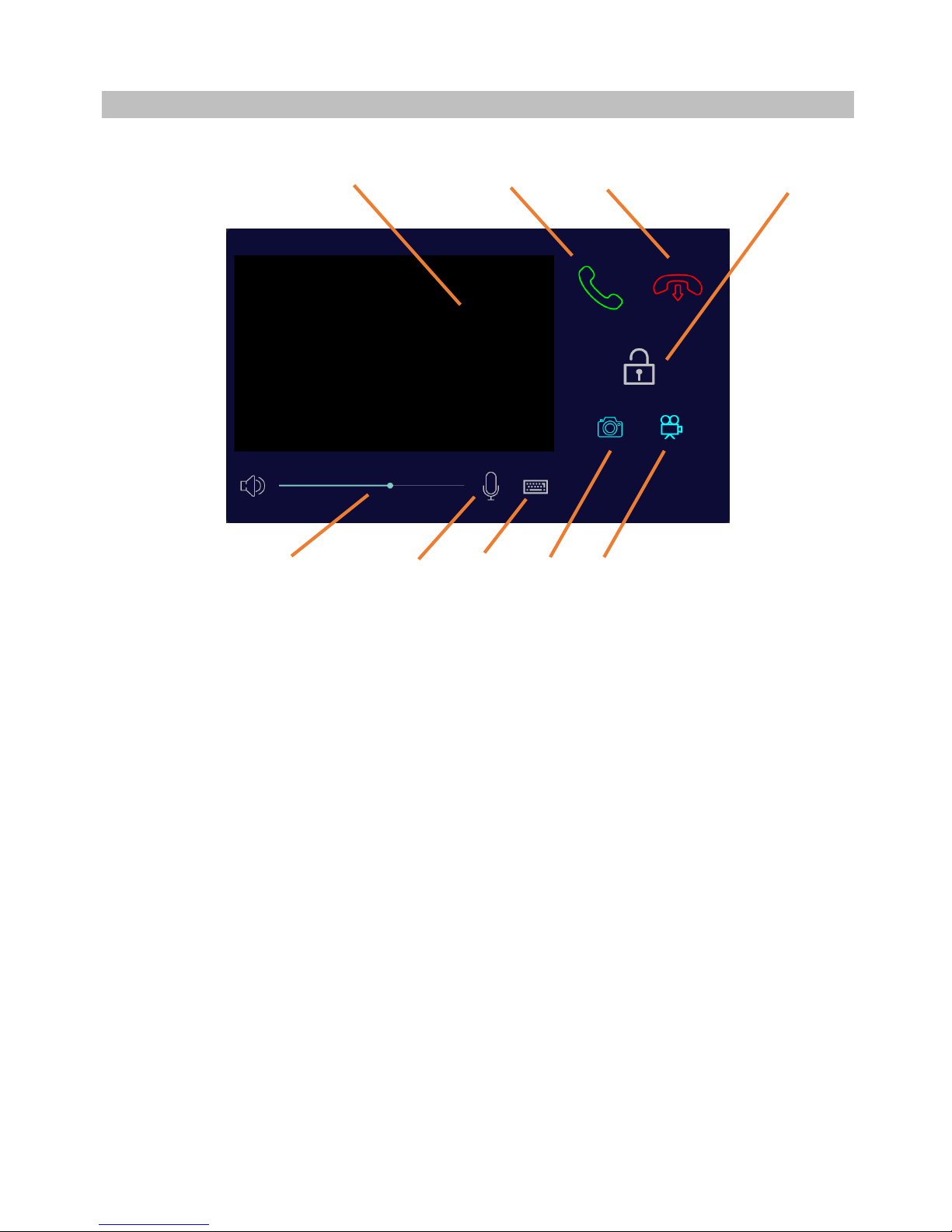

When an incoming call is made the screen above will appear on the touch screen
monitor.
Video will be provided when available.
Note: some of the external call panels or concierge devices may not have video enabled.
1. Video Screen –If video is available it will appear in real time
2. Answer Call –Press if you require to answer call and start 2 way audio
3. Hang Up –Press to cancel call
4. Unlock –When pressed it will unlock the door or open gate for caller
5. Volume –Adjust speaker during call by sliding
6. MIC –When pressed you can switch microphone on screen (on and off)
7. Keyboard –used for extra features like secure locking
8. SNAP Shot –When pressed will take photo of caller
9. VIDEO –When pressed will record audio and/or video of caller
DND –Privacy from callers
Ringtone enabled when incoming call Ringtone disabled when incoming call
DND OFF = When call is made to the screen it will ring.
DND ON = When call is made there will be no ringtone.
DND is typical used when you are sleeping and works by switching on and off.
TIMED PRIVACY
Enter menu as above then followed by
Enable Timeout and select time of choice (i.e. 8 hours)
Select to exit
CONCIERGE -CALLING
Press to make a call
If you have Concierge then you can make and receive calls to the concierge.
CONCIERGE - MESSAGING
Press to read Messages
Messaging as standard can be sent from the concierge device to the screen.
MISSED CALLS
Press to view log of missed calls
Touch screen stores the last 20 call actions including calls made, missed and answered.
WEATHER
Press to view weekly forecast
Smart devices that have internet enabled can request weather information from the UK
National server. Like a smart phone it will use your location to get the best local weather.

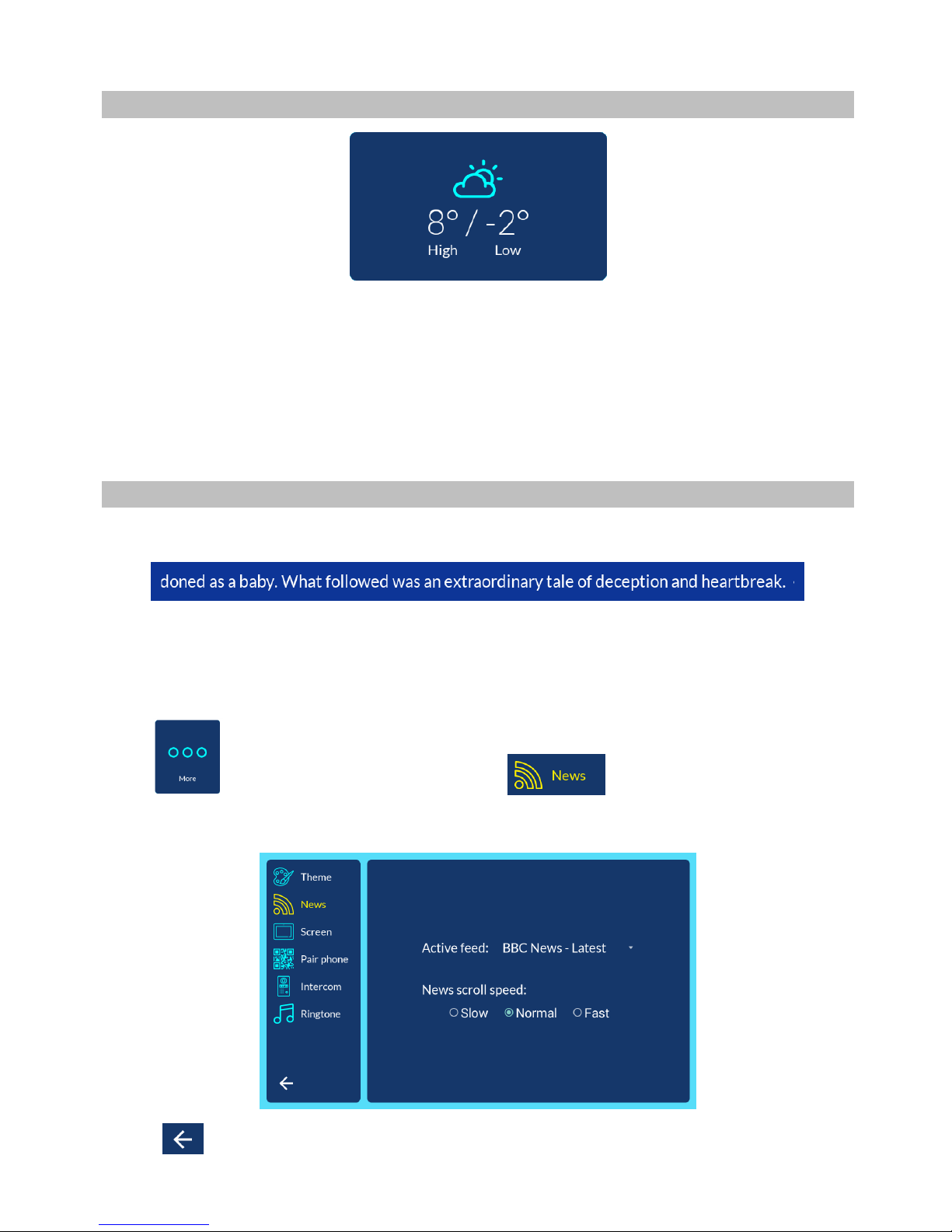

RSS FEEDS
Smart devices that have internet enabled can request RSS feeds from online servers when
enabled by the end user.
Enter menu as above then followed by
Select to exit
THEMES
You can change the appearance of your Touch screen.
Enter menu as above then followed by
Choose the colour (tick will appear on the choice selected)
Followed by
Select to exit
PAIR PHONE
QR Code for use with Orcomm mobile APP’S
Smart devices that have internet enabled can allow a mobile device APP to be paired.
Enter menu as above then followed by
open APP on your mobile device and select “settings” then “pair device”
Using camera on mobile phone hover over QR code and you will see “confirm” on mobile
phone screen
Exit mobile phone settings page.
On Touch screen select to exit
RINGTONES
Ringtones can be changed in the extra menu
Enter menu as above then followed by
Choose Ringtone
Select to exit
SCREEN DIM TIME
Dim screen when not in use
Enter menu as above then
Select time of choice
Select to exit
