Table of Contents
2
English
Usage Notice
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class A emissions limits
This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3English
Usage Notice
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
60-61.
▀■Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■Warning- Reset the “Lamp Reset” function from the on-screen
display “OPTION | Lamp Settings” menu after replac-
ing the lamp module (refer to page 53).
▀■Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 60 seconds for the
projector to cool down.
▀■Warning- Do not use lens cap when projector is in operation.
▀■Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser
pointer can cause permanent damage to eyesight.
4
English
Usage Notice
▀■Warning- Allowing the proper amount of space on the top,
sides, and rear of the projector cabinet is critical for
proper air circulation and cooling of the unit. The
dimensions shown here indicate the minimum space
required. If the projector is to be built into a compart-
ment or similarly enclosed, these minimum distances
must be maintained.
12” (30cm) 12” (30cm)
12” (30cm)
4” (10cm)
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 40°C.
Relative Humidity is 5 - 40°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
5English
Usage Notice
Eye Safety Warnings
▀■Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■In order to minimize the lamp power, use room blinds to
reduce ambient light levels.
Product Features
▀■WUXGA (1920 x 1200) Native resolution
▀■HD compatible – 1080p supported
▀■Extensive optional lens
▀■Wide lens shift range for installation exibility
▀■Dual lamp system
▀■Comprehensive input/output terminals and control inter-
faces
▀■ Network support
6
English
Introduction
Documentation :
User’s Manual
Warranty Card
Quick Start Card
WEEE Card
(for EMEA only)
Due to different
applications in
each country,
some regions
may have
different
accessories.
Power Cord 3.0m
Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
2 × AAA Batteries
Projector VGA Cable 1.8m
POWER
LAMP-1
LAMP-2
TEMP
RS232 Cable 1.8m DVI/HDMI Cable 30cmIR Remote Control
2 × Security Eye Bolt
2 × Spring Washer 2 × Flat Washer
7English
Introduction
12V OUT RS232
R G B H V
S-VIDEO VIDEO Y Pb Pr
HDMI 2 HDMI 1
VGA-OUT VGA 2-IN VGA 1-IN
WIRED
REMOTE-IN
SOURCE
INFO.
MENU
SHUTTER
ENTER
RE-SYNC LENS
FOCUS
ZOOM
POWER
LAMP-1
LAMP-2
TEMP
Product Overview
1. Ventilation (inlet)
2. Lens Door
3. IR Receivers
4. Lamp Door
5. Ventilation (outlet)
6. Indicator LED
7. Projector Cap
8. Tilt-Adjustment Feet
9. Control Panel
10. Input / Output
Connections
11. Power Socket
12. Power Switch
1
7
Main Unit
3
5
4
8
1 2 3
9
11
12
10
6
8
English
Introduction
12V OUT RS232
R G B H V
S-VIDEO VIDEO Y Pb Pr
HDMI 2 HDMI 1
VGA-OUT VGA 2-IN VGA 1-IN
WIRED
REMOTE-IN
SOURCE
INFO.
MENU
SHUTTER
ENTER
RE-SYNC LENS
FOCUS
ZOOM
1
6
1. Power button
2. SOURCE
3. RE-SYNC
4. LENS
5. Information
6. SHUTTER
7. MENU
8. Four Directional Select Keys
9. ENTER
10. ZOOM
11. FOCUS

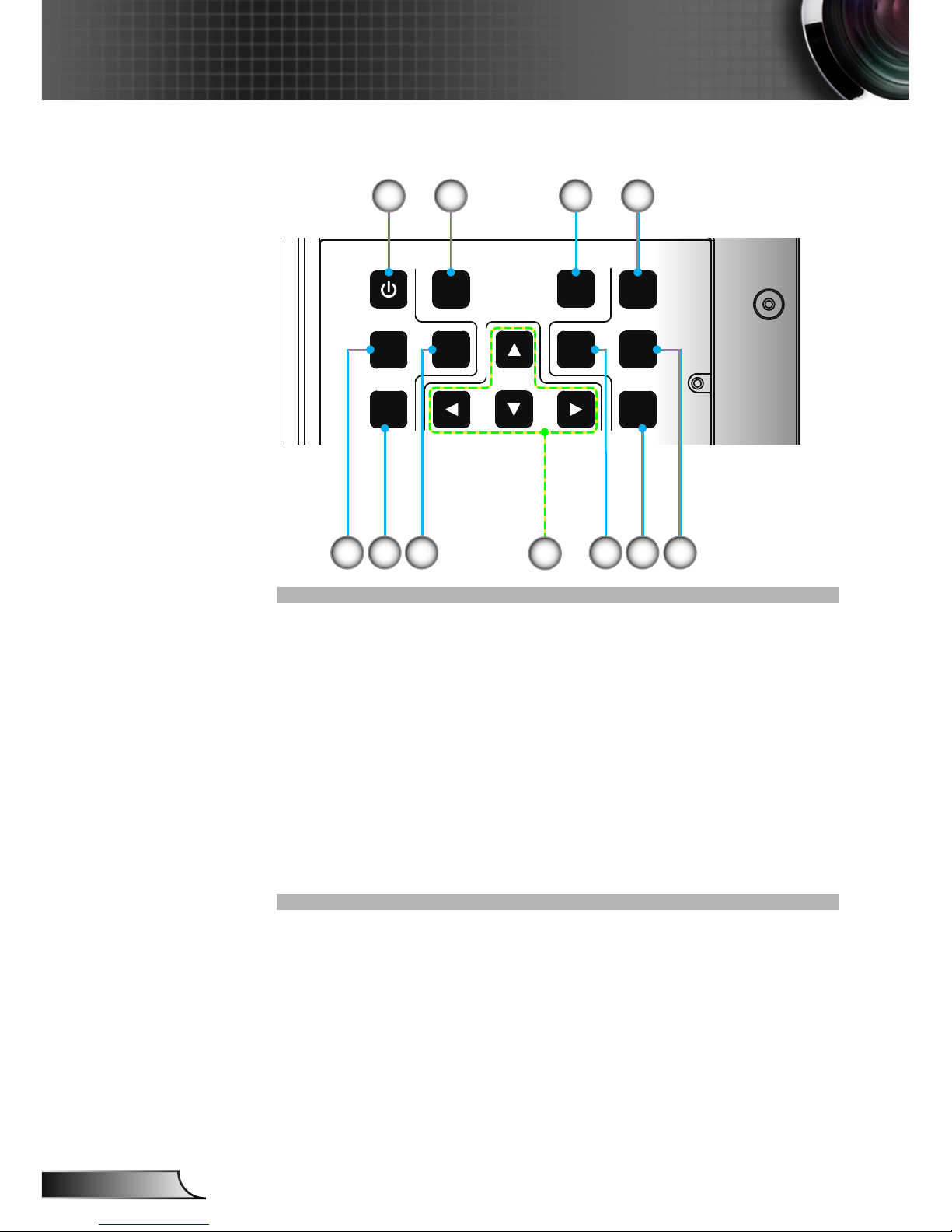

Control Panel
2
5 7 8
3 4
10 119
9English
Introduction
12V OUT RS232
R G B H V
S-VIDEO VIDEO Y Pb Pr
HDMI 2 HDMI 1
VGA-OUT VGA 2-IN VGA 1-IN
WIRED
REMOTE-IN
SOURCE
INFO.
MENU
SHUTTER
ENTER
RE-SYNC LENS
FOCUS
ZOOM
Input/Output Connections
1. S-Video Input Connector
2. Composite Video Input Connector
3. Component Video Input Connector (YPbPr)
4. BNC Input Connector (YPbPr/RGBHV)
5. KensingtonTM Lock Port
6. Wired Remote Input Connector
7. RJ-45 Networking Connector
8. VGA-Out Connector (Monitor Loop-through Output)
9. VGA2-In/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
10. VGA1-In/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
11. HDMI 1 Connector
12. HDMI 2 Connector
13. 12V Trigger Relay Connector (12V, 250mA. 3.5mm Mini
Jack)
14. RS-232 Connector (9-pin DIN Type)
15. Power Switch
16. Power Socket
14 165 10
1 2
118 9 12
3
1513
4
6
7
10
English
Introduction
Remote Control
1. Power On
2. Shutter
3. Function 2 (Program-
mable see P.51)
4. Display Mode
5. Freeze
6. Lens Zoom +/-
7. All
8. HDMI 2
9. HDMI 1
10. DVI (Reserved Key)
11. Information
12. Re-Sync
13. Video
14. YPbPr
15. Numbered keypad
(for password input)
16. Power Off
17. Pattern
18. Function 1 (Program-
mable see P.51)
19. Enter/Help
20. Four Directional
Select Keys
21. Menu
22. Lens Shift
23. Format (Image Aspect
Ratio)
24. Lens Focus +/-
25. ID
26. VGA 1
27. S-Video
28. VGA 2
29. BNC
8
10
1314
19
11
20
17
16 1
2
3
6
5
4
26
28
29
23
21
25
9
24
22
18
15 12
7
27
Number
keypad (for
password input
exclude “0”,
“0” can not use
as part of the
password)
Table of contents
Other Optoma Projector manuals
Optoma
Optoma DS326 User manual
Optoma
Optoma HD36 User manual
Optoma
Optoma TX542 User manual
Optoma
Optoma W501 User manual
Optoma
Optoma X416 User manual
Optoma
Optoma EcoBright TL30W User manual
Optoma
Optoma EX774N User manual
Optoma
Optoma HD8000-LV User manual
Optoma
Optoma W316 User manual
Optoma
Optoma GT720 User manual
Optoma
Optoma EP781 User manual
Optoma
Optoma DV20 Instruction manual
Optoma
Optoma GT360 User manual
Optoma
Optoma Pico PK301+ User manual
Optoma
Optoma Optoma EP1691 User manual
Optoma
Optoma S341-M User manual
Optoma
Optoma ZH506 User manual
Optoma
Optoma EX779 User manual
Optoma
Optoma EX542 User manual
Optoma
Optoma TW610ST User manual
