Optiled CabLED C8K-18-CW User manual

C8K Series User Manual

Flexible Linear Lighting System

The versatile indoor and outdoor water resistant lighting solution.

2cabled.optiled.com

IMPORTANT SAFETY INSTRUCTIONS

ELECTRICAL RATING

To avoid any malfunctions of the system, and to protect against electrical shock, re or physical

injury, please observe the following:

• This system has been designed to work with 100-240 volt AC current. Connection to a line

voltage other than that may create a safety and re hazard and may damage the system. If you

are unsure of the type of power supply to your home, consult your local power company or a

qualied service technician.

When using electrical products, basic precautions should always be followed including the

following electrical ratings for models listed below:

C8K-18-CW / C8K-18-WW : 120 V, 0.5 A

C8K-30-CW / C8K-30-WW : 120 V, 0.5 A

C8K-60-CW / C8K-60-WW : 120V, 1.0 A

GROUNDING INSTRUCTIONS

• This product must be grounded. If it should malfunction or breakdown, grounding provides a

path of least resistance for electric current to reduce the risk of electric shock. This product is

equipped with a cord having an equipment-grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

• WARNING – Improper connection of the equipment-grounding conductor is able to result in a

risk of electric shock. Check with a qualied electrician or serviceman if you are in doubt as to

whether the product is properly grounded.

Read all instructions.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuits or outlet

to be used for the outdoor use exible lighting product. Receptacles are available with built-

in GFCI protection for this measure of safety. If you are unsure of the type of outlet, consult a

qualied service technician to install a GFCI receptacle.

• Use only outdoor extension cords, such as types SW, SOW, STW, STOW, SJW, SJOW, SJTW,

or SJTOW.

Model Numbers: C8K-18-CW, C8K-30-CW, C8K-60-CW, C8K-18-WW, C8K-30-WW, C8K-60-WW.

WARNING: A WARNING alerts you to the possibility of serious injury or death if

you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage to or destruction

of the equipment if you do not follow the instructions.

IMPORTANT: An IMPORTANT alerts you to follow the instructions listed to

avoid the possibility of installation error or possible damage to or destruction of the

product.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

WARNING – When using outdoor use portable lighting products, basic safety precautions should

always be followed to reduce the risk of re, electric shock, and personal injury, including the following:

cabled.optiled.com 3

IMPORTANT SAFETY INSTRUCTIONS

POWER SOURCE

• Do not modify the plug provided with the product – If it will not t the outlet, have a proper

outlet installed by a qualied electrician.

Damaged or deformed power cords are hazardous and should be replaced immediately by a

qualied service technician.

OPERATION

• Do not operate with the exible light tightly coiled.

• Unplug the unit and the AC power adapter from the electrical outlet during electrical storms

or when unused for long periods of time to prevent damage.

• For outdoor use units, make sure that all connections and the end cap in the last segment are

tightly secured to preclude the entry of water.

• Do not exceed the recommended length of CabLED strip listed for each power supply.

• Do not look directly into the LED lights when lit. They are powerful and could damage your

vision.

LOCATION

• Place power supply well above the ground or in an area they will NOT be submerged in water

or other liquids.

• The CabLED strip and components are rated IP65, weather proof only. Do not submerge the

CabLED strip or components in liquids, or use the product in the vicinity of standing water or

other liquids.

• Keep all components away from extreme heat sources such as heating vents, radiators, electric

heaters and re pits.

• Do not cover this product as the covering may cause the strip to overheat and melt or ignite.

• Do not submerge the exible light in liquids, or use the product in the vicinity of standing

water or other liquids.

• Do not route the cord or exible lighting through walls, doors, windows or any like part of the

building structure.

• Place CabLED strip so it will not shine directly into people's eyes.

INSTALLATION

Safety measures must be observed at all times during the installation of this product. Use proper

safety gear and tools during the installation process to prevent physical injury.

• Products should be installed in accordance with the user manual, current electrical codes and/

or the current National Electric Code (NEC). Improper installation may cause a possible shock

or re hazard.

• To avoid electrical shock and/or damage to the system, do not handle the components with wet

hands.

• Always make sure the CabLED strip is disconnected from the power source before cutting,

connecting, mounting or modifying in any way. Do NOT dismantle the CabLED strip itself.

• Do not coil the strip into a tight circle with a diameter less than 8 inches (20cm) or bend it in

half as it may damage the LEDs embedded in the strip.

• Do not subject the exible CabLED strip to continuous exing.

WARNING: Risk of re and electric shock. Uncoil exible CabLED light

strip prior to plugging into receptacle.

4cabled.optiled.com

IMPORTANT SAFETY INSTRUCTIONS

INSTALLATION (CONTINUED)

• Do not use if there is any damage to the CabLED strip, power cord or any of the components.

Inspect periodically.

• CabLED strip can only be cut at every 7.09 inches (18cm) and must be cut exactly on the

indicated mark.

• Do not puncture, shorten, or splice the exible lighting. Only cut the CabLED strip where

indicated.

• Create a layout plan before installation. Follow steps to locate power supply and determine

suitable mounting methods and required connectors and accessories. Measure and calculate

the required length of CabLED before beginning installation.

• CabLED connectors have sharp pins inside. Follow instructions when handling.

• Use only CabLED connectors, mountings and power supply. Carefully follow the instructions to

install and mount.

• Secure this exible strip using only the CabLED connectors and mounting solutions provided.

Do not secure this product or its cord with staples, nails, or like means that may damage the

insulation.

CLEANING

• Clean only with a dry or slightly damp cloth. Do not use any acid or alkaline liquids, cleansing

agents or solvents. Unplug the system from the wall outlet before cleaning.

NON-USE PERIODS

When left unused for long periods of time, the system should be unplugged from the

AC outlet.

SERVICE

Always remove the AC power adapter from the electrical outlet before adjusting or inspecting

the system. Inspect your system periodically.

• Do not open, dismantle or attempt to repair the CabLED strip or the bottom half of the

connectors. There are no user-serviceable parts.

• Do not open the cabinets of accessories or power supply. There are no user-serviceable parts.

Opening the cabinets may present a shock hazard, and any modication to the product will

void your warranty.

• Do not attempt to service the components yourself. If water or any metal objects such as

paper clips, wire or staples accidentally fall inside, then disconnect from the power source

immediately and consult an authorized service center.

SAVE THESE INSTRUCTIONS

IMPORTANT: BEFORE YOU BEGIN, MAKE SURE YOU CAREFULLY READ

AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL.

Table of Contents

cabled.optiled.com 5

Important Safety Information 2-3

About This Manual ....................................................................................................................4

Table of Contents 5

About CabLED™ 8000 Series 6

Possible Applications 7-11

Kitchen Cabinets .......................................................................................................................7

Patios ........................................................................................................................................8

Indoor Stairs..............................................................................................................................9

Outdoor Stairs......................................................................................................................... 10

Walkways ................................................................................................................................ 11

Design Guidelines 12

CabLED™ Component Layout 13

CabLED™ Component Overview 14-20

CabLED™ Strip ....................................................................................................................... 14

Power Supplies ................................................................................................................... 14-16

Accessories ............................................................................................................................. 17

Mounting Options ................................................................................................................... 18

Connectors ........................................................................................................................ 19-20

Step 1: Plan Installation 21

Plan Your Project .....................................................................................................................21

What is the Purpose of Your Project?........................................................................................21

Warm White or Cool White?.....................................................................................................21

Which Accessories to Use?....................................................................................................... 21

Step 2: Prepare for Installation 22-23

2.1 Determine Components Needed........................................................................................22

2.2 Measure and Mark the Area................................................................................................22

2.3 Select Power Supply...........................................................................................................23

2.4 Mounting Options..............................................................................................................23

Step 3: Begin Installation 24

3.1 Measure, Mark and Cut CabLED™ ......................................................................................24

3.2 Mark CabLED™ ................................................................................................................. 24

3.3 Cut CabLED™....................................................................................................................24

Step 4: Install Connectors 25-31

4.1 Install PS-Link Connector ....................................................................................................25

4.2 Install End Cap...................................................................................................................25

4.3 Install I-Connector..............................................................................................................26

4.4 Install Jumper Cable...........................................................................................................27

4.5 Install L-Connector .............................................................................................................28

4.6 Install T-Connector.............................................................................................................29

4.7 Install U-Connector ............................................................................................................30

4.8 Install X-Connector.............................................................................................................31

4.9 Install 4 Way Power Splitter .................................................................................................32

Step 5: Test 32

Step 6: Install Optional Accessories 33-37

6.1 Install Inline On/Off Dimmer Switch ....................................................................................33

6.2 Install RF Light/Motion Sensor.......................................................................................33-35

6.3 Install RF Remote Dimmer ............................................................................................36-37

Step 7: Mount CabLED™ 38-41

7.1 Mark Placement for Brackets ...............................................................................................38

7.2 Use One of the Following Six Methods to Mount CabLED™ ...........................................38-41

Step 8: Mount Power Supply 42

Step 9: Mount Optional Accessories 42-44

9.1 Mount Inline Dimmer ..........................................................................................................42

9.2 Mount RF Receiver .............................................................................................................43

9.3 Mount RF Light/Motion Sensor ...........................................................................................43

9.4 Mount RF Remote Dimmer..................................................................................................44

Step 10: Connect to Power 44-45

10.1 Connect Without Accessories ...........................................................................................44

10.2 Connect With Optional Accessories..................................................................................45

Troubleshooting 46-47

LED Strip The exible CabLED strip uses CREE High Brightness LED lights. They are

set every inch and can be cut every 7.09 inches (18cm) up to lengths of 82

feet (25m). The strips are available in Cool White (6500K), a bright, bluish

white generally used for task lighting and Warm White (3500K) a yellowish

white more commonly used in living spaces.

Connectors A variety of easy-to-use connectors are designed for specic uses

in different installations. The connectors are used to attach sections

of CabLED strip together at virtually any angle to form endless

congurations, as well as connect the strip to the power supply.

Accessories • The Inline On/Off Dimmer Switch is mounted with your system,

adding dimmer and power functions when connecting to an outlet

not controlled by a light switch. It offers full dimming range, fades the

CabLED system on and off, and retains last dimming level selected with

a simple push of buttons.

• The RF Light/Motion Sensor has a fully weather-resistant case to

protect it from the elements. It automatically activates the CabLED

system when something moves within 50 feet (15m) of the sensor. It

is also equipped with a photocell that detects light and can be set to

turn the system on when it’s dark or only when it detects motion. The

system will automatically turn off when it no longer detects motion for

the length of time you specify, between 30 seconds and 30 minutes. It

comes with a receiver.

• The RF Remote Dimmer offers full dimming range, fades the CabLED

system on and off, and retains last dimming level selected with a simple

push of buttons on the remote unit. It comes with a receiver with a

range of 65 feet (20m).

Power Every installation requires a CabLED power supply. There are twenty 24

volt power supplies available for installations worldwide. The available

power supplies are separated by suitable plugs for each region. After

identifying the correct region, determine the length of CabLED strip

needed to select the correct power supply for each installation. If you

are unsure of the correct voltage, contact a qualied electrician.

Mounting A choice of six mounting solutions are available.

Introduction

6cabled.optiled.com

About CabLED™ 8000 Series

The CabLED 8000 Series consists of ve components, which may be combined to customize

each application. All components are rated IP65, suitable for indoor or outdoor installations.

IMPORTANT: BEFORE YOU BEGIN, MAKE SURE YOU CAREFULLY READ

AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL.

EEnd Cap

JJumper Cable (There are two lengths used here)

PPS-Link Connector

PS Power Supply

UU-Connector

Possible Applications

cabled.optiled.com 7

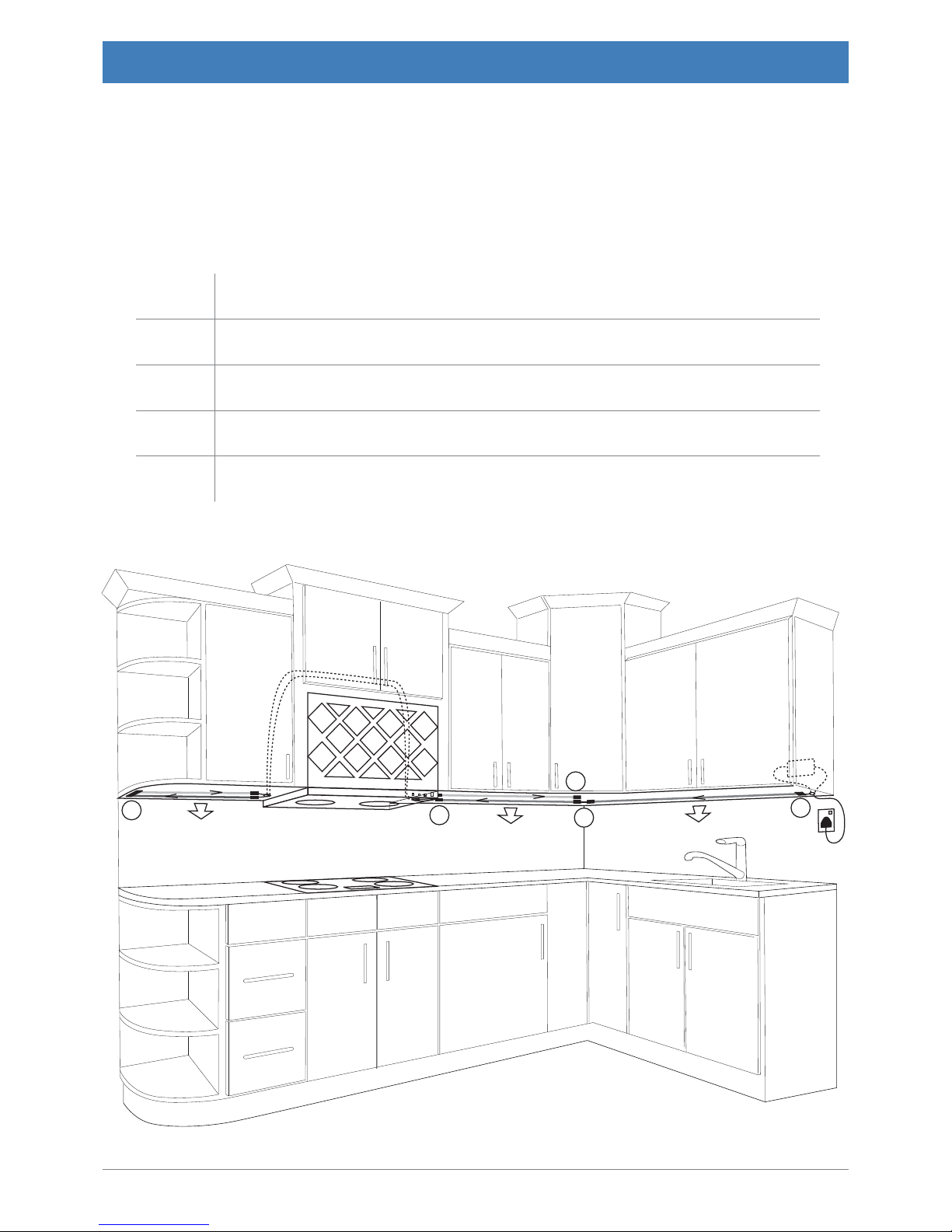

Kitchen Cabinets

In this scenario, the power supply is connected to an AC outlets connected to a light switch. We

have used two strips in work areas that require more light joined with a U-Connector at one end

and a short Jumper Cable on the other. A longer Jumper Cable is hidden in the cabinet above

the stove. The following chart lists the components used for this scenario.

Components

DRemote Dimmer

EEnd Cap

LL-Connector

PPS-Link Connector

PS Power Supply

RReceiver

TT-Connector

XX-Connector

Possible Applications

8cabled.optiled.com

Patios

This scenario turns your patio into the perfect entertainment area. Adjust the light using the

Remote Dimmer. The power supply is mounted well above the ground so it cannot be submerged

in water. The following chart lists the components used for this scenario.

Components

EEnd Cap

JJumper Cable

NInline Dimmer

PPS-Link Connector

PS Power Supply

Possible Applications

cabled.optiled.com 9

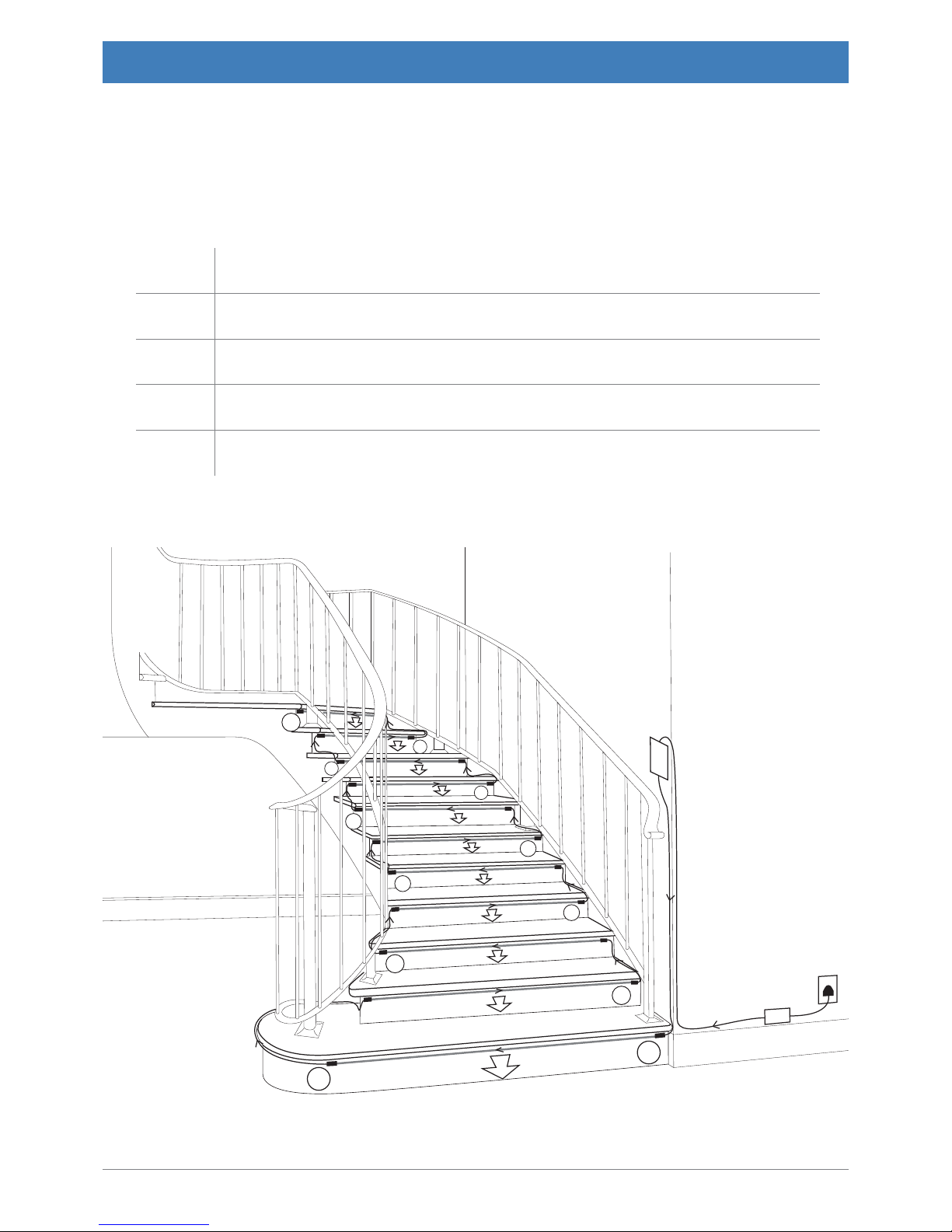

Indoor Stairs

The CabLED strips are mounted under the lip on each step, shining the light down on the step.

Use the Inline Dimmer to adjust the light level to keep your stairway softly lit. The Jumper Cables

are hidden behind the steps. The following chart lists the components used for this scenario.

Components

EEnd Cap

JJumper Cable

PPS-Link Connector

PS Power Supply

RReceiver

SMotion Sensor

Possible Applications

10 cabled.optiled.com

Outdoor Stairs

In this scenario, we have mounted the Motion Sensor above the door so the stairs will be lit as

someone approaches them. The power supply is mounted well above the ground so it cannot be

submerged in water. The following chart lists the components used for this scenario.

Components

This manual suits for next models

Table of contents

Other Optiled Lighting Equipment manuals

Optiled

Optiled 2043287012 User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
