Wireless HDMI Extender, HDWX-100-TR

User’s Manual

Doc No. : OE-HW150102 / Rev2.0

WWW.OPTICIS.COM

Ver. 2.0

- 2 -

Contents

Welcome! .............................................................................................................................................- 3 -

Product Description..............................................................................................................................- 3 -

Shipping Group ....................................................................................................................................- 3 -

Supporting Resolutions........................................................................................................................- 3 -

Applications..........................................................................................................................................- 4 -

Systems Requirements for Setup ........................................................................................................- 4 -

Installation............................................................................................................................................- 5 -

LED Indication......................................................................................................................................- 6 -

SW & Factory Reset.............................................................................................................................- 6 -

GUI Setting...........................................................................................................................................- 6 -

Product Specifications....................................................................................................................... - 14 -

Mechnical Drawing............................................................................................................................ - 14 -

Bracket Installation............................................................................................................................ - 14 -

5GHz Wi-Fi Channels ....................................................................................................................... - 16 -

Troubleshooting ................................................................................................................................ - 16 -

A Guide for Upgrading ...................................................................................................................... - 16 -

Warranty Information........................................................................................................................ - 17 -

- 3 -

Welcome!

Congratulations on your purchase of the Wireless Extender for HDMI, Keyboard and Mouse,

HDWX-100-TR. This manual contains information that will assist you in installing and operating the

product.

Product Description

The OPTICIS wireless Extender, HDWX-100-TR is designed for wireless signals extending of HDMI,

keyboard and mouse. The transmitter module HDWX-100-T connected to the HDMI source encodes

the HDMI by H.264 and transmits the signal via advanced Wi-Fi, 802.11a/n technology. The receiver

module, HDWX-100-R connected to the display receives and decodes wireless signal into HDMI for

display. The USB keyboard and mouse interface in the receiver module, HDWX-100-R also can be

accessed to the source via transmitter module HDWX-100-T, if it is connected to the source by USB

interface.

The HDWX-100-TR supports the digital video data of full HD up to 1920x1080p at 60Hz and 7.1ch

surround audio and transmits the signal up to 30 meters (100feet). It also enables to distribute one (1)

video source up to four (4) displays and makes four (4) local keyboard and mouse accesses to the

source.

By using GUI interface, user can select one of active transmitters for pairing in the receiver side.

With these key features, 4 x 4 wireless routing system can be configured without any electrical

connection.

Shipping Group

HDWX-100-TR Wireless HDMI Extender: One (1) pair

HDWX-100-T: Transmitter (Tx)

HDWX-100-R: Receiver (Rx)

AC/DC power adaptor: Two (2) units of 5V, 2A

Two (2) HDMI male to male cables (1.2m)

User’s manual

Supporting Resolutions

480i60, 576i50

480p60, 576p50

720p50, 720p60

1080i30, 1080i50, 1080i60

- 4 -

1080p24, 1080p30, 1080p50, 1080p60

640x480p60

800x600p60

1024x768p60

1280x768p60

1280x960p60

1280x1024p60

1600x1200p60

1920x1080p60

Note: Some PC resolutions may not be displayed properly.

Applications

Home AV

KVM

Video Control room

Digital signage

Medical imaging

Systems Requirements for Setup

Hardware requirements

You must have a HDMI graphic controller or card having a HDMI or DVI port in your

PC or any other equipment being used. It should support the maximum graphic

resolution feature of displays to be connected.

No special requirements for memory size, CPU speed and chipsets, if you’ve

already properly installed your HDMI graphic controllers or cards.

Software requirements

No special restrictions, if you’ve already properly installed your HDMI graphic

controller in your OS.

AC/DC Power Adapter Technical Advisory

The HDWX-100-TR has a reverse voltage protection circuit and receiver (Rx)

module also has overcurrent protection circuit.

The HDWX-100-TR is designed to use mainly external +5V AC/DC power

adaptor. The internal power supplied through a HDMI pin (#18) from the

graphic source is used to identify normal connection between a source and

transmitter, HDWX-100-T.

- 5 -

Installation

Important: Please keep the installation procedure below. Improper or no operation may result

if the start-up sequence is not followed correctly.

Note: If you change a source to another source such as PC, Camcorder, DVD Player or Blu-ray

player, you have to reset the power of all Txs and Rxs by re-plugging of the +5V power

adaptor.

Step 1

Carefully unpack the contents of the shipping group.

Step 2

Connect HDWX-100-T to the HDMI source by supplied HDMI cable.

Step 3

Turn on the HDMI source and display.

Step 4 (Option for remote keyboard and mouse control)

Connect mini USB port in HDWX-100-T to USB port in PC with USB cable.

Step 5

Plug the +5V power adaptor to HDWX-100-T. Ensure the Power LED ON (Blue).

Step 6

Connect the HDWX-100-R to the HDMI displays by supplied HDMI cable.

Step 7 (In case of remote keyboard and mouse control)

Connect mouse and keyboard to two (2) USB ports in HDWX-100-R.

Step 8

Plug the +5V power adaptor to HDWX-100-T. Ensure the Power LED ON (Blue).

Fig. 1: Configuration of Transmitter, HDWX-100-T

- 6 -

LED Indication

HDWX-100-T and HDWX-100-R have two (2) LEDs for Power and Wireless status located on the top.

•Power status LED (Blue)

When power is applied, the blue LED will be turned on.

•Wireless status LED

HDWX-100-T and HDWX-100-R are starting to connect each other, the blue LED will be blinking

approx.10~15sec. When it is completed, it will stop blinking and be turned on.

SW & Factory Reset

•SW Reset: Press the Reset switch on the front panel shortly to reset the default software.

•Factory Reset: To recover the Factory setting, press and hold the Reset switch on the front side

until the LED is turned off after blinking approx.10sec.

Note: If the number of Txs information is more than 10, please delete information by pressing

“Factory Reset”switch.

GUI Setting

Once GUI setting or PIN/PBC pairing between a transmitter and a receiver is completed, it will be

connected automatically from next time.

1) Description of buttons

[M] button: Menu or Select Button

(S): Select an item or activate the action

(L):Exit from GUI menu or return to GUI menu.

[▶] button: Right Button or Function Key (Back)

(S): Move right or activate the action

(L): Return to previous menu.

[▼] button: Down Button

Fig. 2: Configuration of Receiver, HDWX-100-R

- 7 -

(S): Move Down

Note: (S) means press shortly and release the button, (L) means press the button and hold for

2~3sec and release the button.

Note: Basically, GUI is operated on the receiver side and it shall be operated in cases as below;

(1) When you connect the transmitter and receiver for the first time

(2) To change another transmitter to be connected

(3) To change general setting or check system information

In case of (1) or (2), the receiver can be connected to the transmitter using PBC button. If “Status LED”

is blinking during connection between transmitter and receiver, press PBC button in transmitter and

[▼] button in receiver within 60sec.

2) Access to GUI MENU

Press and hold the [M] button for 2~3sec to enter GUI menu.

Press and hold the [M] button for 2~3sec again to exit from GUI menu.

It will take a few seconds to change the menu when the wireless HDMI connection has been

made.

Step 1

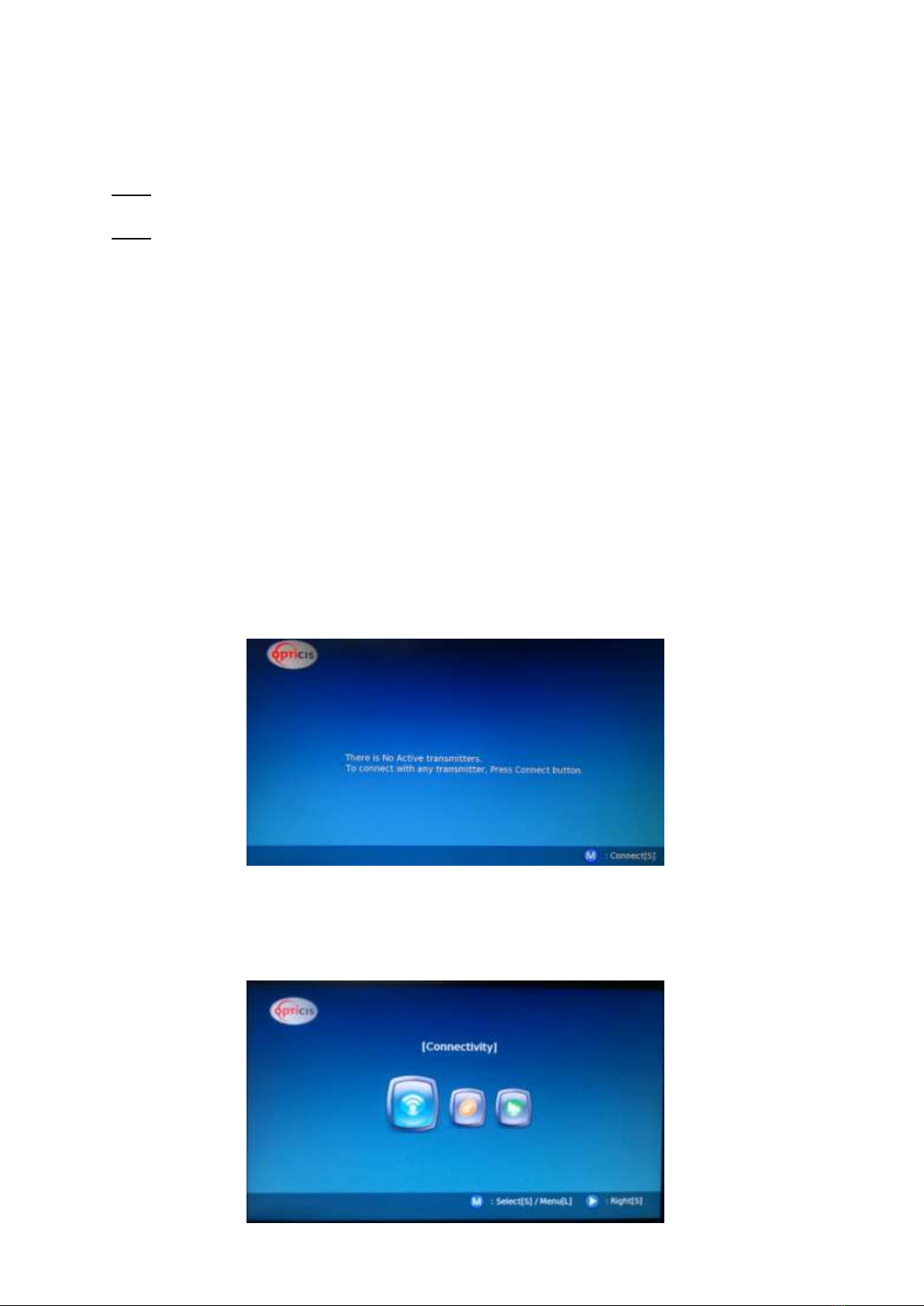

When you connect HDWX-100-TR for the first time, the screen will be shown as below. Press [M]

button to connect into the transmitter.

Step 2 Main Menu

During the wireless HDMI connection, by press and hold [M] button for 2~3sec, user can enter GUI

menu as below. There are 3 sub menus, Connectivity, General Settings and System Info.

- 8 -

To select a menu, press [M] button.

To return the main menu, press and hold [M] button for 2~3sec.

To move to the right, press [▶] button.

Step 3 Connectivity menu: To connect to the other transmitter.

Step 3-1-1 PIN method for connectivity [default]

If user want to find a transmitter to connect or change the other transmitter, press [▼] button to

select and press [M] button to connect the transmitter. Then, the message is shown as below and

the connection is completed.

Note: When the connection is completed, it exits from GUI menu automatically.

Step 3-1-2 PBC method for connectivity

If user want to use PBC method for connectivity, user can setup in General setting menu>WPS

method. (Refer to Step 4.3)

In case of connection or change into new transmitter, press [▼] button to select and press [M]

button to connect. After that, user can find the message shown as below. Press the PBC button in

the transmitter and [M] button in the receiver within 60sec.

To exit from GUI menu, press and hold [M] button for 2~3sec.

To return to the previous page, press and hold [▶]button for 2~3sec.

To cancel the current connection, press [▶] button.

- 9 -

Note: When the connection is completed, it exits from GUI menu automatically.

Step 3-2 Disconnection

To disconnect the transmitter, press [▶] button.

To exit from GUI menu, press and hold [M] button for 2~3sec.

To return to the previous page, press and hold [▶]button for 2~3sec.

If user press [M] button, all the transmitter information will be deleted. In order to connect new

transmitter, execute the Step 3-1-1 or 3-1-2 again.

To exit from GUI menu, press and hold [M] button for 2~3sec.

To return to the previous page, press and hold [▶]button for 2~3sec.

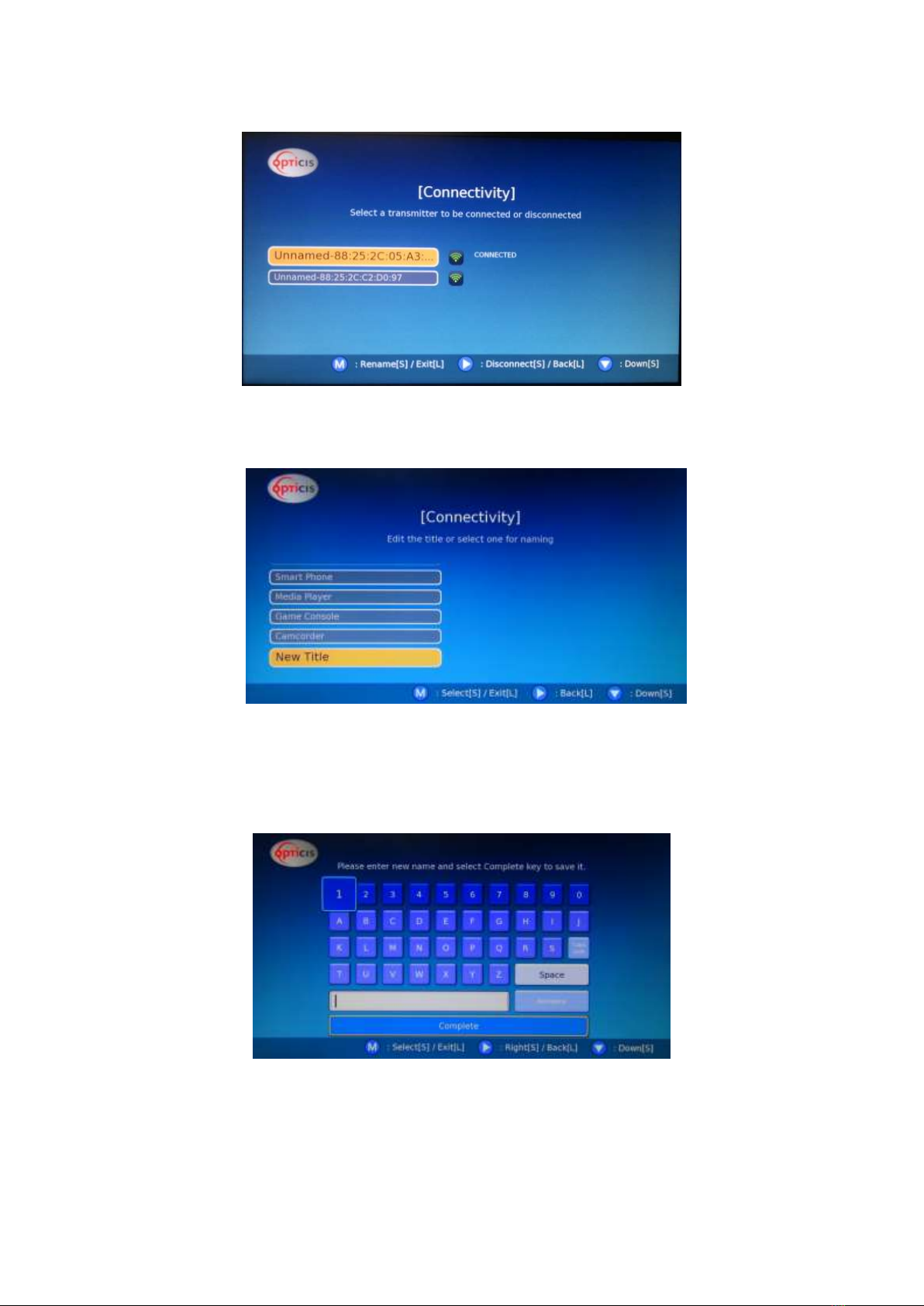

Step 3-3

If you want to change the name of transmitter, press [M] button..

To exit from GUI menu, press and hold [M] button for 2~3sec.

To return to the previous page, press and hold [▶]button for 2~3sec.

- 10 -

Select one of menus to be used from by pressing [▼] and [M] button. User can edit the name in

‘New title’by selecting the characters as below.

Press [▶]and [▼]buttons to move and press [M] button to select it. Then, press Complete to save

the name.

To exit from GUI menu, press and hold [M] button for 2~3sec.

To return to the previous page, press and hold [▶]button for 2~3sec.

Step 4 General Setting menu

Press and hold the [M] button for 2~3sec to enter GUI menu. After selecting General

Setting, press [M] button.

To exit from GUI menu, press [M] button for 2~3sec.

To move to next menu, press [▶] button.
