Optex OVS-01GT User manual

OVS-01GT Product set up guide Version. 12MAR2020

OVS 01GT Setup Guide

Product Package What’s inside

•OVS-01GT(E)

•Quick reference guide

•Installation Instructions

•12mm x 3mmφ screw (4 sets)

Options

•OVS-TB01: 45 degree mounting bracket

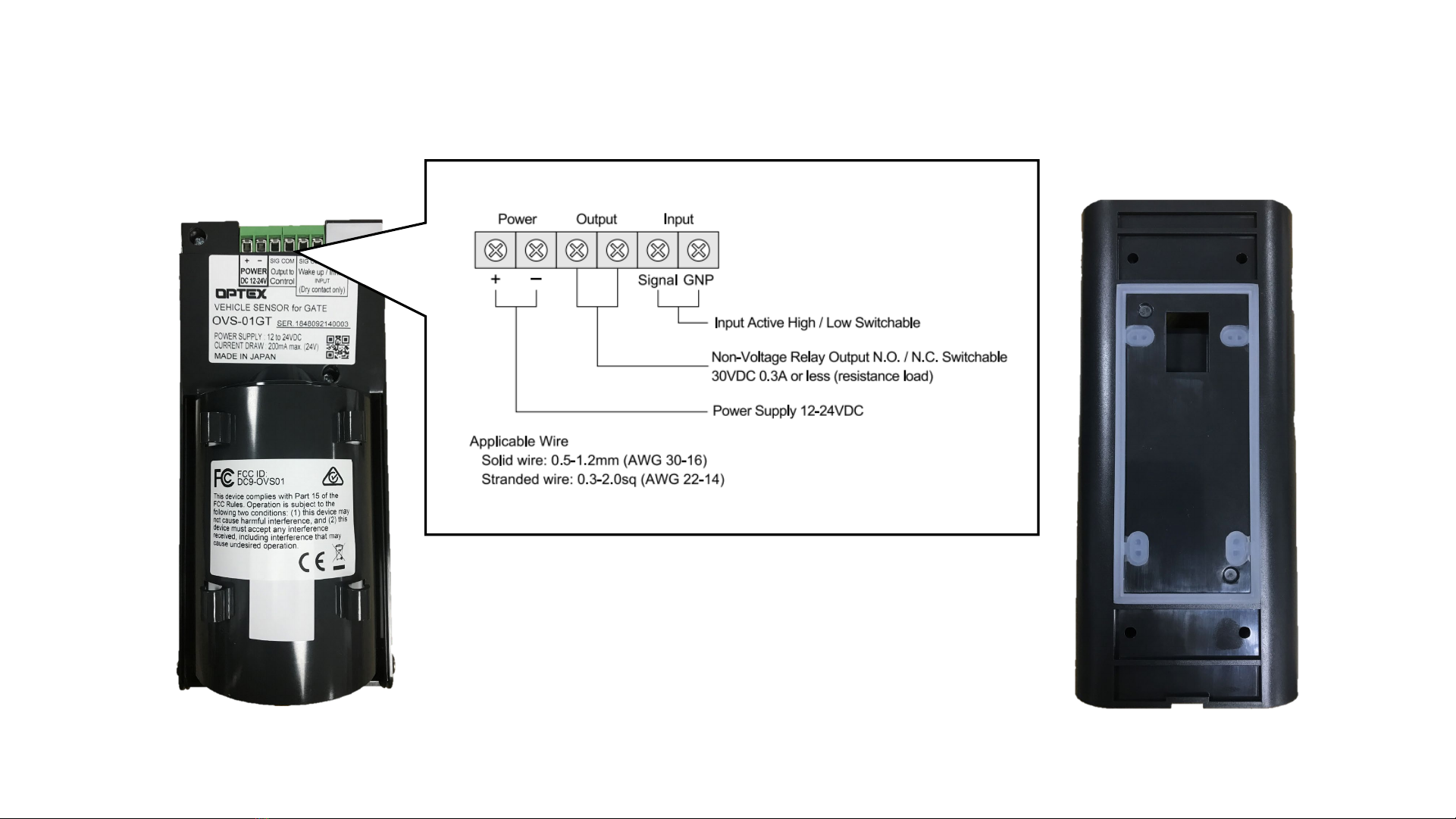

OVS 01GT Setup Guide

OVS 01GT Setup Guide

3 points to remember

-Mounting Height

-Angle

-Calibration

OVS 01GT Setup Guide

Mounting Height

0.5 m

If “activation mode” is used for

a sloped approach, the height

may need to be adjusted.

OVS 01GT Setup Guide：Pick an angle

45 degree

Set to “Activation mode”

90 degree

Set to “Protection mode”

TIP1:

90 degree can also be used as

more stable activation trigger.

TIP3:

Use OVS-01TB

45 degree bracket

TIP2:

Leave more than 30cm

distance from bars.

OVS 01GT Setup Guide

Calibration & Walk test (Area check)

Press and hold until LED

flash in blue

Stand off to a side.

OVS 01GT Setup Guide: Note about “Area Check”

Press and hold until LED

start flashing

Yes, OVS-01GT has “human cancellation”!

However, you can still check its detection

area by “Walking around”

Green Flash:

You are outside of a Microwave(Mw) trigger zone.

Yellow Flash:

You are inside of a Mw trigger zone.

Purple Flash:

You are inside of ultrasonic(Us) zone.

Red Flash:

You are triggering both Mw and Us.

OVS 01GT Setup Guide

Set up flow

1. Fix position: height and angle

2. Run cables and power the device up

3. Set detection range and run calibration

-See if the device functions on the default setting.

4. Adjust parameter.

Human cancel adjustment “5” will reduce “vehicle detection” accuracy.

5. Repeat Calibration and adjustment thorough

with testing with vehicles.

Recommended Initial setting (Default setting)

OVS 01GT Setup Guide

Examples
