Omnimount ELEMENTS 503 FP Operating manual
Product Information SheetProduct Information Sheet
800.MOUNT.IT (800.668.6848)
Product Information Sheet
03252010
BENEFITS
• Uniquely designed to be used as a fl at panel fl oor
stand, or separate video table and mount
• Includes interchangeable inserts for four color
options (High gloss black, Cherry,
Brushed stainless steel, Walnut)
• Pans 30° left and right to adjust viewing angle
(when used as fl at panel fl oor stand)
• Low 1.5” mounting profi le (when used
as separate wall mount)
• Includes universal adapter for greater panel compatibility
• Lift n Lock™ allows you to easily attach
your fl at panel to the mount
• Open area shelves accommodate multiple components
• Neatly route and organize wires through
cable management post
• Locking system secures panel to mount
• Plastic feet protect fl oors
• Easy to assemble
SPECIFICATIONS
• Accommodates most 42”- 55” fl at panels
up to 125 lbs (56.7 kg)
• 8 mm tempered glass top shelf supports
up to 125 lbs (56.7 kg)
• Two 6 mm tempered glass component
shelves supports up to 50 lbs (22.7 kg)
• Universal and VESA compliant: 75x75 to 400X600
• Dimensions: 50”w x 52.8”h x 20”d
(1270mm x 1341mm x 508mm)
• Warranty: 5 years
• Color: Black with black glass

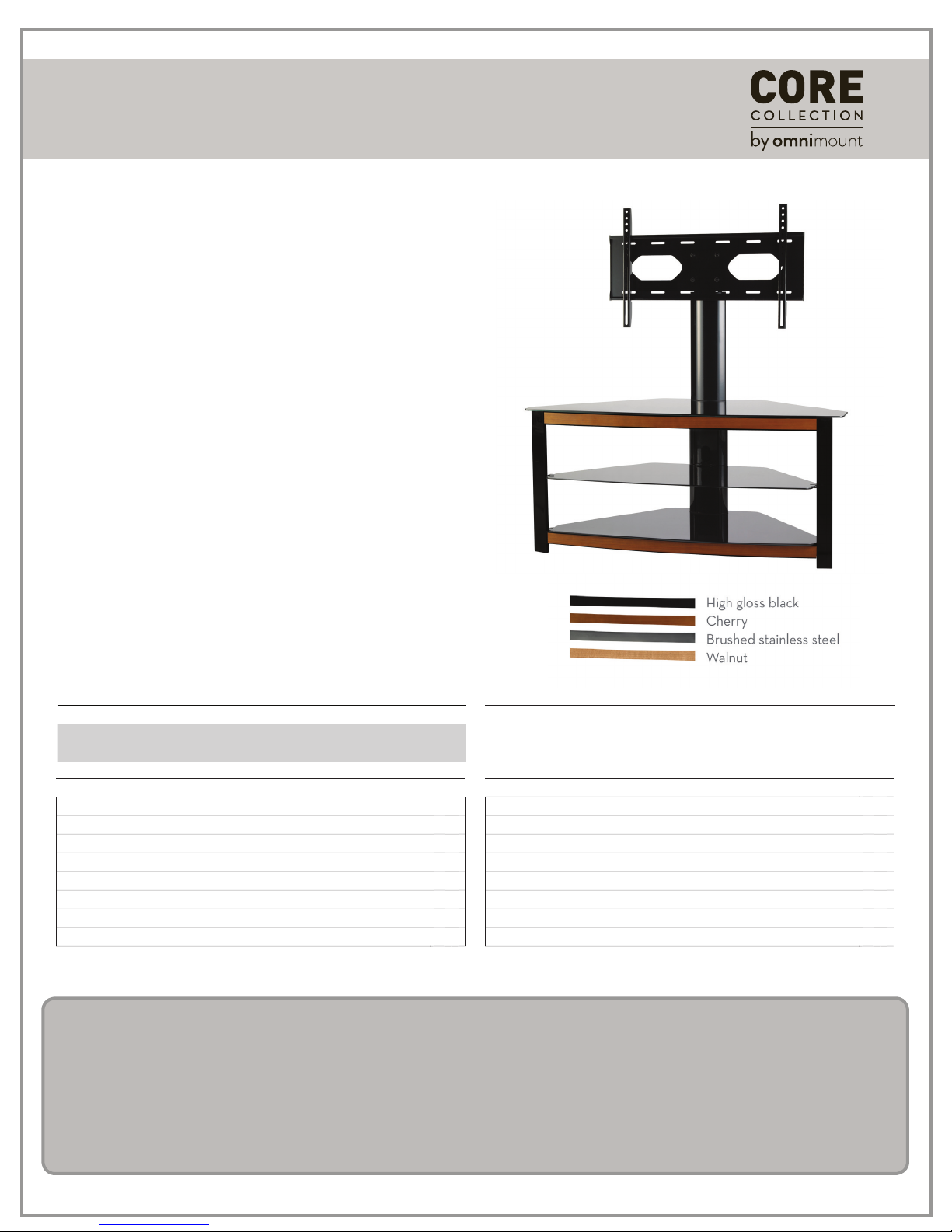

Elements 503FP
The Core Collection is OmniMount’s tried and true furniture collection made up of two
diff erent series of steel and glass A/V furniture. With clean lines, black glass and various
high-gloss fi nishes, these pieces blend seamlessly into any environment. The Elements Series
has an all-in-one design and exclusive interchangeable color inserts that reinvents A/V furniture
with an adaptable approach to displaying fl at panels and components. Ideal for A/V enthusiasts
looking for extreme décor fl exibility, the Elements 503FP can display large to extra large fl at
panels in three diff erent confi gurations and comes with four interchangeable color panel options.
Elements 503FP
Elements 403FP
The Elements Series
With interchangeable color inserts, the Elements
503FP can change its look as easily as you do
Elements 403FP pictured here
800.MOUNT.IT (800.668.6848)
Technical Data Sheet
03252010
The Core Collection is OmniMount’s tried and true furniture collection made up of two diff erent series of
steel and glass A/V furniture. With clean lines, black glass and various high-gloss fi nishes, these pieces blend
seamlessly into any environment. The Elements Series has an all-in-one design and exclusive interchangeable
color inserts that reinvents A/V furniture with an adaptable approach to displaying fl at panels and components.
Ideal for A/V enthusiasts looking for extreme décor fl exibility, the Elements 503FP can display large to extra
large fl at panels in three diff erent confi gurations and comes with four interchangeable color panel options.
Elements 503FP
BENEFITS
• Uniquely designed to be used as a fl at panel fl oor
stand, or separate video table and mount
• Includes interchangeable inserts for four color
options (High gloss black, Cherry, Brushed stainless steel, Walnut)
• Pans 30° left and right to adjust viewing
angle (when used as fl at panel fl oor stand)
• Low 1.5” mounting profi le (when used as separate wall mount)
• Includes universal adapter for greater panel compatibility
• Lift n Lock™ allows you to easily attach
your fl at panel to the mount
• Open area shelves accommodate multiple components
• Neatly route and organize wires through cable management post
• Locking system secures panel to mount
• Plastic feet protect fl oors
• Easy to assemble
SPECIFICATIONS
• Accommodates most 42”- 55” fl at panels up to 125 lbs (56.7 kg)
• 8 mm tempered glass top shelf supports up to 110 lbs (50 kg)
• Two 6 mm tempered glass component shelves supports
up to 50 lbs (22.7 kg)
• Universal and VESA compliant: 75x75 to 400X600
• Dimensions: 50”w x 52.8”h x 20”d (1270mm x 1341mm x 508mm)
• Warranty: 5 years
• Color: Black with black glass
Color Stock Code Packaging UPC
Americas BLK 1004680-1 728901024634
International BLK NA NA
Dimensions WxDxH inches (mm) Wt lbs (kg)
Product Box 25.4 x 55 x 6.7 (645x1397x170) 110.2 (50)
Box Contents Qty
Vertical rail 2
Mount plate 1
Swivel head 1
Column cap 1
Cable management column 3
Column base 1
Top shelf support 2
Middle shelf bracket 2
Box Contents Qty
Base shelf support 2
Front frame horizontal rail 2
Front frame horizontal inserts 8
Glass shelves 3
Complete furniture assembly hardware kit 1
Complete panel mounting hardware kit 1
Complete panel attachment hardware kit 1
Instruction manual 1
inches (mm)
Line Drawing
03252010 800.MOUNT.IT (800.668.6848)
Elements 503FP
49.3 (1251)
22.3
(566)
20
(508)
31.7 (804)
8
(203)
10.6 (268)
7.9
(201)
52.8
(1341)
50 (1270)
18
(468)
19
(483)
2.1
(53)
