Compressor Tester 41-15208
New technologies demands new test equipment
You will find an external regulated compressor in
more than 10 million vehicles. The 41-15208 enables
you to easily check external controlled compressors
Toyota
Yaris > From 99
Yaris Verso > From 99
Corolla Verso > From 04
41-15208 benefits
• Service quality - correct diagnosis in a short time
• Customer service - all vehicles can be supported
- improves customer satisfaction
• Economy - quick payback
- excellent price/performance ratio
You can test the system without removing the compressor or opening the AC System!
The CLT works with following compressors ;
Denso: 5SER09, 5SE09C, 6SEU14, 6SEU16, 7SEU16 and 7SEU17
Sanden: PXE13 und PXE16
1401 Valley View Lane, Suite 100 • Irving, Texas 75061 • Ph 972-812-7000 Fx 972-812-7001
www.omega-usa.com

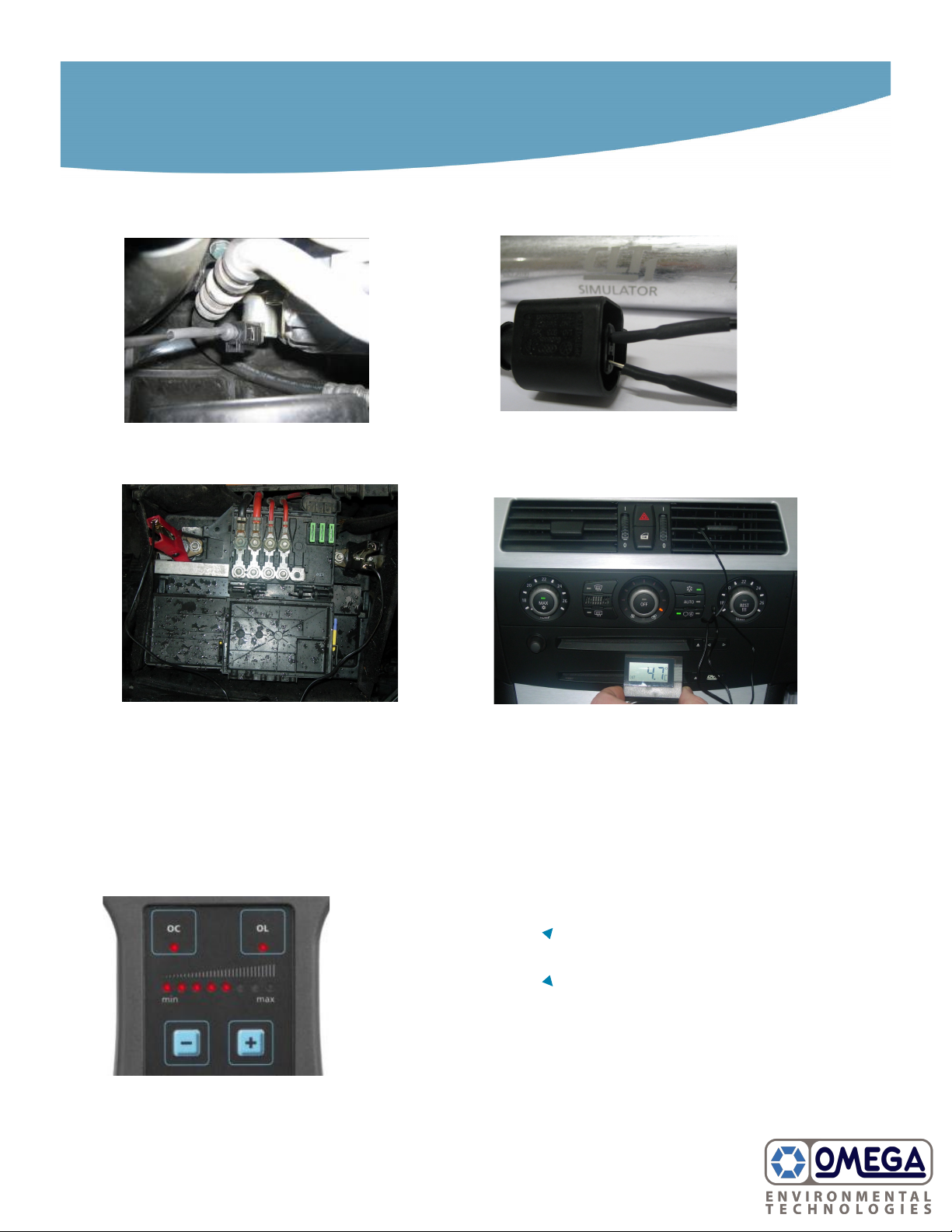

1. Ignition off, unplug the compressor and
connect to the compressor.
3. Connect to the battery.
5. Connect a manifold gauge or charging machine. (optional)
6. Start the engine – idle at app. 1000-1500 RPM.
7. Change the efficiency levels 0-100% with the +/- buttons (wait 10 s between steps)
Note the temperature and pressure changes.
If the diodes OL or OC illuminates – change the compressor.
When you increase the efficiency (+) the following changes;
High pressure side
Low pressure side
Efficiency CLT1 Low pressure* Outlet temperature*
Maximum 1,6 +/- 0,5 bar 0°C +/- 3°
Minimum 3 +/- 0,7 bar 10°C +/-3°
* Orientation levels – varies between manufacturer, model and ambient temperature
2. Connect the disconnected connector with
the simulator – prevents error code generation.
4. Apply a temperature sensor in the middle
outlet and put the fan on max.
The temperature decreases
41-15208 Quick guide
- 7 steps to a result
