Omcan JE-CN-0020 User manual
Revised - 03/01/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com
Orange Juicer
Model JE-CN-0020
Item 44228
Instruction Manual
2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 5
----------------------------------------------------------------------------------------- 6 - 7
----------------------------------------------------------------------------------- 8 - 10
----------------------------------------------------------------------------- 10 - 11
---------------------------------------------------------------------------- 12 - 13
---------------------------------------------------------------------------- 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Warranty Registration
Model JE-CN-0020
3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
4
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
5
Safety and Warranty
Technical Specications
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Model JE-CN-0020
Material Stainless Steel and Black Plastic
Electrical 110-120V / 60Hz / 1
Motor Power 120 W
Power Consumption 300 W
Compatible Fruit Type Lemons / Limes / Oranges / Small Grapefruits
Compatible Fruit Size 1.57” - 3.15” / 40 - 80mm
Approximate Output 20 Oranges per Minute
Overall Dimensions 15.8” x 13” x 30.7” / 400 x 330 x 780mm
Packaging Dimensions 19.7” x 19.7” x 37.4” / 500 x 500 x 950mm
Weight 99.2 lbs. / 45 kgs.
Packaging Weight 110.2 lbs. / 50 kgs.
Item Number 44228
6
Operation
BEFORE OPERATION
1. The power supply must be safely grounded, and the machine connection parts shall only be changed by
qualied individuals.
2. Check whether all parts are installed properly. This product is equipped with a safety system, only after the
machine cover is correctly installed, it can work, the machine will not start otherwise.
3. Before using for the rst time, please clean the unit thoroughly, taking extra care when cleaning the parts
that come into contact with food.

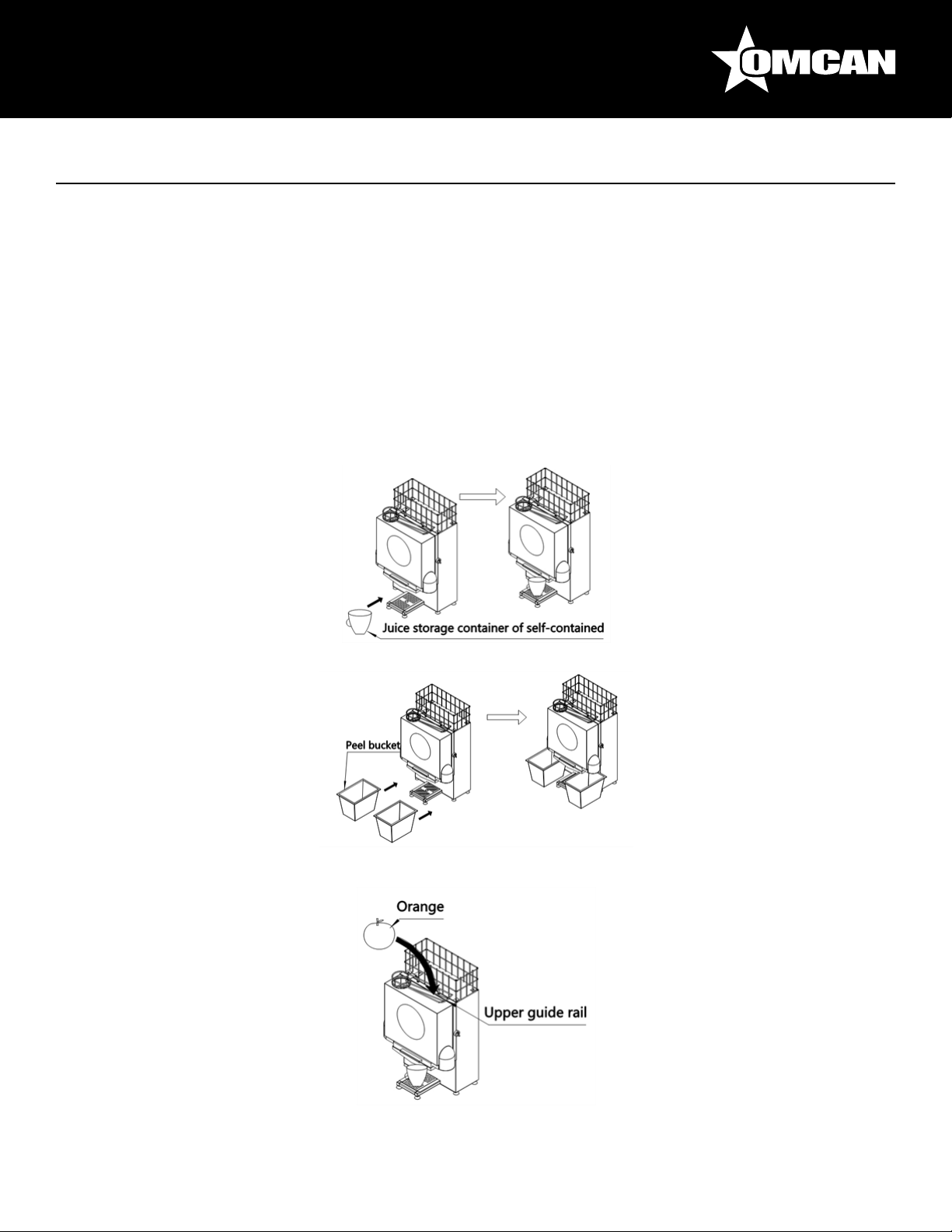

OPERATION PROCESS
1. Put a glass or a desired container on the tray below the dispenser.
2. Put the fruit peel buckets under the two ejector slots on the sides of the unit.
3. Fill the top basket with the desired amount of cleaned oranges.
7
Operation

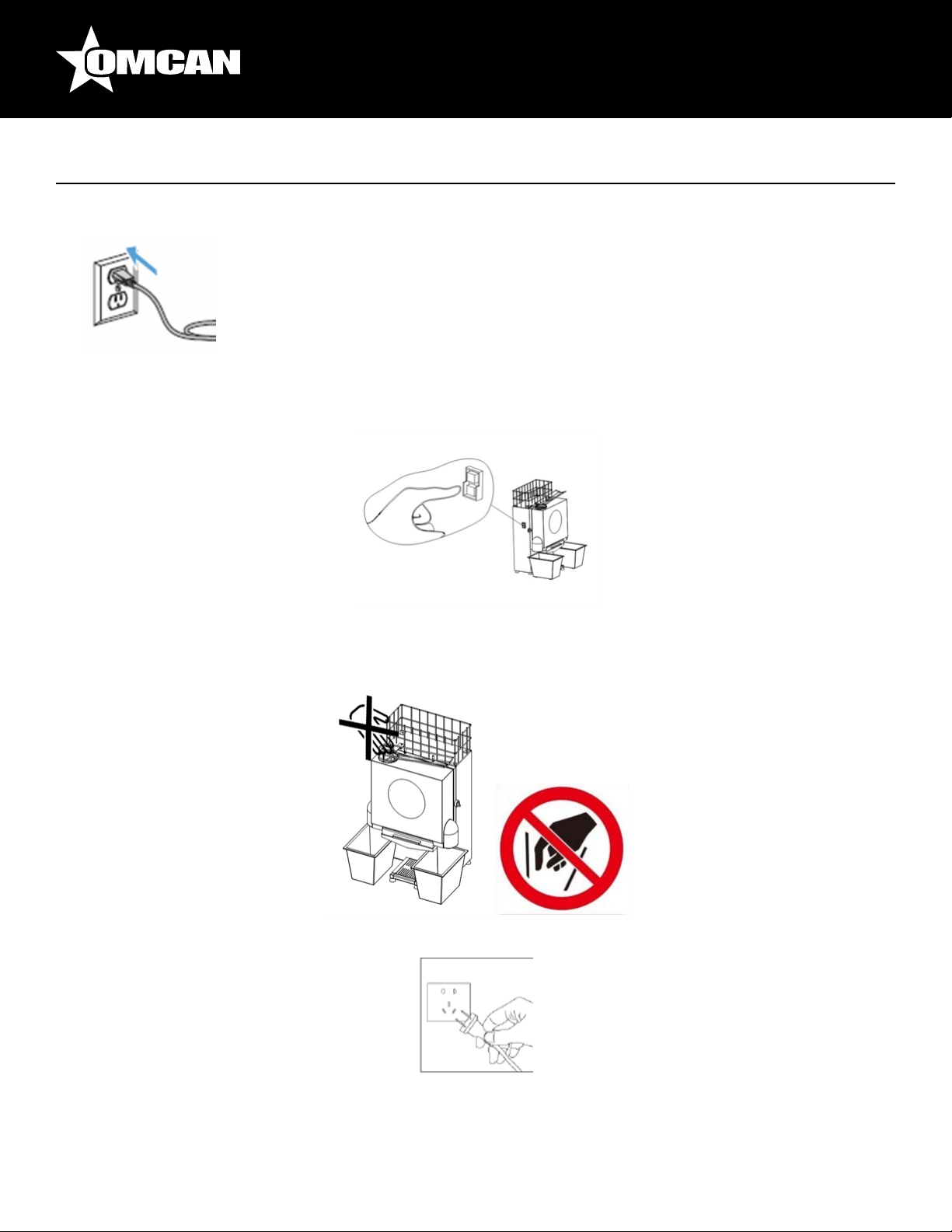

4. Plug in the machine and it will be ready to work.
5. Pressing the start switch can feed the oranges continuously into the feeding port, once one orange has
been squeezed the skin will be discarded into each peel basket automatically.
6. When the machine is operating, it is important to note that you must never insert your hands and ngers
into the feeding port. If the juice storage container or the fruit peel bucket is lled up, switch off the power
supply and then clean it.
7. After the operation of this machine is completed, turn off the unit and disconnect from the power supply.
8
Maintenance
MAINTENANCE AND CLEANING
1. Before cleaning the product, the unit must be switched off, ensure to unplug the machine from the power
source, always wait until the machine stops completely.
2. Clean the unit immediately after use.
3. The outer main body can be wiped with a damp cloth, do not wash the machine with water directly, remove
the parts that come into contact with the oranges and wash thoroughly.

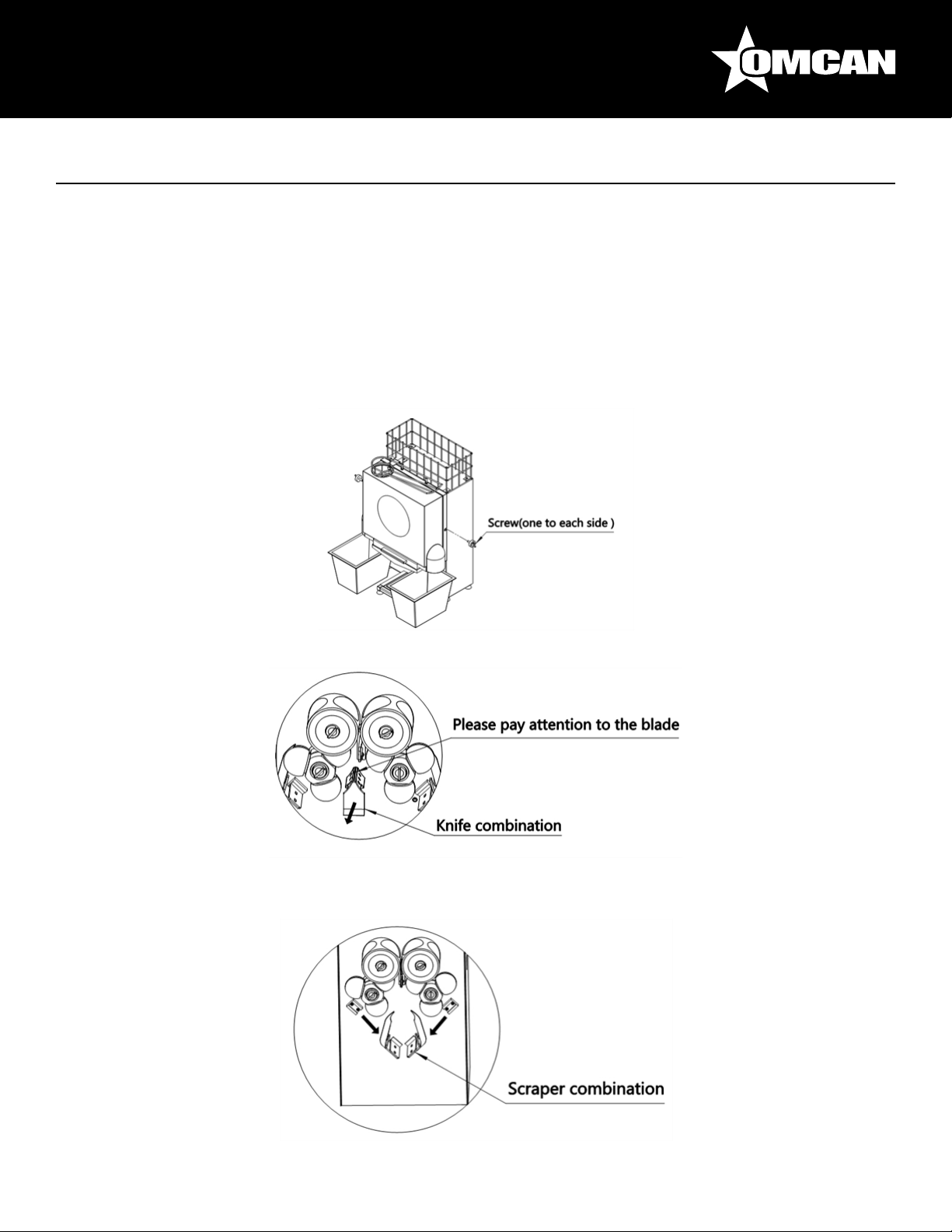

4. Refer to the following steps on how to disassemble the parts to clean:
- Unscrew the cover screw, remove the cover.
- Pull out the knife combination (being extra careful around the blade).
- Remove the two groups of scraper combinations by unscrewing the four screws and sliding them out as
shown below.
9
Maintenance
- Remove the two groups of concave and convex balls (each group of the concave and convex balls need
to be removed at the same time).
- After the cleaning of the unit is completed, re-install each part by following the previous instructions in the
reverse order.
REPLACING THE GEARS
1. Remove the damaged cylindrical gear and the connected parts according to the assembly sequence.
2. Use two square hole templates to lock the upper two of four corner angle shaft parallels, and then install
two big cylindrical gears.
3. Remove the two square hole templates.
10
Troubleshooting
Maintenance
Type of Fault Problem Check
Electrical fault. The safety switch does not work. Check whether the safety switch is
in good condition.
Check whether the safety switch is
in the closed state.
The starting switch does not work. Check whether the starting switch
is in good condition.
Check whether the starting switch
socket end is plugged.
Motor does not work. Check whether the socket at the
two sides of the power line is
tightened.
Check whether the fuse is in good
condition.
Check whether the terminal in
the motor switch box is solid
connection.
4. Use one square and a triangle template to lock the left (or right) upper four corner angle shaft and lower
triangular shaft under the ridge axis, and then install the small cylindrical gear.
5. The installation method of the other side of the small cylindrical gear is the same as part 4.
