Olympus STYLUS-7010/-7010 User manual

DIGITAL CAMERA

STYLUS-7020/

-7020

STYLUS-7010/

-7010

Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Unless otherwise speciﬁed, the explanation about these illustrations is

provided for STYLUS-7020/-7020.

Instruction Manual

2EN

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Three Ways to Adjust Settings” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 43)

“Print Reservations (DPOF)” (p. 46)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 14)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ...............................6

Preparing the Camera .................. 10

Shooting, Playback,

and Erasing ................................... 14

Using Shooting Modes................. 17

Using Shooting Functions...........19

Using Playback Features ............. 23

Menus for Shooting Functions.... 25

Menus for Playback, Editing, and

Printing Functions........................32

Menus for Other Camera

Settings .........................................37

Printing .......................................... 43

Using OLYMPUS Master 2............ 48

Usage Tips ....................................50

Appendix .......................................55

Index ..............................................70

Contents

Step 1

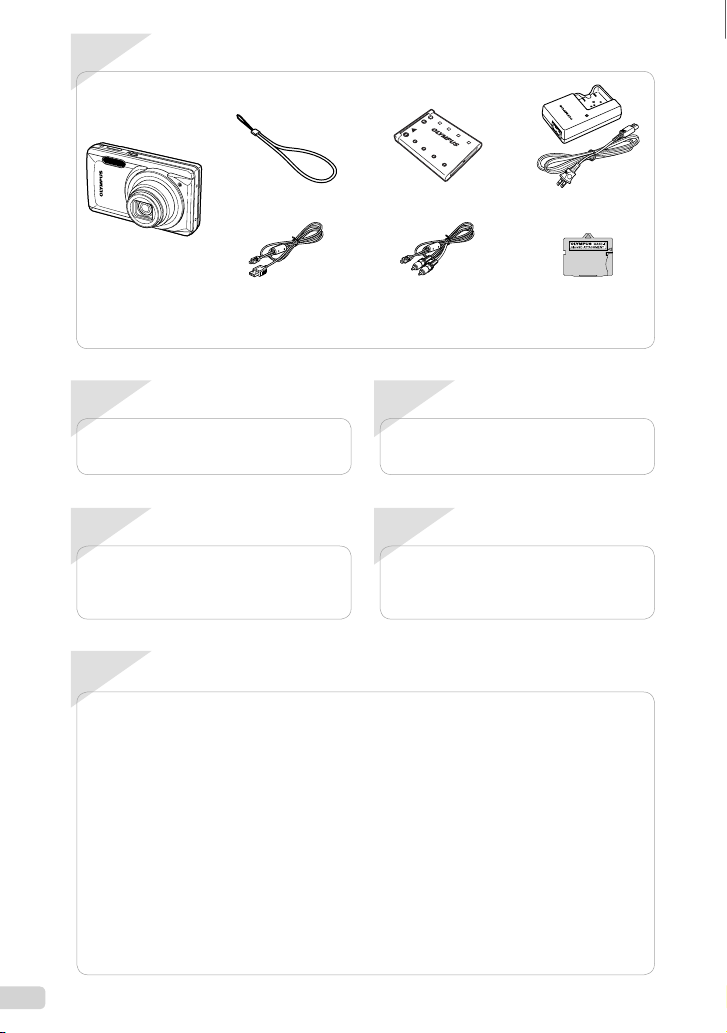

Checking the contents of the box

Digital Camera

Strap LI-42B Lithium-Ion Battery LI-41C Battery Charger

USB Cable AV Cable microSD

Attachment

Other accessories not shown: Instruction Manual (this manual), OLYMPUS Master 2, warranty card

Contents may vary depending on purchase location.

3EN

mbutton

Buttons in use

4Use kl to select the desired

submenu 1, and press the Ebutton.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press mto highlight the page tab, and then

use kl to move the page tab. Press

nto return to the submenu 1.

Some menus include submenus that

appear by pressing the Ebutton.

5Use kl to select the

submenu 2, and press the Ebutton.

Once a setting is selected, the display

returns to the previous screen.

There may

be additional

operations. “Menu

Settings” (p. 25 to

42)

6Press the mbutton to complete

the setting.

●

Three Ways to Adjust Settings

Ebutton

Using the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

Some menus may not be selectable due to

combinations of functions that have been set or

the selected smode (p. 29).

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Please read “Menu Settings” (p. 25 to 42) while referring to this page.

Arrow pad

Ebutton

1Set the mode dial to

a position other than

The symbol in “Menu Settings”

(p. 25 to 42) indicates available shooting

modes.

2Press the mbutton.

This example describes how to use the

menus to set the [DIGITAL ZOOM].

CAMERA MENU

EXIT SET

Shooting mode top menu

3Use klmn to select the desired

menu, and press the Ebutton.

Pressing and

holding the E

button displays

an explanation

(menu guide)

of the selected

option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

4EN

Using the FUNC Menu (p. 22)

Frequently used shooting menu functions can be set with fewer

steps using the FUNC menu.

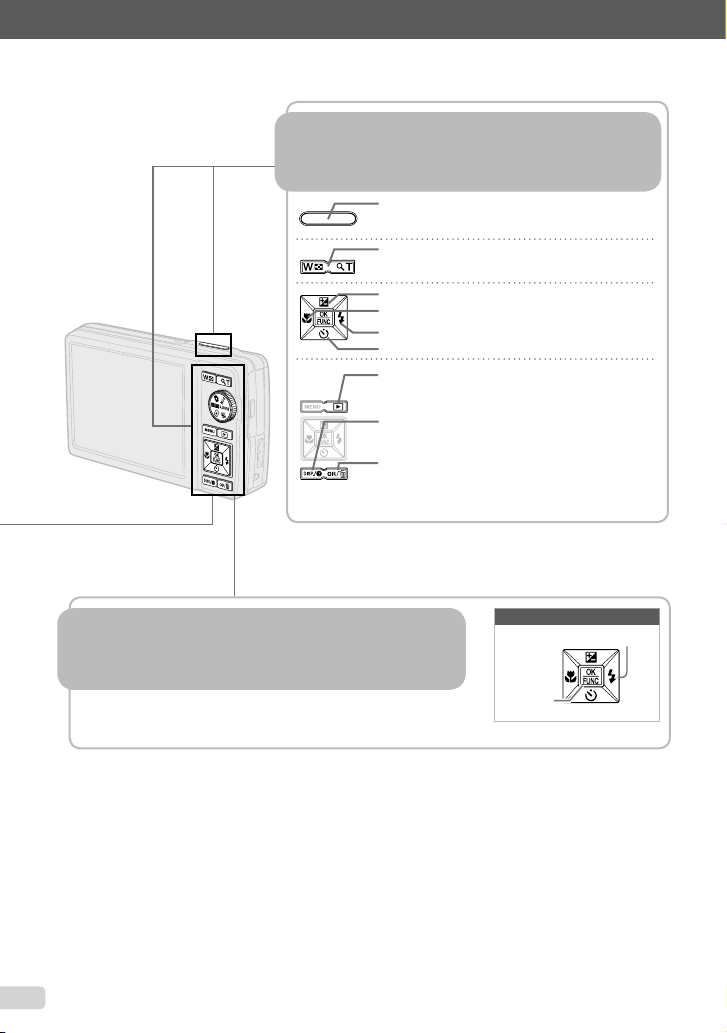

Using the Direct Buttons

Frequently used shooting functions can be accessed using the

direct buttons.

Shutter button (p. 14)

Zoom button (p. 19)

Fbutton (exposure compensation) (p. 20)

&button (macro) (p. 20)

#button (ﬂash) (p. 19)

Ybutton (self-timer) (p. 21)

qbutton (playback) (p. 15, p. 32)

g/Ebutton (change information display/

menu guide/check date and time) (p. 3, p. 13,

p. 21)

H/Sbutton (panorama/magic ﬁlter/

Shadow Adjustment Technology/multi window/

backlight boost/erase) (p. 16, p. 22)

Ebutton (p. 3, p. 22)

Buttons in use

Arrow pad

Ebutton

5EN

1GSLIDESHOW ............... p.32

2HPERFECT FIX ............. p.32

3FBEAUTY FIX................ p.33

4IEDIT

Q(Resize) ................ p.33

P(Crop) .................... p.33

COLOR EDIT............... p.34

CALENDAR................. p.34

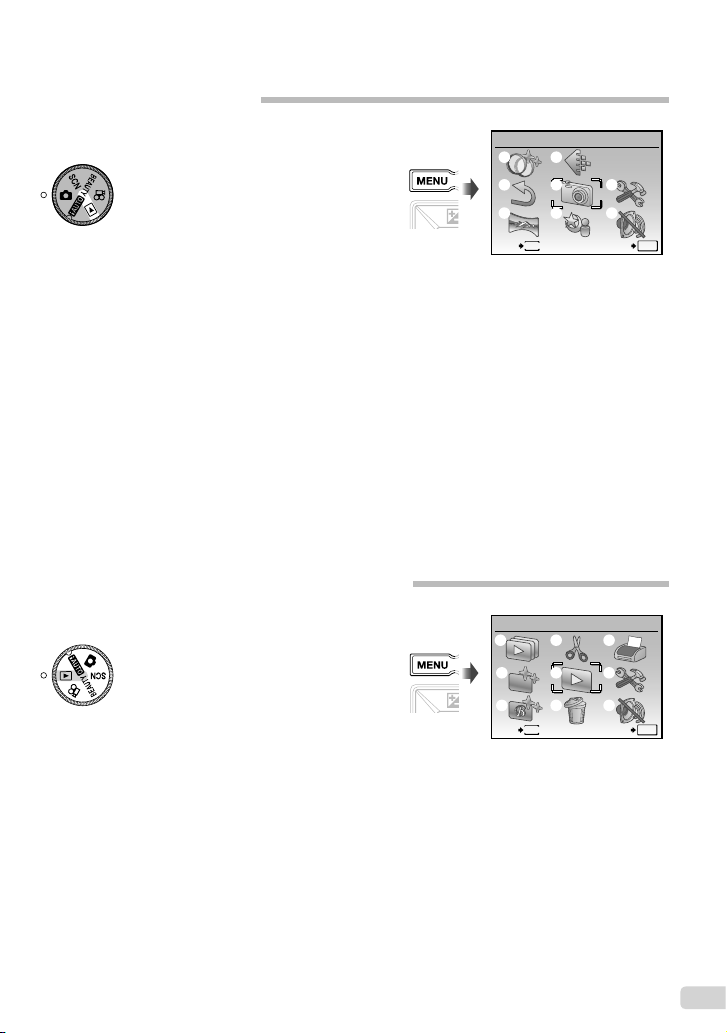

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the qposition, settings can be

adjusted. PLAYBACK MENU

EXIT SET

Playback mode top menu

FACE FOCUS.............. p.34

INDEX.......................... p.35

EDIT ............................ p.35

5JPLAYBACK MENU

0(Protect) ............... p.35

y(Rotate)................... p.35

R(Add sound to still

images) .................... p.36

6KERASE......................... p.36

7LPRINT ORDER ............ p.36

8ESETUP*

9FSILENT MODE ............ p.42

1AIMAGE QUALITY......... p.25

2BCAMERA MENU

WB............................... p.26

ISO .............................. p.26

DRIVE.......................... p.26

FINE ZOOM................. p.27

DIGITAL ZOOM ........... p.27

ESP/n....................... p.27

AF MODE .................... p.27

R(Sound recording).... p.28

IMAGE STABILIZER

(Still images)/

DIS MOVIE MODE

(Movies) ................... p.28

SHADOW ADJ............. p.28

3 Js............................ p.29

4GPANORAMA................. p.30

5DRESET......................... p.31

6QMAGIC FILTER............ p.31

7 ESETUP

MEMORY FORMAT/

FORMAT .................. p.37

BACKUP...................... p.37

W(Language)........ p.37

PW ON SETUP ........... p.37

MENU COLOR ............ p.38

SOUND SETTINGS..... p.38

REC VIEW................... p.38

FILE NAME.................. p.39

PIXEL MAPPING......... p.39

s(Monitor) ............... p.40

X(Date/time)............ p.40

DUALTIME................... p.40

PIC ORIENTATION*..... p.40

VIDEO OUT................. p.41

HDMI*.......................... p.42

POWER SAVE............. p.42

8FSILENT MODE ............ p.42

Menu Index

Menus for Shooting Functions

When the mode dial is set to a shooting mode position

(hKsIn), settings can be adjusted. CAMERA MENU

EXIT SET

3 8

Shooting mode top menu

*STYLUS-7020/-7020 only

*Same as “Menus for shooting functions”

6EN

Names of Parts

1Connector cover ................. p.41, 43, 48

2Multi-connector ................... p.41, 43, 48

3HDMI mini connector*..................... p.41

4Strap eyelet..................................... p.10

5Flash ............................................... p.19

6Battery/card compartment cover

...................................................p.11, 51

* STYLUS-7020/-7020 only

Camera unit

STYLUS-7010/μ-7010

7Self-timer lamp................................ p.21

8Microphone ............................... p.28, 36

9Lens ................................................ p.55

10 Tripod socket ......................................—

11 Speaker ..............................................—

7EN

1Shutter button ........................... p.14, 50

2Kbutton............................ p.14

3 Zoom button.............................. p.19, 23

4 Monitor............................ p.8, 14, 40, 50

5 mbutton................................. p.3, 5

6 g/Ebutton (change information

display/menu guide/

check date and time) ............ p.3, 13, 21

7 Card access lamp ........................... p.56

8 Mode dial .................... p.3, 5, 14, 15, 17

9 qbutton (playback) ................ p.15, 32

10 Ebutton (OK/FUNC) ................. p.3, 22

11 Arrow pad ............................... p.3, 4, 12

Fbutton (exposure compensation)

................................................... p.20

&button (macro) ....................... p.20

Ybutton (self-timer) .................. p.21

#button (ﬂash).......................... p.19

12 H/Sbutton (panorama/magic ﬁlter/

Shadow Adjustment Technology/

multi window/backlight boost/erase)

.................................................. p.16, 22

8EN

Monitor

Shooting mode display

1212

+2.0 1/30

ISO

1600

ORM

13151617 1214

254 76 6

+2.0

00:34

VGA

13 121417

254 7

F3.0

Still image Movie

1 Shooting mode.......................... p.14, 17

2 Flash mode ..................................... p.19

3 Silent mode..................................... p.42

4 Image stabilization(still images)/

Digital image stabilization(movie) ... p.28

5 Macro/super macro......................... p.20

6 Shadow Adjustment Technology

.................................................. p.22, 28

7 Battery check ............................ p.10, 51

8 Flash standby/camera shake warning/

ﬂash charge .................................... p.50

9 AF target mark ................................ p.14

10 Recording with sound ............... p.18, 28

11 Dualtime.......................................... p.40

12 Number of storable still pictures/

remaining recording time .... p.14, 18, 57

13 Current memory.............................. p.56

14 Self-timer ........................................ p.21

15 Aperture value ................................ p.14

16 Shutter speed ................................. p.14

17 Exposure compensation ................. p.20

18 Compression/frame rate ................. p.25

19 Image size ...................................... p.25

20 Metering.......................................... p.27

21 Drive ............................................... p.26

22 ISO.................................................. p.26

23 White balance ................................. p.26

9EN

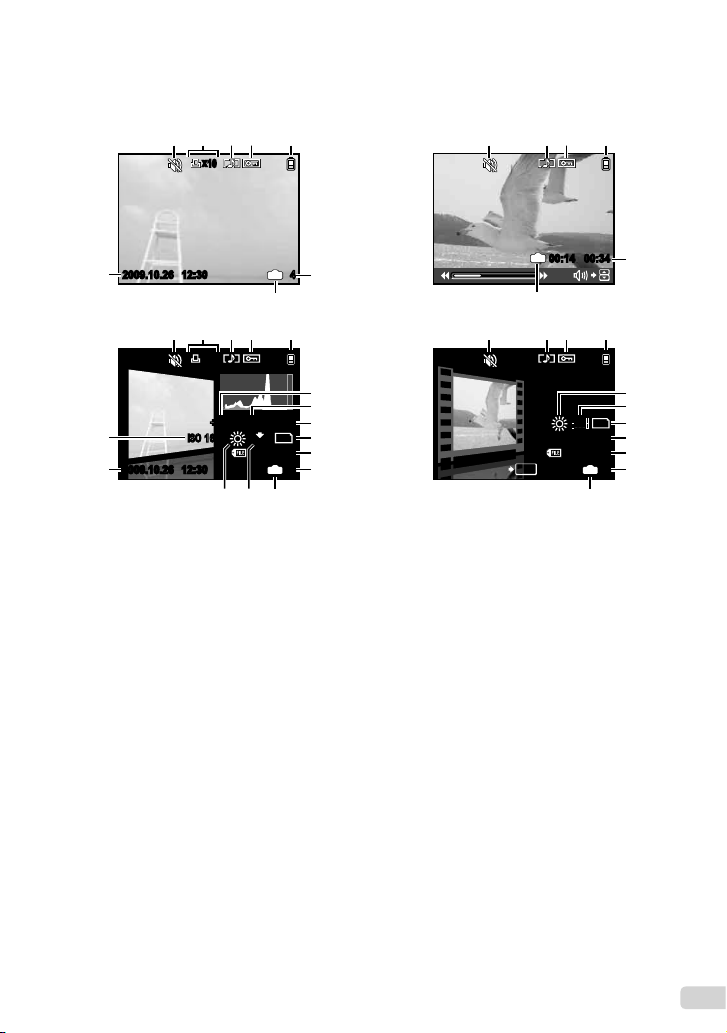

Playback mode display

2009.10.26 12:30 44

34 51

234 51

1314

00:14

00:34

VVGA

34 51

+2.0+2.0

ORM

F3.0

1/1000

ISOISO

16001600

100-0004

2009.10.262009.10.26 12:3012:30

34 51

100-0004

2009.10.262009.10.26 12:3012:30

MOVIE PLAY

Still image Movie

1 Silent mode..................................... p.42

2 Print reservation/

number of prints...................... p.46/p.45

3 Recording with sound ......... p.18, 28, 36

4 Protect ............................................ p.35

5 Battery check ............................ p.10, 51

6 Exposure compensation ................. p.20

7 Shutter speed ................................. p.14

8 Aperture value ................................ p.14

9 Image size ...................................... p.25

10 File number..................................... p.39

11 Frame number

Elapsed time/total recording time

.................................................. p.15, 16

12 Current memory.............................. p.56

13 Compression/frame rate ................. p.25

14 White balance ................................. p.26

15 Date and time ........................... p.13, 40

16 ISO.................................................. p.26

10 EN

Preparing the Camera

Charging the battery

The included battery charger (AC cable type

or plug-in type) differs depending on the region

where you purchased the camera.

If you received a plug-in type battery charger,

plug it directly into an AC outlet.

Example: AC cable type battery charger



AC cable

AC outlet

Lithium-ion battery

Charging indicator

On: Charging

Off: Charged

Battery charger

Battery comes partially charged. Before use,

be sure to charge the battery until the charging

indicator light turns off (up to 2 hours).

If the charging indicator does not light or

it blinks, the battery may not be inserted

correctly or the battery or the charger may be

broken.

For details on the battery and the charger, see

“Battery and charger” (p. 55).

When to charge the battery

Charge the battery when the following error

message appears:

BATTERY EMPTY

Monitor top right Error message

Flashes in red

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

This manual suits for next models

Table of contents

Other Olympus Digital Camera manuals

Olympus

Olympus VT1621-01 User manual

Olympus

Olympus TG-310 User manual

Olympus

Olympus CAMEDIA C-500 Zoom Installation guide

Olympus

Olympus 226065 - Stylus 820 Digital Camera Configuration guide

Olympus

Olympus D-390 - 2 MP Digital Camera User manual

Olympus

Olympus Camedia D-540ZOOM User manual

Olympus

Olympus E-500 - EVOLT Digital Camera User manual

Olympus

Olympus FE170 - 6.0 Megapixel 3x Optical Zoom Digital... User manual

Olympus

Olympus OM-4 User manual

Olympus

Olympus E M10 Pancake Kit Silver User manual

Olympus

Olympus E-M10 Mark III User manual

Olympus

Olympus AZ-1 ZOOM User manual

Olympus

Olympus SP-310 User manual

Olympus

Olympus 225840 - Stylus 730 7.1MP Digital Camera User manual

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera User manual

Olympus

Olympus FE-140 X-725 Setup guide

Olympus

Olympus 226705 - Stylus 9000 Digital Camera Instruction Manual

Olympus

Olympus TG-320 User manual

Olympus

Olympus SP-310 Setup guide

Olympus

Olympus C-120 - CAMEDIA - Digital Camera Installation guide

Olympus

Olympus SP-510UZ Installation guide

Olympus

Olympus CAMEDIA C-1 Zoom User manual

Olympus

Olympus FE 130 - 5.1MP Digital Camera User manual

Olympus

Olympus XZ-1 Setup guide

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
