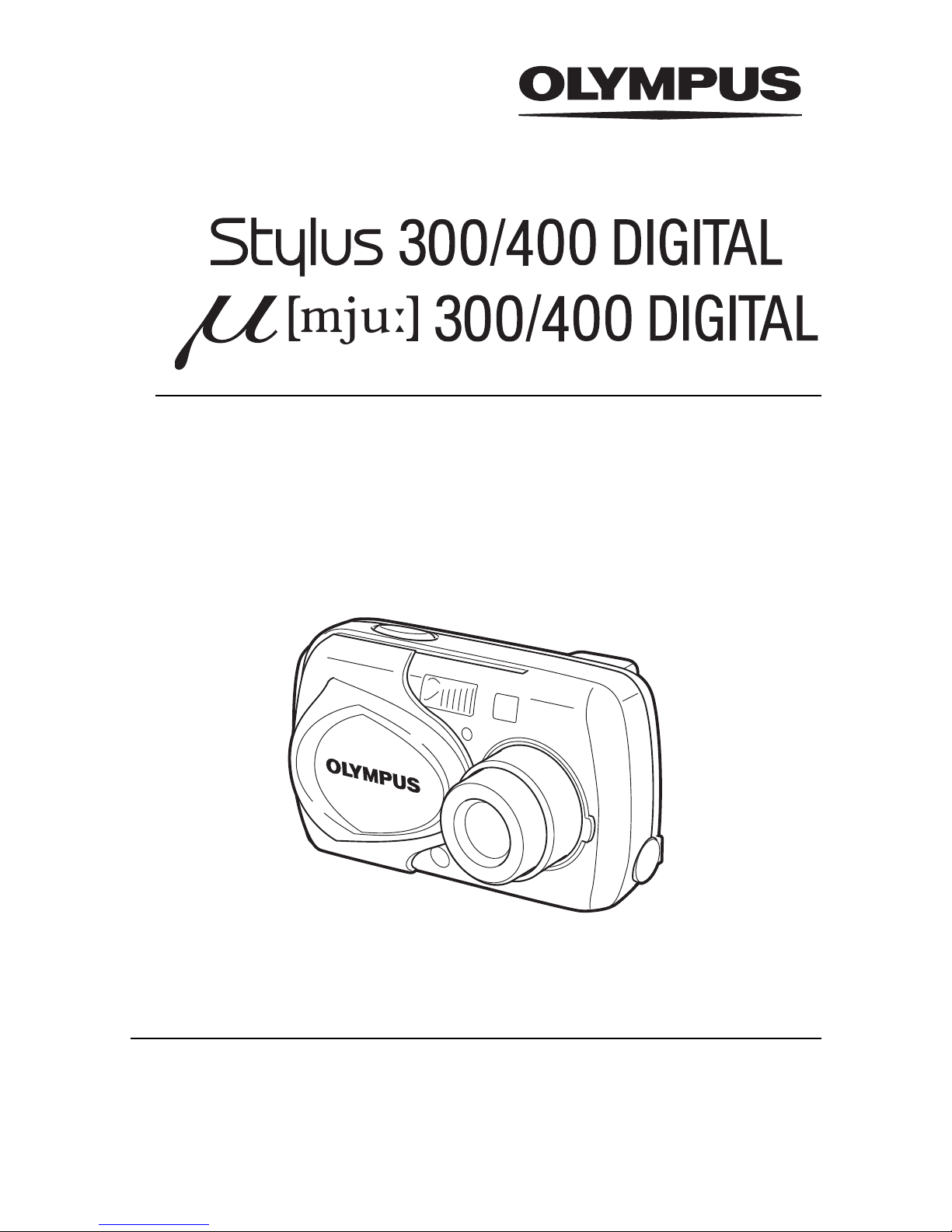

Olympus STYLUS 300 User manual

zThis manual contains guidelines for using Olympus Stylus 300/400

DIGITAL (µ [mju:] 300/400 DIGITAL).

zIn the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

DIGITAL CAMERA

MANUAL FOR DIRECT PRINTING

Manual outlining new features added to the camera with firmware upgrade.

About this manual

Update the camera’s firmware to enable PictBridge on your camera. This will

allow you to print pictures directly from the camera by connecting it to a printer

that supports PictBridge with the USB cable.

This manual explains additional functions, and different operations that are

available when the camera’s firmware has been updated. These functions

and operations are different than what is stated in the Reference Manual that

originally provided with your camera.

What is PictBridge? … It is the standard for connecting digital cameras and

printers of different makers and printing out pictures directly.

Indications used in this manual

Important information on factors which may lead to a

malfunction or operational problems. Also warns of operations that

should be absolutely avoided.

Useful information and hints that will help you get the most out of

your camera.

Reference pages describing details or associated information.

Reference pages describing details or associated information in

the CD reference manual. Available languages: English, French,

German, and Spanish.

Note

Contents

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1 Functions changed by updating the

firmware 4

Selecting a language . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connection to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Direct printing function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Direct printing 7

Using the direct printing function . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting the camera to a printer . . . . . . . . . . . . . . . . . . . . . . 8

Printing pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PRINT mode/MULTI PRINT mode . . . . . . . . . . . . . . . . . . . 9

ALL PRINT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

ALL INDEX mode/PRINT ORDER mode . . . . . . . . . . . . . 15

Exiting direct printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

If an error code is displayed . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1 Functions changed by updating the firmware

Selecting a language

You can change the language in which menus and error messages are

displayed on the monitor.

The choice of languages changes as shown below after updating.

Before updating “Menu List” (P.124 to 127)

After updating

Top menu Tab Function Setting

MODE

SETUP , ENGLISH,

FRANCAIS, DEUTSCH,

ESPAÑOL

Top menu Tab Function Setting

MODE

SETUP ENGLISH, FRANCAIS,

DEUTSCH, ESPAÑOL

Connection to a computer

When the USB cable is used to connect the camera to a computer, follow

the procedure below to select PC in the camera settings.

1Insert the marked end of the provided USB cable into the

USB port on your computer as shown below.

• The location of the USB port varies depending on the computer.

For details, refer to your computer’s manual.

2Plug the other end of the USB

cable into the camera’s USB

connector.

• The camera turns on automatically.

• When the camera turns on, the

lamp on the right of the viewfinder

lights up.

3The selection screen for the

USB connection (shown

right) is displayed on the

monitor. Press to

select PC and press

4The computer recognizes the camera as a new device.

• When you connect the camera to the computer for the first time, the

computer automatically recognizes the camera. Click “OK” when the

message saying that the installation is completed appears.

• The computer recognizes the camera as a “Removable Disk”.

Look for this mark.

USB port

Terminal

Note

Lamp

SELECt

Arrow pad ( )

Direct printing function

After updating the camera’s firmware to enable PictBridge, pictures can be

printed directly from the camera. By connecting the camera directly to a

printer that supports PictBridge with the USB cable, you can print pictures

stored on the card inside the camera without a need to use a computer.

For details of printing instructions, see “Direct printing” ( P.7).

2 Direct printing

Using the direct printing function

By connecting the camera to a PictBridge-compatible printer with the USB

cable, you can print out recorded pictures directly without the use of a

computer. With the camera connected to the printer, use the camera’s

monitor to select the pictures you want to print, and the number of prints you

want to make. It is also possible to print out pictures using the print

reservation data. “Print settings” (P.111)

To find out if your printer is compatible with PictBridge, refer to the printer’s

instruction manual.

What is PictBridge? … It is the standard for connecting digital cameras and

printers of different makers and printing out pictures directly.

STANDARD … All printers that support PictBridge have standard print

settings. Selecting STANDARD on the settings screens ( P.10 to

16), images are printed according to the default settings. See the instruction

manual for your printer for its standard settings or inquire with the printer

manufacturers.

TIPS

• For details of printing paper types, ink cassettes, etc., refer to the

printer’s instruction manual.

• You are recommended to use the optional AC adapter for the

camera when printing pictures directly. If you use the battery, make

sure that it is fully charged. If the camera stops operating while

communicating with the printer, the printer may malfunction or

image data may be lost.

• Images recorded in movie mode cannot be printed.

• The camera will not enter sleep mode when connected to the USB

cable.

Note

Connecting the camera to a printer

Use the USB cable provided with the camera to connect it to a PictBridge-

compatible printer.

1Turn the printer on and plug the

printer end of the USB cable into

the printer’s USB port.

• For details of how to turn the printer on

and the position of the USB port, refer to

the printer’s instruction manual.

2Plug the other end of the USB cable

into the camera’s USB connector.

• The camera turns on automatically.

• The monitor turns on and the selection

screen for the USB connection is

displayed.

3Press to select PRINT, then

press .

• ONE MOMENT is displayed and the

camera and printer are connected. The

PRINT MODE SELECT screen is

displayed on the monitor. Make the print

settings on the camera’s monitor.

Go to “Printing pictures” (P.9).

• If PC is selected in step 3, the PRINT MODE SELECT screen is not

displayed. If the screen is not displayed after several minutes,

remove the USB cable from the camera and start again from step1.

SELECt

Note

Printing pictures

When the camera is connected to a PictBridge-

compatible printer, the PRINT MODE SELECT

screen is displayed on the monitor. Use this

screen to select the print mode. You can choose

from the following print modes.

PRINT Prints the selected picture.

“PRINT mode/MULTI PRINT mode” (P.9)

ALL PRINT Prints all the pictures stored on the card.

“ALL PRINT mode” (P.13)

MULTI PRINT * Prints one picture in multiple layout format.

“PRINT mode/MULTI PRINT mode” (P.9)

ALL INDEX * Prints an index of all the pictures stored on the card.

“ALL INDEX mode/PRINT ORDER mode” (P.15)

PRINT ORDER * Prints the pictures according to the print reservation data

on the card. If no print reservations ( P.111) have

been made, this option is not available.

“ALL INDEX mode/PRINT ORDER mode” (P.15)

* This option may not be available depending on the type of printer.

PRINT mode/MULTI PRINT mode

1In the PRINT MODE SELECT

screen, press to select

PRINT or MULTI PRINT, then press

• The print size settings screen is

displayed.

SELECt

EXIt

Arrow pad ( )

Printing pictures

2Press to select the paper

size, then press .

•PRINT mode: Go to step 3.

•MULTI PRINT mode: Go to step 4.

• The available paper size settings vary

depending on the type of printer.

• When the PRINT PAPER screen is not

displayed, SIZE, BORDERLESS and

PICT/SHEET are set to STANDARD. Go to step 5.

3Use to select framed or

unframed, then press .

Go to step 5.

OFF ( ) The image is printed

inside a blank frame.

ON ( ) The image is printed filling

the entire page.

4Press to select PICT/SHEET,

then press .

• PICT/SHEET depends on the paper size

set in step 2 and the capabilities of your

printer.

5Press to select the picture

you want to print.

• Press the zoom button toward W to

display the pictures in index format. You

can then select the pictures you want to

print from the index.

6Select the print reservation method.

SINGLE PRINT Makes a single-frame print reservation for the

selected picture according to standard settings.

MORE Sets the number of prints of the selected picture in

the print reservation data. You can also add the date

or file name.

PRINt PAPER

SIZE

BORDERLESS

CANCEL

SELECt

StANDARD

PRINt PAPER

SIZE

BORDERLESS

StANDARD

SELECt

SIZE

StANDARD

SELECt

PRINt PAPER

SELECt

SINGLE

PRINT MODE screen
