Olympus SP 100EE User manual
Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a safe
place for future reference.
We recommend that you take test shots to get accustomed to your camera
before taking important photographs.
The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Instruction Manual
DIGITAL CAMERA
SP-100EE
2
EN

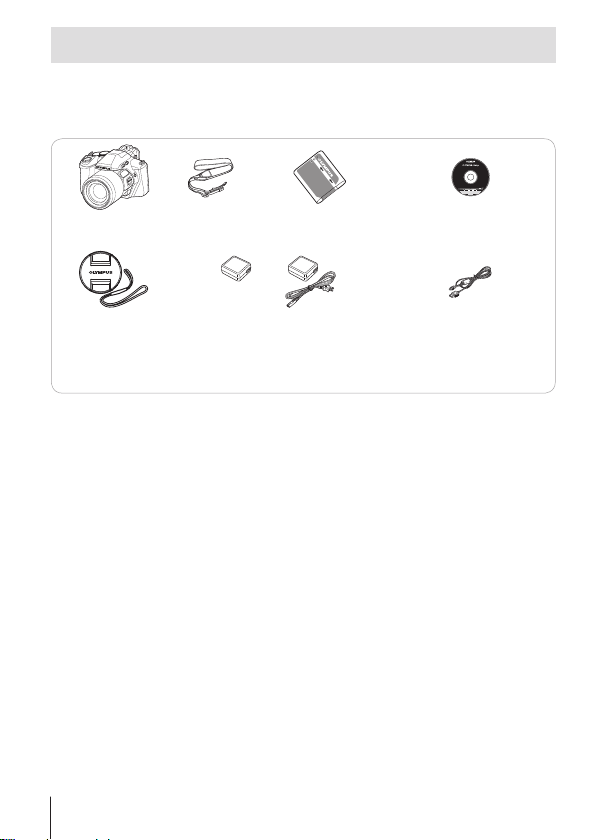

Unpack the box contents
The following items are included with the camera.
If anything is missing or damaged, contact the dealer from whom you
purchased the camera.
Digital camera Strap Lithium Ion Battery
(LI-92B)
OLYMPUS Setup
CD-ROM
or
Lens cap and
lens cap strap USB-AC adapter (F-2AC) USB cable (CB-USB8)
Other accessories not shown: Warranty card
Contents may vary depending on purchase location.
3
EN

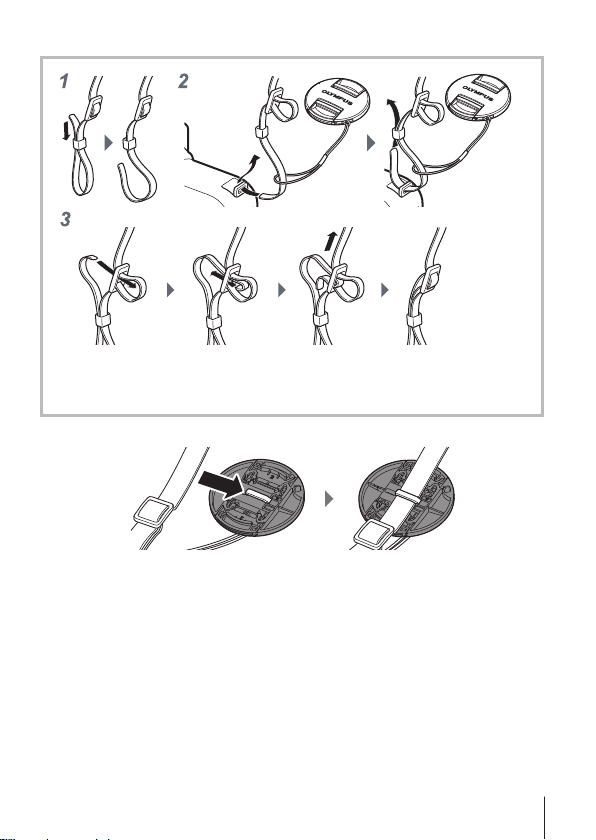

Attaching the camera strap
• Attach the strap to the other eyelet in the same manner.
• Pull the strap tight so that it does not come loose.
• You can attach the lens cap to the strap.
4
EN

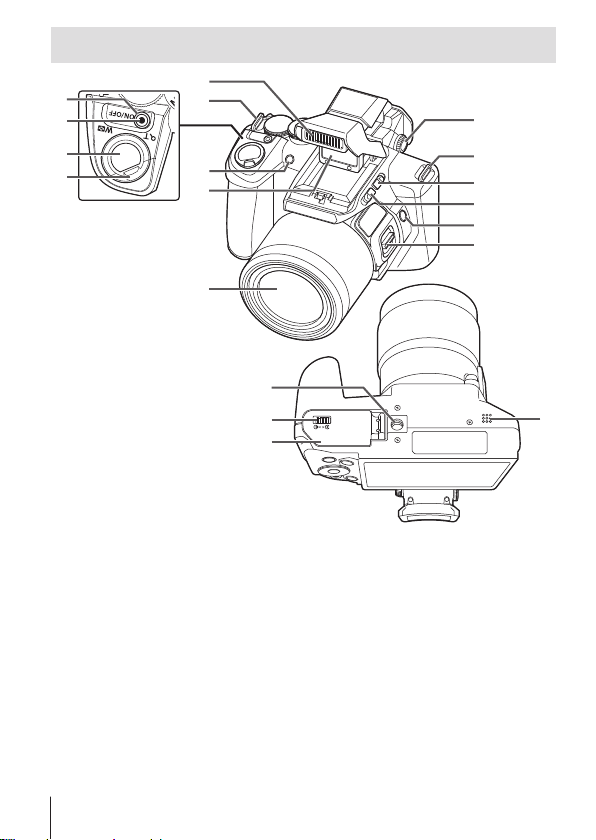

Names of parts
6
5
0
6
1
47
8
3
2
f
g
9
b
c
a
d
h
e
1nbutton
2Indicator lamp
3Shutter button
4Zoom lever
5Built-in flash
6Strap eyelet
7Self-timer lamp/AF illuminator
8Dot sight
9Lens
0 Diopter adjustment dial
a Dot sight switch
bFlash switch
cAFL/FOCUS LIMIT button
dSide zoom lever
eTripod socket
fBattery/card compartment lock
gBattery/card compartment cover
h Speaker
5
EN
1
5
9
0
a
6
4
2
37
8
i
k
g
h
j
b
c
d
e
f

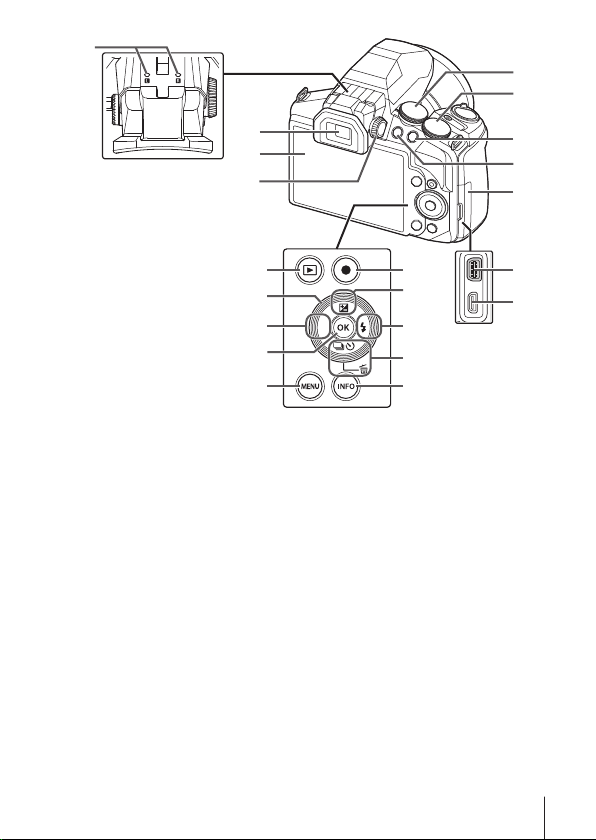

1Stereo microphone
2Viewfinder (EVF)
3Monitor
4Dot sight adjustment dial
5Mode dial
6Control dial
7Fn button
8u(EVF) button
9Connector cover
0Multi-connector
aHDMI micro connector
bq(Playback) button
cArrow pad
dH(Left) button
eAbutton
fbutton
gR(Movie) button
hF(Up) / F(Exposure
compensation) button
iI(Right) /#(Flash) button
jG(Down) / jY(Sequential
shooting/Self-timer) / (Erase)
button
kINFO (Information display) button
6
EN
Preparations for shooting
Inserting and removing the battery and card

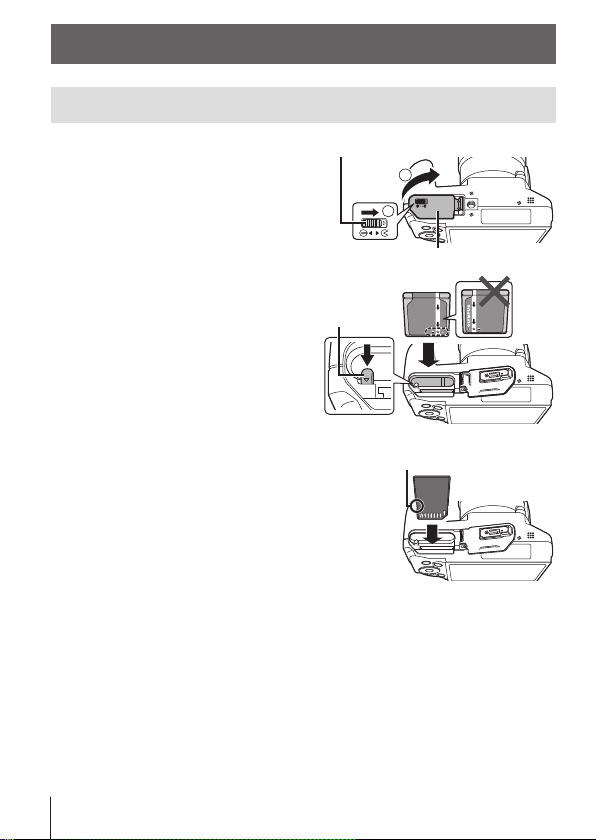

1
Follow Steps 1 and 2
to open the battery/card
compartment cover.
• Turn off the camera before opening
the battery/card compartment
cover.
12
1
Battery/card compartment cover
Battery/card compartment lock
2
Insert the battery while sliding
the battery lock knob in the
direction of the arrow.
• Insert the battery as illustrated with
the Cmark toward the battery
lock knob.
• Slide the battery lock knob in the
direction of the arrow to unlock,
and then remove the battery.
Battery
lock knob
3
Insert the card straight until it clicks into
place.
• Always use the specified cards with this
camera. Do not insert other types of memory
cards. g“Using the card” (P. 89)
• Do not touch the metallic parts of the card
directly.
Write-protect switch
7
EN

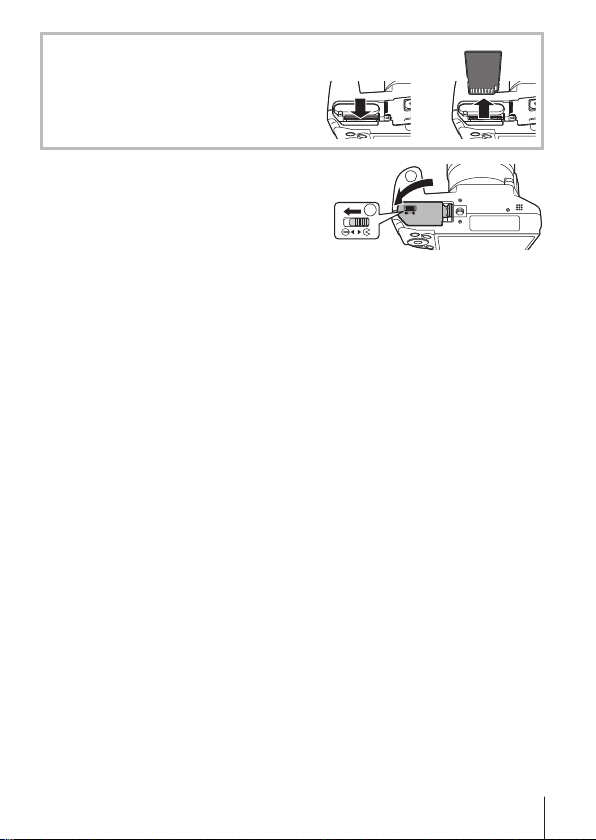

To remove the card
Press the card in until it clicks and
comes out slightly, then remove
the card.
12
4
Follow Steps 1 and 2to close
battery/card compartment cover.
• When using the camera, be sure to
close the battery/card compartment
cover.
12
1
8
EN
Charging the battery

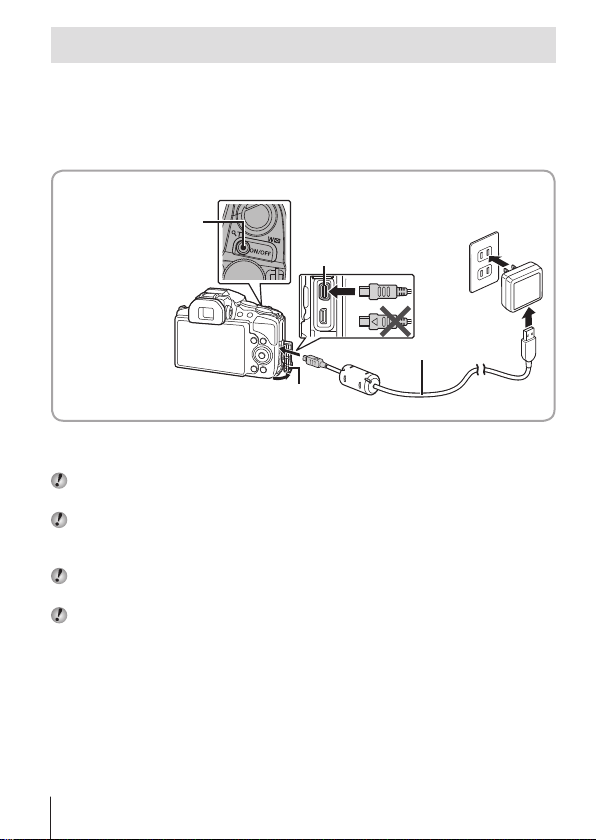

1
Connect the USB cable and USB-AC adapter to the camera
and charge the battery.
• The battery is not fully charged at shipment. Before use, be sure to
charge the battery until the indicator lamp turns off (up to 5 hours).
Connecting the camera
AC outlet
USB cable (supplied)
Connector cover
Multi-connector
Indicator lamp
On: Charging
Off: Charged
For charging the battery abroad, see “Using your charger and USB-AC
adapter abroad” (P. 88).
Never use any cable other than supplied or Olympus-designated USB cable.
This may cause smoking or burning.
The included F-2AC USB-AC adapter (hereafter referred to as USB-AC
adapter) differs depending on the region where you purchased the camera. If
you received a plug-in type USB-AC adapter, plug it directly into AC outlet.
Be sure to unplug the power plug of the USB-AC adapter from the wall outlet
when the charging is complete or the playback ends.
For details on the battery, see “Battery Handling Precautions” (P. 98). For
details on the USB-AC adapter, see “USB-AC adapter” (P. 99).
9
EN
• If the indicator lamp does not light, check the USB cable and USB-AC adapter
connections.
• If “No Connection” is displayed on the back monitor, disconnect the USB
cable and set [Storage] in [USB Connection] (P. 61) before connecting the cable
again.

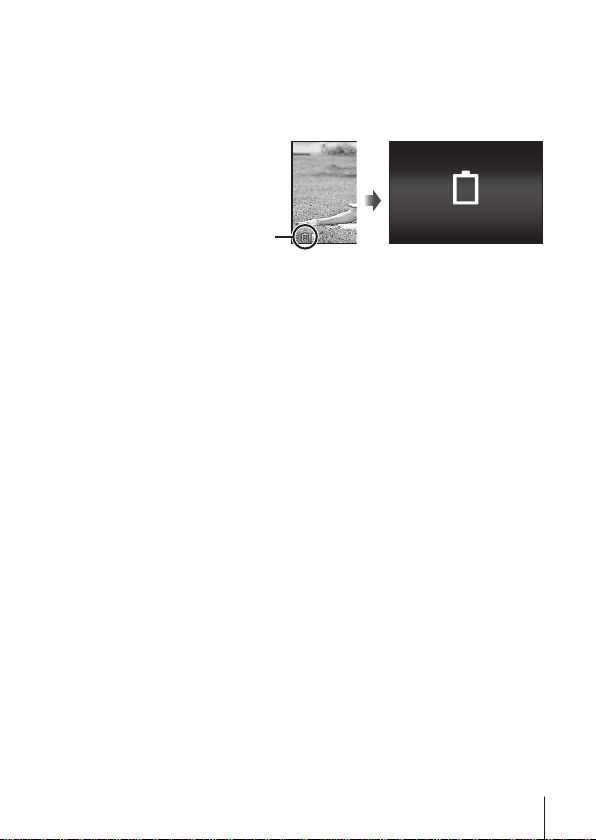

When to charge the batteries
Charge the battery when the
error message shown on the
right appears.
Error message
Battery Empty
Flashes in red
10
EN

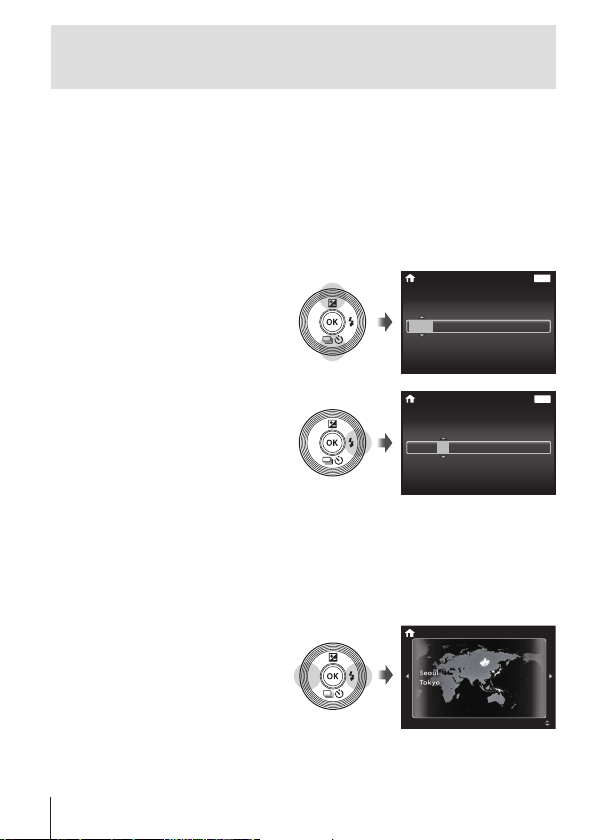

Turning on the camera and making the initial
settings
When you turn on the camera for the first time, a screen appears enabling
to set the language for the menus and messages displayed in the monitor,
and the date and time.
To change the selected date and time, see “Setting the date and time
d[X]” (P. 63).
1
Press the nbutton to turn on the camera, press
FGHI of the arrow pad to select your language and press
the Abutton.
2
Press FG of the arrow
pad to select the year for
[Y].
X
MENU
Back
Y/M/D
YMDTime
-- -- -- --
:..
2014
3
Press Iof the arrow pad
to save the setting for [Y].
X
MENU
Back
Y/M/D
Y M D Time
-- -- -- --
:..
2014
4
As in Steps 2 and 3, press FGHI of the arrow pad to
set [M] (month), [D] (day), [Time] (hours and minutes), and
[Y/M/D] (date order), and then press the Abutton.
• For precise time setting, press the Abutton as the time signal strikes
00 seconds.
5
Use HI to select the
time zone and then press
the Abutton.
• Use
FG to turn daylight
saving time ([Summer]) on
or off.
’14.02.26 12:30
Summer
