Olympus IM005 User manual

Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a safe

place for future reference.

We recommend that you take test shots to get accustomed to your camera

before taking important photographs.

The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

If there are additions and/or modifications of functions due to firmware

update for the camera, the contents will differ. For the latest information,

please visit the Olympus website or contact your Olympus Consumer

Support Team in your region.

Instruction Manual

DIGITAL CAMERA

TG-5

Model No. : IM005

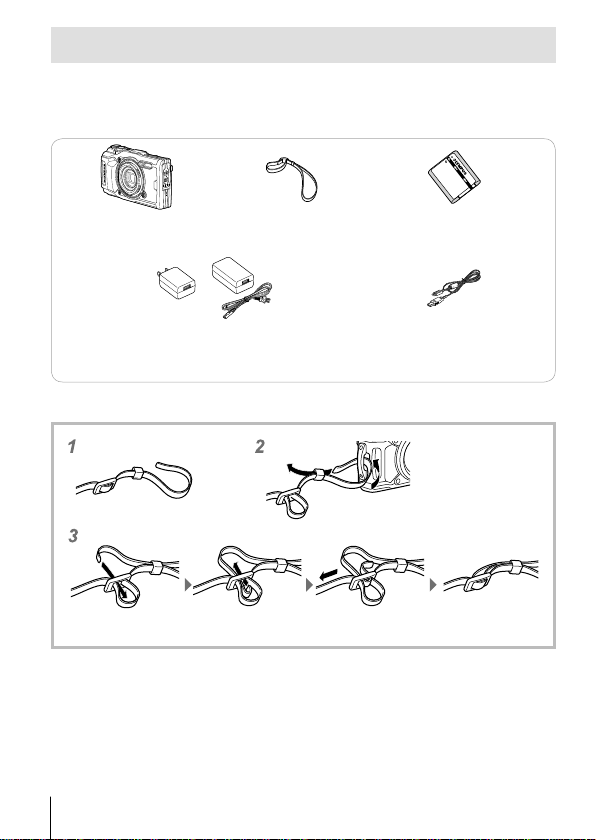

Unpack the box contents

The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you

purchased the camera.

Digital camera Strap Lithium Ion Battery

(LI-92B)

USB-AC adapter (F-5AC) USB cable (CB-USB12)

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

Attaching the camera strap

• Pull the strap tight so that it does not come loose.

Names of parts

1Connector cover

2Connector cover lock

3LOCK knob

4 Speaker

5Strap eyelet

6Lens

7Self-timer lamp/LED Illuminator/

AF illuminator

8Flash

9Lens ring release button

0Stereo microphone

aGPS antenna

bnbutton

cZoom lever

dControl dial

eLOG switch

fIndicator lamp

gShutter button

hMonitor

iINFO (Information display) button

jR(Movie)/select button

kMode dial

lq(Playback) button

mAbutton

n/Wi-Fi button

oHDMI micro connector

pMicro-USB connector

qTripod socket

rBattery/card compartment cover

Battery/card compartment cover lock

tArrow pad

uF(Up) /F(Exposure

compensation) button

vI(Right) /#(Flash) button

wG(Down) /

jY(Sequential shooting/

Self-timer) / (Erase) button

xH(Left)/mode function button

• FGHI instruct to press the up/down/left/right arrow pad.

Preparations for shooting

Inserting and removing the battery and card

Follow Steps 1, 2and 3to open the battery/card

compartment cover.

• Turn off the

camera before

opening the

battery/card

compartment

cover.

Battery/card compartment cover

Battery/card compartment cover lock

LOCK knob

Insert the battery while sliding the battery lock knob in the

direction of the arrow.

• Insert the battery

as illustrated

with the Cmark

toward the battery

lock knob.

• If you insert the

battery in the

wrong direction,

the camera is not

turned on. Be sure

to insert it in the

correct direction.

• Slide the battery

lock knob in the

direction of the

arrow to unlock,

and then remove

the battery.

Battery

lock knob

Insert the card straight until it clicks into place.

• Do not touch the metallic parts of

the card directly.

• Always use the specified cards

with this camera. Do not insert

other types of memory cards.

Write-protect

switch

Cards compatible with this camera

SD/SDHC/SDXC/Eye-Fi (with Wireless LAN function) card (commercially

available) (for compatibility card details, visit the Olympus website.)

To remove the card

Press the card in until

it clicks and comes out

slightly, then remove

the card.

Follow Steps 1, 2and 3to close battery/card compartment

cover.

• When using the camera,

be sure to close the

battery/card compartment

cover.

Charging the battery

Check that the battery is in the camera, and connect the USB

cable and USB-AC adapter.

• The battery is not fully charged at shipment. Before use, be sure to

charge the battery until the indicator lamp turns off (up to 3 hours).

Connecting the camera

AC outlet

USB cable

(supplied)

Micro-USB connector

USB-AC adapter

Indicator lamp

On: Charging

Off: Charged

Connector cover

A menu will be displayed; highlight

[Charge] and press the Abutton.

USB

Storage

MTP

Charge

Exit

Set

For charging the battery abroad, see “Using your charger and USB-AC

adapter abroad” (P. 100).

• Never use any cable other than supplied or Olympus-designated USB cable.

This may cause smoking or burning.

• The included F-5AC USB-AC adapter (hereafter referred to as USB-AC

adapter) differs depending on the region where you purchased the camera. If

you received a plug-in type USB-AC adapter, plug it directly into AC outlet.

• Be sure to unplug the power plug of the USB-AC adapter from the wall outlet

when the charging is complete.

• Fordetailsonthebattery,see“SAFETYPRECAUTIONS”(P.120).For detailson

the USB-AC adapter, see “SAFETY PRECAUTIONS” (P. 120).

• If the indicator lamp does not light, reconnect the USB cable and USB-AC

adapter to the camera.

• If the message “No Connection” is displayed in the monitor, disconnect and

reconnect the cable.

When to charge the batteries

Charge the battery when

the error message shown

on the right appears.

Battery Empty

Error messageFlashes in red

Turning on the camera and making the initial

settings

When you turn on the camera for the first time, a screen appears enabling

to set the language for the menus and messages displayed in the monitor,

and the date and time.

To change the selected date and time, see “Setting the clock manually,

choosing a time zone, and using GPS to set the clock d[XSettings]” (P. 70)

Press the nbutton to turn the camera on, highlight your

language using FGHI (arrow pad) or the control dial, and

press the Abutton.

• In the case that the power is not turned on when you press the n

button, check the direction of the battery. g“Inserting and removing

the battery and card” (P. 4)

Use FG (arrow pad) or

the control dial to select

the year ([Y]).

YMD Time

2017

Y/M/D

Cancel

Press I(arrow pad) to

save the setting for [Y].

2017

Cancel

YMD Time

Y/M/D

Select the month ([M]), day ([D]), hour and minute ([Time]),

and the date display order ([Y/M/D]) using FGHI (arrow

pad) as described in Steps 2 and 3, and then press the A

button.

Use FG (arrow pad) to

select the time zone and

then press the Abutton.

• Daylight saving time can be

turned on or off using the

INFO button.

Time Zone

Seoul

Tokyo

UTC+09:00 (12:30)

Set

Using basic functions

Taking photographs (Pmode)

Press the nbutton to turn on the camera.

When the camera is turned on, the monitor will turn on.

Set the mode dial to P.

In mode P, the camera automatically

adjusts shutter speed and aperture in

response to subject brightness.

Frame the shot.

• When holding the camera, take

care not to cover the flash,

microphone or other important

parts with your fingers, etc.

Press the shutter button

halfway down to focus.

The focus indicator will blink to

show that the camera is not in

focus. Focus again.

• The shutter speed and

aperture displays will blink

to show that the camera is

unable to achieve optimal

exposure.

Press halfway

125

01:02:0301:02:03

10231023

125 F5.6

0.0

FHD

30p

ISO-A

200

S-IS

Shutter

speed Aperture

value

Focus indicator

To take the picture, gently

press the shutter button all the

way down while being careful

not to shake the camera.

Press

halfway Press the rest of

the way down

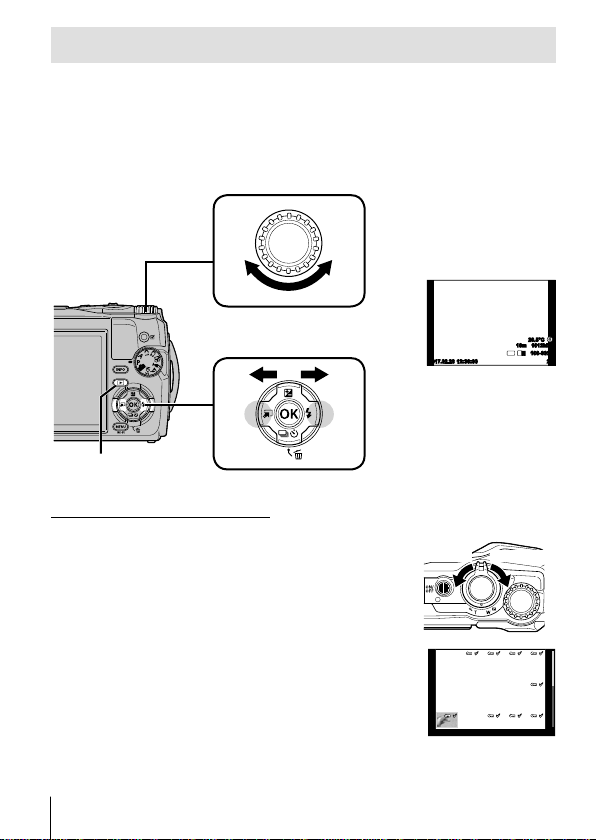

Viewing photographs (Playing back images)

Turn on the camera.

Press the qbutton.

• Your most recent photograph is displayed.

• Press HI (arrow pad) or rotate the control dial to view other pictures.

q button Arrow pad

Control dial

Displays the

previous frame Displays the

next frame

2017.02.26 12:30:00 20

100-0020

4:3

1012hPa10m 20.5°C

Still image

Index display/Calendar display

• To switch from single-frame to index playback,

rotate the zoom lever counterclockwise. Repeating

the process will increase the number of images

displayed, ending in a calendar display.

g[GSettings] (P. 62)

Counter-

clockwise Clockwise

• Use FGHI (arrow pad) or the control dial to

move the cursor.

• Rotate the zoom lever clockwise to proceed in turn

from calendar to index to single-frame playback.

2017.02.26 12:30:00 21
