2En

CONTENTS

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Shooting mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Taking still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . 23

If correct focus cannot be obtained (Focus lock) . . . . 24

Recording movies . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Zooming in on a subject. . . . . . . . . . . . . . . . . . . . . . . 26

Using the flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Macro mode shooting . . . . . . . . . . . . . . . . . . . . . . . . 28

Using the self-timer . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Varying the image brightness

(Exposure compensation) . . . . . . . . . . . . . . . . . . 30

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Viewing still pictures. . . . . . . . . . . . . . . . . . . . . . . . . . 31

Close-up playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Index display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Viewing movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Protecting pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Erasing pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

PRINT RESERVATION/DIRECT PRINT . . . . . . . . . . . . 35

DOWNLOADING PICTURES TO A COMPUTER . . . . . 36

ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

These instructions are only for quick reference. For more details

on the functions described here, refer to the “Reference Manual”

on CD-ROM.

x450_Basic.book 2 ページ２００４年８月２日　月曜日　午前９時３６分

En 3

JBefore using your camera, read this manual carefully to ensure correct use.

JWe recommend that you take test shots to get accustomed to your camera before

taking important photographs.

JThese instructions are only a basic manual. For more details on the functions described

here, refer to the Reference Manual on the CD-ROM.

For customers in North and South America

For customers in Europe

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• All other company and product names are registered trademarks and/or

trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design

Rule for Camera File System/DCF” standards stipulated by the Japan Electronics

and Information Technology Industries Association (JEITA).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer protection.

“CE” mark cameras are intended for sales in Europe.

For customers in USA

Declaration of Conformity

Model Number : D-535 ZOOM/C-370 ZOOM/X-450

Trade Name : OLYMPUS

Responsible Party :

Address : Two Corporate Center Drive, PO Box 9058, Melville,

New York 11747-9058 U.S.A.

Telephone Number :1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

x450_Basic.book 3 ページ２００４年８月２日　月曜日　午前９時３６分

4En

GETTING STARTED

JNAMES OF PARTS

Flash

Self-timer lamp

Connector cover

VIDEO OUT jack

USB connector

Lens

Extends automatically when the

power switch is pressed.

Battery compartment/

card cover

DC-IN jack

Lock button

Shutter button Power switch

Tripod socket

x450_Basic.book 4 ページ２００４年８月２日　月曜日　午前９時３６分

En 5

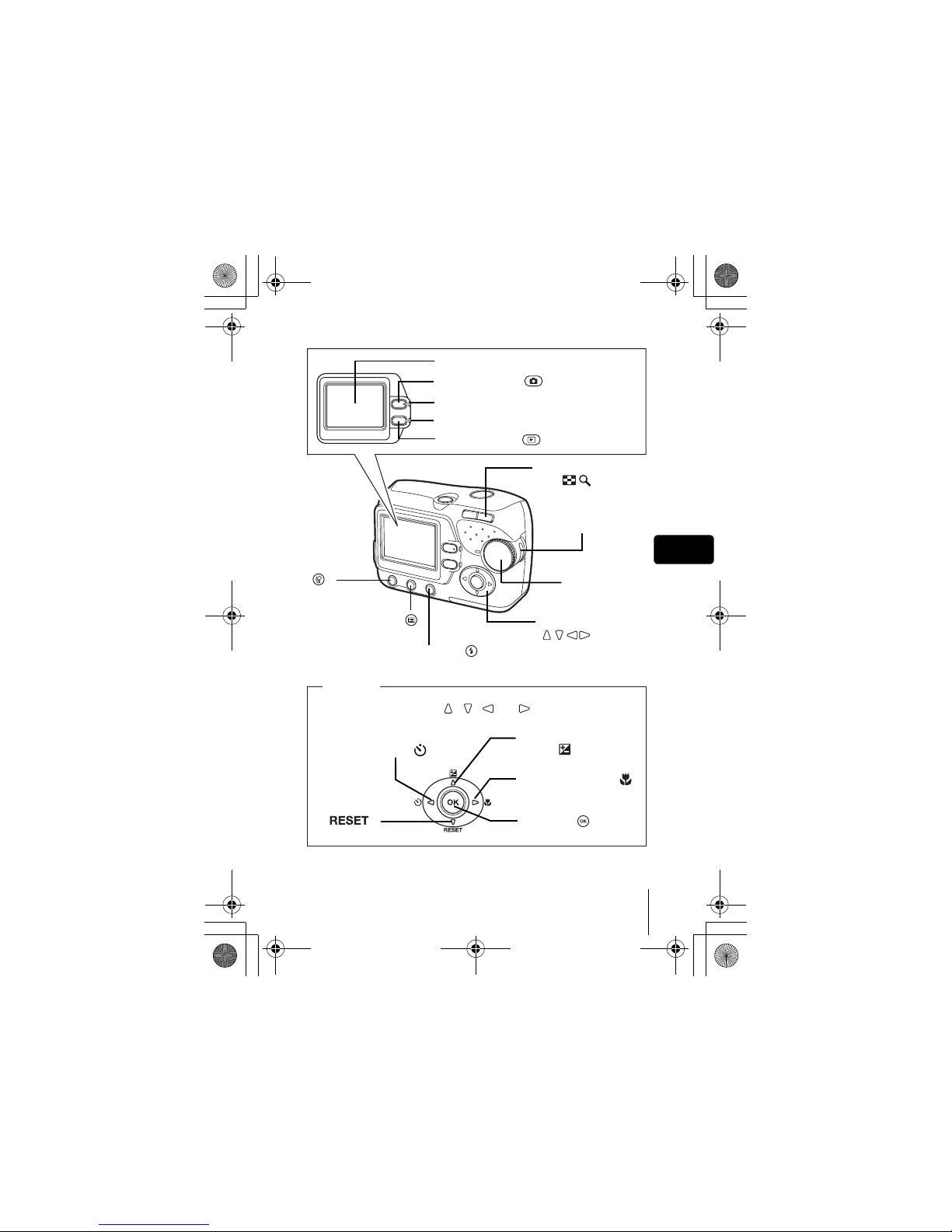

Self-timer button ( )

Monitor

Macro mode button ( )

Mode dial

Flash mode button ( )

Arrow pad

()

Arrow pad

OK button ( )

Buttons on the arrow pad have their respective functions. They are also

used as direction buttons. , , and indicate which button to

be pressed.

Erase button

()

Zoom button

(W/T• )

Strap eyelet

Exposure compensation

button ( )

Reset button

()

Shooting button ( )

Orange lamp

Green lamp

Menu button ( )

Playback button ( )

x450_Basic.book 5 ページ２００４年８月２日　月曜日　午前９時３６分

6En

JMONITOR INDICATIONS

Shooting mode

* The [IN] indicator is displayed when you are storing pictures in the

camera’s internal memory. The [xD] indicator is displayed when the card is

inserted.

Items Indications

1 Battery check ,

2 Green lamp

3 Flash standby

Camera movement warning/ Flash charge

(Lit)

(Blinks)

4 Shooting mode , , , , ,

5 Macro mode ,

6 Flash mode , ,

7Self-timer

8 Exposure compensation -2.0 – +2.0

9 Record mode SHQ, HQ, SQ1, SQ2

10 Resolution 2048×1536, 1600×1200, 640×480,

etc.

11 AF target mark [ ]

12 Current memory * [IN], [xD]

13 Number of storable still pictures

Remaining recording time

00:36

Still picture Movie

x450_Basic.book 6 ページ２００４年８月２日　月曜日　午前９時３６分

En 7

Playback mode

* The [IN] indicator is displayed when you are storing pictures in the

camera’s internal memory. The [xD] indicator is displayed when the card is

inserted.

Items Indications

1 Battery check ,

2 Current memory * [IN], [xD]

3 Print reservation, Number of prints

4 File number 100-0018

5Protect

6 Record mode SHQ, HQ, SQ1, SQ2

7 Resolution 2048×1536, 1600×1200, 640×480,

etc.

8 Exposure compensation -2.0 – +2.0

9 Date and time ’04.10.10 12:30

10 Number of frames

Elapsed time/Total recording time (movie)

00:00/00:15

11 Movie

Still picture Movie

x450_Basic.book 7 ページ２００４年８月２日　月曜日　午前９時３６分

8En

Battery check

If the remaining battery power is low, the battery check indication on the

monitor changes as follows while the camera is turned on.

Lit (Green)

(The indicator turns

off after a while)

Remaining power

level: high.

The green lamp and the orange

lamp on the camera blink.

Remaining power level: exhausted.

Replace with new batteries.

Blinks (Red)

Remaining power level: low.

Prepare new batteries.

x450_Basic.book 8 ページ２００４年８月２日　月曜日　午前９時３６分

En 9

JATTACHING THE STRAP

1Thread the short end of the

strap through the strap

eyelet.

2Thread the long end of the

strap through the loop that

has already gone through

the eyelet.

3Pull the strap tight, making

sure that it is securely

fastened and does not come

loose.

JLOADING THE BATTERIES

1Make sure the camera is turned

off.

• The monitor is off.

• The green lamp and the orange lamp

on the camera are off.

• The lens is not extended.

Strap eyelet

Important

Manganese (zinc-carbon) batteries and lithium battery packs (CR-

V3) cannot be used.

Orange lamp

Green lamp

Monitor

x450_Basic.book 9 ページ２００４年８月２日　月曜日　午前９時３６分

10 En

2Holding the lock button, slide

the battery compartment/card

cover in the direction of , and

then lift it in the direction of .

• Use the ball of your finger to slide the

cover. Do not use your fingernail as

this could result in injury.

• With the bottom of the camera facing

up, open the battery compartment/card

cover as shown in the illustration.

3Insert the batteries, making sure

that they are correctly oriented

as shown in the illustration.

• The battery insertion direction is

indicated in the battery compartment

and on the bottom of the camera.

4Holding the batteries down with

the battery compartment/card

cover, close the cover in the

direction of and slide it in the

direction of .

• If the battery compartment/card cover

is hard to close, do not force it. With the

battery compartment/card cover shut,

press the mark firmly and push it

in the direction of .

Lock button

Battery compartment/card

cover

x450_Basic.book 10 ページ２００４年８月２日　月曜日　午前９時３６分
