Thank you for purchasing an Olympus digital camera. Before you start to use

your new camera, please read these instructions carefully to enjoy optimum

performance and a longer service life. Keep this manual in a safe place for

future reference.

Declaration of Conformity

Model Number : C-4040ZOOM

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

For customers in Europe

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection.

For customers in USA

Trademarks

•IBM is a registered trademark of International Business Machines

Corporation.

•Microsoft and Windows are registered trademarks of Microsoft Corporation.

•Macintosh is a trademark of Apple Computer Inc.

•All other company and product names are registered trademarks and/or

trademarks of their respective owners.

•The standards for camera file systems referred to in this manual are the

“Design Rule for Camera File System/DCF” standards stipulated by the

Japan Electronics and Information Technology Industries Association

(JEITA).

1 C-4040ZBasic-E2 01.7.11 7:31 PM Page 2

CONTENTS/TABLE DES MATIÉ/INHALT/CONTENIDO

ENGLISH ..............................................................................2

FRANÇAIS ........................................................................50

DEUTSCH ..........................................................................98

ESPAÑOL ........................................................................146

NAME OF PARTS 4

HOW TO USE THIS MANUAL 15

GETTING STARTED 16

SHOOTING BASICS 20

ADVANCED SHOOTING 33

PLAYBACK 36

PRINT SETTINGS 41

TRANSFERRING PICTURES TO A COMPUTER 42

OPTIONAL ACCESSORIES 44

ERROR CODES 45

SPECIFICATIONS 47

CONTENTS

These instructions are only for quick reference. For more

details on the functions described here, refer to the

software CD’s instructions on CD-ROM.

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 3

NAME OF PARTS

Camera

Self-timer/Remote control lamp

Diopter adjustment dial

Zoom lever (T/W)

Index display/Close-up

playback lever ( / )

Shutter button

Control panel

Flash

Microphone

A/V OUT jack (MONO)

Card cover

Strap eyelet

(refer to the

“Package

contents”

included in the

package)

Lens

Connector cover

5-pin external flash socket ( )

●Unscrew to remove the cover

before connecting the bracket cable.

USB connector

DC-IN jack

Remote control receiver

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 4

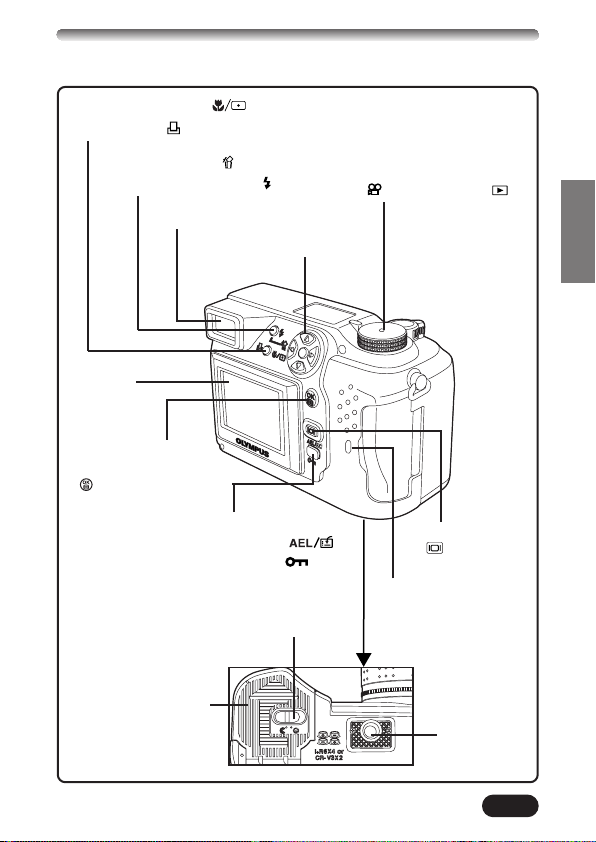

AE lock button

Custom button ( )

Protect button ( )

Rotation button

Erase button ( )

Flash mode button ( )

Macro/Spot button ( )

Print button ( )

Mode dial

( , A/S/M, P, OFF, )

Viewfinder

Monitor

OK/Menu button

Manual focus button

()

Monitor button

()

Card access lamp

Arrow pad (ÑñÉí)

Battery compartment lock

Battery compartment

cover Tripod socket

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 5

NAME OF PARTS

Viewfinder indications

1Orange lamp

●In some situations, this lamp lights up when you press the shutter button

halfway. This indicates that the flash will then fire when the picture is

taken.

●Blinks if the flash is required and the flash is turned off.

●When this lamp blinks just after you change from the flash override

mode to another mode or after you shoot with the flash, it means that

the flash is recharging. Wait until the lamp stops blinking, then press the

shutter button.

2Green lamp

●When you press the shutter button down halfway to lock focus and

exposure, this lamp lights. If the subject is out of focus, the lamp blinks.

●Blinks when there is a problem with the card.

3AF target mark

●Place this on the subject.

1 C-4040ZBasic-E2 01.6.25 11:15 AM Page 6

Control panel indications

1Flash mode

●Displayed when the flash mode is selected by pressing the (flash

mode) button.

No indication: Auto-flash, : Red-eye reduction flash, : Fill-in flash,

SLOW: Slow synchronization flash, : Off (flash override)

2Manual Focus

●Displayed when locking focus using the Manual focus function.

3Flash intensity control

●Displayed when the amount of the light emitted by the flash is adjusted.

4Battery check

●When remaining battery power is low, the battery check indication

changes as follows:

●Be aware that the time when the battery check indication appears

varies depending on the type of batteries used.

134

$% ^ &

5Card error

●When the power is turned on, the camera checks the card. If there is a

problem with the card, this indication appears.

6White balance

●Displayed when the White balance is set to any mode except AUTO.

7ISO

●Displayed when the ISO is set to any mode except AUTO. When the

ISO is increased automatically in the AUTO mode, this indication blinks.

Fully charged Low power

No power

Blinks, then turns off.

1 C-4040ZBasic-E2 01.6.25 11:16 AM Page 7

NAME OF PARTS

Control panel indications (Cont.)

8Exposure compensation

●Displayed when exposure compensation is set to any value except 0.

9Auto-bracket

●Displayed when the drive mode is set to the Auto-bracket mode.

0Macro mode

●Displayed when the macro mode is engaged.

!Spot metering mode

●Displayed when the Spot metering mode is set.

@Sequential shooting

●Displayed when the drive mode is set to Sequential shooting or AF

Sequential shooting.

#Self-timer/remote control mode

●Displayed when self-timer shooting or remote control shooting is set.

$Record mode (TIFF, SHQ, HQ, SQ1, SQ2)

●Displays the record mode. If SHQ or HQ is set higher than 2272 x 1704

(factory default setting), the corresponding indication blinks.

%Card writing

●Displayed when recorded pictures are being written to a card.

^Sound record

●Displayed when the sound record mode is set to “ON”.

&Number of storable still pictures

●Displays the number of still pictures you can shoot.

Seconds remaining ( mode only)

●Displays available movie recording time.

Card error

●Displayed if there is a problem with the card. TSee “Error codes”

134

$% ^ &

1 C-4040ZBasic-E2 01.6.25 11:16 AM Page 8

Monitor indications — Shooting information

The indications vary depending on the shooting mode.

If you shoot using the monitor for a long time, noise may appear on pictures.

The information below is displayed

for about 3 seconds after operating

the buttons/mode dial or closing the

menus.

The information below is always

displayed in the shooting mode.

*The illustrations show examples of

indications displayed when the mode

dial is set to P.

1Shooting mode

●Displays the shooting mode.

P: Program mode, A: Aperture priority mode, S: Shutter priority mode,

M: Manual mode, : Movie mode

2Aperture value

●Displays the current aperture value.

3Shutter speed

●Displays the current shutter speed.

4Exposure compensation

●Displays the current exposure (brightness) compensation value.

Exposure differential (M mode only)

●Displays the difference between the exposure determined by the

currently selected aperture and shutter speed compared to the

exposure level considered optimal by the camera.

5AF target mark

●Place this on the subject.

AEL

SLOW1

2272x1704

AEL

1 C-4040ZBasic-E2 01.7.11 7:32 PM Page 9

NAME OF PARTS

Monitor indications — Shooting information (Cont.)

6Number of storable still pictures

●Displays the number of still pictures you can shoot.

Seconds remaining ( mode only)

●Displays available movie recording time.

7Manual focus

●Displayed when locking focus using the Manual focus function.

8Memory gauge

●Displays the amount of space used by the pictures stored in the built-in

memory. If you take pictures continuously, the indication changes as

shown below.

The memory gauge changes depending on the number of storable

pictures or seconds remaining.

9Exposure lock

AEL : AE lock

●The exposure is locked until single-frame shooting is performed. After

you shoot, the indication disappears.

MEMO : AE memory

●The exposure is locked and retained in memory even after shooting.

This indicator is displayed until the AE memory is turned off.

AEL

1 C-4040ZBasic-E2 01.6.25 11:16 AM Page 10

This manual suits for next models

Table of contents

Languages:

Other Olympus Digital Camera manuals

Olympus

Olympus CAMEDIA C-730 Ultra Zoom User manual

Olympus

Olympus CAMEDIA C-5060 Wide Zoom User manual

Olympus

Olympus CAMEDIA SP-500 UZ Configuration guide

Olympus

Olympus Camedia D-100 User manual

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera User manual

Olympus

Olympus SP-600UZ Mounting instructions

Olympus

Olympus TG-835 User manual

Olympus

Olympus E-P1 - Digital Camera - Prosumer Setup guide

Olympus

Olympus XZ-1 User manual

Olympus

Olympus FE 3000 - Digital Camera - Compact Installation guide

Olympus

Olympus FE 120 - Digital Camera - 6.0 Megapixel User manual

Olympus

Olympus Stylus 730 Setup guide

Olympus

Olympus CAMEDIA C-770 Ultra Zoom User manual

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Setup guide

Olympus

Olympus SP-565 UZ Configuration guide

Olympus

Olympus 226090 - Stylus 790 SW Digital Camera Configuration guide

Olympus

Olympus E-5 Mounting instructions

Olympus

Olympus E-PL5 User manual

Olympus

Olympus 8080 - CAMEDIA C Wide Zoom Digital Camera User manual

Olympus

Olympus CAMEDIA C-740 Ultra Zoom User manual

Olympus

Olympus DP12 User manual

Olympus

Olympus Digital Vision D-220L User manual

Olympus

Olympus SP 570 - UZ Digital Camera Installation guide

Olympus

Olympus CAMEDIA C-3030 Zoom User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
