Olympus CAMEDIA C-40 Zoom Installation guide

DIGITAL CAMERA/APPAREIL PHOTO NUMÉRIQUE

DIGITALKAMERA/CÁMARA DIGITAL

BASIC MANUAL

ENGLISH

Before using your camera, read this manual carefully to ensure correct use.

We recommend that you take test shots to get accustomed to your camera

before taking important photographs.

These instructions are only for quick reference. For more details on the

functions described here, refer to the software CD’s instructions on CD-ROM.

C-40ZOOM/D-40ZOOM

MANUEL DE BASE

Avant d’utiliser votre appareil photo, veuillez lire attentivement ce mode

d’emploi, de manière à obtenir les meilleurs résultats possibles.

Avant d’effectuer des prises de vues importantes, nous vous conseillons par

ailleurs de faire quelques essais afin de vous familiariser avec le maniement

de l’appareil photo.

Ces instructions ne sont que pour une référence rapide. Pour plus de détails

sur les fonctions décrites ici, se référer aux instructions du CD logiciel sur le

CD-ROM.

FRANÇAIS

EINFACHE ANLEITUNG

DEUTSCH

Bitte lesen Sie vor Gebrauch dieser Kamera sorgfältig diese

Bedienungsanleitung, um optimale Ergebnisse beim Fotografieren zu erzielen.

Wir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen,

um sich mit der Bedienung und den Funktionen der Kamera vertraut zu

machen.

Diese Kurzanleitung dient dem ersten Kennenlernen Ihrer Kamera. Eine

ausführliche Beschreibung der hier aufgeführten Funktionen finden Sie in der

Bedienungsanleitung auf der CD-ROM.

MANUAL BÁSICO

ESPAÑOL

Antes de usar su cámara lea este manual detalladamente para asegurar el

uso correcto.

Nosotros le recomendamos que tome fotografías de prueba para

familiarizarse con su cámara antes de tomar fotografías importantes.

Estas instrucciones son sólo de referencia rápida. Para más detalles acerca

de las funciones aquí descritas, refiérase a las instrucciones del CD del

software en el CD-ROM.

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 1

Thank you for purchasing an Olympus digital camera. Before you start to use

your new camera, please read these instructions carefully to enjoy optimum

performance and a longer service life. Keep this manual in a safe place for

future reference.

For customers in USA

Declaration of Conformity

Model Number : C-40ZOOM/D-40ZOOM

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

For customers in Europe

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection. “CE” mark cameras are intended for sales in Europe.

For customers in North and South America

Trademarks

•IBM is a registered trademark of International Business Machines

Corporation.

•Microsoft and Windows are registered trademarks of Microsoft Corporation.

•Macintosh is a trademark of Apple Computer Inc.

•All other company and product names are registered trademarks and/or

trademarks of their respective owners.

•The standards for camera file systems referred to in this manual are the

“Design Rule for Camera File System/DCF” standards stipulated by the

Japan Electronics and Information Technology Industries Association

(JEITA).

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 2

CONTENTS/TABLE DES MATIÉ/INHALT/CONTENIDO

ENGLISH ..............................................................................2

FRANÇAIS ........................................................................46

DEUTSCH ..........................................................................90

ESPAÑOL ........................................................................134

NAMES OF PARTS 4

HOW TO USE THIS MANUAL 15

GETTING STARTED 16

SHOOTING BASICS 19

ADVANCED SHOOTING 32

PLAYBACK 34

PRINT SETTINGS 38

TRANSFERRING PICTURES TO A COMPUTER 40

OPTIONAL ACCESSORIES 41

ERROR CODES 42

SPECIFICATIONS 44

CONTENTS

These instructions are only for quick reference. For more

details on the functions described here, refer to the

software CD’s instructions on CD-ROM.

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 3

NAMES OF PARTS

Camera

Battery compartment cover Tripod socket

Self-timer/

Remote control

lamp

Zoom lever (T/W)

Index display/Close-up

playback lever ( / )

Shutter button

Control panel

Flash

Lens

Lens barrier

Microphone

Speaker

Remote control receiver

Battery compartment lock

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 4

Flash mode button ( )

Erase button ( )

Macro/Spot button ( )

Protect button ( )

Rotation button

Mode dial

( , , , , ,

, , , )

Viewfinder

Monitor

OK/Menu button

Manual focus button ( )

Monitor button

()

Card access lamp

Arrow pad

(ÑñÉí)

Card cover

Strap eyelet

(refer to the

“Quick-start guide”

included in the

package.)

Connector cover

Multi connector (USB, A/V OUT)

DC-IN jack

Remote control receiver

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 5

NAMES OF PARTS

Viewfinder indications

1Orange lamp

●In some situations, this lamp lights up when you press the shutter button

halfway. This indicates that the flash will then fire when the picture is

taken.

●Lights during movie recording.

●Blinks if the flash is required and the flash is turned off.

●When this lamp blinks just after you change from the flash override

mode to another mode or after you shoot with the flash, it means that

the flash is recharging. Wait until the lamp stops blinking, then press the

shutter button.

2Green lamp

●When you press the shutter button down halfway to lock focus and

exposure, this lamp lights. If the subject is out of focus, the lamp blinks.

●Blinks if taking next shot is not possible, such as when the camera is

processing pictures you have just shot or when there is no space

available on the card.

●Blinks when there is a problem with the card.

3AF target mark

●Place this on the subject.

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 6

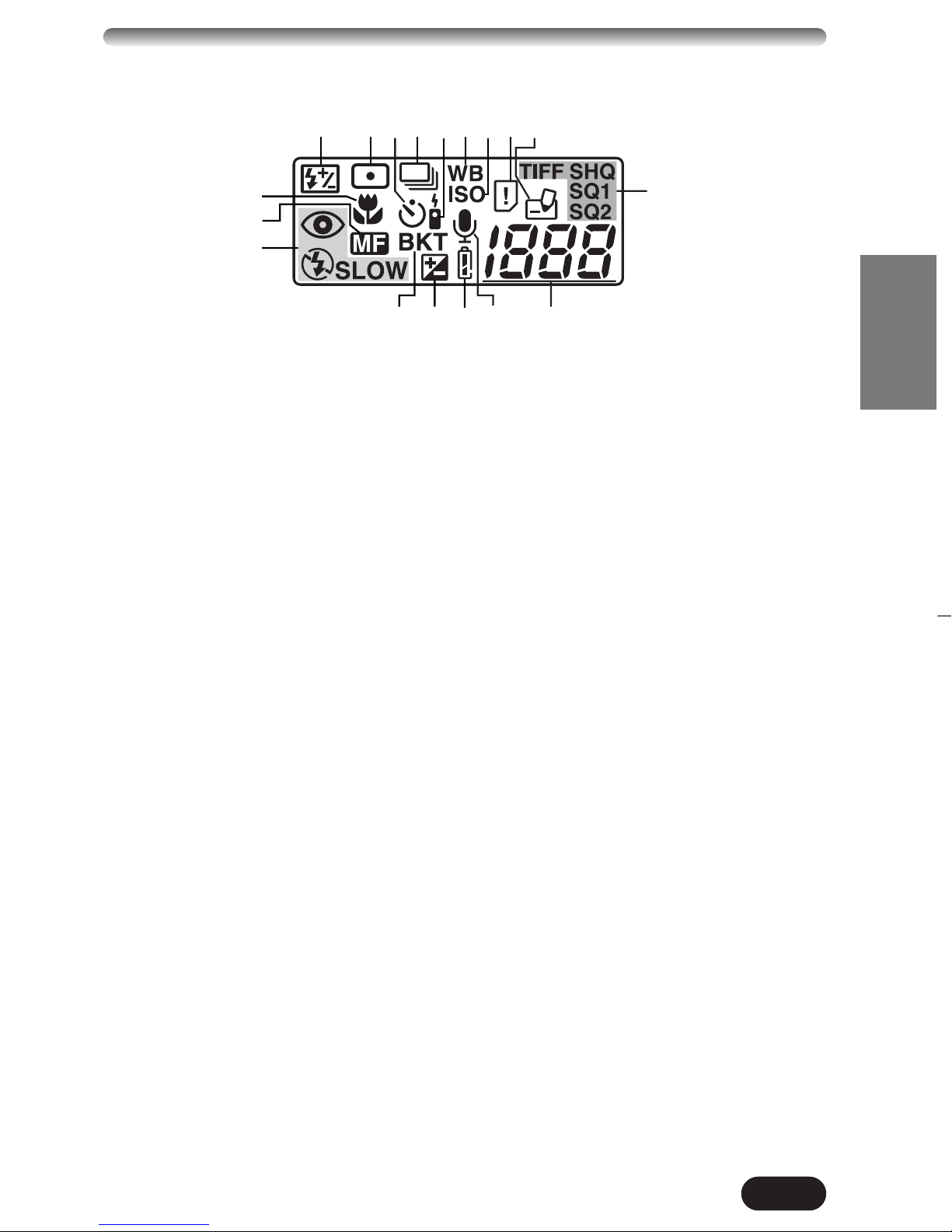

Control panel indications

1Flash intensity control

●Displayed when the amount of the light emitted by the flash is adjusted.

2Spot metering mode

●Displayed when the Spot metering mode is set.

3Self-timer

●Displayed when the self-timer is activated.

4Sequential shooting

●Displayed when the drive mode is set to Sequential shooting or AF

Sequential shooting.

5Remote control

●Displayed when remote control shooting is activated.

6White balance

●Displayed when the White balance is set to any mode except AUTO.

7ISO

●Displayed when the ISO is set to any mode except AUTO.

8Card error

●When the power is turned on, the camera checks the card. If there is a

problem with the card, this indication appears.

9Card writing

●Displayed when recorded pictures are being written to a card.

0Record mode (TIFF, SHQ, HQ, SQ1, SQ2)

●Displays the record mode. If SHQ or HQ is set to ENLARGE SIZE, the

corresponding indication blinks.

!Macro mode

●Displayed when the macro mode is engaged.

@Manual Focus

●Displayed when locking focus using the Manual focus function.

23 678945

$%^& *

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 7

NAMES OF PARTS

Control panel indications (Cont.)

#Flash mode

●Displayed when the flash mode is selected by pressing the (flash

mode) button.

No indication: Auto-flash : Red-eye reduction flash

: Fill-in flash SLOW: Slow synchronization flash

: Off (flash override)

$Auto-bracket

●Displayed when the drive mode is set to the Auto-bracket mode.

%Exposure compensation

●Displayed when exposure compensation is set to any value except 0.

^Battery check

●When remaining battery power is low, the battery check indication

changes as follows:

●Be aware that the time when the battery check indication appears varies

depending on the type of batteries used.

&Sound record

●Displayed when the sound record mode is set to “ON”.

*Number of storable still pictures

●Displays the number of still pictures you can shoot.

Seconds remaining ( mode only)

●Displays available movie recording time.

Card error

●Displayed if there is a problem with the card. TSee “Error codes”.

Fully charged Low power

No power

Blinks, then turns off.

23 678945

$%^& *

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 8

Monitor indications — Shooting information

The information below is displayed

for about 3 seconds after operating

the buttons/mode dial or closing the

menus.

The information below is always

displayed in the shooting mode.

*The illustrations show examples of

indications displayed when the mode

dial is set to P.

1Shooting mode

●Displays the shooting mode.

: Full-auto mode, : Portrait mode, : Landscape-Portrait

mode, : Landscape-Scene mode, : Night Scene mode, : Self-

Portrait mode, P: Program mode, A: Aperture priority mode, S: Shutter

priority mode, M: Manual mode, : My Mode, : Movie mode

2Aperture value

●Displays the current aperture value.

3Shutter speed

●Displays the current shutter speed.

4Exposure compensation

●Displays the current exposure (brightness) compensation value.

Exposure differential (M mode only)

●Displays the difference between the exposure determined by the

currently selected aperture and shutter speed compared to the

exposure level considered optimal by the camera.

5AF target mark

●Place this on the subject.

SLOW1

2272x1704

The indications vary depending on the shooting mode.

If you shoot using the monitor for a long time, noise may appear on pictures.

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 9

NAMES OF PARTS

Monitor indications — Shooting information (Cont.)

6Number of storable still pictures

●Displays the number of still pictures you can shoot.

Seconds remaining ( mode only)

●Displays available movie recording time.

7Manual Focus

●Displayed when locking focus using the Manual focus function.

8Memory gauge

●Displays the amount of space used by the pictures stored in the built-in

memory. If you take pictures continuously, the indication changes as

shown below.

The memory gauge changes depending on the number of storable

pictures or seconds remaining.

1 C-40ZBasic-E1 01.10.11 9:39 AM Page 10

Other manuals for CAMEDIA C-40 Zoom

This manual suits for next models

Table of contents

Languages:

Other Olympus Digital Camera manuals

Olympus

Olympus EVOLT E-330 User manual

Olympus

Olympus Stylus 795 SW Installation guide

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... Mounting instructions

Olympus

Olympus FE-35/X-30 User manual

Olympus

Olympus CAMEDIA C-450 Zoom User manual

Olympus

Olympus C-2000 - Zoom 2.1MP Digital Camera User manual

Olympus

Olympus CAMEDIA D-40 Zoom User manual

Olympus

Olympus TG-3 User manual

Olympus

Olympus CAMEDIA C-7070wz Setup guide

Olympus

Olympus FE 280 - Digital Camera - Compact User manual

Olympus

Olympus C-2000 - Zoom 2.1MP Digital Camera User manual

Olympus

Olympus E-PL7 User manual

Olympus

Olympus 550WP - Stylus Digital Camera User manual

Olympus

Olympus VG-160 User manual

Olympus

Olympus VG-165 User manual

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Setup guide

Olympus

Olympus FE-25/X-20 User manual

Olympus

Olympus CAMEDIA C-5060 Wide Zoom User manual

Olympus

Olympus STYLUS VERVE S Installation guide

Olympus

Olympus FE 180 - Digital Camera - 6.0 Megapixel Installation guide

Olympus

Olympus E-3 User manual

Olympus

Olympus E-30 Mounting instructions

Olympus

Olympus FE-46 Setup guide

Olympus

Olympus CAMEDIA C-760 Ultra Zoom User manual

Popular Digital Camera manuals by other brands

Mercury

Mercury 350K user manual

Pentax

Pentax Optio LS 465 operating manual

Sanyo

Sanyo VPC-S1085 instruction manual

GE SMART A1255 user manual

Point Grey

Point Grey Gazelle Getting started

Nikon

Nikon COOLPIX A Reference manual

Pentax

Pentax P-5 manual

BlazeVideo

BlazeVideo A280 instruction manual

Sony

Sony MCA-20 manual

Sony

Sony Alpha DSLR-A290 instruction manual

ATIK Cameras

ATIK Cameras One user manual

CohuHD Costar

CohuHD Costar 3930 Series Installation and operation manual

Leica

Leica M10-R quick start guide

FujiFilm

FujiFilm FinePix A700 owner's manual

Lorex

Lorex LNZ81P25 Series quick start guide

GE J1470S user manual

Sony

Sony A6700 Startup guide

Canon

Canon EOS ELAN7 instructions
