Olivetti D-COPIA 3500MF Service manual

Supporto Tecnico / Technical Support

Bollettino Informazione Tecnica / Technical Information Bulletin

1 / 6

Modulo IO-TIB-A (Liv.06) INFORMAZIONI RISERVATE, DA DIVULGARE SOLO SU AUTORIZZAZIONE DEL “SUPPORTO TECNICO”

CONFIDENTIAL INFORMATION ONLY TO BE DISCLOSED WITH PERMISSION FROM “TECHNICAL SUPPORT”

compilato da / compiled by approvato da / approved by data / date codice / code TIB

C. Gillio R. Nicoletta 22/05/14 808457 02

prodotto / product

d-Copia 3500MF Plus, d-Copia 4500MF Plus, d-Copia 5500MF Plus

Sistemi interessati / system concerned

d-Copia 3500MF, d-Copia 4500MF, d-Copia 5500MF,

d-Copia 6500MF, d-Copia 8000MF, PF-730, PF-730(B)

titolo / subject

MEASURES AGAINST THE PAPER CONVEYING SENSOR NON-ARRIVAL JAM (PREVENTION OF

FRICTIONAL WEAR OF THE PAPER CONVEYING ACTUATOR)

Descrizione/Description

TOPIC:

If the paper detection margin decreases due to the aged frictional wear of the paper detection

parts of the paper conveying actuator (No.2), the paper conveying actuator might not detect

wavy paper (moisture paper).

As a result, the paper conveying sensor could not be turned ON, which might cause paper

conveying sensor non-arrival jam (*). (*) Paper conveying sensor non-arrival jam: 1502, 1503, 1504, 1904

Content of Changes

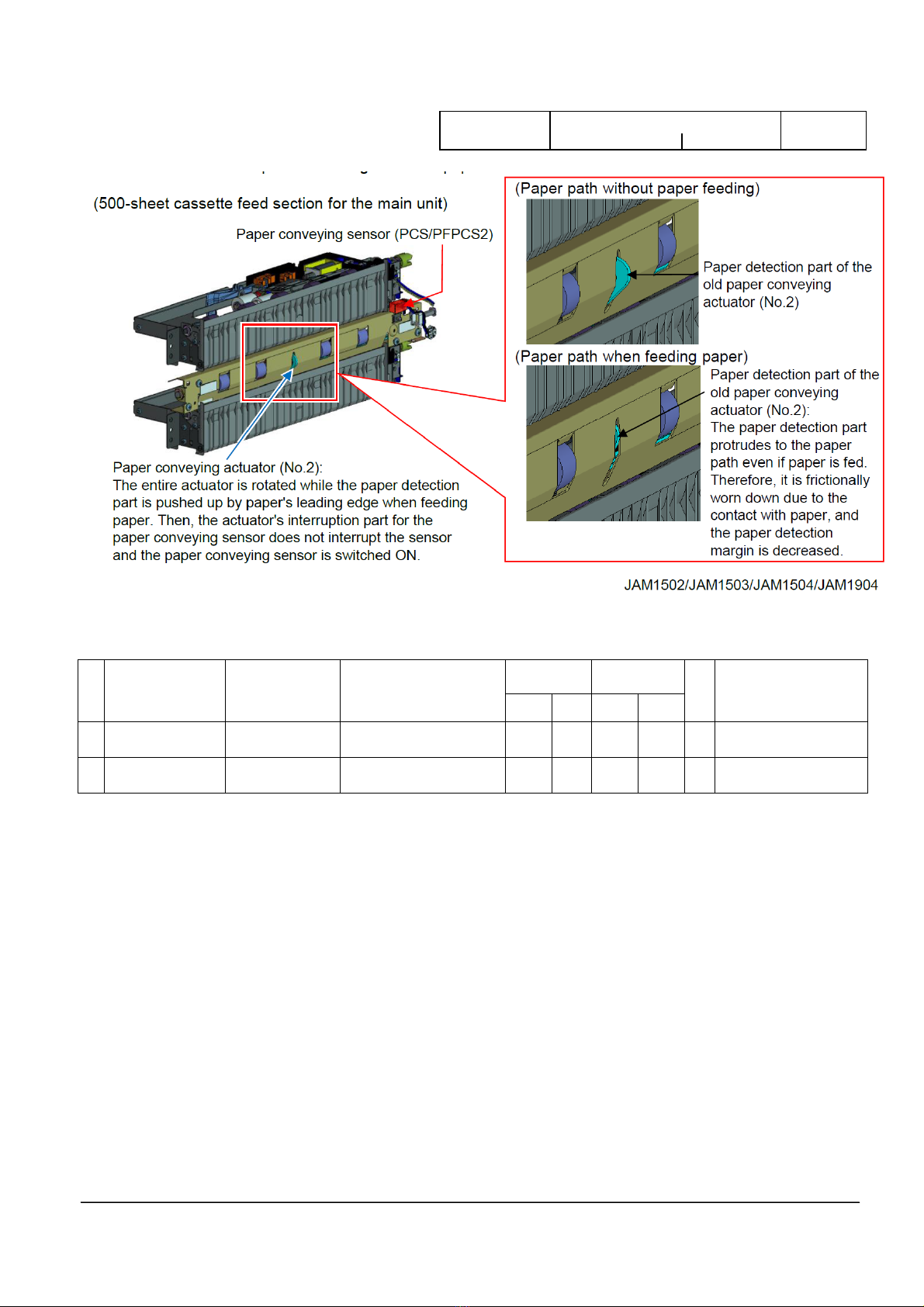

(Please refer to the figure in the next page for more details on the changed shape.)

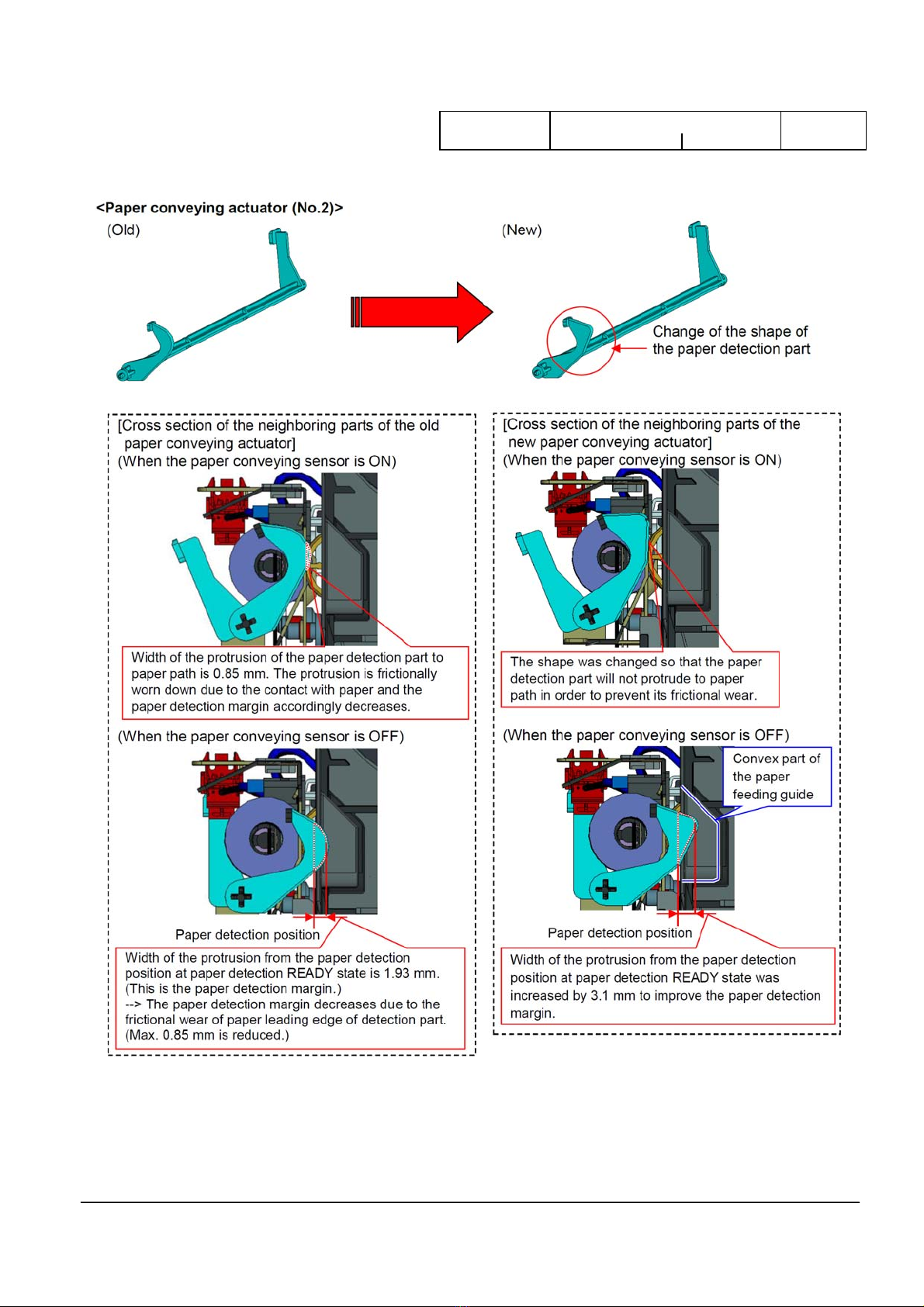

The shape of the paper detection part of the paper conveying actuator (No.2) was changed in

order to prevent its frictional wear and to improve the margins for the paper detection.

Supporto Tecnico / Technical Support Bollettino Informazione Tecnica / Technical Information Bulletin

data / date codice - progr./ code - number TIB

22/05

14 808457 02

2 / 6

Modulo IO-TIB-A (Liv.06) INFORMAZIONI RISERVATE, DA DIVULGARE SOLO SU AUTORIZZAZIONE DEL “SUPPORTO TECNICO”

CONFIDENTIAL INFORMATION ONLY TO BE DISCLOSED WITH PERMISSION FROM “TECHNICAL SUPPORT”

No. Codice Vecchio/

Old Parts No. Codice Nuovo/

New Parts No. Descrizione/

Description

Q.tà/Q.ty Intercambiabile/

Interchangeable SP Note / Remarks

Vecchio/

Old Nuovo/

New Vecchio/

Old Nuovo/

New

1 AVGR18441L AVGR19922M

PARTS GUIDE FEED

MIDDLE ASSY SP 1 1 X O O

2 AVGR15393S AVGR19923R +ACTUATOR FEED

LOW 1 1 X O O

NOTE: - The O mark in the SP column means that the part is managed as spare part

- - "+" mark at the beginning of the part name indicates that it is a component part.

Supporto Tecnico / Technical Support Bollettino Informazione Tecnica / Technical Information Bulletin

data / date codice - progr./ code - number TIB

22/05

14 808457 02

3 / 6

Modulo IO-TIB-A (Liv.06) INFORMAZIONI RISERVATE, DA DIVULGARE SOLO SU AUTORIZZAZIONE DEL “SUPPORTO TECNICO”

CONFIDENTIAL INFORMATION ONLY TO BE DISCLOSED WITH PERMISSION FROM “TECHNICAL SUPPORT”

Supporto Tecnico / Technical Support Bollettino Informazione Tecnica / Technical Information Bulletin

data / date codice - progr./ code - number TIB

22/05

14 808457 02

4 / 6

Modulo IO-TIB-A (Liv.06) INFORMAZIONI RISERVATE, DA DIVULGARE SOLO SU AUTORIZZAZIONE DEL “SUPPORTO TECNICO”

CONFIDENTIAL INFORMATION ONLY TO BE DISCLOSED WITH PERMISSION FROM “TECHNICAL SUPPORT”

[Replacement procedure of the paper conveying actuator]

No. Procedure Details

Detach the following exterior covers while

referring to the Service Manual.

(The table to the right indicates the applied

pages.)

Description Pages

Right lower cover 1-5-2 (4)

Right lower rear cover 1-5-2 (5)

Right lower front cover 1-5-2 (6)

2 Disconnect the connector at the machine

right rear side (x3) and remove the

connector wires from the wire saddle.

3 Remove the screw fixing the paper

conveying guide (x2).

Pull the front side of the paper conveying

guide (Note1) and then remove the stop

ring and the bushing.

(Note 1)

Note that the paper conveying guide may

be deformed if forcibly pulled.

Slightly pull it out until the paper conveying

guide naturally stops.

Supporto Tecnico / Technical Support Bollettino Informazione Tecnica / Technical Information Bulletin

data / date codice - progr./ code - number TIB

22/05

14 808457 02

5 / 6

Modulo IO-TIB-A (Liv.06) INFORMAZIONI RISERVATE, DA DIVULGARE SOLO SU AUTORIZZAZIONE DEL “SUPPORTO TECNICO”

CONFIDENTIAL INFORMATION ONLY TO BE DISCLOSED WITH PERMISSION FROM “TECHNICAL SUPPORT”

No. Procedure Details

Slide the bush on the rear side of the paper

conveying guide backward (in the direction

of the arrow) and detach the paper

conveying guide from the main unit. (Note

(The paper conveying roller remains in the

main unit.)

(Note2)

Make sure not to forcibly pull the paper

conveying guide and not to give shock to

the clutch when detaching the paper

conveying guide since the clutch is

attached to the paper conveying rol

roller which will remain in the main unit.

6 Remove the paper conveying actuator

(No.2) and the spring from the paper

conveying guide.

Supporto Tecnico / Technical Support Bollettino Informazione Tecnica / Technical Information Bulletin

data / date codice - progr./ code - number TIB

22/05

14 808457 02

6 / 6

Modulo IO-TIB-A (Liv.06) INFORMAZIONI RISERVATE, DA DIVULGARE SOLO SU AUTORIZZAZIONE DEL “SUPPORTO TECNICO”

CONFIDENTIAL INFORMATION ONLY TO BE DISCLOSED WITH PERMISSION FROM “TECHNICAL SUPPORT”

No. Procedure Details

Attach the new paper conveying actuator

(No.2) and the spring removed in the Step 6

to the paper conveying guide.

(Hook the spring hooks to the bottom of the

paper detection part of the new paper

conveying actuator and the bent shape of

the paper conveying guide.)

Reattach the paper conveying guide to the

main unit.

At this time, push the paper conveying

actuator in the direction of the arrow (Note

3) and put the paper conveying roller's shaft

remaining in the machine between the

photo-interruption part of the paper

conveying actuator and the paper

conveying sensor. Then, reattach the paper

conveying guide.

(Note 3)

Unless pushing the paper conveying

actuator, the paper conveying guide cannot

be reattached since the photo-interruption

part contacts the paper conveying roller

shaft in the machine.

9 Reassemble other parts in the reverse

order of disassembly.

CONTROMISURE IN FIELD / FIELD MEASURE:

Please replace the paper conveying actuator (No.2) with new one when the phenomenon described

below occurs. (Please refer to the page 4 and after for details on the replacement procedures.)

Numeri di serie delle macchine interessate / Serial nos. of affected machines:

After using up the old stock
