OfficeSource PL437T HALF User manual

KLIX CAM INSTRUCTIONS

Insert the cam with the arrow

pointing towards the hole in the

edge.

Line up Cam Lock,

turn clockwise.

Insert the Cam Lock into Klix

Cam. Turn Klix Cam to lock.

3DETAIL x-x

ADJUST THIS SCREW FOR DOOR ALIGNMENT

AFTER ASSEMBLY THE HINGES.

BACK VIEW

HINGES INSTRUCTIONS

MODEL: PL 437T HALF

1 OF 6

Before assembly, please remove all parts from carton, verifying that you have the correct quantities, and read all the instructions.

IN THE CARTON:

ASSEMBLY INSTRUCTIONS

See Page 3 See Page 4

See Page 5 See Page 6

WITH END BASE WITH ELLIPTICAL BASE

WITH CUBED BASE WITH V-LEG/U-LEG BASE

See Page 6

WITH V-LEG/SQUARE

POST LEG BASE

WALL

OFFICE FURNITURE

MODEL NO. PL437T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 1 of 6

2 OF 6

!ATTENTION !

Place all wooden parts on a clean, smooth surface to prevent them from being scratched.

Check to be sure that you have all parts and hardware. Remove all wrapping materials, including staples and packing straps before

you start to assemble. Do not tighten all screws/bolts until all completely assembled. Keep all hardware parts out of reach of children.

If any parts are missing, broken, damaged or worn, stop use of product until repairs have been made using factory authorized parts.

Failure to follow these warnings may result in injury.

MODEL: PL 437T HALF

ASSEMBLY INSTRUCTIONS

Modesty Panel

BA Top Panel

for PL 437T HALFX2

Klix Cam

10 Pcs

Cam Lock

10 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Short)

4 Pcs

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

C1 C2 C3 C4 C5 C7

6 Hole

L-Bracket

4 Pcs

END BASE x 2

Elliptical Base x 2

Klix Cam

6 Pcs

Cam Lock

6 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

D1 D2 D3 D4 D6

6 Hole

L-Bracket

4 Pcs

D5 D8

CSK Scew

M3.5 x 20MM

16 Pcs

CUBED BASE x 3

Modesty Panel

PLT-V-LEG X 2

PLT-RET SUPPORT

X 8

PLTLEG-U

F1 F2 F3

#6 x 16mm P/H

Cross Recess

Screw

4 Pcs

Screw

#4 x 16mm

16Pcs

M4 x 65

Allen-Key

1 Pc

G1 G2 G3

#6 x 16mm P/H

Cross Recess

Screw

4 Pcs

Screw

#4 x 16mm

16Pcs

M4 x 65

Allen-Key

1 Pc

Screw

#4 x 16mm

32Pcs

Screw

#6 x 58"

48 Pcs

6 Hole

L-Bracket

6 Pcs

Flat-Bracket

2 Pcs

A2 A3

FOR

ELLIPTICAL

BASE

FOR

CUBE

BASE

FOR

V-LEG/U-LEG

BASE

FOR END

BASE

Screw

#4 x 16mm

4Pcs

INCLUDED

WITH TABLE

TOP

INCLUDED

WITH CUBE

BASE

INCLUDED

WITH

V-LEG/U-LEG

BASES

INCLUDED

WITH END

BASES

INCLUDED WITH

ELLIPTICAL

BASES

A A

PLT-V-LEG

PLT-RET SUPPORT

X 2

FOR

V-LEG/U-LEG

BASE

PLT Post Leg x 2

INCLUDED

WITH SQUARE

POST LEG

COMPONENTS:

HARDWARE:

Top Panel

for PL 437T HALFX2

Top Panel

for PL 437T HALFX2

Top Panel

for PL 437T HALFX2

Top Panel

for PL 437T HALFX2

E1 E2 E3

M4 x 65

Allen-Key

1 Pc

Adjustable

Glide

5 Pcs

E4 E5 E6

JCBC Screw

M6 x 40mm = 8pcs

14Washer = 8pcs

Klix Cam

18 Pcs

Housing

Cap (Short)

4 Pcs

Cam Lock

18 Pcs

6 Hole

L-Bracket

4 Pcs

Screw

#6 x 58"

24 Pcs

E8 E9

0' Compo

Door Hingers

1 Pair

Screw

#3.5 x 16mm

2 Pcs

Magnet

Catches

1 Set

Screw

#3.5 x 12mm

2 Pcs

E10 E11 E12

Housing

Cap (Long)

14 Pcs

E13

OFFICE FURNITURE

MODEL NO. PL437T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 2 of 6

MODEL: PL 437T HALF

ASSEMBLY INSTRUCTIONS

3 OF 6

INSTRUCTION:ASSEMBLING TABLE WITH END PANEL BASE

Screw Adjustable Glide (C5) into

bottom of End Base (C).

Attach the body (B&C) to

Top Panel (A) by using

Cam Lock (C1) and Klix

Cam (C2).

Attach Housing Cap (A3/C3/C4) to

all Klix Cam(A2/C2) by pushing

neck thought center of cam.

Attach the L-Bracket (A4/C6) to

End Base (C) and Modesty Panel

(B) as shown. Tighten Screws

(A6/C7) securely.

Attach the two End Base

using Cam Lock (C1) and

Klix Cam (C2).

A6 C7

BOTTOM

FACE

(A3/C3/C4)

Attach the Flat-Bracket (A2) to

two Top Panel (A) as shown.

Tighten Screws (A3) securely.

BOTTOM

FACE

OFFICE FURNITURE

MODEL NO. PL437T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 3 of 6

MODEL: PL 437T HALF

ASSEMBLY INSTRUCTIONS

4 OF 6

INSTRUCTION:ASSEMBLING TABLE WITH ELLIPTICAL BASE

Attach 2 Pcs Elliptical Base (D) to

Modesty Panel (B) by using Cam

Lock (D1) and Klix Cam (D2).

Attach Top Panel (A) to

Modesty Panel (B) by

using Cam Lock (D1)

and Klix Cam (D2).

Attach Elliptical Base

(D) to Top Panel (A) by

using Screw (D8).

Attach the L-Bracket (A4/D5) to

Elliptical Base (D) and Modesty

Panel (B) and Top Panel (A) as

shown. Tighten Screws (A6/C6)

securely.

A4 D5

BOTTOM

FACE

Attach the Flat-Bracket (A5) to two Top Panel (A)

as shown. Tighten Screws (A6) securely.

Attach metal plate to Elliptical Base (D)&(F)

with included screws.

Screw Adjustable Glides (D4)&(F4) into

bottom of Elliptical Bases (D)&(F).

D F

CF8D8 &

BOTTOM

FACE

OFFICE FURNITURE

MODEL NO. PL437T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 4 of 6

MODEL: PL 437T HALF

ASSEMBLY INSTRUCTIONS

5 OF 6

INSTRUCTION:ASSEMBLING TABLE WITH CUBED BASE

Assemble Cube Base by attaching

Side Panels(C)&(D) to Back

Panels(E),Top rail(F) & Bottom Rail(G)

with Cam Lock (E1) and Klix Cam (E2).

Attach Cube Base Support (B) by using Cam Lock (D1) and Klix Cam (D2).

COR D

E10

Attach Magnet Catches(E10) to Side

Panel(C)or(D) by using Screw(E11).

Attach L-Bracket(E7) to

Side Panel(C)&(D) and

Hanging Rail(B) by using

Screw(E8).

Attach Hinges(E9) to Side

Panel(C)or(D) and Door(H) by using

Screw(E9).

Attach Catches Plate(E10) to

Door(H) by using Screw(E12).

Screw Adjustable Glide

(E5) into bottom of End

Base (C,D).

E12

E11

Attach the Flat-Bracket

(A2) to two Top Panel (A)

as shown. Tighten Screws

(A3) securely.

BOTTOM

VIEW

E13

Attach Top Panels (A) to

Cube Bases (B) with JCBC

Screws (E13) and tighten

with Allen Key (E6).

OFFICE FURNITURE

MODEL NO. PL437T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 5 of 6

6 OF 6

ASSEMBLY INSTRUCTIONS

MODEL: PL 437T HALF

Attach Screws

#4 x 16mm(E2/G1) to

PLT-V-Legs.

F2 H1

Attach PLT V-Legs(E) to

Top Panel(A) by using

#6 x 16mm P/H Cross

Recess Screws(E1).

Attach PLT LEG-U(F)

to Top Panel(A) by

using #6 x 16mm P/H

Cross Recess

Screw(F1).

F2 G1

Attach Screw

#4 x 16mm(F2/G1)

to PLT Leg-U(F).

Attach Screws

#4 x 16mm(H1/F2) to

PLT-V-Legs.

F2 H1

Attach PLT V-Legs(E) to

Top Panel(A) by using

#6 x 16mm P/H Cross

Recess Screws(F1).

Attach PLT Square Post

Legs(H) to Top Panel(A)

by using screws #4 x

16mm(H1)

INSTRUCTION:ASSEMBLING TABLE WITH V-LEG BASE

OFFICE FURNITURE

MODEL NO. PL437T HALF

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Part 6 of 6

Other OfficeSource Office Equipment manuals

OfficeSource

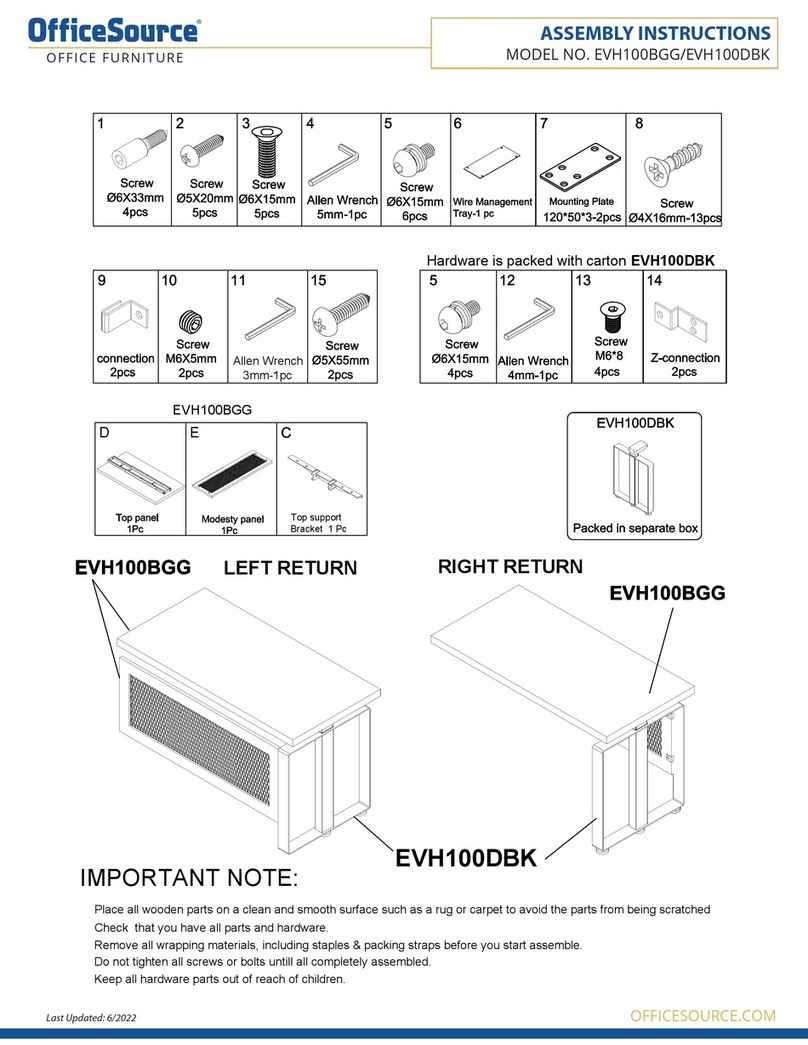

OfficeSource EVH100BGG User manual
