O.K.I. usa MPD-01A User manual
WATER RESISTANT 1-CHANNEL MICRO DVR KIT
WITH CAMERA
(MPD-01A + SSB-F50A-M8)
Operation Manual
MPD-01A
●Built-in 2.5” TFT LCD Monitor
●1-Channel Video & Audio
●Record to SD Card
●Download from SD Card or USB Port
●Event Trigger by Motion Pre Alarm 30 or 60 sec.
●Post Alarm 10, 20, 30, ... 120 sec.
●Recording Frame Rate: 5/10/15/20/25/30 + PS
●Rechargeable / Removable LZ-Polymer Battery
●2 Hours of Recording Time / Battery
●5V Camera Power Source
SSB-F50A-M8
●Sharp 1/3” CCD
●500 TV Lines
●Built-in Microphone
●0.5 Lux @ F2.0
●Camera comes with 4 types of lens:
3.6mm Default, 6.0mm, 8.0mm, 12.0mm
●IP66 Rating
●5~12V DC
1
Contents
Photo of Micro DVR and CCD Camera...................................................................2
Remote Control Description......................................................................................3
1. Functions .................................................................................................................................... 5
1.1 Video Audio Input................................................................................................................. 5
1.2 Video Audio output............................................................................................................... 5
1.3 Menu UI .................................................................................................................................... 5
1.4 LED Light.................................................................................................................................. 5
1.5 LCD Display ............................................................................................................................. 5
1.6 Screen Display ........................................................................................................................ 6
2. Menu Functions ......................................................................................................................... 8
2.1 Main........................................................................................................................................... 8
2.1.1 Play Video ...................................................................................................................... 8
2.1.2 Play Picture.................................................................................................................. 10
2.1.3 CAMERA SETTING.................................................................................................... 10
2.1.4 Record Setting............................................................................................................. 11
2.1.4.1 Video/Audio ........................................................................................................... 11
2.1.4.2 Snapshot................................................................................................................ 11
2.1.4.3 Video Loss............................................................................................................. 12
2.1.4.4 Motion Detect........................................................................................................ 12
2.1.4.5 Pre/Post Alarm...................................................................................................... 13
2.1.5 SYSTEM SETTING .................................................................................................... 13
2.1.5.1 DATE/TIME ........................................................................................................... 14
2.1.5.2 STORAGE ............................................................................................................. 14
2.1.5.2.1 DEVICE ........................................................................................................... 14
2.1.5.2.2 STATUS .......................................................................................................... 14
2.1.5.2.3 WARN LOW ................................................................................................... 14
2.1.5.2.4 FORMAT ......................................................................................................... 15
2.1.5.2.5 Default Setting................................................................................................ 15
3. PC Playback Software............................................................................................................ 15
4. Watch Dog................................................................................................................................ 15
5. Default Setting ......................................................................................................................... 15
Appendix a Explanation for Buttons on System ..................................................16
Appendix b Recommend the different Brand of SD card to be used in the DVR
.....................................................................................................................................18
2
Photo of Micro DVR and CCD Camera
M8 waterproof
connector
1/3’’ Color CCD
camera
2.5” LCD TFT
display
Left Panel of Micro DVR
Right Panel of Micro DVR
5. Battery
1
A
udio/Video In & Camera Power
(
M8 connector
)
2 IR Receivers
3 LED Light. (Details please refer to 3.1)
4. SD Slot: SD Card
(
Insert SD card before turn the Power on
)
3. USB Port: Mini USB, A type, connects to PC
1. DI/Do connecter (Reserved)
2. 5V adapter.
4 Audio/Video Out (M8 connector)
3
Remote Control Description
Record
Snapshot
This can turn on/off the LCD when system is power on,
Power On/Off (Note: Need to hold the button for 3 sec)
Stop/ESC. (Stop playing Video or Recording, ESC = Escape)
4
Play (play the last Video File automatically)/Pause
Fast Forward. (Speed by X2、X4、X8、X16)
Rewind (Back Forward.) (Speed by X2、X4、X8、X16)
Forward the video frame by frame
Rewind the video frame by frame
Cursor Up (Multi Purpose)
Cursor Down (Multi Purpose)
Access to main menu or to confirm your setup.
Volume Up
Volume Down
PAL or NTSC Switch
5
1. Functions
−1.1 Video Audio Input
Support 1 Video Channel
Support 1 Audio Channel
−1.2 Video Audio output
Selectable NTSC/PAL output
L/R line input and output or 1 Microphone input and output.
−1.3 Menu UI
OSD menu presentation
Power on/off, Snapshot/ESC, Arrow Up/ FF, Arrow Down/ FB, Enter, operation
buttons
−1.4 LED Light
Red LED
Recording: LED lights on permanently
Stop Recording: LED lights on for 2 seconds and off for 2 seconds.
Green LED
Out of storage space: LED lights on for 1 second and off for 1 second.
System malfunction: LED lights on for 1/2 second and off for 1/2 second
Normal: LED lights on permanently
Orange LED
Charging status: Orange LED lights on permanently; with Red LED lights on for
4 second and Green LED lights on 4 second.
−1.5 LCD Display
2.5” TFT LCD
Programmable LCD off with 0, 30, 60, 120 seconds when there is no activity on the
menu or buttons. ‘0’ means to keep LCD “on” permanently.
When system is power on, press LCD_KEY on IR remote controller will allow users
to turn on/off the LCD
6
−1.6 Screen Display
a. Day and Time
MM/DD/YY ( 05/10/07)
HH:MM:SS ( 14:23:42)
b. Available SD storage (in %), i.e. SD:98%
C. Battery Capacity
a. Day and Time
d. Rec Status
c. Color icon shows the
Battery Capacity
b. Storage Status
SD cars has no space left for recoring
Battery is full when the icon is in green
full scale
2/3 yellow indicates the battery is only
half capacity left.
7

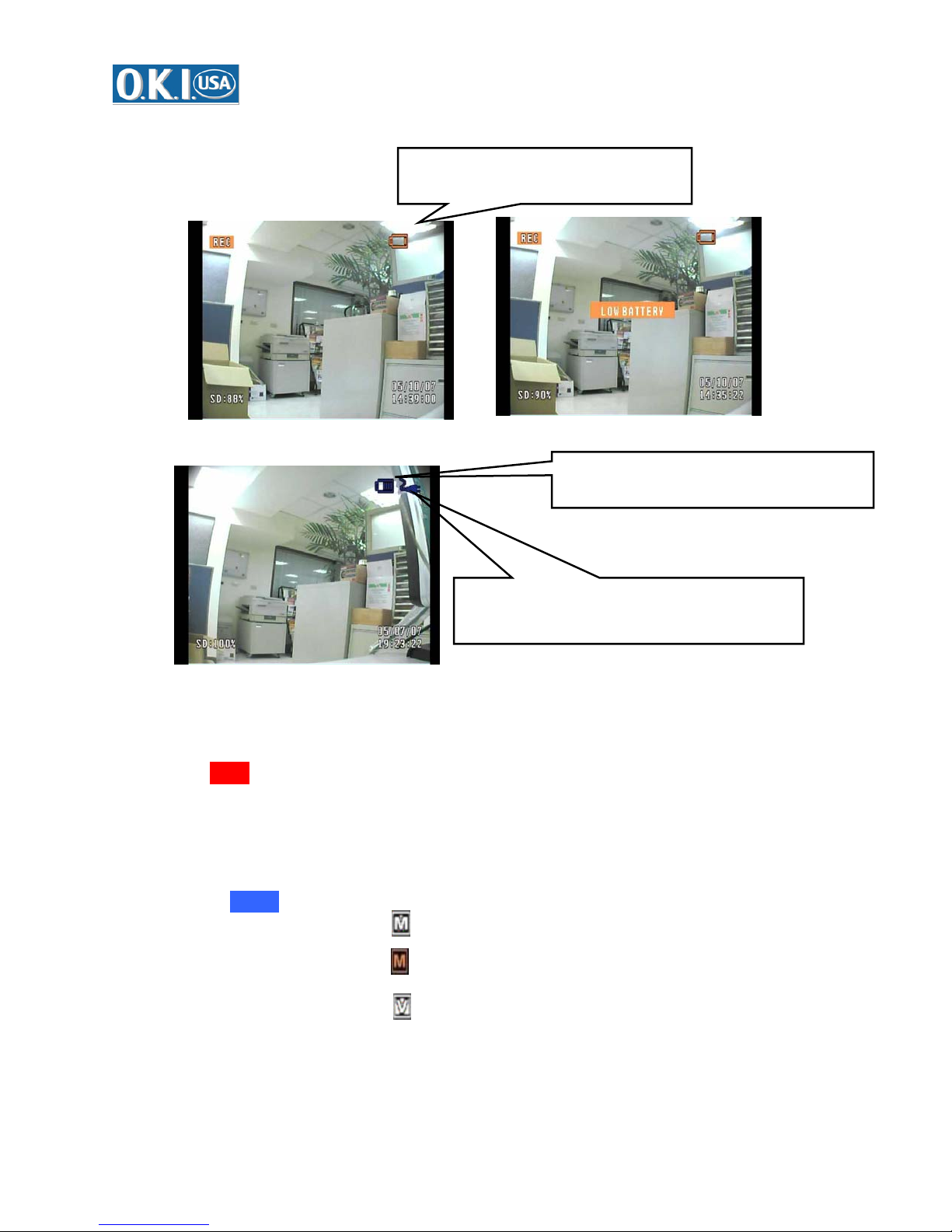

Red icon indicates it’s running out of
battery soon.
Blue icon indicates the battery is
recharging now.
Plug icon indicates the recorder is using an
adapter to recharging the battery and as a
p
ower su
pp
l
y
as well.
1. Recording status
Blank Bindicates recorder is in preview state
REC Bindicates recorder is in recording state
(There are 5 sub-categories under recording, includes “Video/Audio”
“snapshot”, “video loss”, “Motion Detect”, “PRE/POST Alarm ” (Please
refer to section 2.1.4~2.1.4.5 for more details)
PLAY Bindicates recorder is in playback status
Motion Detection Bindicates Motion Detection is enabled.
indicates Motion Detection is disabled.
Video Loss Bindicates video Loss is enabled.
8
2. Menu Functions
−2.1 Main
2.1.1 Play Video
Monthly List (MM/YYYY、Total # of Records) Record List (Day、hh:mm:ss
Record starting time
、hh:mm:ss)
Recording Duration
Video clip of Playback
9
Playback
Video clip of PAUSE during
playback
Video cli
p
of FF
(
x2/x4/x8/x16
)
Video cli
p
of FB
(
Remind
)
(
x2/x4/x8/x16
)
Two ways to FF & FB the video:
1. Press STEP_F , STEP_B on the remote
controller
2. Press button or on DVR.
