System Specification

NVIDIA Tesla D870

Deskside GPU Computing

System

January 14, 2008 | SP-03718-001_v01 ii

Document Change History

Version Date Responsible Description of Change

01 January 14, 2008 SG, SM Initial Release

January 14, 2008 | SP-03718-001_v01 iii

Table of Contents

NVIDIA Tesla D870 Overview ........................................................................................1

Key Specifications.............................................................................................................1

System Architecture..........................................................................................................2

Configuration...................................................................................................................3

Mechanical Specification................................................................................................4

System Chassis ................................................................................................................4

Host Adapter Card............................................................................................................6

PCI Express Cable ............................................................................................................7

Environmental Specifications.........................................................................................8

Environmental Specifications Summary............................................................................... 8

Support Information ......................................................................................................9

Languages.......................................................................................................................9

Certificates and Agencies ................................................................................................ 10

Certifications .............................................................................................................. 10

Agencies.................................................................................................................... 10

January 14, 2008 | SP-03718-001_v01 iv

List of Figures

Figure 1. Tesla D870 GPU Computing System Architecture ..................................................2

Figure 2. Tesla D870 Deskside..........................................................................................5

Figure 3. Tesla D870 Rack-Mounted ..................................................................................5

Figure 4. PCI Express x16 Host Adapter Card .....................................................................6

Figure 5. PCI Express Cable (2 Meter Long) .......................................................................7

List of Tables

Table 1. System Configuration .........................................................................................3

Table 2. SKUs for Rack Mount Kit and x8 Host Interface Card.............................................3

Table 3. Environmental Specifications and Conditions.........................................................8

Table 4. Languages Supported.........................................................................................9

January 14, 2008 | SP-03718-001_v01 1

NVIDIA Tesla D870

Overview

The NVIDIA®Tesla™D870 Deskside Computing System features two Tesla

graphics processing units (GPUs) and can be used either alongside a workstation or

alternatively, two deskside systems can be rack-mounted for four Tesla GPUs in a

3U configuration (it is possible to rack-mount just one deskside unit).

The Tesla D870 connects to a host workstation via a low-power PCI Express ×16

or ×8 adapter card.

Key Specifications

Computing Processors

Two Tesla C870 GPUs

¾128 thread processors per GPU, each with a single-precision floating point

3 GB of total memory (1.5 GB dedicated memory per GPU)

Mechanical Overview

Physical Dimensions

¾Tower desktop: 9.54 inches high × 5.94 inches wide × 20.6 inches deep

¾Rack Mount: 5.25 inches (3U) high × 8.5 inches wide × 18 inches deep

Host Adapter Card

¾PCI Express ×16 or ×8: small form factor, passive heat sink (peak power

dissipation 10 W)

External Connectors

¾2 PCI Express cable connectors: 2 meter length

Operating Environment

Quiet operation: 40 dB, suitable for office environment

Power: 520 W (maximum), 100-240 VAC Autosensing

Temperature: 5 degrees Celsius to 35 degrees Celsius

Relative Humidity: 10 % to 80 % non-condensing

NVIDIA Tesla D870 GPU Deskside System Specification

January 14, 2008 | SP-03718-001_v01 2

System Architecture

The Tesla D870 GPU computing system is based on the 8-Series GPU from

NVIDIA. It can be connected to a single host system via a PCI Express connection

as shown in Figure 1.

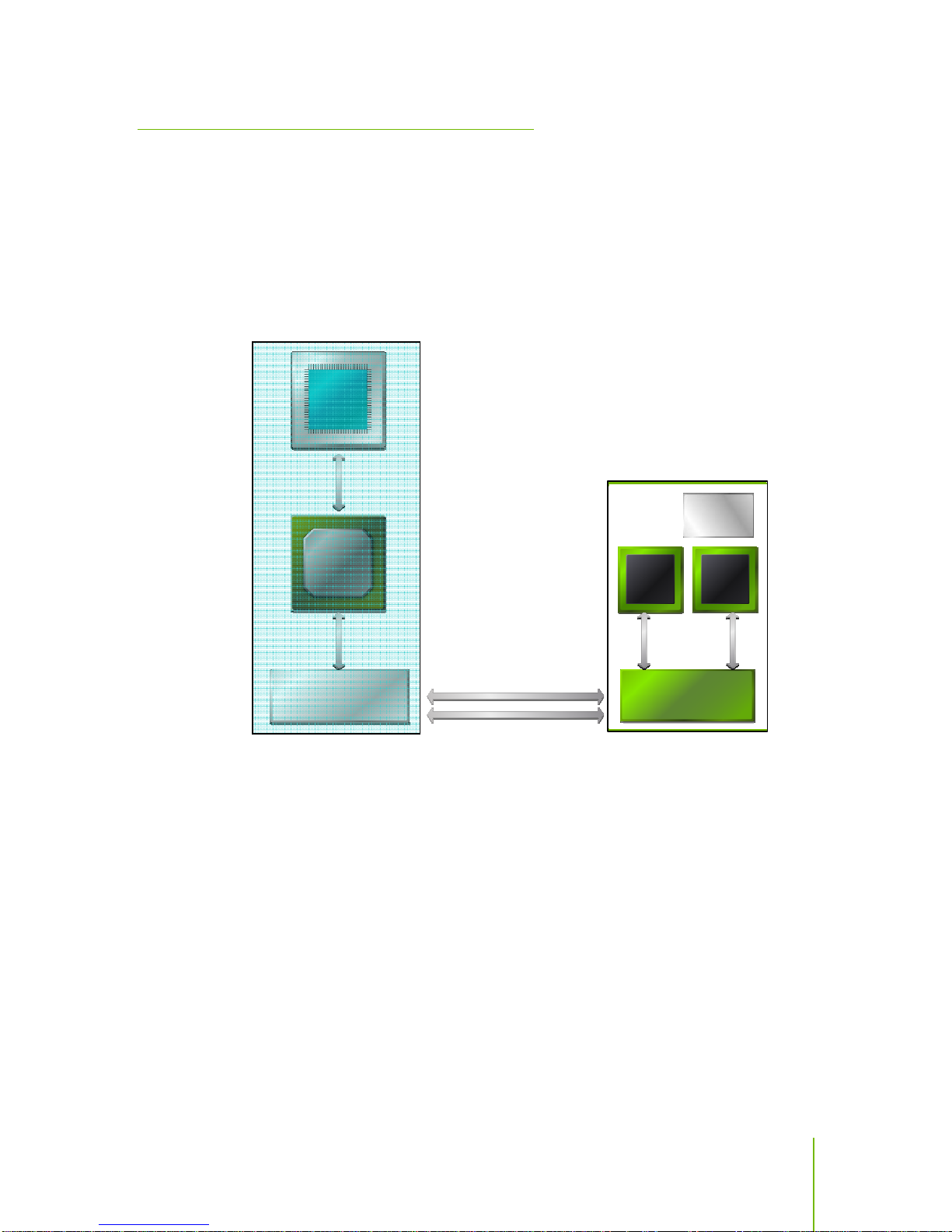

Figure 1. Tesla D870 GPU Computing System Architecture

PCI Express

Cables

PCI-E Gen1 x16

Adapter card

FSB

Core

Logic

Power

Tesla D870 GPU

Deskside System

NVIDIA PCI-E

Switch

Tesla

GPU

Tesla

GPU

CPU

CPU Host

Workstation

NVIDIA Tesla D870 GPU Deskside System Specification

January 14, 2008 | SP-03718-001_v01 3

Configuration

The Tesla D870 has one system configuration as listed in Table 1. Geographical

SKUs have localized power cords but the system configuration is the same.

Table 1. System Configuration

Specification Description

SKU references 920-20375-0001-000 (Americas/Europe)

920-20375-0002-000 (Japan)

920-20375-0003-000 (China/Taiwan)

GPU 2 Tesla C870 GPUs

GPU Processor clock 1350 MHz

GPU Memory clock 800 MHz

Memory configuration 3.0 GB total configured as 1.5 GB per GPU

Memory I/O 384-bit per GPU

System I/O 1 x16 PCI Express cable connector

PCI Express cables 2 cables, 2 meter length

Table 2. SKUs for Rack Mount Kit and x8 Host Interface

Card

SKU References Description

930-10338-0000-000 PCI Express x8 host interface adaptor card

930-50375-0000-000 Rack mount kit

January 14, 2008 | SP-03718-001_v01 4

Mechanical

Specification

System Chassis

The Tesla D870 can be used as a deskside unit or alternatively, two deskside systems

can be rack-mounted for four Tesla GPUs in a 3U configuration. The rack-mounted

deskside conforms to the EIA 310E specification for 19” 4-post racks with 900 mm

to 1000 mm depth.

Note: It is also possible to rack-mount a single deskside in a 3U configuration.

The chassis dimensions are:

Tower desktop: 9.54 inches high × 5.94 inches wide × 20.6 inches deep

Rack Mount: 5.25 inches (3U) high × 8.5 inches wide × 18 inches deep

NVIDIA Tesla D870 GPU Deskside System Specification

January 14, 2008 | SP-03718-001_v01 5

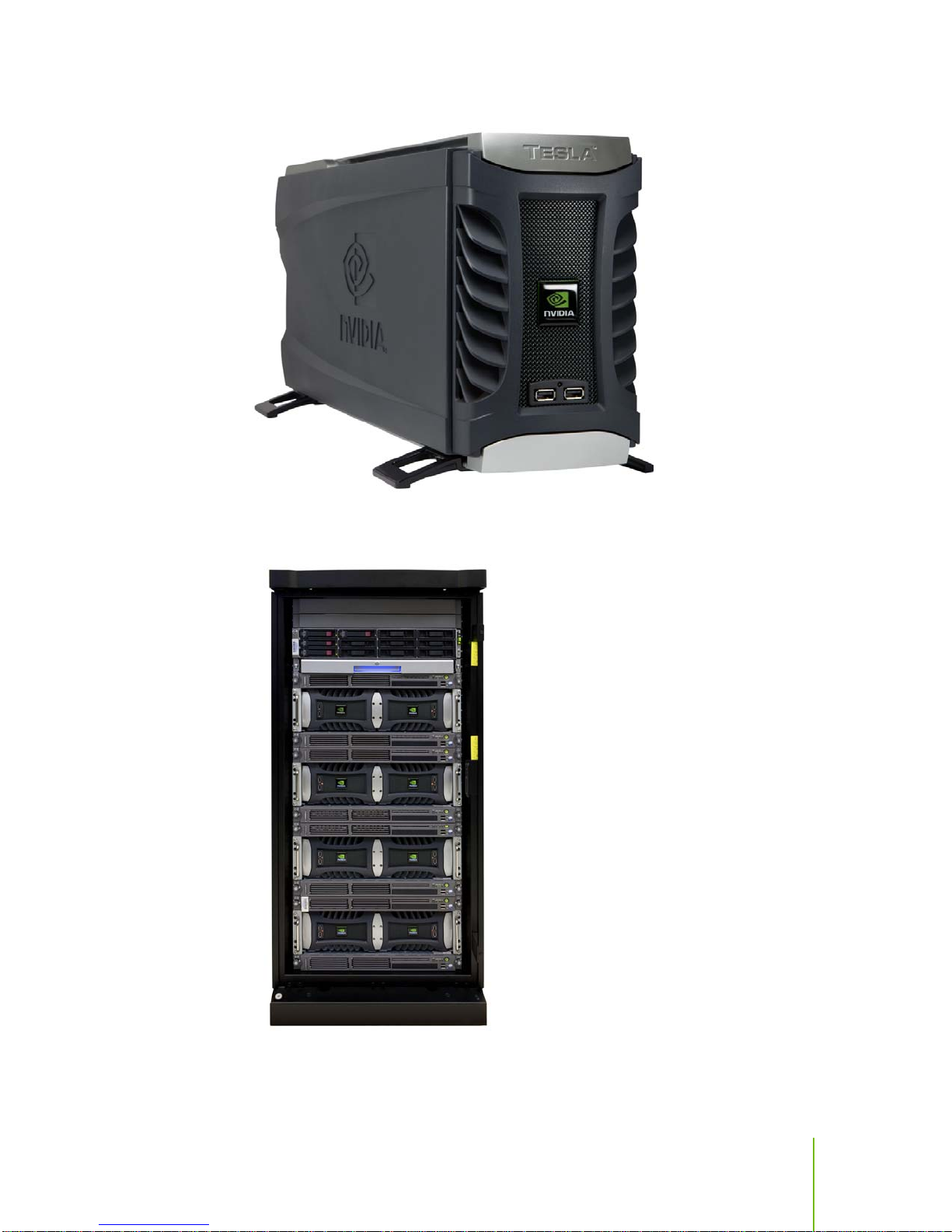

Figure 2. Tesla D870 Deskside

Figure 3. Tesla D870 Rack-Mounted

NVIDIA Tesla D870 GPU Deskside System Specification

January 14, 2008 | SP-03718-001_v01 6

Host Adapter Card

The NVIDIA PCI Express interface card (Figure 4) comes with a standard (long)

bracket as well as a shorter low profile bracket that conforms to the PCI Express

low profile form factor. The specifications for the interface card are:

Form factor: 6.6 inches × 4.376 inches

Power draw: 10 W (maximum)

Cooling: Passive heat sink (no fan)

Bus: PCI Express ×16

An optional PCI Express ×8 host interface card can be purchased separately.

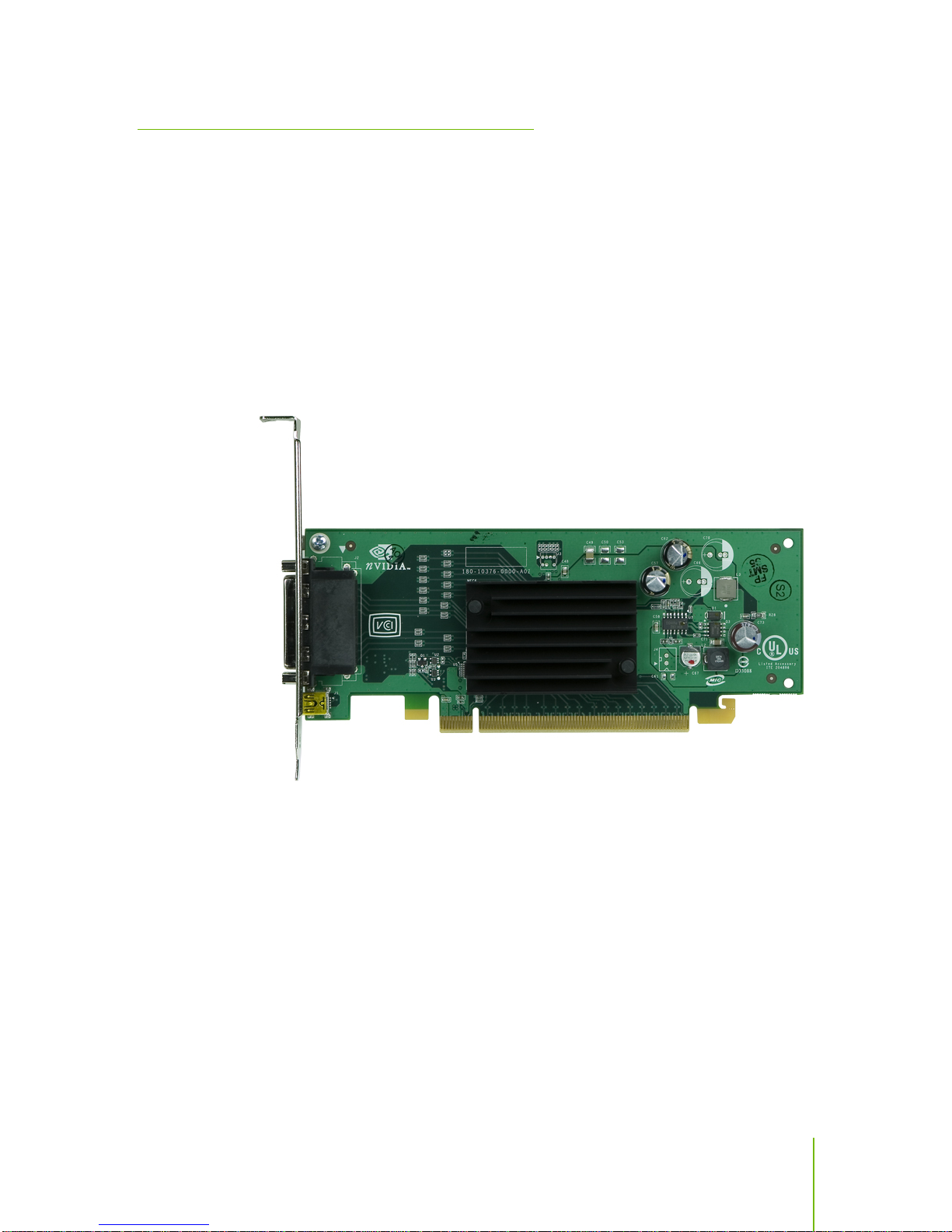

Figure 4. PCI Express x16 Host Adapter Card
