IntroductionIntroduction

The 3DForce4 MX440-8X Series video accelerators are

excellent 2D/3D multimedia video adapters for AGP 8X local

bus desktop PCs’. Based on nVIDIA GeForce4 MX440-8X

core technology, built-in with 64MB or 128MB DDR SDRAM

memory module, these video cards will provide multiple

display outputs onboard for TVout (Analog and Digital) or

Dual RGBout (Twin) all together in optional.

As the previously core technology from nVIDIA, the

GeForce4MX440-8X Graphics Processing Unit (GPU)

shakes up the gaming industry with its extremely

performance, unusual visual effects, and speedy frame

rates-injecting life into the artificial world of computer-

generated graphics.

The significant enhancement is the new high quality image

control. The nVIDIA GeForce4™MX GPU has added two more

rendering pipelines and the DirectX 8-compliant T&L unit into

its graphic engine, which enables the maximum flexibility and

high quality 4Xs mode control capabilities; gathered with the

data bus Double Data RateRAM (DDR) circuit, the PC users

can ultimately enjoy the virtual environment of 3D scenes,

and ambiance textures appear photo-realistic and custom

lighting heightens at a highest resolution with astonishingly

fast frame refresh rate.

Another feature of the 3DForce4 MX440-8X Series is the video

accelerator, which integrates the HDVP (High Definition Video

Processor) and DVD (Digital Versa Display) for video

playback with higher definitions at greatly increased frame

rates.

A leverage of the combination of hardware and software

technology, nVIDIA GeForce4™ MX GPU will provide many of

the new features and benefits you look for in your desktop

computing as well as the best performance, combining usual

quality and exceeding crisp resolution. With all of this, the

3DForce4 MX440-8X Series video cards bring a new level of

graphics accomplishment and flexibility to the mainstream

desktop PC market!

Features

AGP Bus Interface

• AGP 8x/4x/2x compatible

• AGP 3.0 supported

Graphics Processor Unit (GPU)

• 256-bit graphics engine

• 64MB/128MB DDR SDRAM memory access bus.

• Integrated dual 270 MHz RAMDACs drives CRT

display

• 2 dual 128bit pixel pipelines rendering

• Surface engine for high-order surfaces and patches

• Programmable Vertex Shader

• Programmable Pixel Shader

• HRAA - high - resolution anti-aliasing

• Integrated hardware transform engine

• Integrated hardware lighting engine

• DirectXand S3TCtexture compression

• Dual cube environment mapping capability

• Hardware accelerated real-time shadows

performance

• Up to 1.1billion AA samples per second fill rate

• Up to 8.0 GB/sec memory bandwidth

• Up to 34 Million triangles/sec.

• True, reflective bump mapping

• High-performance 2D rendering engine

• API support - DirectX8.1 and lower

Compatibility

• nVIDIA Unified Driver Architecture

• Industry’s first fully compliant professional OpenGL

1.3 support for Windows® operating systems

• Windows® 98, WindowsMe, Windows®NT™4.0,

Windows® 2000, and WindowsXP

HDTV/DVD Playback

• High-Definition Video Processor (HDVP) for full-

screen, full-frame video playback of HDTV and DVD

resolutions

• Independent hardware color controls for video overlay

• Hardware color space conversion (YUV 4:2:2 and

4:2:0)

• Motion compensation

• 5-tap horizontal by 3-tap vertical filtering

• Per-pixel color keying

• Multiple video windows with hardware Color Space

Conversion and filtering

System Requirement

• Intel Pentium® II, III or P4, or compatible system with

AGP 2x/4x/8x Bus Extension Slot

• CD-ROM drive, Double speed or faster

• Hard Drive with at least 10MB Free space

• MS Windows® 98/Me/NT 4.0/2000/XP operating

systems

Check List

• 3DForce4 MX440-8X-64TV or 3DForce4 MX440-8X-

64Twin, or 3DForce4 MX440-8X-128TV, or 3DForce4

MX440-8X-128Twin Multimedia Accelerator

• Software & Documents CD

• Quick Start Guide (Printed)

• TVout convert cable may vary in package, which

depends the offering from manufacturer. Please, see

the PCB Layout diagrams below for details.

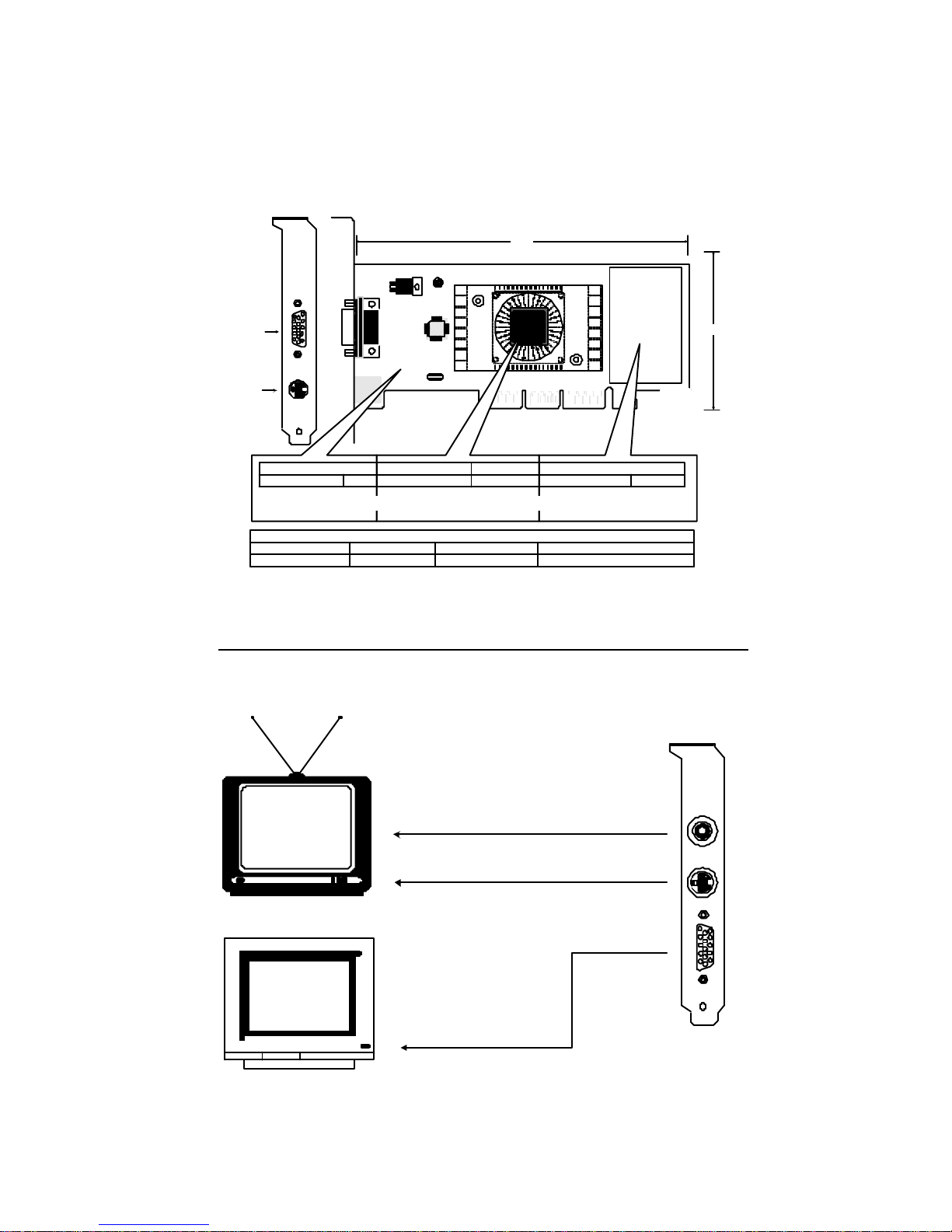

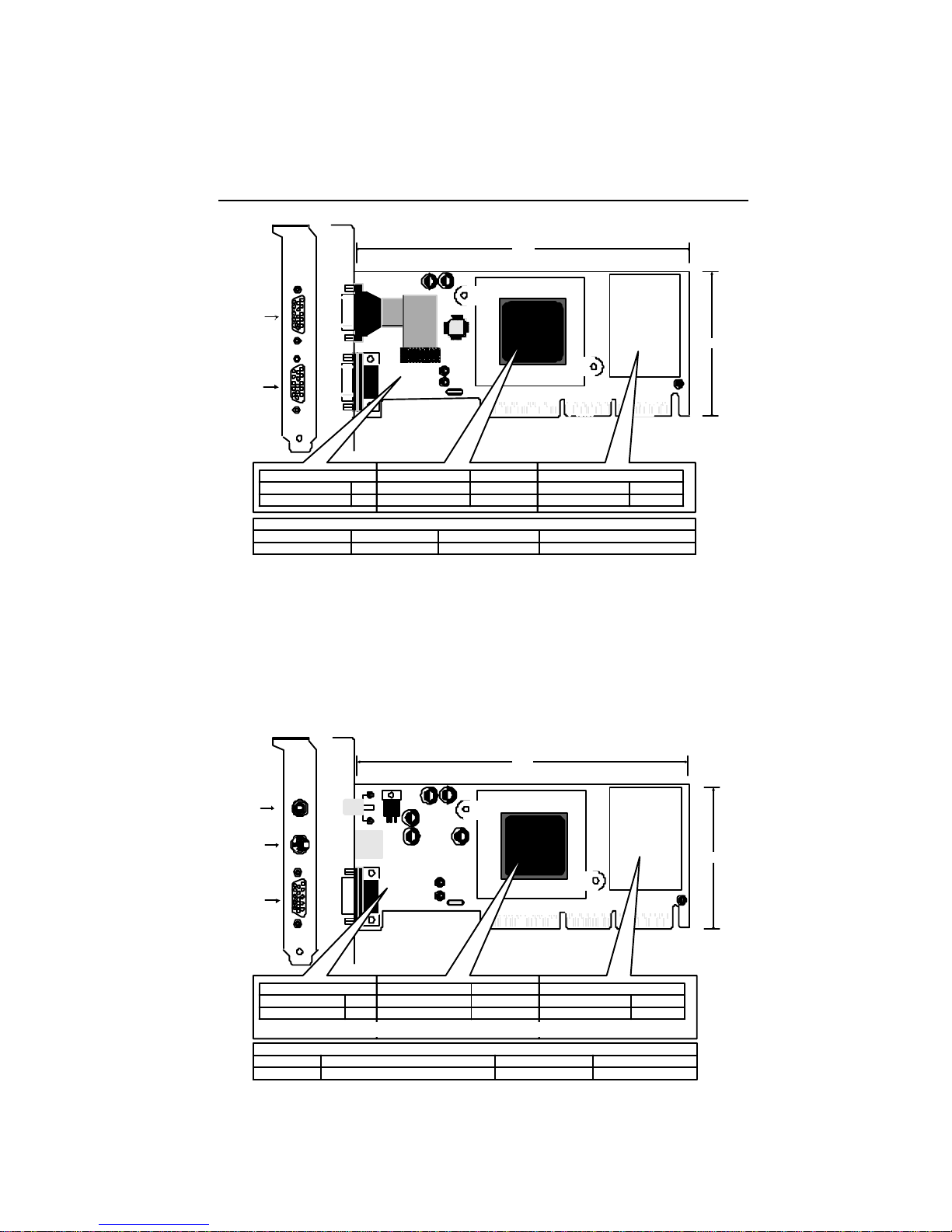

Hardware Description

nVIDIA

GeForce4

DB 15 VGA

(RGB out)

DisplayMemory

Bracket

Width

Height

Y200

Product Name / PCB Version

3DForce4 MX440-8X-64Twin

3DForce4 MX440-8X-128Twin

82198D

Core Chipset PCB Size Memory / Size

nVIDIA GeForce4 MX440-8X

W = 6.6" x H = 2.587"

8M*16 DDR SDRAM x 4

16M*16 DDR SDRAM x 4

64MB

128MB

AGP Bus 2x 4x 8x

Special Bracket(s) Alternative

P223 DB 15 VGA + DB 15 VGA L = 3.118", W = 0.725" For low profile PC use only

DB 15 VGA

(RGB out)

CON4

The second RGBout connector is portable component with a shortly

ribbon data cable that has plugged on CON4 as default by

manufacturer. Do not unplug it if unnecessary. For some reasons, if

you try to re-plugging the cable with connector on CON4, make sure

RED line on edge of cable is align to the PIN 1 which labeled on CON4.

Otherwise, the video signal may not straight throughout approriately

or, it may damages the video components onboard.

nVIDIA

GeForce4

DB 15 VGA

(RGB out)

DisplayMemory

Bracket

Width

Height

Y200

Product Name / PCB Version

3DForce4 MX440-8X-64TV

3DForce4 MX440-8X-128TV

82198D

Core Chipset PCB Size Memory / Size

nVIDIA GeForce4 MX440 - 8X

W = 6.6" x H = 2.587"

8M*16 DDR SDRAM x 4

16M*16 DDR SDRAM x 4

64MB

128MB

AGP Bus 2x 4x 8x

Special Bracket(s) Alternative

P203 DB 15 VGA + MD 4Pin + RCA Composite L = 3.118", W = 0.725" For low profile PC use only

MD4pin

(TVout)

RCA

Composite

TVout ports built-in onboard that Do Not need any converter cables from manufacturer.

Alternative brackets for low profile system are sold separately.

Please go to www.togopc.com for detail informatin.

MD 4pin

(TVout)

nVIDIA

GeForce4

MX 440 DisplayMemory

Bracket

DB 15 VGA

(RGB out)

Width

Height

Y200

Product Name / PCB Version

3DForce4 MX440-8X-64TV 82198B

Core Chipset PCB Size Memory / Size

MX440SE with AGP8X W = 6.6" x H = 2.587" 4M*32 DDR SDRAM x 4 64MB

AGP Bus 4x 8x

Special Bracket(s) Alternative

P201 DB 15 VGA + MD 4Pin L = 3.118", W = 0.725" For low profile PC use only

MD 4Pin TVout port built-in onboard which has bundled an 3” converter cable for MD 4Pin to RCA Composite from

manufacturer.

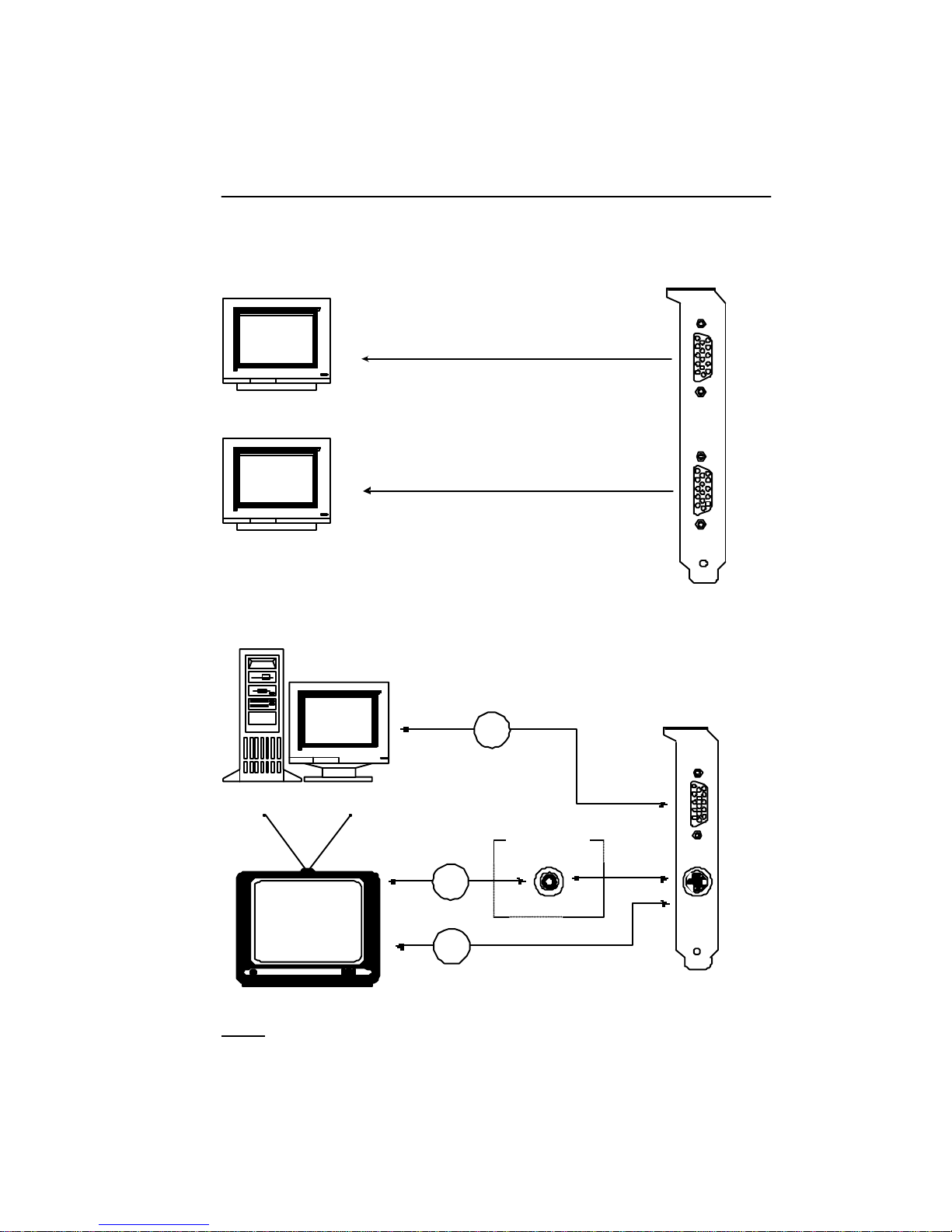

Display Devices OutputDisplay Devices Output

Device Output Connection (TVout)

Plate

TV set

DB 15 VGA

Connector

S_Video

Connector

RCAComposite

Connector

CRT Monitor

Device Output Connection (Dual RGB out)

AGP Plate

DB 15 VGA Connector

CRT Monitor 2

CRT Monitor 1 (Default output Connector)

(Additional output Connector)

Device Output Connection (PCB revision - 82198B)

Plate

TV set

PC Computer DB 15 VGA

Connector

S_Video

Connector

CompositeRCA

Convert Cable

MD4Pin

Note: TVout convert cable that describes above is bundle

within the package from manufacturer.
