NuTone ILF-120 User manual

®

Architectural & Engineering Specifications

March 2004

DESCRIPTION

• Remotely mounted fan reduces noise in occupied

areas.

• Use with adjustable inlet grilles to control flow for

any situation.

• Remote mounting provides flexibility in system

design.

•High quality external rotor motor features long life,

efficiency and quiet operation.

• Easy mounting to rafters or joist.

• Backward inclined centrifugal fan for strong air

delivery with minimal noise.

DESIGN FEATURES

Air Delivery: Model ILF120: 110 CFM at .2" S.P.

Model ILF130: 130 CFM at .2" S.P.

Model ILF250: 250 CFM at .2" S.P.

Sound Level: N/A -unit is remotely mounted

Material & Finish:

Housing: Durable polycarbonate plastic

Motor:

External rotor, ball bearing, 115 volts AC, 60Hz

;

ILF120 .37 amps.

ILF130 .37 amps

ILF250 .80 amps

Blower Wheel: Backward inclined centrifugal.

Duct Size: 4" diameter ILF120

5" diameter ILF130

6" diameter ILF250

INSTALLATION

• Not for use in cooking areas.

• Not for use in wet locations.

• Suitable for use with solid state speed controls.

• Housing mounts directly to bracket. Bracket

mounts to rafter or joist..

• Complete installation instructions included with

each unit.

• Switches and accessories available separately.

ARCHITECT'S SPECIFICATIONS

Exhaust Fan shall be Model ILF120, ILF130 or

ILF250 as manufactured by NuTone according to

listed specifications.

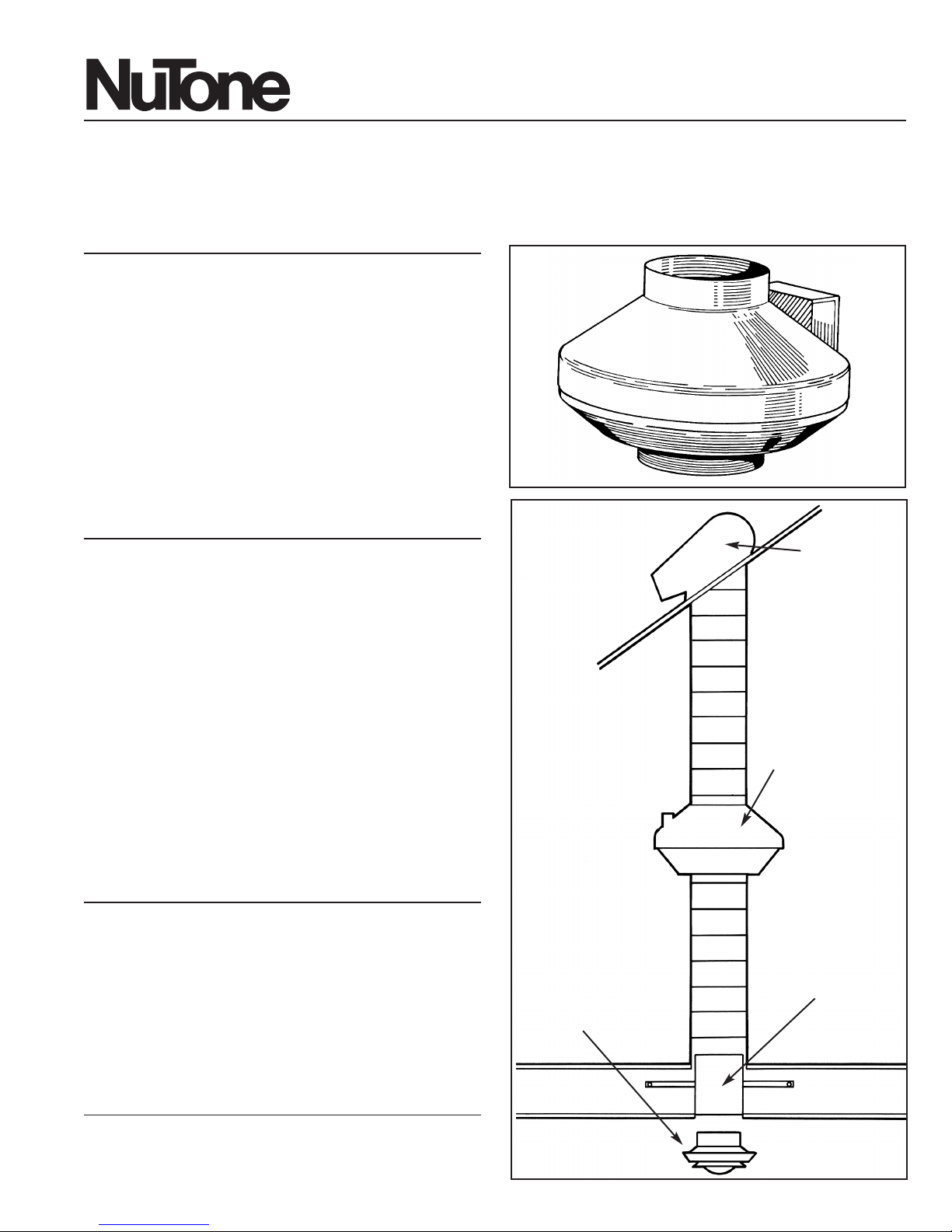

In-Line Fans

MODELS: ILF120, 130, 250

TYPICAL

INSTALLATION

ROOF CAP

FAN

DAMPER/SLEEVE

GRILLE

CERTIFIED TEST DATA

Air delivery and sound level ratings are certified by the

Home Ventilating Institute Division of AMCA, based on

testing performed by an independent third party testing

laboratory, in accordance with HVI standards. This NuTone

model is listed by Underwriters' Laboratories Inc. and

Certified by the Canadian Standards Association (CSA.)

STATIC PRESSURE

INCHES OF WATER

CFM

0.0

140 128 116 80 ---

0.1 0.2 0.5 1.0 1.5 1.75

STATIC PRESSURE

INCHES OF WATER

CFM

0.0

282 270 254 223 137 37 5

0.1 0.2 0.5 1.0 1.5 1.75

STATIC PRESSURE

INCHES OF WATER

CFM

0.0

161 145 132 88 ---

0.1 0.2 0.5 1.0 1.5 1.75

The air delivery of a ventilating system may be

determined by:

1. Determine the equivalent duct length for each 90 degree

elbow by adding one foot of duct length for each inch of

duct diameter, i.e., a 4 inch diameter duct elbow equals

4 feet equivalent duct length and an 8 inch diameter duct

elbow equals 8 feet equivalent duct length.

2. Add the total straight length of duct and the equivalent

length for each elbow to obtain the total equivalent duct

length.

3. Locate the intersection of the fan performance curve and

the total equivalent duct length curves and draw a

vertical line down to the CFM scale and read the system

air performance.

(NOTE: 3

1

⁄

4

" x 10" duct equals 6 inch diameter duct.)

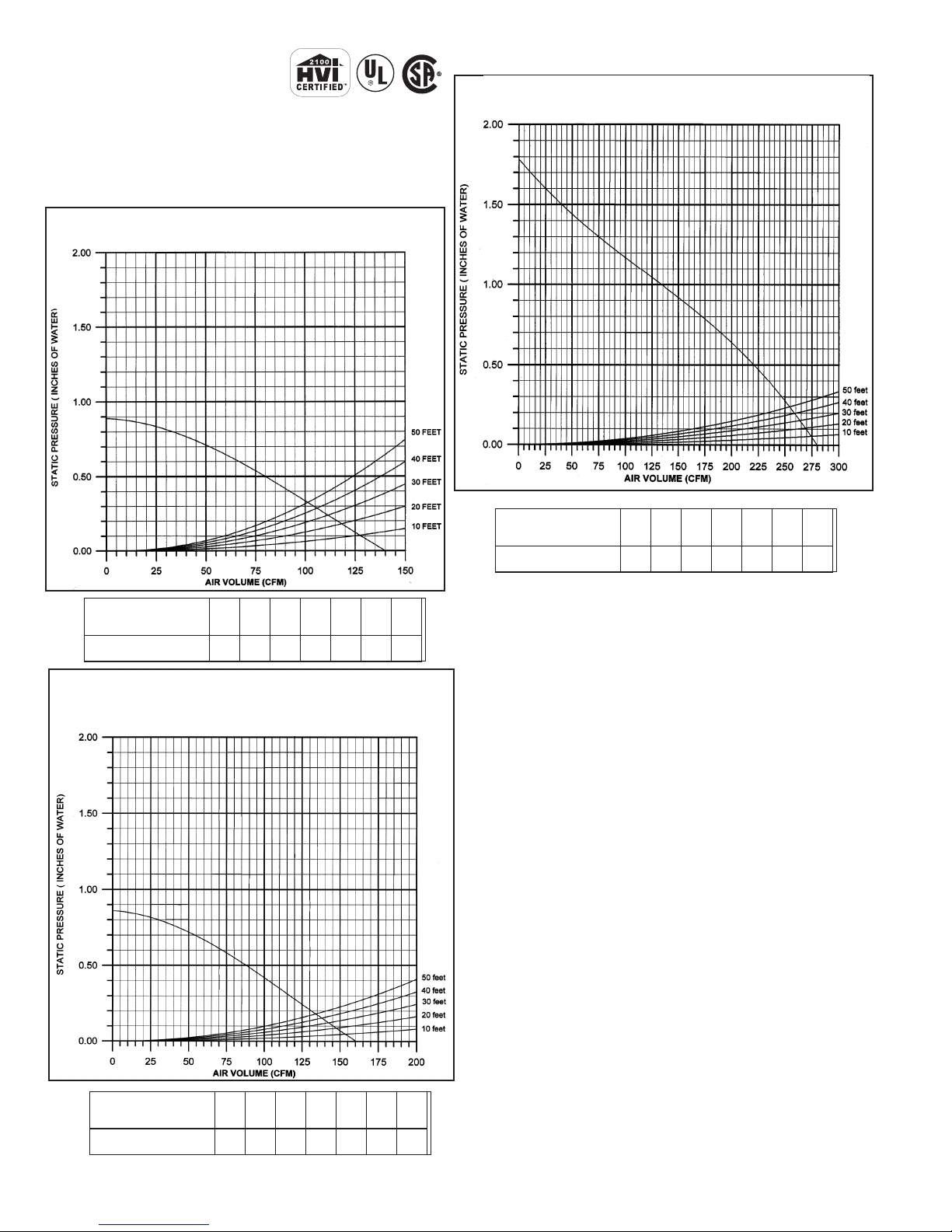

AIR PERFORMANCE CURVE-ILF120

4 In. Duct

AIR PERFORMANCE CURVE-ILF250

6 In. Duct

AIR PERFORMANCE CURVE-ILF130

5 In. Duct

Product specifications subject to change without notice.

NuTone, Inc., 4820 Red Bank Road, Cincinnati, Ohio 45227

Broan-NuTone Canada, Inc., 1140 Tristar Drive, Mississauga, Ontario, Canada L5T 1H9

Printed in U.S.A.
